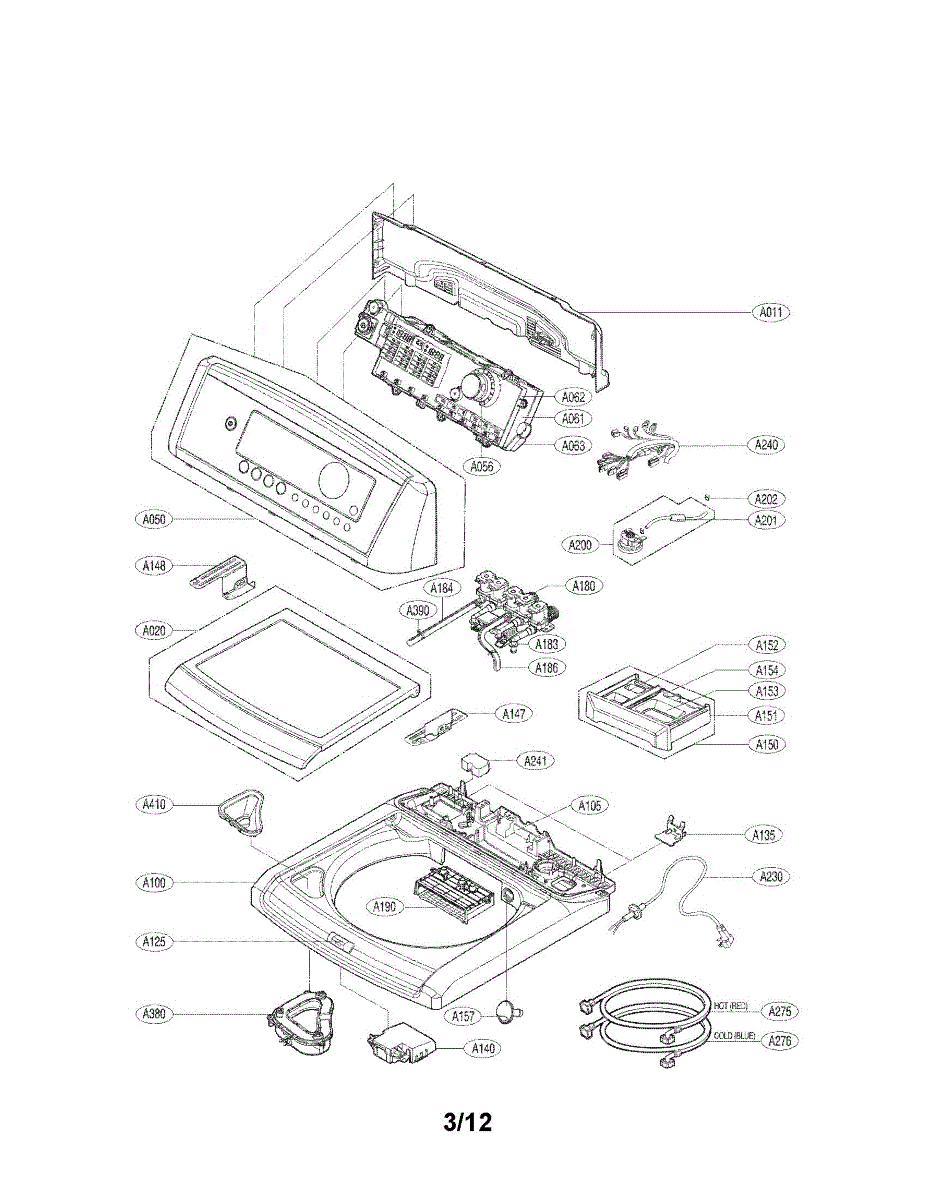

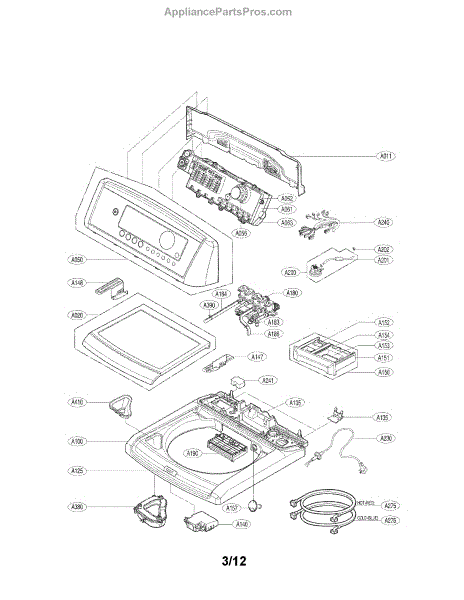

Parts for Lg WT5170HV: Top Cover Assembly Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement electronic control assembly is made by LG and is compatible with washing machines. The control board maintains the functions and cycles of the washing machine, such as the spin, rinse, and agitation cycles. This assembly contains all parts necessary for replacing a faulty, broken, or worn control board. Ensure the washing machine is entirely disconnected from both the power source and the water source before proceeding with any repairs or replacements. Work gloves should be worn as they can help to prevent injuries.This is a genuine OEM part and has been sourced directly from the manufacturer. This is an authentic part made of high-quality, durable materials and is only sold individually. This electronic control assembly can be used with washing machines that have been manufactured by LG and certain other brands.

The Lid Switch and Lock Assembly is an OEM component specifically designed for LG washing machines. It contains both the switch that detects when the lid is closed, as well as the metal lock mechanisms that securely engage the lid during active cycles. This switch contains a 47-inch wire harness with 6-pin plugs.

Symptoms of a bad lid switch and lock assembly include:

• The washer not starting or agitating with the lid open
• Inability to fully close or lock the washer lid
• Error codes related to sensed lid position issues

Causes of failure involve wear of lock moving parts combined with mechanical and electrical degradation over thousands of uses. Continuous hinge motions and detergent/cleaner exposure take their toll.

This Lid switch is also compatible with Kenmore units reliant on LG parts.

This bracket assembly secures internal components to the appliance frame, restoring stable support and alignment for panels or assemblies. Replacing a damaged bracket helps stop rattling and prevents misalignment that can affect operation. What it does:

• Provides a secure mounting point for panels, control boards, or internal assemblies
• Restores proper alignment to reduce vibration, noise, or rubbing parts
• Prevents loose components that can cause intermittent contact or wear
• Re-establishes structural support after impact, corrosion, or bracket failure

• One bracket assembly

• Verify power is disconnected before starting any repair
• Inspect mounting screws and adjacent parts; replace any damaged fasteners
• Tighten to manufacturer torque where specified and confirm proper alignment

This bracket assembly secures and supports internal appliance components, restoring proper alignment and stability to parts that have shifted or come loose. It provides a direct replacement to maintain safe, reliable operation. What it does:

• Provides a sturdy mounting point to keep panels, modules, or assemblies properly positioned
• Helps eliminate rattling, misalignment, or loose component movement
• Restores intended structural support after impact or wear
• Works as a direct-fit replacement to return original fit and function

• One bracket assembly

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate tools and keep fasteners for a secure fit; replace damaged screws as needed
• Inspect surrounding components and wiring for damage before reassembly

This detergent box assembly replaces the washer's front detergent/dispenser drawer so detergents and additives dispense cleanly during cycles. It restores proper product delivery and helps reduce residue build-up in the dispenser area. What it does:

• Houses and channels liquid and powdered detergents and additives into the wash at the correct time
• Prevents detergent from pooling or leaking into the washer cabinet when functioning correctly
• Reduces visible residue and clogging in the dispenser area that can affect dispensing
• Compatible with front-load washer detergent/dispenser systems that use a removable drawer

• One detergent box assembly

• Remove power and water supply before beginning service
• Typically installs by sliding into the dispenser housing and securing any retaining clips or screws
• Inspect surrounding seals and rails for damage and clean any residue before installing the new assembly

The Softener Cap is an OEM part for LG washing machines. It serves as the lid and housing for the internal water softener that prevents mineral deposits from building up. The softener cap funnels water to and from the softener compartment during various stages of the wash cycle.

Causes of a faulty softener cap can include cracked or degraded seals over extended usage, impact damage distorting fit, or harsh cleaners affecting plastics over time.

Symptoms of a bad softener cap include:

• Water leaks from around the softener area
• The cap not closing or sealing properly
• Mineral buildup occurring prematurely
• The softener not functioning as intended

This genuine LG replacement is compatible with Sears/Kenmore machines.

This softener dispenser cap replaces the worn or cracked cap that covers the fabric softener chamber, restoring proper containment and controlled release of liquid softener during the wash cycle. A simple, low-cost part that prevents leaks and keeps the dispenser functioning. What it does

• Covers and seals the fabric softener compartment so liquid stays in the dispenser until the rinse cycle.
• Helps prevent softener from leaking into the washer drum between cycles.
• Restores a secure fit when the original cap is cracked, warped, or missing.
• Resolves issues with softener dispensing at the wrong time or pooling in the dispenser.

• One softener dispenser cap (1 piece)

• Disconnect power to the washer before accessing internal parts and follow all safety precautions.
• Typically accessed by removing the dispenser drawer or top panel—refer to your washer's service instructions.
• Inspect surrounding dispenser components for damage and replace any worn parts to ensure a proper seal.
• No electrical connections; basic hand tools may be required.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This replacement nozzle assembly restores proper flow and distribution within the appliance's system to maintain cleaning performance. Replace a cracked, clogged, or worn nozzle to help prevent performance loss and keep the unit operating efficiently.

• Directs and concentrates flow through the appliance for effective operation
• Helps maintain a sealed path to avoid leaks or loss of performance
• Damage or obstructions can cause reduced cleaning results, unusual noise, or visible leaks/air leaks
• Visible cracks, warping, or a loose connection indicate the nozzle should be replaced

• Disconnect power (and water supply if applicable) before servicing
• Remove the old nozzle per your model's service information; clear any debris from the mating areas
• Inspect related seals/gaskets and replace if worn to ensure a proper seal
• Install the new nozzle securely and test for proper operation and leaks/airflow

The Water Inlet Valve is an OEM replacement part specific to LG washing machines. It is an electronic solenoid valve located near the water supply inlet ports that controls the flow of water into the washer tub. The inlet valve precisely regulates water levels during different phases like filling, washing, rinsing, and spinning cycles.

Causes of a bad water inlet valve can include worn or faulty electronic components, mineral buildup obstructing valve movement, or damage to seals and diaphragms.

Symptoms of a bad water inlet valve include:

• Inability to properly fill the washer tub during cycles
• Water leaking or flooding from the valve area
• Erratic water temperature or varying fill levels between loads
• Cycles failing to advance due to inadequate or unregulated water flow

This OEM LG part is also compatible with Sears/Kenmore models.

This inlet hose channels household water into the appliance during the fill cycle. Replacing a cracked, brittle, or leaking hose restores a secure, leak-resistant path that helps prevent puddles and fill-related interruptions. What it does:

• Routes incoming water from the inlet valve into the appliance's internal water path
• Helps maintain a watertight connection when properly secured with clamps
• Typical failure signs: dripping or puddling under the unit, visible cracks/kinks/bulges, or lingering dampness
• A restricted or leaking hose can contribute to long fill times or incomplete cycles

• 1 inlet hose

• Disconnect power and turn off the water supply before servicing
• Place towels or a shallow pan to catch residual water
• Note the original routing and clamp locations; install the new hose the same way without twists or kinks
• Fully seat hose ends and secure clamps; restore water and run a brief fill to check for leaks

Detergent housing assembly that holds and routes detergent to the washer dispenser, helping ensure proper detergent flow and reducing leaks or dispenser jams. Fits into the dispenser area to replace cracked, warped, or damaged housing components. What it does:

• Houses and channels liquid or powdered detergent into the dispenser and wash chamber
• Restores proper detergent release when the original housing is cracked, broken, or warped
• Helps stop leaks and detergent buildup around the dispenser area
• Works with the dispenser drawer and related seals to maintain correct flow

• Disconnect power and turn off the water supply before starting service
• Use basic hand tools and follow the washer service manual or OEM diagram for disassembly/reassembly
• Inspect and replace any worn seals or gaskets at reassembly to prevent leaks

The Water Level Pressure Switch is an OEM replacement part for LG washing machines. It is an essential component that monitors and detects the water level within the washing machine tub during the wash cycle.

Symptoms of a bad water level pressure switch:

• Washing machine not filling with water or not stopping when the desired water level is reached
• Excessive water intake, leading to overfilling and potential leaks
• Error codes or indicators related to water level issues
• Washing machine not advancing to the next cycle due to incorrect water level detection

Causes of a bad water level pressure switch can include mechanical failure, electrical malfunctions, or blockages or debris preventing accurate water level readings.

This OEM LG part is also compatible with Sears/Kenmore washing machine models.

This multi wiring harness routes power and control signals between an appliance's control board and multiple components, restoring reliable electrical connections for proper operation. Designed to replace a worn, damaged, or faulty multi harness. What it does:

• Provides power and signal paths between control electronics and components
• Replaces broken, frayed, or corroded wiring that can cause intermittent operation or component failure
• Addresses symptoms such as no power to specific components, intermittent operation, or devices that won't respond
• Restores factory routing and connector interfaces when the original harness is damaged

• Disconnect power before starting any repair
• Compare the new harness to the old one to ensure connectors and lengths match before installation
• Route the harness along the original path and secure with existing clips or fasteners; avoid pinch points or heat sources
• If you find damaged connectors, bent pins, or other issues, replace the harness rather than attempting temporary repairs

This filter assembly is the appliance's line noise filter. It conditions incoming AC power and suppresses electrical interference to protect sensitive controls and help restore stable, reliable power when the original filter has failed. What it does:

• Suppresses EMI/RFI on the AC line to reduce electrical noise reaching the control system
• Helps stabilize power to boards, relays, and motors
• Common failure symptoms: no power, intermittent power, tripped breaker or blown line fuse, burning smell or visible scorching at the old filter
• Also known as a line filter, EMI filter, or noise filter

• 1 filter assembly

• Disconnect power to the appliance before servicing; capacitors in some products can retain a charge
• Note wire locations; transfer leads to identical terminals on the new filter and secure the ground connection
• Mount the assembly firmly in the original location to prevent vibration or wire strain
• After replacement, inspect related fuses and wiring if the old filter showed signs of overheating or surge damage

This inlet hose routes household water into the appliance so it can fill and operate correctly. Replacing a damaged inlet hose restores proper water flow and prevents leaks that can cause poor performance or water damage. What it does:

• Channels incoming water from the household supply into the appliance
• Stops leaks and restores normal fill when the original hose is cracked, split, or worn
• Helps correct symptoms like no water entering the appliance, slow or intermittent fill, or visible leaking at the hose connection
• Works with the appliance's valve and fittings to maintain a sealed water path

• Turn off the water supply and unplug the appliance before starting any work
• Inspect fittings and seals; replace any worn gaskets to ensure a watertight connection
• Hand-tighten connections then check for leaks; avoid overtightening plastic fittings

This dispenser assembly is the washer's detergent drawer housing. It channels incoming water through the detergent and fabric softener compartments (and prewash, if equipped) so additives are dispensed at the correct time and helps prevent leaks at the dispenser area.

• Directs water through the dispenser to flush detergent/softener into the tub at the proper points in the cycle
• Replaces cracked, warped, or clogged housings that leak or misdirect water
• Helps resolve detergent or softener remaining in the drawer after a cycle
• Addresses water leaking or overflowing from the dispenser area or visible damage/mineral buildup in the dispenser box

• Unplug the washer and shut off water supplies before servicing
• Pull out the drawer, remove the top cover as needed, then remove mounting screws and release hose clamps to detach the old assembly
• Move hoses/clamps to the new assembly and ensure gaskets/siphon caps are properly seated
• Run a quick fill/rinse to check for leaks before final reassembly

The Clamp is an OEM part for LG washing machines. It is used to secure the hose connections within the washer, ensuring that water flows correctly without leaks.

Over time, the clamp can become worn or damaged due to repeated exposure to water, vibration, or general wear and tear. If the clamp fails, it can lead to water leaks or hoses becoming detached.

Symptoms of a bad clamp include:

• Water leaking from hose connections
• Hoses coming loose or detaching during operation
• Visible rust or damage on the clamp
• Poor water flow or pressure issues

This OEM LG part is also compatible with Sears/Kenmore models.

This small cover cap conceals an exposed fastener or opening on your appliance, restoring a clean, finished look. It also helps protect the area from dust and splashes for a tidy, long-lasting installation.

• Covers and protects an open screw hole or attachment point on a panel or door
• Restores a clean, factory appearance
• Helps keep dust and moisture out of the opening
• Common signs it's needed: missing cap, cracked/broken cap, loose cap, won't stay clipped

• Disconnect power (and water, if applicable) before servicing exterior panels or doors
• Note the cap's orientation and any retaining tabs before removal
• Use a plastic pry tool to gently release the old cap; press the new cap until fully seated
• Avoid forcing the cap or overtightening any underlying fastener to prevent damage
