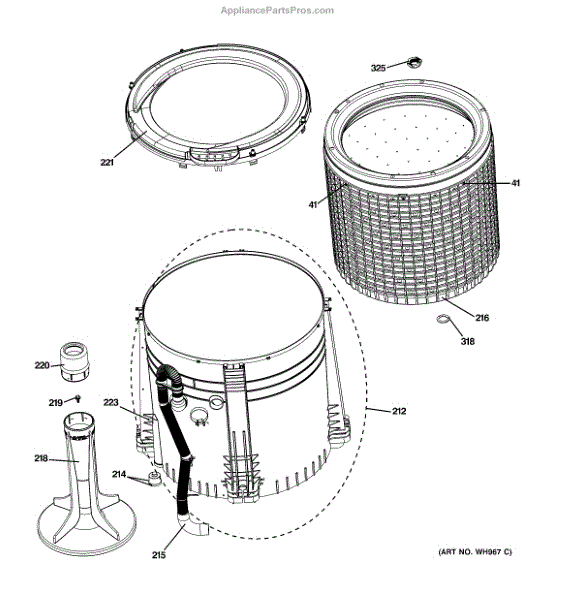

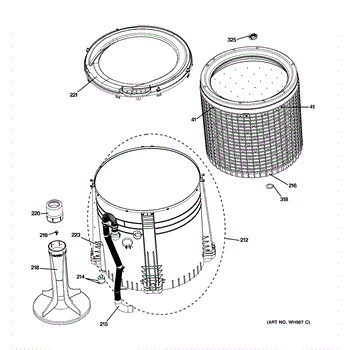

Parts for Kenmore 363.61532110 (36361532110, 363 61532110): Tub, Basket & Agitator Parts

This part is the outer tub assembly for washing machines. It is often used in washer dryer combo units. This particular part houses the spin basket. It also holds the water during the washing cycles. In the event that the washing machine is leaking water, do a visual inspection of the outer tub to check for any cracks. If the tub has been damaged in any way, it will allow water to leak out. If this is the case, it will need to be replaced with this durable part. Make sure to unplug the washing machine from the outlet prior to attempting to replace this part. Wear work gloves to protect the hands.The tub is compatible with washing machines and washer dryer combo units that are manufactured by GE and Kenmore. It is a genuine OEM part this is sourced directly from the manufacturer. It is sold individually.

This overflow elbow is a small drain fitting that routes excess water away from the appliance to prevent spills and water damage. It restores proper overflow/drain flow so the unit can safely divert unwanted water. What it does:

• Directs overflow or drain water from the appliance plumbing to the drain path
• Replaces cracked, clogged, or leaking elbows that can cause pooling or leaks
• Helps restore normal draining behavior and reduces risk of water where it shouldn't be
• Fits into the appliance's existing drain/overflow tubing and connections

• One overflow elbow

• Inspect surrounding hoses and clips; replace any damaged components for a reliable repair
• Disconnect power and water supply before beginning work to avoid electrical shock or flooding
• Use appropriate clamps or fittings to ensure a secure, leak-free connection

This 27" basket assembly replaces a damaged or worn dishwasher rack so you can securely load dishes and slide the rack smoothly. It restores stable support for plates, bowls and glassware and improves rack alignment. What it does:

• Provides the main lower/upper dish support surface so items sit securely during wash cycles
• Restores smooth in-and-out rack travel when original basket is bent or worn
• Prevents dishes from shifting or contacting each other due to damaged tines or walls
• Helps reduce clattering, scraping or poor wash coverage caused by a misshapen rack

• One 27" basket assembly as shown

• Disconnect power to the appliance and shut off the water supply before beginning any work
• Remove remaining dishes and carefully lift out the old basket; handle edges and glassware with care
• Align the basket on the rack rails and slide into position; verify rollers/wheels engage the track
• If the basket is large or awkward, have a second person assist to avoid dropping or damaging the part

This washer agitator assembly mounts on the drive shaft and creates the back-and-forth wash action that moves laundry through water and detergent. Replacing a worn or cracked agitator restores proper turnover and cleaning performance.

• Attaches to the drive shaft/transmission to produce the oscillating wash action
• Circulates clothes for even cleaning and reduced tangling
• Replace if the washer won't agitate, the agitator free-spins or slips, laundry stays on top, or it's visibly cracked/loose
• Can also help address squeaking, clicking, or grinding caused by a damaged agitator

• Unplug the washer and turn off water supply; wear cut-resistant gloves
• Remove the dispenser/cap if present, then the inner cap; take out the retaining bolt or nut
• Lift the old agitator straight up; if stuck, rock it gently to free it without damaging the tub
• Align the new agitator with the drive splines, press down fully, reinstall fastener and cap, then run a short cycle to ensure proper agitation

The agitator screw secures the washer's agitator to the drive shaft so it can move clothes effectively during the wash cycle. Replace a lost, stripped, or rusted screw to help stop wobble and restore proper agitation.

• Fastens the agitator to the drive shaft/coupler to transfer motion
• Address a loose or wobbly agitator, rattling/clunking, or weak/intermittent agitation
• Replace if the original screw is missing, corroded, or has stripped threads or head
• Helps prevent the agitator from lifting off during operation

• Disconnect power and ensure the washer is empty before servicing
• Remove the fabric softener dispenser and agitator cap to access the fastener
• Align parts, start the screw by hand to avoid cross-threading, then tighten snugly—do not overtighten
• Reinstall caps/dispenser and run a brief test cycle to proper agitation

This replacement cover fits the washer's front service door. It restores a clean, finished look and helps shield the service compartment from dust and debris when the original cover is cracked, loose, or missing.

• Covers the service opening to protect internal components from debris and accidental contact
• Restores cabinet appearance by concealing the service area
• Replaces a broken, warped, loose, or missing cover
• Common symptoms: cover won't stay closed, visible cracks, rattling, or a missing access cover

• Disconnect power and turn off water before servicing
• Remove the damaged cover
• Align the new cover with the existing hinge/tabs and secure per your model's configuration
• Confirm proper closure and clearance before restoring power

Note: Newly designed cover includes 4 new rod and spring assemblies. The tub dampening straps and clips are no longer used.

The Nut Hub is an OEM replacement part for GE top-load washing machines. This component plays an integral role during the spin cycle, transmitting rotational force from the motor to the tub for the removal of water from clothes. The Nut Hub connects directly to the drive shaft and incorporates several mounting points to securely join additional drum parts.

Causes of a bad Nut Hub can include cracks, fractures, or stripped threads due to overloading or excessive strain during spinning. Loose or ineffective connections between the Nut Hub and other components impair power transmission.

Symptoms of a bad Nut Hub include:

• Vibrations or shaking during the spin cycle
• Noisy or grinding sounds
• Incomplete water removal, resulting in soggy clothes
• Failure of the tub to rotate

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This factory service kit is engineered for the 27-inch Centauro front-load washer platform. It refreshes critical tub and basket components to help restore smooth, quiet spinning and consistent wash performance.

• Maintains proper drum rotation, alignment, and sealing within the tub/basket system
• Helps address rumbling or grinding during spin, excessive vibration/wobble, or water near the tub area
• Restores a secure fit between rotating and stationary tub components
• Platform-specific fit for correct clearances and balanced operation

• Disconnect power and water before servicing; wear gloves and eye protection
• Access typically requires removing top/front panels and door boot; support the tub and drum during disassembly
• Transfer and torque fasteners evenly per service instructions; re-level the washer after reassembly
• Run a test rinse/spin and check for noise and leaks before returning to service
