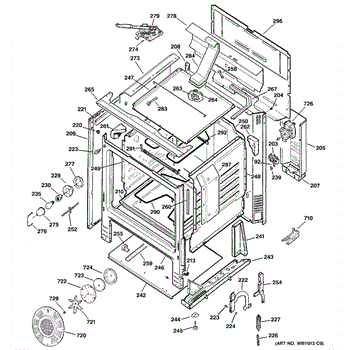

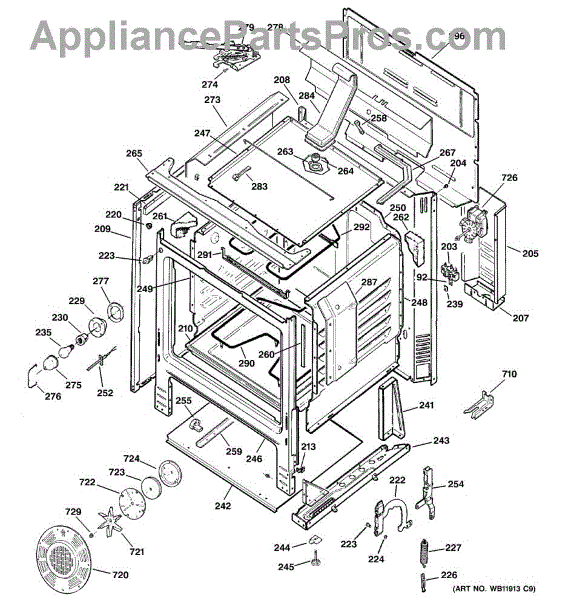

Parts for Ge RB797BC1BB: 02 - Body Parts

The Terminal Block is an OEM part for GE electric ranges. It serves as a critical junction point where the range's wiring connects to the heating elements, ensuring proper electrical flow and operation of the oven and cooktop. This component is essential for the safe and efficient functioning of your appliance.

Causes of a bad terminal block can include overheating due to electrical surges, corrosion from prolonged exposure to heat and moisture, or physical damage from improper installation or handling.

Symptoms of a bad terminal block include:

• The oven or burners not heating properly
• Visible signs of burn marks or corrosion on the block
• Electrical arcing or sparking
• Intermittent or no power to the heating elements

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This guard terminal protects and shields wire connection points on your appliance, helping prevent accidental contact and shorting while keeping terminals organized for reliable operation. What it does:

• Covers and insulates exposed terminal connections to reduce risk of arcing or short circuits
• Keeps wiring routed and separated for consistent electrical contact
• Helps avoid accidental contact during maintenance or part replacement
• Supports safe operation by protecting fragile terminal ends from bending or snagging

• Disconnect power to the appliance before inspecting or replacing electrical parts
• Replace only with the correct terminal guard
• Use basic hand tools; avoid bending terminals or over-tightening fasteners

This bracket mounting terminal secures the appliance's main electrical terminal block to the cabinet, keeping wiring stable for a safe, reliable power connection. It's a direct-fit replacement where terminal block support is damaged or loose. What it does

• Physically mounts and supports the main terminal block so incoming power wires stay secure
• Keeps wiring strain-relieved to reduce the risk of loose connections or arcing
• Restores a stable electrical connection when a broken or bent bracket causes intermittent power or poor contact
• Helps prevent overheating at the terminal connection by maintaining proper alignment

• One bracket mounting terminal

• Disconnect all power before servicing; lock out and tag if needed
• Use basic hand tools; avoid overtightening terminal screws to prevent damage
• Inspect wiring and terminal block; replace any damaged wires or connectors when present

This oven door hinge assembly controls the door's movement and keeps it sealed against the frame. Replacing a worn hinge restores smooth opening and a tight close, helping maintain temperature and consistent cooking performance.

• Provides spring-assisted pivot to support the oven door during opening and closing
• Maintains alignment and helps the door stay fully closed against the gasket
• Direct replacement for bent, weak, or broken hinges
• Common symptoms: door won't close fully, drops or slams open, sits uneven, squeaks, or allows heat to escape

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door; engage hinge locks or insert hinge pins and support the door while lifting it off
• Springs are under tension—use caution and wear gloves/eye protection
• After replacement, check door alignment and gasket seal; many replace both hinges together for even operation

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

Clip for door hinge.

This hook door spring helps restore proper tension and support to an oven or range door, improving door balance and smooth opening/closing. Designed to replace a worn or broken door tension spring. What it does:

• Provides tension to counterbalance the oven/range door for controlled opening and closing
• Helps prevent the door from sagging or dropping unexpectedly
• Restores proper door alignment and feel after spring wear or breakage
• Useful when the door hangs unevenly or doesn't stay open at intended positions

• One hook door spring

• Disconnect power to the appliance and allow components to cool before starting repairs
• Springs are under tension; wear eye protection and gloves and follow OEM instructions for safe removal and installation
• Installation may require partial door removal or support

The Receptacle Push-In is an OEM replacement part for GE ranges. This component securely holds the electrical receptacle/plug in place on the back of the range. Proper functioning of the receptacle push-in allows for a stable electrical connection and safe cord positioning.

Causes of a bad receptacle push-in include normal wear over time, bending/stress on the receptacle area, or damage affecting its securing ability.

Symptoms of a bad receptacle push-in are:

• Loose or wobbly electrical plug connection
• Exposed wiring or fragile cord positioning
• Tripped breakers or recurring electrical issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

10 - 32 Nickel plated

Hex

The Oven Sensor Kit is an OEM replacement part for GE ranges. It contains critical sensors that monitor the oven's temperature, functions, and safety features during the cooking process. An accurate and fully functioning sensor kit is essential for reliable oven performance.

Causes of a bad oven sensor kit can include failures in individual sensors due to prolonged use and heat exposure over time. Electrical issues affecting communication between sensors and the control board may also require sensor replacement.

Symptoms of a bad oven sensor kit include:

• The oven not heating or cooling as expected
• Inability to properly select or maintain temperature settings
• Error codes or failure messages appearing
• Safety features like the door lock not activating

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Left hand side

Right hand side

The Drawer Support is an OEM part for GE ovens. This component provides structural stability and support to the oven drawer, ensuring it slides in and out smoothly and securely holds baking pans and other items stored within.

Causes of a bad drawer support can include regular wear and tear, excessive weight placed on the drawer, or physical damage from impacts or misalignment.

Symptoms of a bad drawer support include:

• Difficulty in opening or closing the oven drawer
• The drawer sagging or appearing misaligned
• Unstable or wobbly drawer when in use
• Noise or friction when sliding the drawer

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

Right hand side

Left hand side

This is a replacement screw used to secure appliance panels and small components. It restores proper fastening and helps eliminate loose parts, rattling, or misaligned panels for a tight, safe fit. What it does:

• Secures panels, trim, brackets, or small assemblies to restore proper alignment
• Stops rattling or vibration caused by missing or loose fasteners
• Provides the correct threaded fastening where the original screw is lost or damaged
• Matches OEM fastening function for reliable reassembly

• Disconnect power or unplug the appliance before starting any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread the screw in by hand first, then tighten snugly—do not overtighten to avoid stripping or cracking
• Keep small parts away from children and pets during installation

The Oven Light Lens is an OEM part for GE ovens, designed to protect and cover the oven light bulb. It allows for a clear view of the oven's interior, making it easier to monitor the cooking progress without opening the oven door, thus maintaining a consistent temperature.

Over time, the oven light lens can become discolored or cloudy from exposure to high temperatures, grease, and food splatters, which can diminish its effectiveness. Additionally, accidental bumps or cleaning can lead to cracks or breaks in the lens.

Symptoms of a bad Oven Light Lens include:

• Diminished light output, making it hard to see inside the oven
• Cracks or damage to the lens itself
• Discoloration or cloudiness that cannot be cleaned off
• The lens becoming loose or falling off

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bail is the replacement door/handle support used to secure a handle or attach components to an appliance door or panel. It restores a stable grip and proper attachment when the original bail is cracked, bent, or missing. What it does

• Replaces a worn, broken, or missing bail that supports a door handle or accessory
• Restores a secure connection so the handle or component doesn't wobble or detach
• Helps prevent further damage from a loose or improperly supported handle
• Fits into the existing mounting points to re-establish proper alignment

• One replacement bail

• Disconnect power and remove any removable panels or doors before starting
• Use basic hand tools; retain original screws and fasteners unless damaged
• Align bail with existing mounting holes and secure without over-tightening

The Bake Element is an OEM replacement part for GE electric ranges. It is the internal heating element located at the bottom of the oven cavity that provides heat for baking and convection cooking functions. This heating element measures 17 1/2 x 18 1/2 inches.

Causes of a bad bake element include failure due to normal wear and tear over extended use. Exposure to spills or splatters inside the oven can potentially damage heating coils or insulators.

Symptoms of a bad bake element are:

• Inconsistent or uneven baking temperatures
• Element does not heat up or turns red but puts out no heat
• Buzzing/humming sounds from beneath oven cavity
• Failure of oven to operate or preheat as expected

This OEM part is also compatible with ranges sold under the Hotpoint, RCA and some Kenmore brands.

This broil element support bracket secures the upper heating element to the oven cavity, maintaining proper spacing and alignment. Replacing a damaged or missing support restores stable mounting and helps prevent sagging or arcing.

• Holds the broil element in position at the top of the oven
• Maintains safe clearance from the liner to reduce shorts/sparking
• Helps promote even broiling by keeping the element level and centered
• Common symptoms include a broken/missing support, a sagging or loose element, rattling, or scorch marks near the mount

• Disconnect power at the breaker and allow the oven to cool completely
• Remove oven racks; support the broil element while removing the existing support and screw
• Position the new support and secure it with the mounting screw; do not overtighten
• The element sits level with adequate clearance before restoring power and testing

The Oven Broil Element is an OEM replacement part for GE ovens. It is located in the upper portion of the oven cavity and is responsible for generating intense heat for broiling foods. This element provides even heat distribution, ensuring proper cooking and browning of food during the broil cycle.

Over time, broil elements can wear out or fail due to frequent use, high temperatures, or electrical issues. A damaged element will affect the oven's ability to broil properly.

Symptoms of a bad broil element include:

• The broil function not working or producing insufficient heat
• Uneven browning or cooking of food during broiling
• Visible damage, such as breaks or blisters on the element
• Sparking or tripping of the circuit breaker when the broil setting is used

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

Replacement fan blade that mounts to the motor shaft to circulate air inside the appliance, restoring airflow and reducing vibration or noise from damaged or bent blades. Works with the fan motor to help maintain proper cooling and ventilation. What it does:

• Spins on the motor shaft to move air through the appliance's cabinet or evaporator area.
• Restores even airflow for more consistent cooling and performance.
• Reduces excessive noise and vibration caused by cracked, warped, or missing blades.
• Helps prevent airflow-related issues such as warm spots or slow cooling when the fan is not operating properly.

• Disconnect power to the appliance before servicing to avoid electric shock or injury.
• Remove interior panels or housing to access the fan; handle the blade carefully — edges can be sharp.
• Slide the blade onto the motor shaft and secure per OEM method (set screw, clip, or hub); ensure proper alignment and rotation direction.
• Test fan operation after installation and reassemble panels securely.

Back

This fan insulation pad cushions and isolates the fan assembly to reduce vibration noise and help direct airflow around the fan. It's a simple replacement that restores proper fit and helps the appliance run more quietly. What it does:

• Cushions the fan motor and housing to reduce vibration and rattling sounds
• Helps maintain correct air path around the fan for proper cooling or circulation
• Prevents metal-to-metal contact that can cause wear or noise
• Useful when torn, compressed, or missing insulation causes loose fit or added noise

• Remove power to the appliance before beginning any repair
• Handle the foam gently to avoid tears; align around fan housing per OEM positioning
• No special tools typically required; keep fasteners and mounting clips for reassembly

A single-speed convection fan motor that circulates hot air for more even oven cooking and consistent temperatures. Replacing a worn or failed motor restores convection airflow and helps reduce uneven baking. What it does:

• Circulates heated air inside the oven cavity to support convection bake and roast modes
• Restores consistent oven airflow for more even cooking and baking results
• Helps when the convection fan doesn't run, runs intermittently, or makes unusual/grinding noises
• For use where a single-speed convection blower motor is specified by the manufacturer

• Disconnect power to the appliance before servicing to avoid shock hazard
• Allow the appliance to cool completely before accessing the oven cavity
• Verify wiring connections and mounting orientation match the old motor; transfer fan blade or bracket if required

This is a genuine OEM replacement nut that is used on convection oven fans. This nut holds the fan onto the spindle. If the nut becomes lost during repairs to the fan, it will need to be replaced before the fan will work. This nut locks the fan to the spindle to turn and move the air around inside the oven. The fan helps the food to cook more evenly and reduces areas in the oven that are not cool enough or hot enough. If the fan is not working, the convection oven will not cook correctly.Convection ovens are different from regular ovens, and the fan is part of the reason. Convection ovens use the fan and an exhaust system to move the heat around inside the oven to cook food more evenly and faster. Many convection ovens have a setting that allows the oven to be used as a regular oven. If the nut is missing and the fan is inoperable, the oven can be used for regular cooking if it has this feature. Otherwise, the convection oven should not be used until the nut is replaced.This nut is a silver metal replacement part that is sold individually. It is designed for use in convection ovens made by GE and Kenmore.
