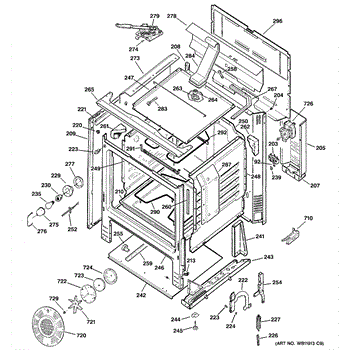

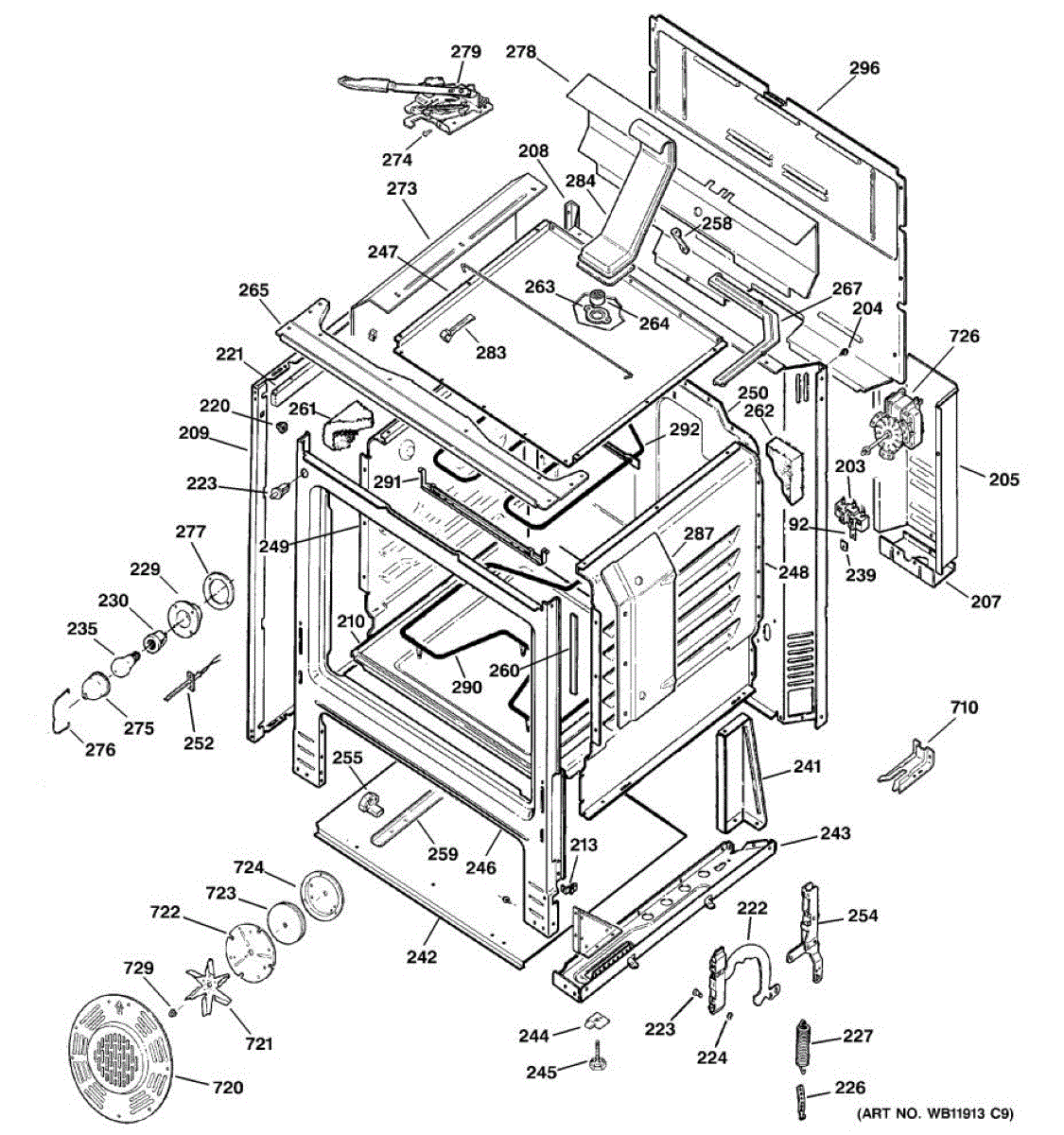

Parts for Ge RB797WC1WW: 02 - Body Parts

Range won't heat or power cord overheated? A faulty terminal block disrupts power to elements. Common DIY fix with basic tools in under an hour.

Mounting screw for range installation and assembly. Replace missing, stripped, or damaged screws to secure panels, brackets, or components properly.

Replacement mounting screw secures panels, brackets, and trim on ranges and cooktops. Install to replace missing, stripped, or rusted fasteners.

Replacement mounting screw for appliances. Secures components and reduces vibration. Needed when original screws are missing, stripped, or damaged.

Protects wire connection points on your range. Shields exposed terminals from accidental contact and shorting. Replace if cracked, broken, or missing.

Secures the terminal block to your range cabinet. Replace this bracket if damaged, cracked, or missing to properly support the electrical connection assembly.

Replaces the bottom panel inside your electric range oven cavity. Order a new bottom when the original is cracked, rusted, warped, or damaged.

Speed nut for electric and gas ranges. Secures panels and components inside your range. Replace if stripped, missing, or no longer holding parts firmly.

Replacement oven door hinge assembly for ranges. Installs on the door frame to control opening and closing. Replace if broken, cracked, or no longer springs.

Oven won't heat or fan won't run? This high-amp SPDT switch routes power to locks, relays, and fans. Fixes intermittent operation. Moderate DIY fix.

Clip for door hinge.

Replacement door spring for electric ranges. Installs inside the door hinge to provide tension and counterbalance. Needed when original is stretched or broken.

Replace your range's light receptacle socket when the oven light flickers or won't turn on. Easy DIY fix restores proper bulb connection. Confirm fit by model.

Replaces dim, flickering, or burnt-out bulbs in refrigerators, ovens, and microwaves. Restores interior lighting for visibility. Verify fit with model.

10 - 32 Nickel plated

Hex

Protects insulation at the bottom of your range. Replace this guard if it's cracked, broken, or missing to maintain proper heat insulation and safety.

If your oven won't preheat or shows an F3 error code, this temperature sensor monitors oven heat and safety features. Direct plug replacement, 15-minute fix.

Left hand side

Mounting screw that secures the hinge assembly on electric and gas ranges. Replace this fastener if the original is stripped, missing, or damaged.

Right hand side

Structural support bracket that mounts inside the range storage drawer cavity. Replaces broken, cracked, or worn supports that fail from heavy items.

Drawer slide rail for electric and gas ranges. Mounts to the drawer box to enable smooth gliding. Replace if bent, broken, or worn for proper operation.

Cushions your range oven door perimeter to prevent metal contact and reduce heat loss. Replace when worn, compressed, or door closes harshly. Confirm fit.

Insulation sound dampening pad for electric ranges. Installs inside the range cavity to reduce noise. Replace if torn, compressed, or missing.

Right hand side

Left hand side

Replacement mounting screw for electric and gas range panels, trim, and brackets. Needed when original fastener is stripped, missing, or damaged.

Clear glass lens that protects your oven light bulb. Replace if cracked, broken, or cloudy to safely view cooking progress. Confirm fit with model number.

Secures range door handles and attaches components. Replace when cracked, bent, or missing to restore stable grip. Confirm fit with your model number.

Wire clip secures electrical connections to heating elements in ranges. Replace if worn, cracked, or loose to restore proper contact. Verify fit with model.

Oven not heating or baking unevenly? The bake element often fails and causes these issues. This DIY repair takes just 5-10 minutes with basic tools.

Secures the upper broil element to the oven cavity top. Replace if your original bracket is cracked, broken, or missing to restore stable mounting.

Broil element not heating or burned out? This upper oven heating element restores broiling function. Easy DIY repair—remove 4 screws and reconnect wires.

Replace your range's back cover panel if it's cracked, dented, or missing. This protective panel installs on the rear of your electric range cabinet.

Safety bracket that anchors your range to the floor or wall, preventing tip-over. Replace if missing, damaged, or cracked to secure the appliance.

Oven convection fan not working or making noise? This shaft-mount fan blade restores proper airflow and cooling. Easy DIY repair in under an hour.

Protective cover for your range's cooling fan assembly. Replaces cracked, broken, or missing fan covers. Installs over the fan housing to shield components.

Insulating pad that cushions and isolates the fan assembly in electric and gas ranges. Replace if cracked, compressed, or missing to reduce vibration noise.

Fan support plate for electric and gas ranges. Mounts and secures the cooling fan assembly. Replace if cracked, bent, or broken to restore proper support.

Fixes oven convection fan not working or uneven baking. This single-speed motor circulates hot air for consistent temperatures. DIY-friendly repair.

Mounting nut secures the convection fan blade to the motor spindle. Replace if lost, stripped, or damaged during fan service or repair work.
