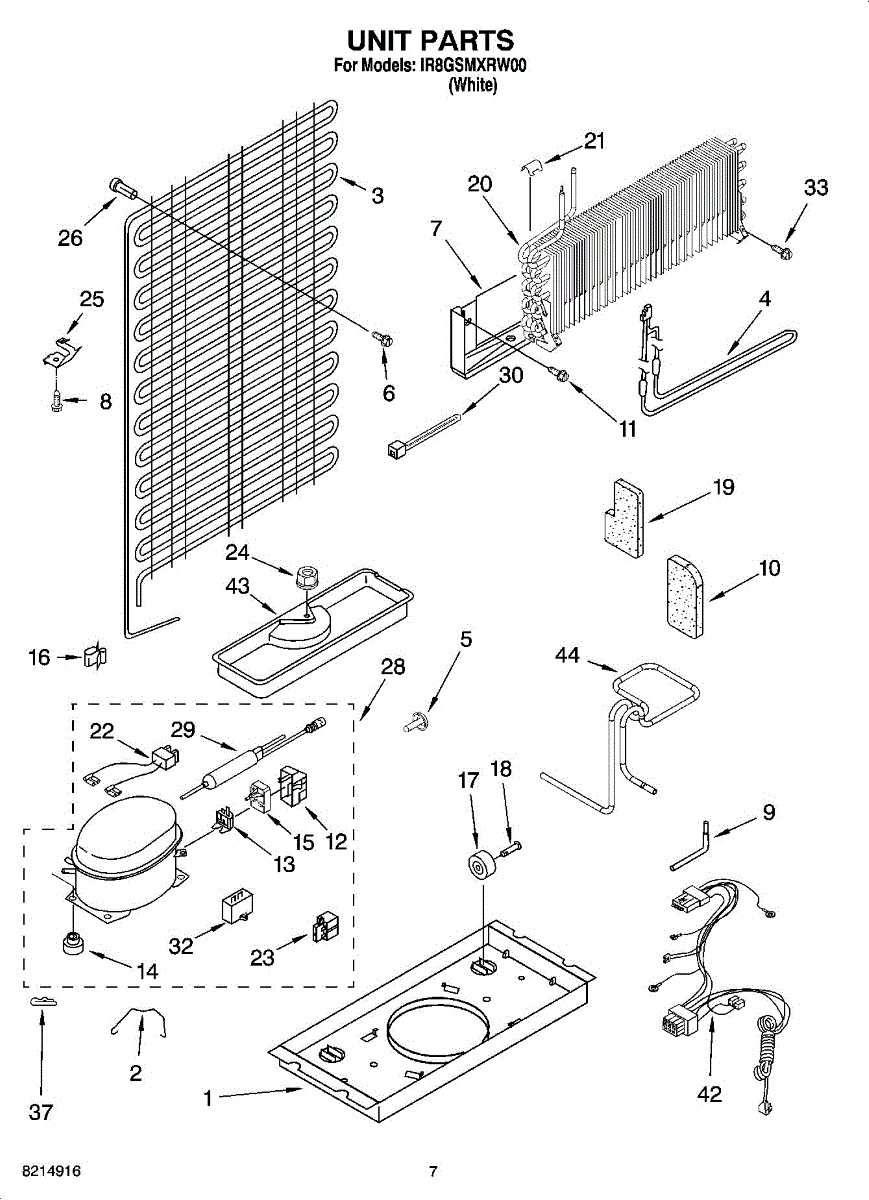

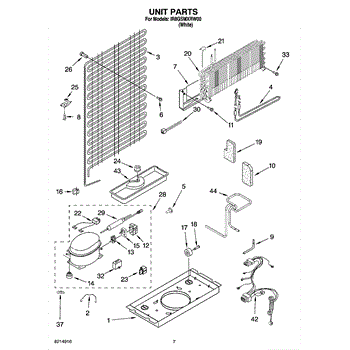

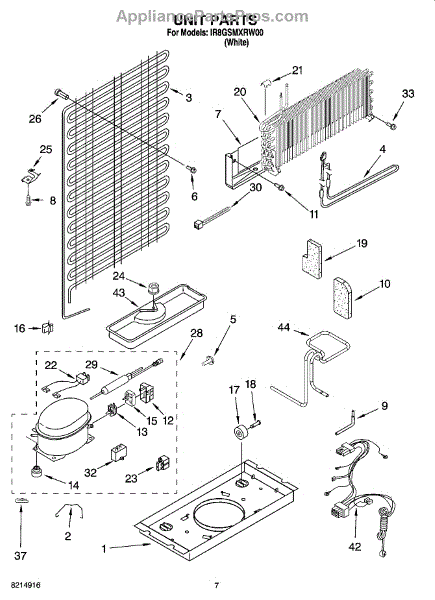

Parts for Whirlpool IR8GSMXRW00: 04 - Unit Parts

This refrigerator support bracket provides structural stability for internal components. Replace if cracked, broken, or missing to restore proper support.

Secures the compressor to the refrigerator frame. Replace if strap is cracked, broken, or missing to properly mount and stabilize the compressor unit.

Refrigerator not cooling properly? This condenser assembly transfers heat from the refrigeration system. Direct replacement for bent or corroded condensers.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Replacement mounting screw for refrigerator panels and components. Needed when original screw is stripped, missing, or damaged during repairs or maintenance.

Foam insulation support for refrigerator evaporator compartment. Replaces cracked, compressed, or missing foam that no longer provides proper insulation.

8-18 x 1/2 inch mounting screw for refrigerators, washers, dryers, and other appliances. Replace stripped, missing, or damaged screws during repairs.

Protects electrical connections from shorts and corrosion. Covers power terminal where cord connects to compressor. Simple screwdriver removal.

Fix a refrigerator that cycles on and off repeatedly or won't start with this compressor overload protector. Resolves short-cycling startup issues.

Freezer won't cool or compressor won't start? This thermal overload protector cuts power when the motor overheats. Straightforward DIY repair.

Fix excessive buzzing or rattling noise from your refrigerator's fan area. This rubber grommet cushions the fan motor mount to reduce vibration and noise.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

Fridge clicks or hums but won't cool? A failed start relay prevents the compressor from starting. Simple DIY repair—just pull off and replace.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Foam insulation support for refrigerator evaporator compartment. Replaces cracked, compressed, or missing foam that no longer provides proper insulation.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

Secures bi-metal thermostat or temperature sensor for accurate temperature control. Replace if loose or damaged to restore proper cooling. Confirm fit.

Fixes freezer that won't start or runs intermittently. This capacitor wire assembly restores secure electrical connections to the motor for reliable operation.

The Compressor Start Relay is an OEM part for Whirlpool refrigerators. This part provides the necessary power boost to start the compressor.

Causes of a bad start relay can include electrical issues, wear and tear from regular use, or damage from power surges or overheating.

Symptoms of a bad compressor start relay include:

• The refrigerator not cooling properly
• The compressor not starting or frequently shutting off
• Clicking noises coming from the compressor area
• The refrigerator running but not reaching the desired temperature
• Increased energy consumption

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replacement mounting nut for refrigerators. Secures internal components and panels. Needed when original nut is stripped, lost, or damaged during repair.

Secures trim, panels, and assemblies to prevent rattling and keep parts aligned. Replace when original clip breaks or goes missing. Verify fit with your model.

Fix a warm refrigerator and freezer or loud rattling noise during operation. This compressor repairs cooling failures from sealed system issues.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Secures wiring bundles inside your microwave. Replace this wire tie if it's cracked, broken, or missing to keep internal wires organized and secure.

Refrigerator stopped cooling or compressor won't start? The run capacitor provides electrical charge to keep the compressor motor running smoothly.

Size: 1/2 inch.

Size: 5/8 inch.

Fix refrigerant leaks or low cooling with this 3/4 inch service valve. Essential for AC system pressure testing and refrigerant recharge procedures.

Fix refrigerant leaks or low cooling with this 3/16 inch service valve. Essential for AC recharging and system maintenance on multiple models.

Refrigerator not cooling properly? A faulty 1/4 inch service valve can prevent proper refrigerant flow. This valve connects refrigerant lines in your system.

Service valve for refrigerators, freezers, and ice makers. Used for refrigerant system service and maintenance. 5/16 inch fitting size for technicians.

Fix refrigerant leaks or cooling issues with this 3/8 inch service valve. Essential for refrigeration system repairs and maintenance on multiple models.
