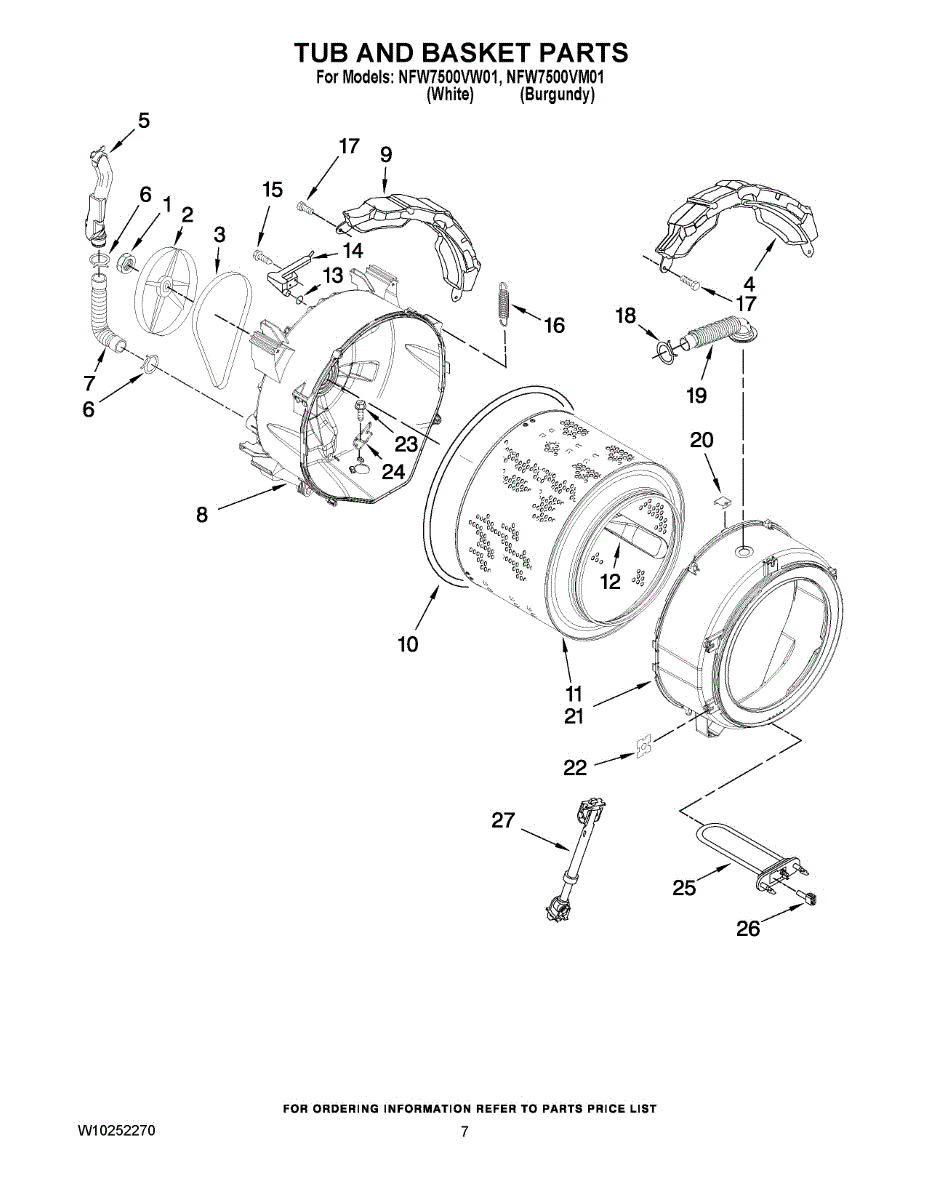

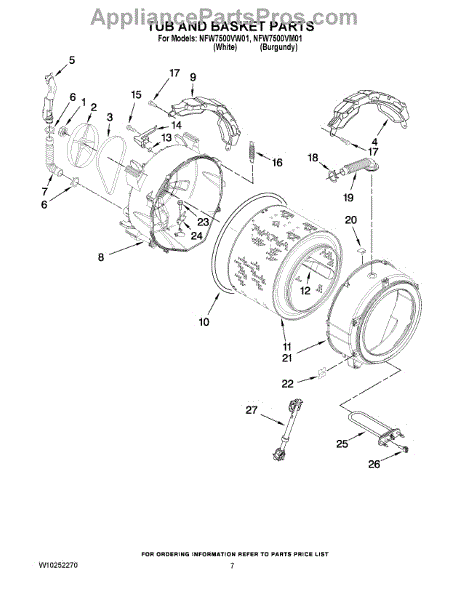

Parts for Maytag NFW7500VM01: 05 - Tub And Basket Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This retaining nut secures components within the pump/motor assembly, keeping them tight and properly aligned so your appliance can circulate water reliably. A worn or missing nut can lead to leaks, noise, or poor wash performance.

• Holds pump/motor parts firmly in place to prevent loosening and leaks
• Helps maintain proper water circulation and wash quality
• Direct-fit replacement for the original fastener in applicable units

• Disconnect power and shut off water before servicing
• Access the pump/motor area; note orientation of parts before removal
• Hand-start threads carefully to avoid cross-threading, then tighten to secure
• Inspect related seals and O-rings; replace any damaged components during reassembly

The Drive Pulley is an OEM replacement part specific to Whirlpool washing machines. It is a toothed wheel component located inside the washer cabinet that functions with the belt to rotate the wash drum. The drive pulley provides the rotational force needed to agitate clothes and turbulent water during cycle operation.

Causes of a faulty drive pulley include normal wear of the plastic material from extended years of operation.

Symptoms include:

• Abnormal noises (squealing or screeching sounds) emanating from within the washer cabinet
• Slow or weak drum motion, even on high agitation settings
• Premature belt wear due to slipping of the drive pulley teeth
• Visible cracks or splitting in the pulley surface

This genuine OEM part is also compatible with select Maytag, KitchenAid, and other washer brands.

The Drive Belt is an OEM part for Whirlpool front load washing machines. It transmits power from the wash motor to rotate the tub assembly, tumbling clothes during cycles. The belt is designed with deep grooves to securely grip the motor and tub pulleys. It measures 48.22” long uninstalled and will stretch to 51.53” when installed.

Causes of a bad Drive Belt can include cracks developing from repeated flexing during operation or stretching over many years. Debris trapped in the belt path can also wear down the belt prematurely.

Symptoms of a bad belt include:

• The washing tub failing to spin or agitate clothes
• Abnormally loud squealing noises from inside the machine
• The belt slipping off pulleys during cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, and select Kenmore front load washers.

This front counterweight mounts to the washer's outer tub to help balance and stabilize the drum during spin. Replacing a damaged weight can reduce vibration and noise and help prevent the machine from walking. What it does:

• Adds mass at the front of the tub to counterbalance loads during spin
• Helps control vibration, shaking, and banging noises
• Can resolve out-of-balance interruptions or excessive movement
• Visible cracks or broken mounting ears indicate the weight needs replacement

• One front counterweight

• Disconnect power and water; use proper lifting techniques—this part is heavy
• Support the tub and remove front cabinet components/door boot as needed for access
• Remove and retain mounting bolts; tighten bolts evenly when reinstalling
• Inspect mounting points and suspension components while accessible; replace if worn

This exhaust hose carries drain water from the pump to the external drain connection on your washer. Replacing a worn or damaged hose restores proper draining and helps prevent leaks and musty odors.

• Directs discharge water from the drain pump toward the outlet
• Maintains a sealed flow path to help prevent leaks
• Age, vibration, or debris can cause cracks, splits, or clogs
• Common symptoms: water leaking under the unit, slow or no drain, visible cracks/kinks on the hose

• Disconnect power and turn off water supply before servicing
• Place towels or a pan to catch residual water; remove access panels as needed
• Compress/release spring clamps, transfer them to the new hose, and fully seat hose ends
• Run a short drain cycle to check for leaks

This outer tub is the main housing that supports and encloses the dryer drum and internal components, restoring correct drum alignment and airflow for safe, quiet operation. What it does

• Supports and centers the rotating drum to prevent rubbing and misalignment
• Forms the air pathway for proper drying and ventilation
• Protects internal components from lint and foreign objects
• Addresses symptoms like loud scraping/squealing, excessive vibration, or visible damage to the tub area

• One outer tub housing only

• Disconnect power (and gas, if applicable) before starting work
• Replacing this part requires drum removal and moderate disassembly; have appropriate tools and a second person to help with heavy components
• Inspect and replace seals, bearings, or fasteners as needed
• After reassembly, run a short test cycle to ensure alignment and proper airflow

This outer tub is the large stationary tub that holds water for the washer and supports the inner wash basket. It restores a watertight enclosure and structural support so your washer can fill, agitate, and drain properly. What it does:

• Forms the watertight basin that contains wash water and directs it to the drain
• Supports the inner tub/basket and helps keep the basket aligned during cycles
• Prevents water from leaking into the cabinet when intact
• A cracked, warped, or corroded outer tub can cause visible leaks, loud or uneven operation, and washer shutdowns

• One outer tub

• Disconnect power and water supply before beginning any repair
• Drain remaining water and remove the washer top/lid and control panel as needed to access the tub
• Support or remove the inner tub/basket per service manual instructions to avoid damage during removal
• Inspect and replace related seals, gaskets, and clamps as needed

Inner wash basket includes: Inner basket, baffles, spider and shaft.

The Baffle is an OEM part for Whirlpool washers. This part helps lift and move clothes around during the wash cycle. This action ensures that garments are thoroughly cleaned by allowing water and detergent to penetrate fabrics more effectively.

Causes of a bad baffle can include regular wear and tear, overloading the washer, or accidental impacts from heavy or hard items.

Symptoms of a bad baffle include:

• Thumping or banging noises during the wash cycle
• Clothes not being cleaned evenly
• Visible cracks or breaks in the baffle
• Baffle becoming detached from the drum

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This O-ring is a direct replacement sealing ring that restores a watertight connection on the associated Whirlpool appliance assembly. Replacing a worn O-ring helps stop leaks and prevents water damage or drips at the joint. What it does:

• Provides a compressible seal between mating parts to prevent water leaks.
• Commonly used where hoses or fittings meet valves, dispensers or water lines.
• Fits into a groove to maintain pressure and stop slow drips or pooling.
• Replace when cracked, flattened, or pinched to restore proper sealing.

• Turn off water supply and unplug the appliance before replacing the seal.
• Remove the old O-ring, clean the mating surfaces, and inspect for nicks or debris.
• Lubricate the new O-ring if recommended by the manufacturer and seat it evenly in the groove.
• Test connections for leaks after restoring power and water.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Suspension Spring Kit is an OEM part for Whirlpool washing machines, designed to maintain balance and stability during the wash cycle. This kit includes 2 springs that work together to support the tub assembly, allowing for smooth operation and reducing vibrations and noise.

Causes of a bad Suspension Spring Kit can include normal wear and tear from repeated use, overload of the washing machine which can stretch or damage the springs, and corrosion due to exposure to water and detergents.

Symptoms of a bad Suspension Spring Kit include:

• Excessive shaking or vibrating of the washing machine, especially during spin cycles
• Unusual noises such as banging or thumping when the tub moves
• The washing machine "walking" or moving from its original position
• Difficulty in keeping the wash load balanced

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hose clamp secures a flexible hose to its fitting to help prevent leaks and hose blow-offs during operation. Replace a rusted, stripped, or distorted clamp to restore a tight, reliable seal at the connection point.

• Applies clamping force around a hose to hold it on a barb or stub fitting
• Commonly used on washer drain and tub-to-pump hose connections
• Helps stop drips at the joint and prevents the hose from slipping off
• Typical failure signs: leaking at the connection, clamp won't tighten, visible rust, broken/warped band

• Unplug the appliance and turn off water supply; expect some residual water
• Seat the hose fully on the fitting; place the clamp just behind the bead/barb
• Tighten until snug and secure; do not overtighten to avoid damaging the hose
• Run a short test cycle and recheck for leaks at the connection

Hose for tub to dispenser.

This tub clamp secures a flexible seal or hose to the appliance's tub, maintaining a tight, leak-resistant connection. Replace a weakened or damaged clamp to stop leaks and keep the tub joint stable during operation.

• Applies even clamping pressure around the tub connection
• Helps prevent water leaks at the tub-to-seal or tub-to-hose joint
• Restores proper fit when the original clamp is stretched, stripped, corroded, or missing
• Common symptoms: water at the base/front, loose seal or hose, visible clamp damage

• Disconnect power and turn off water before service
• Access the tub connection; remove the old clamp and inspect the seal/hose for wear
• Clean mating surfaces; seat the seal evenly, position the clamp, and tighten until snug without pinching the rubber
• Run a quick fill/drain test and check for leaks

This part is a replacement outer tub. This part's intended use is to repair a broken or defective outer tub in washing machines.The outer tub fits over the spin basket and is what ensures that the machine doesn't leak during use by sealing in the water. If this part is broken, water may drip or leak, and thus the front tub should be immediately replaced. It's important that the appliance is unplugged before any attempt is made to replace this part. Work gloves are recommended for proper safety and protection.This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This is an authentic OEM replacement part made of high-quality materials. This outer tub can be used with different models of washing machines that have been manufactured by Whirlpool, KitchenAid, Kenmore, Scotsman, and some other brands. It is sold individually.

Push-in nut that secures panels, trim, or small components to studs or shafts. Restores a firm, vibration-resistant fastener to help stop loose panels and rattling caused by a worn or missing nut. What it does:

• Secures panels, trim or small assemblies to mounting studs or shafts.
• Helps keep parts aligned and reduces vibration or rattling during operation.
• Common symptom: loose or shifting panels, audible rattling, or components that won't stay in place.
• Designed for a push-fit installation to replace worn or missing fasteners.

• Always disconnect power to the appliance before servicing.
• Push the nut fully onto a clean, undamaged stud until seated; replace damaged studs or mounting hardware.
• If needed, use pliers or a socket to press the nut on evenly—avoid deforming surrounding plastic or sheet metal.

This mounting bracket secures appliance panels and components to the cabinet, restoring proper alignment and reducing noise from loose parts. A small, direct-replacement part used where factory brackets have cracked or worn. What it does:

• Provides a secure mounting point for panels, trim, or internal components
• Prevents rattling, vibration noise, and misaligned doors or panels
• Restores correct fit where original bracket is broken, bent, or missing
• Keeps attached components stable during normal use

• One mounting bracket

• Disconnect power and water before starting any repair
• Remove surrounding panels or trim for access; keep fasteners for reassembly
• Use correct-size screwdriver or socket; avoid over-tightening to prevent cracking
• If adjacent parts are damaged, inspect and replace as needed for a secure fit

Includes water temperature sensor.

The Water Temperature Sensor is an OEM part for Whirlpool washing machines. This sensor ensures the water is reaching the proper temperature at each stage of the wash cycle. Note: The sensor does not include the seal WP8540766. Order separately if needed.

Causes of a bad temperature sensor can be failures over time due to mechanical wear, thermal stress on electronic components, or damage from leaks/flooding inside the unit.

Symptoms of a bad water temperature sensor include:

• Inability to switch between wash steps or advance through the cycle
• Erratic or inconsistent temperature readings
• Failure alarms or error codes displayed
• Improper or incomplete washing even on high heat settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Shock Absorber is an OEM part designed for Whirlpool washing machines. This part helps to dampen the motion of the tub during the spin cycle, reducing vibrations and noise. By absorbing the energy produced during operation, the shock absorber contributes to the stability and longevity of the machine. A well-functioning set of shock absorbers is essential for maintaining the washer's performance and preventing damage to other components.

Causes of a bad shock absorber can include wear and tear from regular use, excessive load sizes or unbalanced loads, and structural damage from moving or improper handling.

Symptoms of a bad Shock Absorber include:

• Increased vibration and noise during the spin cycle
• The washer moving or "walking" across the floor
• Unusual wear on other components due to excessive movement

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
