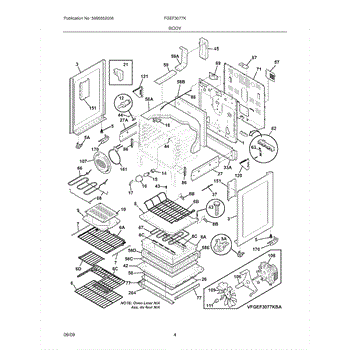

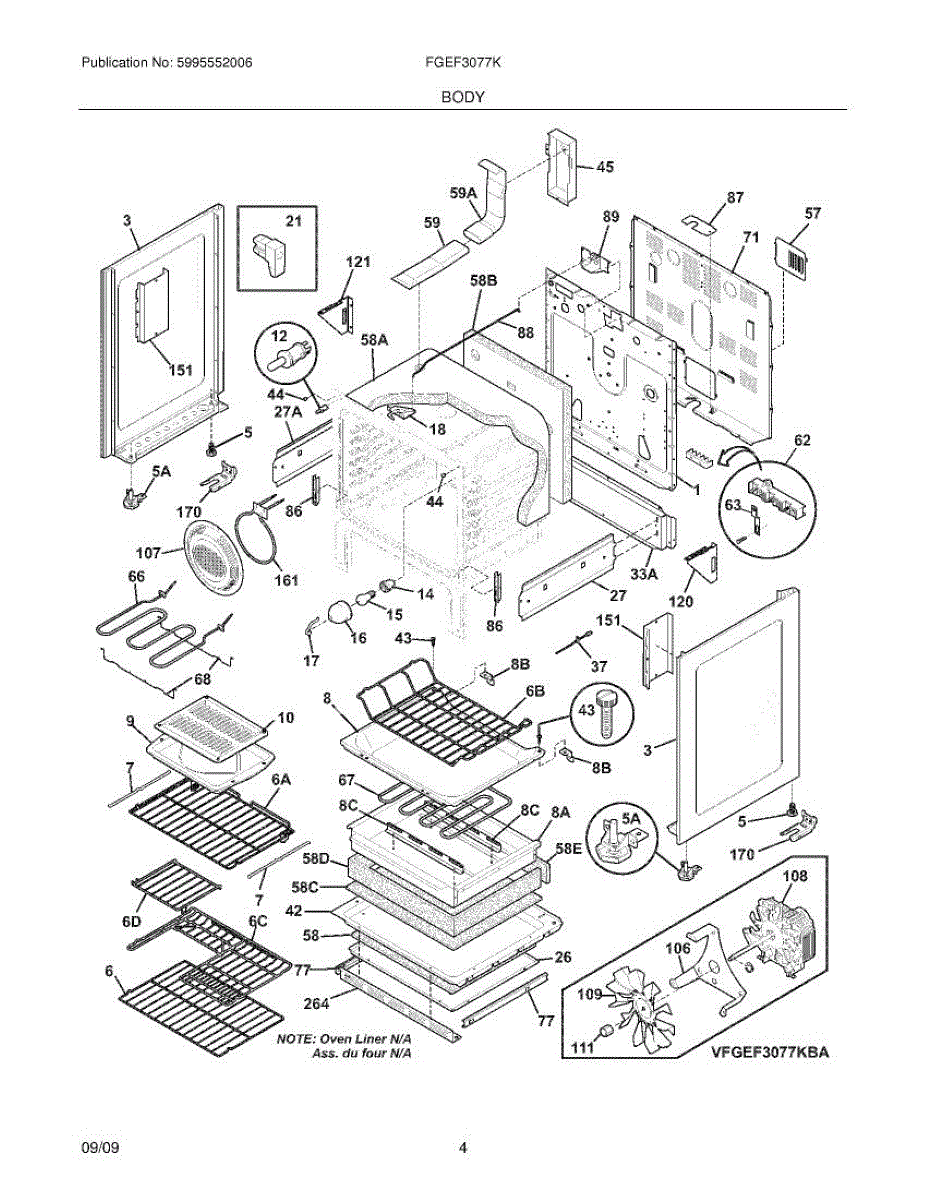

Parts for Frigidaire FGEF3077KWB: 05 - Body Parts

Replace a broken, worn, or missing leveling leg on your range. This adjustable foot installs at the base corner to stabilize and level your appliance.

Leveling leg assembly installs at the front corners of your range. Replace if broken, rusted, missing, or no longer adjusts to level your appliance.

Replacement oven rack for your electric range. Installs inside the oven cavity to support cookware. Order when your rack is bent, warped, or damaged.

Replace your electric range oven rack if the original is bent, warped, rusted, or missing. This rack installs inside the oven cavity to support cookware.

Replacement oven rack for electric ranges. Restores a stable shelf for baking and broiling. Replaces bent, worn, or missing racks. Slides smoothly.

Oven rack for electric and gas ranges. Provides a cooking surface inside the oven cavity. Replace if discolored, warped, rusted, or damaged.

Metal link that connects oven rack to door for slide-out operation. Replace if bent, broken, or damaged during self-clean cycles or daily use.

Replace your range's damaged or missing base frame. This structural component supports the appliance and installs at the bottom. Ideal for cracked or worn bases.

Mounting bracket that secures burner components to your electric range. Replace if bracket is bent, broken, or missing to properly support burner assembly.

Replacement mounting bracket that secures internal range components. Needed when your original support is broken, cracked, or missing, causing parts to rattle.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Oven light stays on or won't turn on when door opens? This door-activated switch restores automatic light control. Easy 15-minute DIY repair.

Oven light not working or saw a flash near the bulb? This light socket houses the oven bulb and is a straightforward DIY fix in under 30 minutes.

Illuminates your oven interior so you can monitor cooking without opening the door. Replace when burned out or dimming. Verify fit with your model number.

Replace your oven's light lens cover if cracked, broken, or missing. Protects the bulb and restores interior visibility. Confirm fit with your model.

Secures the glass light cover to your range oven cavity. Replace if the retainer is cracked, broken, or missing to keep the lens firmly in place.

Fix an oven door that won't lock during self-clean or clean cycle errors. This door latch assembly secures the door and reports lock status to the control.

Secures range trim, panels, and components to prevent rattles and loosening. Replace when clips break or lose tension. Confirm fit with your model number.

This replacement shield is a molded protective cover that shields internal components from debris and moisture and helps maintain proper airflow and component alignment for reliable appliance operation. What it does:

• Protects wiring, sensors, and small components from physical contact and debris
• Helps direct airflow or block light, depending on installation location
• Prevents vibration-related noise when cracked or loose
• Commonly replaced when the original is cracked, missing, or warped

• Disconnect power before beginning any repair
• Handle carefully to avoid cracking the plastic; transfer any grommets or clips from the old part
• Reuse original fasteners unless damaged; ensure shield is seated and secured to prevent rattling

This shield is a replacement protective panel that covers and protects internal appliance components from debris and heat, helping maintain safe operation and appliance appearance. What it does:

• Covers exposed internal components to reduce debris buildup and prevent accidental contact
• Helps direct airflow or heat away from sensitive parts
• Replaces a cracked, bent, or missing shield that may cause vibration or scraping noises
• Restores a finished appearance to the appliance where the original shield was damaged

• One replacement shield

• Disconnect power (unplug or switch off breaker) before service to avoid shock or injury
• Typical installation requires removing nearby panels and fastening the shield with screws or clips—retain all hardware for reassembly
• Handle carefully to avoid sharp edges; wear gloves and eye protection

Fix F10 error codes or inaccurate oven temperatures with a new sensor probe. Common fix for ovens that overheat or won't reach set temp. Easy DIY repair.

Replace a cracked, warped, or missing heat shield in your electric range. This protective guard installs between heating elements and internal components.

Black mounting screw for range oven doors. Replaces lost, stripped, or corroded screws that secure door panels and hinge assemblies. 8-32 thread size.

Replace a cracked, broken, or missing oven door spacer that maintains proper alignment and gap between door components. Installs in door assembly.

Shield protects the wire harness near the vent tube in your range. Replace if cracked, damaged, or missing to prevent wire exposure and ensure safe operation.

Replacement cover for your electric range control panel. Restores appearance when the original is cracked, broken, or discolored from wear and heat exposure.

This cabinet insulation replaces worn or missing foam inside the refrigerator cabinet to help restore proper temperature control and reduce energy loss. Fits behind liners and panels to improve cooling efficiency and reduce condensation. What it does:

• Provides thermal barrier between cold interior and warm cabinet to help maintain consistent temperatures
• Reduces heat transfer that can cause the compressor to run more frequently
• Helps limit condensation and frost buildup on cabinet surfaces
• Dampens vibration and reduces noise from normal operation

• One cabinet insulation piece as shown

• Remove power and empty the appliance before starting work
• Access may require removing interior liners, shelves, or back panels — follow OEM service instructions
• Replace only in the area indicated by the OEM; use appropriate adhesive or fasteners if required

This cabinet foam insulation panel restores the refrigerator's internal thermal barrier to help maintain temperature stability and reduce condensation and noise. Replaces a worn or missing insulation panel behind interior panels or liner. What it does:

• Provides thermal resistance to help the appliance hold cold air and run more efficiently
• Reduces surface condensation that can lead to moisture buildup and ice
• Dampens vibration and reduces operating noise from the compressor and cabinet
• Helps ensure even cooling by filling the cavity between outer cabinet and inner liner

• One cabinet foam insulation panel

• Disconnect power and empty/prop open doors before removing panels; follow OEM service instructions
• Remove interior liners or access panels to reach the insulation cavity; handle foam carefully to avoid tearing
• Position the panel so it fills the cavity without excessive compression; trim only if specifically instructed by OEM
• If adhesive or fasteners are used, replace with OEM-recommended materials and inspect surrounding seals

Thermal insulation pad that installs inside the range cabinet. Replace if torn, missing, or deteriorated to restore heat protection between panels and liners.

Insulation panel for range oven cabinet that reduces heat transfer and noise. Installs on top and sides. Replace if worn, damaged, or missing.

Replace your range's vent tube if the original is cracked, damaged, or missing. This duct component directs airflow within your appliance. Direct fit.

Upper oven vent tube for gas and electric ranges. Channels hot air from the oven cavity to the exterior vent. Replace if cracked, damaged, or missing.

Fix sparks, tripped breakers, or burnt connections at your range's power cord junction. Terminal block replacement takes about 5-10 minutes with basic tools.

Broil element not heating or burned out? This top heating element restores high-heat broiling for browning and crisping. DIY-friendly, 15-30 minute repair.

Burner not heating on your smooth-top range? This radiant surface element restores even heat to one cooking zone. Straightforward DIY repair.

Replacement support plate for ranges. Mounts inside the appliance to provide structural stability. Order a new one if cracked, broken, or missing.

Replace your range's heat shield if it's cracked, warped, or missing. This protective barrier installs between heating elements and components.

Replaces a worn, broken, or missing storage drawer glide for smooth sliding operation. Installs on the drawer track to restore proper alignment and movement.

Replace a broken or worn range oven door hinge. This hinge bracket supports the door and allows smooth opening and closing. Needed when cracked or bent.

Mounting plate for electric and gas ranges. Secures components in place. Replace if cracked, bent, or broken to restore proper structural support.

Replacement door latch rod for electric and gas ranges. Installs in the door mechanism to secure the latch assembly. Order a new rod if broken or missing.

Fix F95 error code or oven door that won't lock during self-clean cycle. This door lock motor assembly repair takes about 15 minutes with basic tools.

Secures the motor assembly to the range chassis. Replace if your bracket is cracked, bent, or broken to restore proper motor alignment and stability.

Protects the evaporator fan assembly and directs airflow in your range. Replace if cracked, broken, or missing to restore proper airflow and shield the fan.

Convection fan not working or oven heating unevenly? This motor kit drives the fan to circulate hot air for consistent baking. Moderate DIY repair.

Loud grinding or rattling from your oven? A damaged convection fan blade disrupts airflow. This replacement restores quiet operation in 20-30 minutes.

Securing nut for ovens and ranges. Holds interior components like convection fans in place. Replace if stripped, damaged, or missing during repair.

Uneven baking or convection mode not working? This rear-mounted convection fan heating element circulates hot air for consistent cooking results.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Anti-tip bracket kit secures your range to the floor or wall, preventing tipping when the oven door is opened or heavy cookware is placed on extended racks.

Replacement screw for electric and gas ranges. Used to secure various components and panels. Order a new screw if the original is stripped, missing, or damaged.

Black hinge washer for electric and gas ranges. Replaces worn, cracked, or missing washers on door hinges to ensure proper door alignment and support.

Mounting screw that secures the dual safety valve assembly to your gas range or oven chassis. Replace if stripped, broken, or missing during repair.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

Black mounting screw that secures range body side panels. Replace if stripped, missing, or corroded. 8-18 x 11/16 inch fastener for structural assembly.

Molded protective cushion that reduces vibration and prevents component contact in your range. Replace if cracked, worn, or missing to restore stability.

Replace your range's multi-connector wire harness if damaged, frayed, or causing connection issues. Restores electrical connections between components.

Replacement mounting screw for ovens and ranges. Secures panels, brackets, trim, and internal components. Replace missing or stripped screws to restore fit.

Replacement screw secures panels, trim, and internal components in your appliance. Needed when original fastener is missing, stripped, or damaged.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.

Chrome screw secures handles, door trim, and internal components in ranges and ovens. Replace if lost during cleaning, stripped, or missing after moves.
