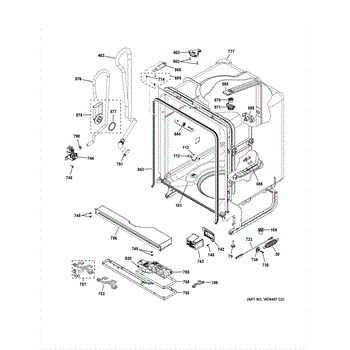

Parts for Ge GDF520PGJ5BB: Body Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher door spring counterbalances the door so it opens smoothly and doesn't drop. Replacing a fatigued or broken spring restores proper door action, prevents sudden slamming, and reduces stress on the hinges and link components.

• Provides the tension that counterbalances the door's weight during opening and closing
• Helps prevent the door from dropping quickly or feeling unusually heavy
• Supports smooth, even movement within the door hinge/counterbalance system
• Common signs of failure: door falls open, won't stay partially open, or binds/squeaks while moving

• Disconnect power and shut off water before servicing; wear gloves and eye protection
• Remove the toe-kick to access the spring and hinge area
• Support the door; carefully relieve spring tension and transfer the spring to the same anchor points as the original
• Test door balance and motion before reinstalling the toe panel

This leveling leg adjusts the dishwasher's height at the base, helping you level and stabilize the unit inside the cabinet. Proper leveling reduces rocking and vibration and promotes a tight door seal and smooth rack operation.

• Screws into the base frame to set height and level the dishwasher
• Supports the unit to prevent rocking or wobbling
• Helps maintain door alignment and sealing; poor leveling can contribute to leaks
• A worn, bent, or missing leg can make leveling difficult and increase vibration/noise

• Disconnect power and shut off water; slide the dishwasher out if needed for access
• Turn the leg with a wrench or pliers to adjust height; replace by threading the new leg into the base
• Use a bubble level to set side-to-side and front-to-back level before re-securing the unit
• Do not overtighten; ensure both legs carry weight evenly on a solid floor surface

The Heating Element is an OEM part for GE dishwashers. It is responsible for heating the water during the wash cycles and for drying the dishes after the rinse cycle. Proper functioning of the heating element ensures optimal cleaning and drying performance.

Causes of a bad heating element can include mineral buildup from hard water, electrical faults, or general wear and tear over time. Damage to the heating coil or connections can also impair its functionality.

Symptoms of a bad heating element include:

• Dishes not drying properly
• Dishwasher cycles taking longer than usual
• Water not heating during the wash cycle
• Error codes related to heating issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This high loop drain hose creates the required elevated drain loop to help prevent dishwasher backflow and ensure proper drainage. It replaces a worn or damaged drain loop and restores correct drain routing for reliable performance. What it does:

• Forms the high loop in the dishwasher drain line to reduce risk of sink water siphoning back into the appliance
• Directs wastewater from the dishwasher into the household drain properly
• Helps avoid intermittent draining issues caused by a collapsed or split drain loop
• Fits into existing drain connections—used where an elevated drain loop is required

• Designed for in-line replacement; route the hose to create a high loop secured under the countertop or cabinet as shown in the appliance installer instructions
• Turn off power and water supply to the appliance before performing service
• Inspect clamps and fittings and replace if corroded; ensure all connections are snug but not over-tightened

This upper wash impeller circulates water to the upper spray system during the wash cycle, helping deliver thorough cleaning across dishes on the upper rack and throughout the tub.

• Drives water flow to the upper spray arm/manifold
• Worn or damaged impeller can cause weak spray, poor cleaning, or longer cycle times
• Physical damage (warping, cracks, stripped splines) warrants replacement

• Disconnect power and water before servicing
• Access is typically through the sump/pump area; note impeller orientation during removal
• Inspect mating parts (seal, hub, shaft/splines) and replace if worn
• Hand-tighten fasteners to OEM guidance and verify free rotation before reassembly

The Hub is an OEM replacement part for GE dishwashers. It is the central mechanism which attaches to the tub and facilitates rotation of the upper spray arm above dishes.

Causes of a bad hub include wear from years of repeated rotation, accumulation of hard water scale deposits inside moving parts, or accidental impact damage. This reduces proper function over time.

Symptoms of a bad hub include:

• Loud clunking or grinding noises from the center mechanism
• Reduced cleaning performance on upper racks or portions of dishes
• Dishes showing water spots or soil in sections not adequately rinsed
• Inability to attach or move the upper spray arm assembly smoothly

This OEM GE hub replacement is also compatible with Crosley, and KitchenAid models.

The Funnel Service Kit is an OEM replacement part for GE dishwashers. It includes a water inlet funnel and seals necessary for proper water flow within your dishwasher. This part helps prevent leaks and ensures that water is properly directed into the dishwasher.

Symptoms of a faulty water inlet funnel service kit include:

• Water leaks from the dishwasher
• Insufficient water flow during the wash cycle
• Inconsistent cleaning or rinsing performance

Causes of a bad water inlet funnel service kit can include wear and tear over time, blockage from debris or mineral buildup, or damage to the funnel or associated components. If you notice issues such as water leaks, inadequate water flow, or inconsistent cleaning results, it may be time to replace the old or damaged water inlet funnel service kit with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fill funnel hose directs incoming water from the inlet assembly into the tub through the fill funnel. Replacing a worn or cracked hose helps stop leaks and restores a reliable, sealed fill path for consistent wash performance.

• Carries water from the inlet assembly through the fill funnel into the tub
• Maintains a watertight path to prevent external leaks
• Symptoms of failure: dripping during fill, puddles beneath the unit, or visible cracks/splits in the hose
• A significant leak may lead to low water level or extended fill times

• Disconnect power and shut off the water supply before servicing
• Remove the toe-kick/kickplate; pulling the dishwasher forward may be needed for access
• Place a towel or pan to catch residual water; move clamps, remove the old hose, and fully seat the new hose on both fittings
• Re-secure clamps, restore water and power, and run a short fill to check for leaks before reinstalling panels

This replacement O-Ring restores a watertight seal at an internal dishwasher connection, helping stop leaks and protect surrounding cabinetry. Replace a hardened, cracked, or flattened seal to maintain reliable wash performance and prevent water damage.

• Creates a watertight seal between mating parts inside the dishwasher
• Helps prevent drips and leaks during fill, wash, and drain cycles
• Addresses leaks caused by a worn, flattened, or damaged seal
• Visual clues: cracks, brittleness, deformation, or mineral trails at the joint

• Disconnect power and shut off the water supply before servicing
• Access the affected connection and remove the old O-ring
• Clean the groove and mating surfaces; lightly lubricate with food-grade silicone grease; seat evenly without twisting or pinching
• Reassemble and run a brief test cycle to check for leaks

The Conduit Main Assembly is an OEM replacement part for GE dishwashers. It is installed within the dishwasher tub below the upper wash arm, and is responsible for securely mounting and holding the upper wash arm in place during operation.

Causes of a bad upper wash arm support include:

• Symptoms of a bad upper wash arm support include:
• Vibration or noise from an unsecured wash arm
• Improper alignment of spray pattern
• Restricted rotation of the wash arm during washing
• Leaks at the tub connection point

Symptoms can include cracks or breaks that compromise its structure, or wear over extended use without replacement.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This small plastic clip secures a refrigerator's wiring conduit or harness to the cabinet, keeping wires routed and protected from abrasion. It helps reduce strain on connections and prevents wires from contacting moving parts. What it does:

• Holds wiring conduit or harness in place to maintain neat routing
• Prevents wires from rubbing on sharp edges or moving components
• Reduces strain on electrical connections that can cause intermittent faults
• Helps maintain safe separation between wiring and high-heat or mechanical areas

• Turn power off at the appliance and unplug before inspecting or replacing wiring clips
• Remove access panels only as needed to reach the clip; avoid stressing surrounding wires
• Snap the clip into the original mounting slot or replace any damaged fasteners for a secure fit
• If wires show damage or burns, replace the wiring/harness

Replace a worn or broken tub roller with this Tub Roller and Stud Assembly. It mounts to the dishwasher tub wall to guide the rack smoothly, preventing dragging, binding, or derailment when loading and unloading.

• Mounts on the tub sidewall to provide a smooth glide point for the dish rack
• Restores easy rack movement and can reduce squeaking or scraping noises
• Helps keep the rack aligned and prevents it from jumping off track
• Typical signs of failure: cracked/broken wheel, missing/bent stud, rack difficult to slide

• Disconnect power and water supply before servicing; wear cut-resistant gloves.
• Pull the rack out to access the roller location inside the tub.
• Remove the old roller and stud (retainer/tab/screw varies by model) and install the new assembly in the same orientation.
• Slide the rack in and out to confirm smooth movement before returning the appliance to service.

This SCR 8-18 silicon-controlled rectifier replaces the control semiconductor that switches and regulates power to heating or motor circuits in compatible appliances, restoring proper power delivery and control. It's a direct-fit electrical replacement part. What it does

• Acts as a switching device on control boards to allow or block current flow when signaled.
• Regulates power delivered to heating elements or motor circuits to enable proper operation.
• Commonly linked to symptoms like no heat or intermittent heating, motors that won't start, or erratic control-board behavior.
• Helps restore reliable on/off control when a failed SCR is causing open or shorted conditions.

• One SCR 8-18 silicon-controlled rectifier (WD02X10160).

• Always disconnect power before servicing the appliance to avoid shock.
• Handle the part carefully; avoid touching leads and use anti-static precautions if available.
• Inspect surrounding connectors and wiring for damage; replace any corroded terminals.

The Door Cable is an OEM part for GE dishwashers, designed to support and assist in the smooth and controlled opening and closing of the dishwasher door. This cable connects the door to the spring mechanism, providing the necessary tension to balance the door's weight during operation.

Signs that you might need to replace the Door Cable include the door suddenly dropping open or being difficult to raise, indicating a break or excessive wear.

Symptoms of a bad Door Cable include:

• The dishwasher door slamming open or requiring extra force to close.
• Unusual noises when opening or closing the door, suggesting the cable is not running smoothly.
• Difficulty in keeping the door partially open, affecting loading and unloading dishes.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Hinge Pulley is an OEM part for GE dishwashers. This part works with the door springs and cables to provide smooth and balanced movement. This pulley ensures that the door operates efficiently, making it easy to load and unload dishes.

Causes of a bad door hinge pulley can include wear and tear from regular use, accumulation of debris or grease, or damage from accidental impacts.

Symptoms of a bad door hinge pulley include:

• The dishwasher door not staying open or closed properly
• Difficulty in opening or closing the door
• Unusual noises during door operation, such as squeaking or grinding
• The door feeling loose or unbalanced

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 1/4-inch zinc-plated screw secures internal panels and hardware in select dishwashers. Replace a missing, stripped, or corroded fastener to restore a tight fit and help prevent vibration or loosening during operation.

• Fastens brackets, panels, or components that use a 10-32 machine thread
• Replaces hardware that is missing, stripped, or rusted
• Helps reduce rattling or vibration from loose assemblies
• Supports proper component alignment for reliable operation

• Disconnect power and water supply before servicing the appliance
• Remove the old fastener and verify thread size and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace damaged clips, nuts, or inserts that won't hold a 10-32 screw securely

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This dishwasher junction box cover encloses the power-connection compartment at the base of the unit. Replacing a damaged or missing cover helps protect wiring from debris and accidental contact, restoring a safe, secure connection area. What it does:

• Covers and secures the dishwasher's electrical junction box
• Helps shield wire splices from moisture, dust, and accidental contact
• Restores proper fit when the original cover is cracked, broken, or missing
• Useful if the junction box won't stay closed or the cover no longer secures properly

• Includes 1 junction box cover

• Disconnect power at the circuit breaker before servicing
• Remove the lower access/kick panel to reach the junction box
• Remove the old cover and screw, position the new cover, and secure with the existing hardware
• Ensure all wiring and the strain relief are fully inside the box before closing; restore power and test

The Water Inlet Valve is an OEM part for GE dishwashers. This part controls the flow of water into the dishwasher. It opens and closes to allow water from the home's supply to enter the dishwasher at the correct times during the washing cycle.

Causes of a bad water inlet valve include wear and tear from regular use, sediment buildup from hard water, or mechanical failure of the valve components.

Symptoms of a bad Water Inlet Valve include:

• Dishwasher not filling with water
• Water filling too slowly or not stopping once the dishwasher is full
• Leaks detected around the valve area
• Unusual noises coming from the valve during the fill cycle

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 x 9/16 machine screw secures dishwasher components and panels. Replacing a missing or stripped fastener restores a tight fit, reduces vibration/rattles, and keeps assemblies properly aligned for reliable operation.

• Secures panels, brackets, or internal assemblies using a 10-32 machine thread
• Replaces lost, corroded, or stripped screws
• Can help resolve looseness or rattling from a loose mounting point
• Correct 9/16-inch length helps maintain proper spacing and alignment

• Disconnect power at the breaker before servicing
• Use the appropriate driver for the screw head; start threads by hand to avoid cross-threading
• Tighten snugly but do not overtighten to prevent stripping threads or damaging mating parts
• Compare to the original fastener to matching thread and length

• Thread size: 10-32
• Length: 9/16 inch

The Electronic Control Board Jumper Wire is an OEM replacement part for GE dishwashers.

Causes of a faulty jumper wire include fracturing of internal interconnects from normal circuit board flexing during door closes. Overly aggressive cleaning solvents may also damage wire insulation over time.

Symptoms of a problematic jumper wire include:

• Intermittent or unreliable operation of wash cycle features
• Unresponsive touch controls and inability to start cycles
• Error codes displayed and failure to detect cycle outputs

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Service Machine Control is an OEM component specifically designed for GE dishwashers. As the main control board, it regulates all wash cycles including temperature, filtration, spray arm rotation, drying functions and end of cycle signals.

Causes of a faulty service machine control include normal wear and tear over time. Electronic failures or water exposure from plumbing issues can also trigger malfunctions.

Symptoms of a failing control board are:

• Inability to progress through cycles fully
• Flashing error codes during washes
• Inconsistent wash and rinse performance
• Component damage from power overload issues

Replacing it with this genuine GE OEM part restores optimal cycle handling. Proper controls are essential for sanitizing every wash. The part is also compatible with Hotpoint, RCA and some Kenmore models.

The Harness ASM DC is an OEM part for GE dishwashers. As the main wiring harness, it connects the control board to other components like the motor, sensors, and heating elements.

Causes of a bad Harness ASM DC can include cuts, cracks, or failure in the insulation over time which can cause shorts. Rodent damage is also common.

Symptoms of a bad wiring harness include:

• Components failing to power on or work properly
• Repeated tripping of the circuits
• Fault codes related to component connectivity issues
• Physical deterioration or rodent chewing of the wires

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control box bottom is the lower housing that protects and supports the appliance's control electronics, helping keep wiring and components secure from debris and moisture. Fits into the control assembly to restore proper enclosure and support. What it does:

• Provides a protective lower enclosure for the control board and wiring harness
• Helps keep dust, lint and moisture away from sensitive electronics
• Secures the control board and related connectors in their correct position
• Prevents rattling or movement that can cause loose connections or noise

• One control box bottom (base cover) as pictured

• Disconnect power before servicing to avoid shock or component damage
• Handle electronics carefully and avoid touching circuit contacts
• Installation typically requires basic hand tools and removal of the control housing

This control box top is the plastic cover that protects the appliance's control board and user controls while keeping the front of the console finished and safe. It helps prevent dust, moisture, and accidental contact with internal electronics. What it does

• Covers and protects the control board and internal wiring behind the console.
• Provides the mounting surface and openings for buttons, knobs or touch interfaces.
• Prevents dirt, lint, and moisture from reaching sensitive electronics.
• Restores a secure, finished appearance to a damaged or cracked console area.

• Always disconnect power to the appliance before beginning work to avoid electrical shock.
• Remove any bezel, screws or clips securing the old top and transfer any required mounting hardware or trim pieces.
• Handle the control board and connectors with care; avoid touching circuit components or bending contact pins.

The Tub Insulation Blanket is an OEM part for GE dishwashers. This insulation blanket wraps around the dishwasher tub, helping to reduce noise during operation and improve energy efficiency by maintaining consistent temperatures inside the dishwasher.

Causes of a bad insulation blanket can include wear and tear over time, exposure to moisture, or damage from pests or improper installation.

Symptoms of a bad tub insulation blanket include:

• Increased noise levels during the dishwasher cycle
• Higher energy consumption or longer cycle times
• Visible damage or deterioration of the insulation material
• Excessive heat escaping from the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher hose clamp secures internal hoses to pumps or fittings, helping prevent leaks and disconnections. Replace a weakened or damaged clamp to restore a tight, reliable seal at the connection.

• Provides clamping pressure to hold a hose on pump, sump, or drain fittings
• Helps stop water leaking at hose joints
• Resolves: loose or disconnected hoses, water under the unit/base, or poor draining from a slipped drain hose
• Replaces worn, rusted, or deformed clamps after service

• Disconnect power and turn off the water supply before servicing
• Pull the dishwasher forward as needed for access; place a towel or pan to catch residual water
• Seat the hose fully, then compress or tighten the clamp per its design; position just behind the hose barb bead
• Run a short cycle and inspect for leaks at the connection

The Clamp is an OEM replacement part for GE dishwashers. It holds and secures critical components such as tubing or hoses securely in place. Clamps play an important supporting role by fastening tubing and preventing kinking, both of which are essential for proper water flow and circulation within the dishwasher.

Causes of a bad clamp can include cracks, corrosion, or fatigue that causes the clamp to fail in its gripping function over time. Hoses or tubes may also wear down a clamp through constant vibration.

Symptoms of a bad clamp include:

• Leaks from hoses, tubes or connections
• Reduced water pressure or uneven spray patterns
• Moisture or water damage around connections
• Loose hoses that rub or chafe

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 8-18 AB TSQ 5/8 SS

The Door Latch is an OEM replacement part for GE dishwashers. It serves the critical function of securely keeping the door closed during wash cycles through its engaging bolt design.

Over extended use, aspects of the latch can degrade such as worn plastic catch areas, loosened screws, or a faulty latch hook mechanism. Causes are generally normal wear and tear.

Symptoms of a bad latch include:

• The door not closing fully or popping open accidentally
• Inability to fully lock or latch no matter how hard the door is pressed
• Damaged or stripped screws holding the mechanism

This OEM replacement part is compatible with Hotpoint, RCA and some Kenmore models as well.

The Tub Gasket is an OEM part for GE dishwashers. It is installed around the perimeter of the dishwasher door to create a water-tight seal during operation, effectively preventing water leaks. This gasket ensures that the dishwasher can maintain the necessary water level and pressure to clean dishes effectively, while also protecting your kitchen from water damage.

Causes of a bad Tub Gasket can include natural wear and tear from regular use, exposure to harsh cleaning chemicals that can degrade the rubber material, or improper installation leading to gaps or loosening.

Symptoms of a bad Tub Gasket include:

• Water leaking from around the dishwasher door
• Signs of mold or mildew on the gasket
• The gasket becoming hard or cracked
• Visible gaps between the gasket and the dishwasher door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Mounting Bracket is an OEM replacement part for GE dishwashers. This bracket secures the dishwasher in place underneath the kitchen countertop.

Causes of failure relate to stresses of a heavy dishwasher pushing down against the countertop edges combined with constant machine vibration over extended service life.

Symptoms of a cracked or damaged mounting bracket include:

• Excessive movement play or sloshing of the installed dishwasher
• Strange noises when the dishwasher is running
• Difficulty removing or installing the dishwasher
• Visible bending of bracket components out of intended position

This genuine GE bracket is compatible with Hotpoint and RCA dishwashers.

This control board clip secures the dishwasher's electronic control board to its mounting location, keeping it properly seated during operation. Replacing a damaged or missing clip helps prevent vibration, movement, and wire-connector strain.

• Holds the electronic control board firmly in its designated mount or housing
• Helps prevent board movement, rattling, and connector stress from vibration
• Replace if the clip is cracked, deformed, or missing
• Symptoms include a loose control assembly, rattling noises, or a board that won't stay seated

• Disconnect power at the breaker before servicing
• Access the control area; support the board when removing/installing the clip
• Handle the control board by the edges and observe ESD precautions
• Ensure the new clip is fully seated and the board is secure before reassembly

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
