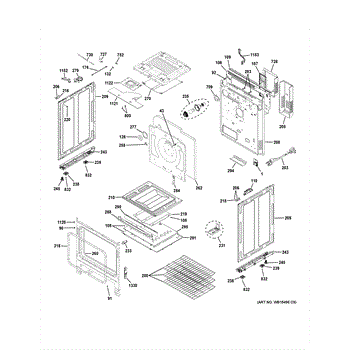

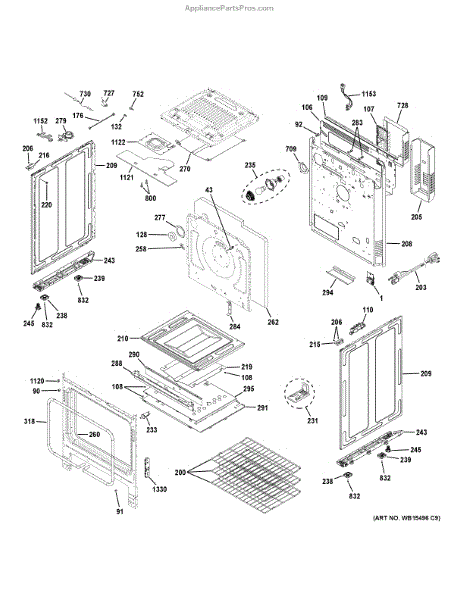

Parts for Ge PGS930BEL1TS: Body Parts

This LP conversion kit allows a qualified installer to convert a compatible gas range or cooktop from natural gas to liquid propane. It sets up the appliance for proper LP operation with correct flame characteristics and reliable performance.

• Converts the appliance from natural gas to LP (propane) per model-specific instructions
• Provides LP-calibrated components to achieve correct gas flow and burner flame
• Helps restore proper blue flame, heat output, and ignition reliability on LP
• Use when installing on a propane supply or after moving from NG service
• Incorrect fuel setup may show large yellow flames, sooting, or poor simmer control

• Must be installed by a qualified gas technician; follow local codes and the model's instructions
• Disconnect electrical power and shut off the gas supply before starting
• Convert the pressure regulator to LP and adjust air shutters/burner flames as directed
• After conversion, leak-check all connections with a non-corrosive solution and verify proper blue flame

This LP high-altitude conversion kit adapts select gas cooking appliances for liquid propane use at elevation. It properly meters gas flow so burners light easily and produce clean, stable flames in thin-air conditions.

• Configures the appliance for LP operation in high-altitude installations
• Calibrates fuel delivery to maintain proper flame size and combustion
• Helps address yellow/sooty flames, flame lift, or hard-to-control simmer after conversion
• Promotes reliable ignition and even heat across burners

• Conversion affects gas type and pressure; must be performed per the manufacturer's instructions and local codes
• Shut off gas and power before service; work in a well-ventilated area away from open flames or sparks
• After conversion, leak-test all connections and adjust air shutters per model guidance if applicable
• Intended for LP high-altitude applications only; use the model-specific kit specified by the manufacturer

The Range NG High Altitude Kit is an OEM part for GE gas ranges. This high-altitude conversion kit allows the range to operate properly at elevations above 2000 feet.

Causes related to needing this kit are using the range at a high elevation without proper adjustment for decreased air pressure and oxygen levels.

Symptoms of needing this high-altitude kit include:

• Unstable or inconsistent flame during operation
• Excessive cooking times
• Incomplete combustion of gas resulting in carbon monoxide issues

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Assembly is an OEM replacement part for GE ovens and ranges. It monitors and regulates the temperature inside the oven cavity to determine accurate and consistent baking and roasting.

Causes of a bad temperature sensor can include damage to sensor wires, failure of electronic modules, or sensors reaching the end of their lifespan after years of high temperature exposure.

Symptoms of a faulty temperature sensor include:

• Inability to achieve or maintain the set oven temperature
• Wide fluctuations outside an acceptable temperature range
• Premature or delayed cycling of heating elements
• Error codes related to temperature sensing issues

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

The Machine Board with Frame is an OEM component specifically designed for GE gas ranges. This board oversees critical cooking functions including ignition, temperature control of the burners and oven operations.

Symptoms of a bad machine board include:

• Burners not lighting properly or staying lit
• Oven not reaching or maintaining set temperatures
• Improper burner or oven shut-off
• Control buttons and display malfunctions

Causes of a bad machine board can be failures over time due to heat stresses, appliance age, electrical surges, or physical impacts.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

The GE spark module kit is an OEM replacement part for GE stoves and ranges. It generates the spark needed to ignite the gas burners. The kit includes the spark module and associated wiring harness. When the burner control knob is turned to the "ignite" position, the spark module receives a signal and activates. It then produces an electrical spark that ignites the gas as it flows from the burner orifice, allowing the burner to light.

Over time, spark modules can fail due to electrical issues, wear and tear from frequent use, or exposure to moisture. A malfunctioning spark module can disrupt the ignition process, making it difficult to light the burners.

Symptoms of a bad spark module include:

• Burners not igniting
• No clicking sound when turning the burner knob
• Intermittent sparking
• Only some burners igniting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a stainless-steel machine screw used to secure components in appliances. Its #8-18 thread and 3/8" length provide a reliable, corrosion-resistant fastening where a short machine screw is required. What it does:

• Fastens panels, brackets, or small assemblies with a #8-18 threaded hole
• Resists rust and corrosion in humid appliance compartments
• Provides a short, secure hold where space is limited
• Compatible with standard #2 Phillips or compatible driver bit for installation

• Power off and unplug the appliance before servicing
• Use the correct driver to avoid stripping the head
• Do not overtighten; stop when snug to avoid thread or component damage
• If replacing multiple fasteners, reuse only the same size and type

This grounding harness connects an appliance's metal chassis to earth ground, restoring a safe electrical return path and helping prevent shocks or arcing. Use when the original ground wiring is damaged or corroded. What it does:

• Provides the grounded connection between the appliance chassis and house ground
• Helps prevent electrical shock and reduces risk of arcing at metal parts
• Restores proper grounding after damage, corrosion, or failed wiring inspections
• Supports safe operation of controls and component grounding points

• Disconnect power to the appliance at the breaker before starting any work
• Inspect mounting points and terminals; replace any damaged clips or fasteners
• Route wire clear of heating elements and moving parts; secure with manufacturer clips

This is the flat wire shelf that slides into your oven's side supports to hold bakeware at the right height. Replace a bent or missing rack to restore safe, stable, and adjustable cooking space.

• Provides a sturdy, level surface for pans and dishes at multiple rack positions
• Slides in and out for easy loading and checking of food
• Helps position food correctly for even baking, roasting, or broiling
• Common symptoms: rack is warped, wobbly, missing, or difficult to slide

• Allow the oven to cool completely; wear gloves to protect hands.
• Pull the old rack to the stop, tilt the front up to clear the stop, and remove.
• Align the new rack with both side rails; insert the rear first, lower the front, and slide fully in.
• Refer to your owner's manual for recommended rack positions and any self-cleaning guidance.

The Line Cord is an OEM part for GE gas ranges. It safely delivers gas and electrical supply between the range and household connections.

Causes of failure can be insulation cracks from repetitive plug insertion/removal, bent pins compromising contacts, or wire fatigue over prolonged usage.

Symptoms of a faulty line cord include:

• Gas valves failing to activate or ignite burners
• Lights/igniters not illuminating due to interrupted power
• Potential shock or fire hazard from exposed wire ends

This OEM part is also compatible with Hotpoint and RCA gas range models.

This motor cover protects the appliance motor and surrounding components by keeping debris out and helping direct airflow. It restores the motor enclosure for safer, more reliable operation after damage or wear. What it does:

• Shields the motor and wiring from lint, dust, and foreign debris that can cause wear or interference
• Helps maintain proper airflow around the motor for cooling during operation
• Reduces exposure of moving parts to accidental contact and improves overall safety
• Commonly replaced when cracked, broken mounting tabs allow movement, or visible damage exposes the motor

• Disconnect power before starting any repair to avoid shock or injury
• Remove access panels as needed to reach the motor area; keep track of fasteners
• Align cover mounting tabs and secure with the original screws or hardware; do not overtighten
• Inspect and repair/replace affected components before reinstalling the cover

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

The bottom oven and deflector assembly is an OEM part for GE ranges. It serves as the protective shield for the bottom of the oven, preventing any drips, spills, or food debris from falling into the internal part of the range.

A bad bottom oven and deflector assembly can result in issues such as increased smoke during cooking, difficulty in cleaning the oven, or potential damage to the heating elements. Causes of a bad part can include wear and tear over time, accidental spills or exposure to high heat.

Symptoms of a bad bottom oven and deflector assembly include:

• Excessive smoke or burning smell during cooking
• Difficulty in cleaning the oven due to accumulated debris
• Uneven heating or cooking results
• Visible damage or warping of the deflector

Replace your worn-out or damaged bottom oven and deflector assembly with this genuine OEM GE part to restore your range.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This anti-tip bracket secures the rear of your range to the floor or wall so the rear leveling leg locks in place. Replacing a missing or damaged bracket helps prevent tipping and keeps the appliance stable during everyday use.

• Anchors the range to a fixed point; rear leveling leg engages the bracket
• Helps prevent forward tipping when weight is placed on an open oven door
• Reduces rocking or sliding during cooking or cleaning
• Replace if the bracket is missing, bent, corroded, or the unit fails the anti-tip check

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the range straight out; position the bracket per your installation manual/template
• Fasten the bracket securely to floor or wall studs using hardware appropriate for your surface
• Slide the range back so the rear leg fully engages the bracket; perform the anti-tip test from your manual

This dual plunger switch completes dispenser controls when the dispenser lever is pressed, restoring proper water and ice dispensing response. It replaces a worn or failed dispenser actuator switch to help the dispenser register lever movement. What it does:

• Acts as the dispenser lever switch assembly, closing circuits when the lever/plunger is depressed
• Controls water and/or ice dispense signals to the dispenser control board or valve
• Commonly linked to symptoms such as no water or ice when pressing the dispenser, intermittent dispensing, or unresponsive dispenser lever
• Helps restore reliable electrical contact for dispenser operation when the original switch is faulty

• One dual plunger switch assembly

• Disconnect power to the appliance before beginning any work
• Shut off water supply if removing water-connected components near the dispenser
• Access typically requires removing the dispenser bezel or front panel to reach the switch; handle panels and connectors gently
• Reconnect wiring exactly as removed and verify operation before reassembling all panels

The Oven Lamp Holder is an OEM part for GE ovens. This component securely holds the oven light bulb in place, ensuring proper illumination inside the oven cavity for better visibility during cooking and baking.

Causes of a bad lamp holder can include repeated exposure to high temperatures, physical damage, or electrical issues. A malfunctioning lamp holder can lead to the oven light not functioning correctly or at all.

Symptoms of a bad oven lamp holder include:

• The oven light not turning on
• Flickering or intermittent operation of the light
• Visible damage or corrosion to the lamp holder
• The light bulb not staying securely in place

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The GE Range Support Base is an OEM replacement part for GE wall ovens and ranges. It provides critical support and stability for the appliance, ensuring safe and reliable operation.

Causes of a bad support base could include cracks or breaks in the material over time due to repeated stresses and strains from the heavy appliance above it. The base may also become damaged or unstable if the unit is moved incorrectly and suffers impact.

Symptoms of a failing support base include:

• The oven or range rocking or becoming unlevel during use
• Noisy or squeaking sounds coming from the base
• Visible cracks or weaknesses in the material
• The appliance seeming loose or unstable on the countertop or floor

This genuine GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Leveling Leg is an OEM replacement part for GE ranges and ovens. It is designed to provide stability by allowing the appliance to be leveled on uneven floors. The leveling leg helps ensure the range sits securely, which is critical for even cooking and safe operation.

Over time, leveling legs can become damaged or worn due to frequent adjustments, heavy appliance movement, or environmental factors such as rust or corrosion. This can compromise the range's stability and cooking performance.

Symptoms of a bad leveling leg include:

• The range rocking or wobbling during use
• Difficulty achieving a level cooking surface
• Uneven cooking results due to improper range positioning
• Visible damage to the leveling leg

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right hand side

This oven felt seal fits around the door perimeter to cushion the door and help reduce heat loss. It restores the intended door clearance and soft contact between the oven door and frame for safer, quieter operation. What it does:

• Cushions the oven door edge to prevent metal-on-metal contact and reduce rattling
• Helps limit heat and smoke from escaping the oven cavity when the door closes
• Restores proper door clearance to prevent scraping or uneven sealing
• Commonly replaced when felt is worn, compressed, torn, or missing

• One oven felt seal as shown

• High-level replacement; remove the oven door or open hinge per your service manual before replacing the seal
• Work with the oven powered off and fully cooled; disconnect power for safety
• Press the felt into the channel or adhesive area; ensure even fit around the full perimeter

This oven light gasket fits between the glass lens and the oven liner. It restores a proper seal around the light opening to help keep grease and moisture out of the light cavity and hold the lens securely in place. What it does:

• Seals the joint between the oven light lens and the cavity wall
• Helps prevent grease and moisture from entering the light assembly
• Keeps the lens snug to reduce looseness or rattling
• Replace if the gasket is cracked, flattened, brittle, missing, or if moisture/grease is visible around the lens

• One oven light lens gasket

• Disconnect power at the breaker and allow the oven to cool completely
• Remove the light lens/retainer as your model requires (unscrew lens or release clips)
• Note gasket orientation and clean the mating surfaces
• Seat the new gasket evenly and reinstall the lens; do not overtighten the glass

This automatic latch secures the appliance door during operation and releases it when the cycle finishes, helping the appliance run safely and reliably. It replaces a worn or broken latch to restore proper door closure. What it does:

• Secures the door so the appliance can start and complete cycles
• Releases the door at cycle end for unloading
• Commonly used when the door won't stay closed, the appliance won't start, or cycles stop unexpectedly
• Fits into the door/latch assembly location and interfaces with the door strike

• One automatic door latch

• Disconnect power before attempting any repair to avoid shock or injury
• Access usually requires removing the appliance door or front panel; keep fasteners organized
• Test door operation after installation to ensure latch engages and releases smoothly
• If other door components are damaged, inspect and replace them as needed for reliable operation

This terminal cover protects the oven/range power connection by covering the appliance's rear terminal block, helping prevent accidental contact and keeping wiring secure. It's a direct-replacement exterior cover for the unit's power terminals. What it does:

• Covers the appliance's electrical terminal block to help protect wiring and connectors from damage
• Reduces risk of accidental contact with live terminals when the access panel is opened
• Keeps the terminal area tidier and helps prevent debris buildup around connections
• Commonly replaced when the original cover is cracked, broken, or missing

• One terminal cover

• High-level replacement: remove rear access panel to access the terminal block, then replace the cover and secure with existing screws
• Always disconnect power (unplug or switch off the breaker) before servicing electrical components
• No special tools required beyond a screwdriver; follow OEM instructions if available

This oven door gasket assembly seals the oven door to help keep heat, smoke and odors inside the oven cavity for more even cooking and improved efficiency. It replaces a worn or damaged door seal quickly and easily. What it does:

• Forms a heat-tight seal around the oven door to reduce heat loss and improve temperature stability
• Helps prevent smoke and odors from escaping into the kitchen
• Reduces energy waste from a failing or brittle seal
• Common symptom fix: visible gaps, charred or compressed gasket, heat felt at the door edge, longer cook times or uneven baking

• One oven door gasket assembly

• Disconnect power (and gas if applicable) and allow the oven to cool completely before beginning
• Inspect the door and retainer for damage; remove old gasket per OEM instructions and fit new gasket evenly into the retainer channel
• Avoid over-stretching the gasket; ensure a continuous seal around the full perimeter

This replacement lamp cover protects and diffuses interior appliance light for even illumination and safe bulb containment. It restores a cracked, cloudy, or missing light lens to improve visibility inside the compartment. What it does:

• Protects the interior light bulb from impact, moisture, and food debris.
• Diffuses and softens the bulb's light for more even interior illumination.
• Stops rattling or falling lens issues caused by a cracked or broken cover.
• Helps prevent direct contact with the hot bulb and reduces glare.

• One lamp cover / light diffuser.

• Disconnect power or unplug the appliance before servicing to avoid electrical shock.
• Remove the old cover carefully and dispose of any broken pieces safely.
• Handle the replacement cover gently to avoid cracks; align and snap/slide into place per the original mounting.
• After installation, restore power and replace bulb if still dim or nonfunctional.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Package of 12

Size: 10-32 GXTT FLP.595 S

This cover latch secures the appliance's top access cover so it stays closed during use and lets you open the cover for service or maintenance. It restores a positive, smooth-closing latch action for safe access. What it does:

• Holds the top/access cover closed to prevent accidental opening during operation
• Provides a solid engagement point for the cover to snap or latch into place
• Replaces a broken, worn or loose latch that causes rattling or an unsecured cover
• Helps ensure proper alignment of the cover for safe servicing and operation

• Disconnect power (unplug or shut off breaker) before beginning any service
• Typically installs with simple snap-in or screw fasteners; keep fasteners from the original part
