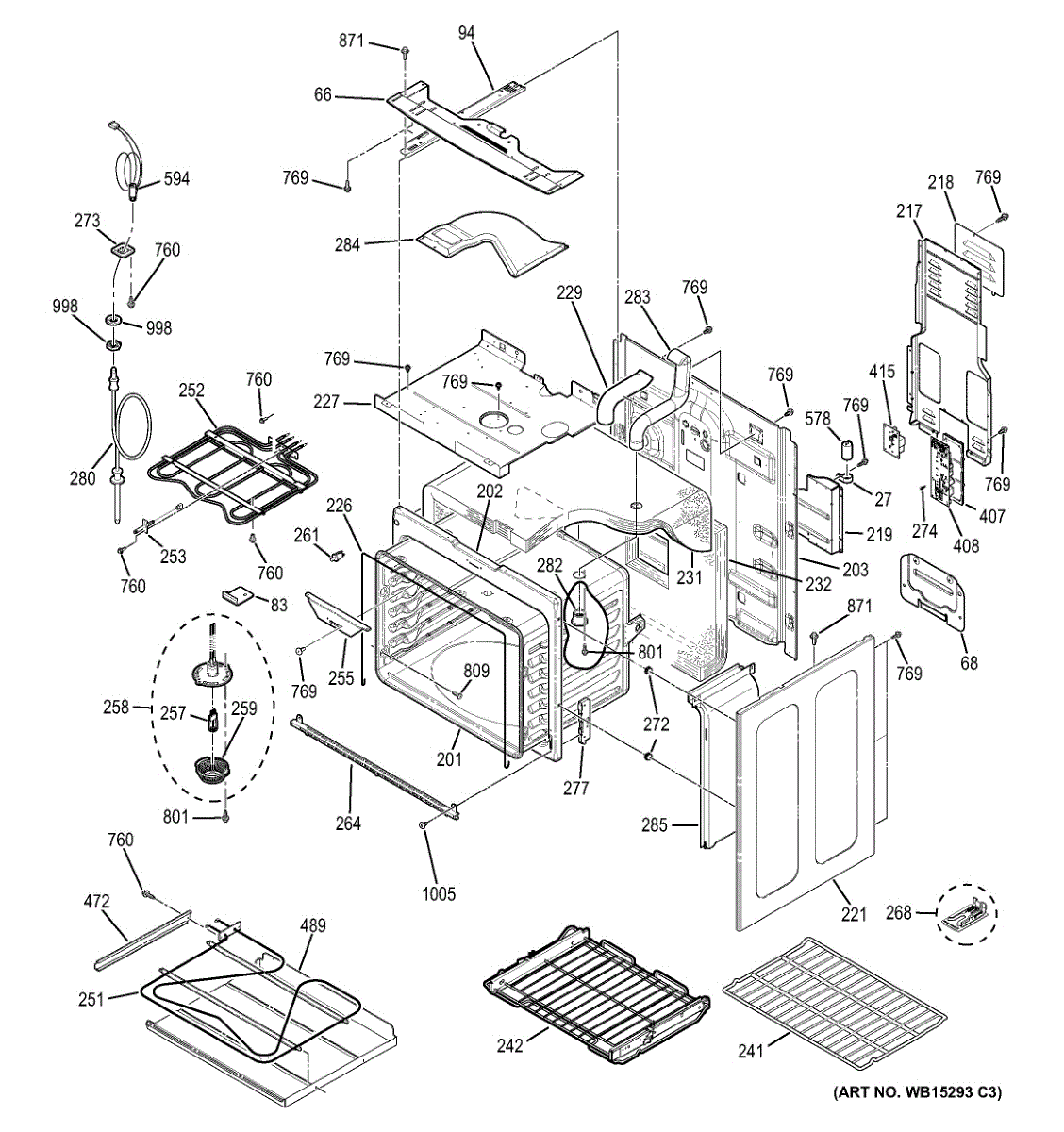

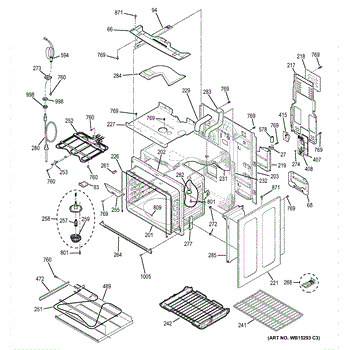

Parts for Ge PS920SF2SS: Body Parts

This oven body weld assembly restores the welded rear/side oven cavity structure and support for the inner liner, helping maintain proper oven shape and alignment for heating performance. Fits ovens that require the welded body section in black finish. What it does:

• Replaces a damaged or warped oven body weld to restore structural integrity of the oven cavity
• Helps keep the inner liner aligned so door sealing and heating remain consistent
• Addresses visible cracks, separation, or distortion of the oven body weld area
• Useful when the oven body has been dented or the original weld has failed

• One oven body weld assembly (black)

• Intended for technicians or experienced DIYers; requires disassembly of outer panels and handling of heavy sheet-metal components
• Disconnect power and gas supply before starting work
• Wear gloves and eye protection; watch for sharp edges on sheet metal

This replacement part is a vent tube insulation, and it is intended for use in different types of appliances. This is a genuine replacement part made by General Electric. Vent tube insulation is an important part of many ovens or ranges. This insulation will prevent air loss during the use of the appliance. This means that while the oven is heating, the hot air will not escape and the home will stay cool. Insulation also helps prevent the buildup of condensation in situations where moisture is present.A new vent tube insulation might be needed if the current one is worn down or damaged in any way. It is possible that the insulation can become thin over time and might need to be replaced after years of use. Be sure the oven or range is completely powered down and cooled before attempted this repair. The user must have access to the back of the appliance, and standard household tools are needed. This part is a genuine OEM replacement and is sold individually. This vent tube insulation is sourced directly from the manufacturer.

This oven rack restores usable shelf space inside the oven so cookware sits level for baking and roasting. It replaces a missing, bent, or worn rack and helps pans slide in and out on the factory supports. What it does:

• Provides a stable shelf for cookware and bakeware during cooking
• Replaces bent, warped, or missing oven racks that cause uneven cooking or tipping
• Slides into existing oven rack supports to restore original shelf positions
• Helps maintain proper airflow and clearance for even baking when installed correctly

• One oven rack

• Allow the oven to cool and disconnect power before servicing
• Slide the rack into the factory rack supports until fully seated; do not force
• Inspect rack supports and slides for damage before installing; replace any damaged guides
• Use manufacturer instructions for safe handling and to avoid burns or injury

Restore even, reliable bottom heat with this hidden bake element assembly. Located beneath the oven floor, it delivers the heat needed for consistent preheating and baking when the original element is burned out or damaged.

• Supplies primary bottom heat during Bake cycles for electric ovens
• Helps achieve normal preheat times and maintain set temperature
• Replaces an element that is open/shorted or visibly blistered/broken
• Symptoms can include no heat in Bake, very long preheat, or uneven baking results

• Disconnect power at the breaker before servicing
• Remove oven racks and oven floor panel to access the hidden element
• Note wire positions; transfer and reconnect leads one at a time to the new element
• Inspect wiring and high-heat insulation; repair/replace any damaged connectors before reassembly

The Broil Element Assembly is an OEM part for GE ranges. It is responsible for broiling food placed on oven racks in the top portion of the range.

Symptoms of a bad broil element include:

• Element failing to heat up or only heating to low temperatures
• Food not browning or cooking properly under the broiler setting
• Hot or cold spots occurring during the broiling process

Causes of a bad broil element can be prolonged and heavy usage resulting in burns or shorts in the heating coils. Signs of failure also include visible damage, corrosion or discoloration of the coils.

This OEM GE replacement part is also compatible with some Kenmore range models.

The Oven Temperature Sensor Assembly is an OEM replacement part for GE electric wall ovens. It is responsible for accurately reading the oven's internal temperature to provide precise temperature control and safe operation. Consistent and precise temperature readings are necessary for repeatable cooking results.

Symptoms of a bad temperature sensor include:

• Inability to reach or maintain set cooking temperatures
• Fluctuating temperatures causing inconsistent results
• Error codes or fault messages related to temperature regulation
• Potential safety concerns if temperatures run too high or low

Causes of a faulty sensor can be due to failures over extended usage, exposure to high heat cycles, or impedance changes due to dirt or mineral deposits. Precise temperature readings allow for confident cooking.

This OEM GE replacement sensor is also compatible with Hotpoint, RCA, and some Kenmore electric wall oven models.

This halogen lamp with a G9 base restores bright, dependable interior lighting in your appliance. Replace a burned-out or damaged bulb so you can clearly see food and monitor cooking progress without opening the door. What it does:

• Provides bright illumination inside the appliance cavity when the light is switched on or the door is opened
• Restores visibility after the original bulb fails
• Common symptoms: no light, dim or flickering light, intermittent operation, or a visibly damaged capsule
• Direct-fit G9 bi-pin base installs into the existing socket

• 1 halogen lamp (G9 base)

• Disconnect power and allow the appliance to cool completely before service
• Remove the lens/cover as directed in your model's manual
• Handle the new halogen bulb with clean gloves or a tissue—oils on skin can shorten bulb life
• Align the G9 pins and press straight into the socket; replace the cover and restore power

This halogen lamp assembly replaces a worn or broken oven/range interior light to restore clear, bright illumination so you can check cooking progress without opening the door. Designed to fit OEM lamp housing and connector. What it does:

• Provides bright, halogen interior illumination so food is easy to see while baking or roasting
• Replaces a burned-out, flickering, dim, or cracked oven light assembly
• Restores proper light function when the oven lamp fails to turn on
• Fits into the lamp housing and connects to the existing oven wiring harness

• Disconnect power to the appliance before servicing to avoid shock hazard
• Allow the oven to cool completely before accessing the lamp
• Avoid touching the bulb glass with bare hands; use gloves or a clean cloth to prolong bulb life

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This front trim frame restores the finished edge and appearance of the appliance door or control opening, providing a clean, factory-look replacement that covers gaps and worn trim on compatible units. What it does:

• Replaces damaged, scratched or missing front trim to improve the appliance's appearance.
• Covers gaps where original trim has warped, peeled, or broken.
• Helps maintain a consistent seal line and edge protection around the door or control opening.
• Matches the original black finish to blend with the surrounding cabinet or door surface.

• One black front trim frame.

• High-level replacement; remove power and open door or panel before starting.
• Handle trim carefully to avoid scratching the finish during installation.
• Retain and reuse any original clips or screws when possible; replace only if supplied or specified.

This anti-tip bracket assembly secures the rear of your range to the floor or wall. It helps prevent the appliance from tipping forward during everyday use and supports compliance with manufacturer safety and installation requirements. What it does:

• Anchors the range so the rear leveling foot engages the bracket to help prevent tipping
• Helps correct a range that rocks, shifts, or tilts when the door is opened or racks are pulled
• Replaces a missing, bent, or corroded anti-tip bracket
• Supports passing the required anti-tip safety check after installation

• One anti-tip bracket assembly

• Disconnect power; for gas models, also shut off the gas supply before starting
• Mount the bracket to the floor or wall as directed in the range's installation instructions
• Slide the range back so the rear leveling foot fully engages the bracket; verify the unit is level
• Perform the anti-tip test specified in the installation manual to confirm proper engagement

This side support panel replaces a damaged or missing support on the appliance's side, helping secure and align the cabinet and trim so the unit sits solidly and looks finished after installation or service. What it does:

• Provides structural support for the side of the appliance cabinet and adjacent trim
• Helps maintain correct spacing and alignment next to countertops or panels
• Replaces a bent, warped, or corroded panel
• Reduces rattles or rubbing caused by a loose side assembly

• One side support panel

• Disconnect power; turn off gas supply before servicing
• Carefully pull the unit forward for side access; support it to prevent tipping
• Remove fasteners, transfer any clips/brackets from the old panel, and reinstall with existing hardware
• Wear cut-resistant gloves and verify clearances and level before final tightening

A replacement plastic PCB standoff that secures and insulates the appliance control board from the chassis to prevent shorts and maintain stable mounting. Restores correct spacing and support for a loose or rattling control board. What it does:

• Holds the printed circuit board off the metal frame to prevent electrical contact and shorting
• Keeps the control board aligned and stable to reduce vibration-related faults or intermittent connections
• Provides an insulated mounting point where an original standoff is cracked, missing, or worn
• Helps ensure reliable screw placement and consistent board spacing during reassembly

• One plastic PCB standoff

• Disconnect power to the appliance before servicing to avoid shock or damage
• Use the original screw size and do not overtighten to prevent cracking the standoff or PCB
• Replace any damaged mounting hardware; verify the board sits flat and is properly insulated from metal parts

This hinge receiver secures the refrigerator door hinge to the cabinet frame, keeping the door aligned and closing smoothly. It replaces a worn or damaged receiver to restore proper door fit and operation. What it does:

• Secures the hinge pin to the cabinet frame so the door pivots correctly
• Restores proper door alignment and prevents sagging or uneven gaps
• Helps the door seat and seal fully to maintain internal temperature
• Stops clicking, rubbing or loose-feeling hinges caused by a broken receiver

• Unplug the appliance or disconnect power before starting work to avoid electrical hazards.
• Support the door while removing hinge fasteners to prevent injury or damage.
• Use proper hardware and hand tools; do not overtighten fasteners which can strip mounting holes.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This frame board assembly mounts behind the range or wall oven control panel to support and position the user interface board and display. Replacing a damaged assembly restores proper alignment and a solid, reliable feel to the controls.

• Supports and positions the electronic UI/control board within the control panel
• Keeps the display and keypad/touch areas aligned and stable
• Provides structural support and helps shield components from heat and vibration
• Replace if the control panel is loose, cracked, warped, or the display/keypad shifts or binds

• Disconnect power at the breaker before servicing
• Remove the control panel/backguard trim to access the assembly
• Handle electronic components by the edges and use anti-static precautions
• Note connector locations; ensure all harnesses and ribbon cables are fully seated before reassembly

This electronic control board assembly (Merlin3) is the appliance's central controller. It interprets keypad inputs, drives the display, and communicates with the control system to execute cooking functions—restoring dependable operation when the original board fails.

• Interprets touchpad/key commands and updates the display
• Communicates with the appliance's control system to run selected modes and cycles
• Helps coordinate timing and temperature based on sensor feedback
• Typical failure symptoms: blank or flickering display, unresponsive controls, error codes, or the oven not starting/heating

• Disconnect power at the breaker/fuse box and verify no voltage is present before servicing
• Use ESD protection; handle the board by the edges to avoid component damage
• Photograph/label all connectors; move wires one at a time to the new board
• After reassembly, restore power and follow the model's tech sheet for any required control reset or self-test

This daughter relay board is a small control sub-board that connects to the main control to switch high-current oven and cooktop circuits. It restores reliable relay switching so heating elements and other powered components operate correctly. What it does:

• Acts as a relay interface between the main control and high-current circuits for heating elements and similar loads
• Opens and closes power to oven/burner elements when commanded by the main control
• Common failure symptoms: cooktop or oven elements not receiving power, intermittent heating, or error codes related to relay/circuit faults
• Helps prevent damage to the main control by handling high-current switching locally

• One daughter relay board

• Disconnect power at the breaker or unplug the appliance before starting work
• Handle the board by its edges and avoid static discharge; use proper ESD precautions if available
• Verify the main control and other related components before replacing; only replace if diagnosis confirms the daughter relay board

This reflector pan replaces the oven cavity reflector that sits under the bake element to direct heat and protect the oven floor. Restores proper heat distribution and helps prevent direct contact with the element for safer baking. What it does:

• Reflects and redirects heat from the bake element for more even oven temperatures
• Shields the oven floor from drips, spills and debris while baking
• Helps maintain correct bake performance when original pan is bent, corroded or missing
• Reduces risk of direct contact between food/drips and the heating element

• One reflector pan

• Disconnect power to the appliance before any service to avoid shock or injury
• Handle carefully — edges may be sharp; use gloves to prevent cuts
• Typically installs under the bake element; follow your model's service manual for removal and replacement steps
• If corrosion or oven-floor damage is present, inspect surrounding components and replace as needed

The Wall Oven Capacitor Motor is an OEM part for GE wall ovens. Located inside the oven cavity, this motor is responsible for turning the convection fan which circulates hot air for even baking and roasting.

Symptoms of a bad capacitor motor include:

• Inability to select convection bake or roast features
• Uneven cooking results
• Lack of air circulation inside the oven
• Strange noises coming from the fan/motor area
• The convection fan not turning on

Causes of failure can be wear over time, damage from debris inside the oven, or occasional voltage fluctuations which can degrade motor components.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Black. 8-18 AB HXW 3/8

ST10-16 X 7/16"
