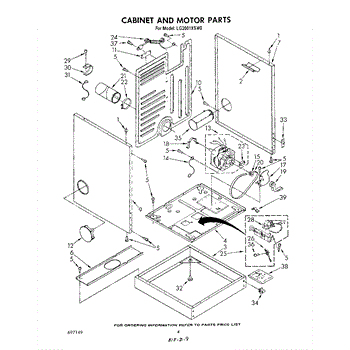

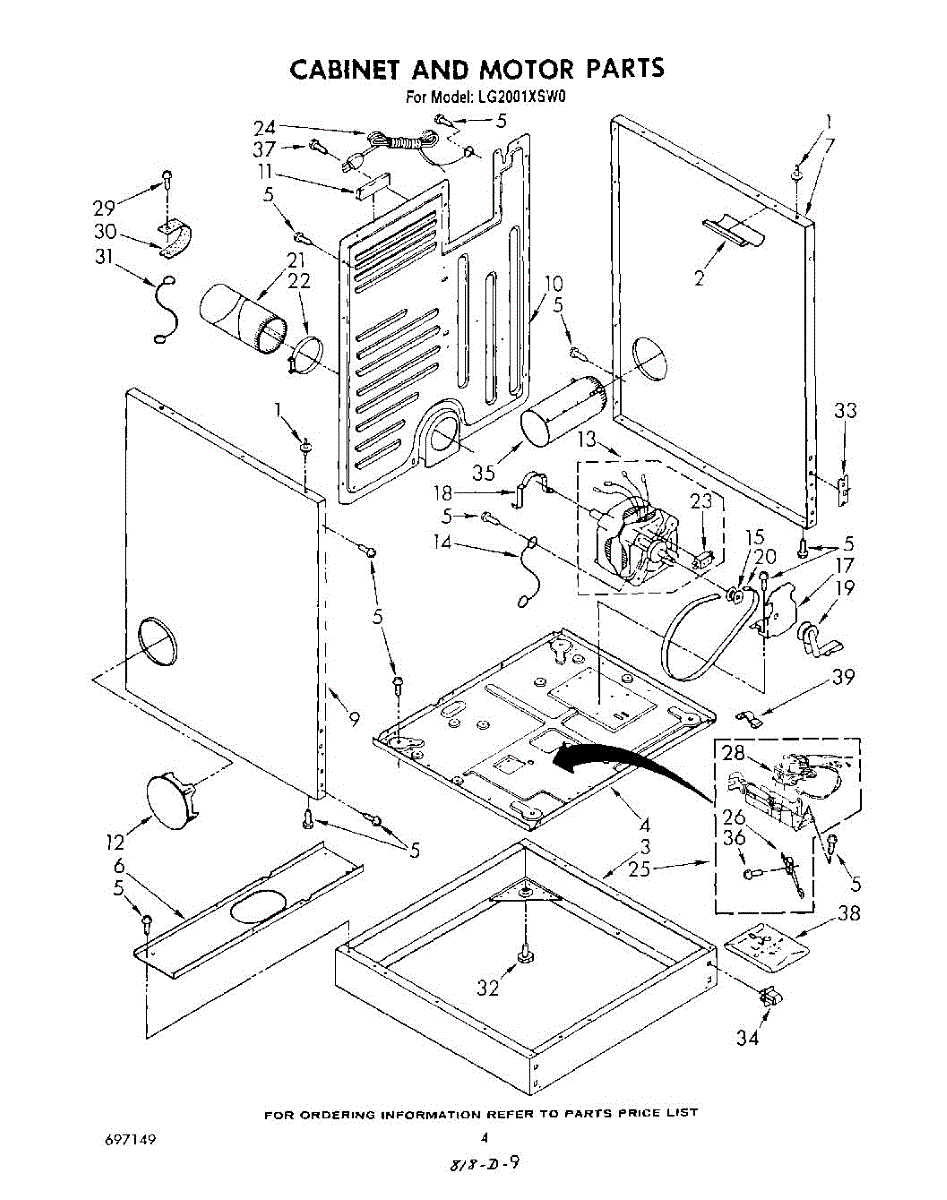

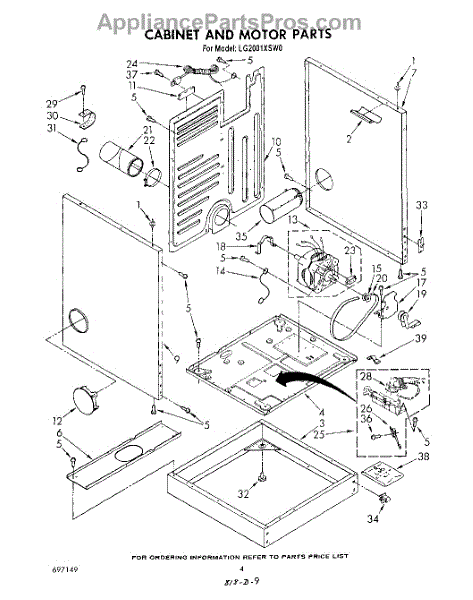

Parts for Whirlpool LG2001XSW0: 03 - Cabinet And Motor Parts

Specs: 10-16 x 1/2 inch.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Whirlpool Motor Pulley is an OEM part for Whirlpool clothes dryers. It is the component located on the dryer drum motor that transmits power to spin the dryer cylinder and tumble clothes during operation. It allows the belt to grip effectively for transmission of torque from the motor.

Symptoms of a bad Motor Pulley include:

• The dryer drum failing to spin and tumble clothes during cycles
• Abnormal squealing, grinding or belt slipping noises from inside the dryer
• Minimal air flow and prolonged drying times

Causes of failure can include cracks or deterioration of the pulley edge from prolonged use, the belt wearing grooves into the pulley, or loose mounting bolts allowing wobbling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This part is a motor clamp. This is a genuine OEM part and has been sourced directly from the manufacturer. This part is intended to replace a deteriorated, damaged, or broken motor clamp on certain makes of indoor appliance models. Motor clamps are essential for properly securing the drive motor on various types of indoor appliances such as washers, dryers, and refrigerators. Without the use of a motor clamp, the drive motor is free to move around or become detached. This can easily cause serious damage to the equipment and prevent proper functionality. Proper tools are needed to replace this part and appropriate safety measures should be adhered to when working on any type of equipment. For accurate information on how and where to install this replacement motor clamp, specific manufacturer diagrams should be referred to.As an authentic replacement part, this motor clamp can be used on multiple different models of washers, dryers, refrigerators, and washer/dryer combos manufactured by Kenmore, Maytag, Whirlpool, and Amana. Please note that this motor clamp is a genuine part made of high-quality materials and is sold individually.

The Idler Pulley is an OEM part for Whirlpool dryers, responsible for maintaining the correct tension on the drive belt, allowing it to remain tight and aligned, preventing slipping and contributing to the consistent rotation of the drum during cycles.

Symptoms of a bad Idler Pulley include:

• Squealing or squeaking noises
• The dryer drum failing to turn
• Excessive vibration or unusual sounds

Causes of failure can range from normal wear and tear, which can lead to the pulley's bearing wearing out, to the accumulation of lint and debris causing the pulley to seize or function improperly. Additionally, a cracked or damaged pulley can lead to belt misalignment and slippage.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Fits all Whirlpool-made dryers (Whirlpool, Kenmore with prefix 110, Roper, KitchenAid, and Estate). Matching belt 341241 and rear support rollers 349241T. Whirlpool dryer repair manual 677818L.

The Dryer Belt (length 79-1/8 inches) is an OEM part for Whirlpool dryers. This belt wraps around the drum, the motor pulley, and the idler pulley to enable the drum to rotate during the drying cycle. It ensures that clothes are tumbled and dried evenly. Also available in repair kit AP3109603

Over time, the dryer belt can become worn or snap due to the constant tension and friction it endures. When the belt fails, the drum will no longer spin, and the dryer will be unable to dry clothes effectively.

Symptoms of a bad dryer belt include:

• The dryer drum not turning
• A burning smell from the dryer
• Unusual noises during operation
• The dryer running but not tumbling clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Drive Motor is an OEM part for Whirlpool dryers. This motor is the heart of the dryer, responsible for turning the drum and enabling the air to circulate properly throughout the machine.

Over time, dryer motors can suffer from wear and tear due to continuous use, accumulation of lint and debris, or overload from heavy laundry loads. These factors can lead to the motor overheating, losing power, or failing to start altogether.

Symptoms of a bad Dryer Drive Motor include:

• The dryer not starting when the start button is pressed
• Unusual noises, such as humming or buzzing
• The dryer stopping unexpectedly during cycles
• A burning smell coming from the dryer

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This power cord connects your appliance to household electricity, supplying safe, reliable power to its controls and components. Replace a damaged or overheated cord to restore dependable operation and reduce the risk of shorts.

• Supplies AC power from the wall outlet to the appliance's electrical system
• Helps resolve no power, intermittent power loss, or tripped breaker issues
• Replace if the cord is cut, frayed, melted, discolored, or feels hot at the plug
• Restores safe operation when the original plug or insulation is damaged

• Disconnect power at the outlet or circuit breaker before servicing
• Note wire routing and connection points; match the original orientation for hot, neutral, and ground
• Seat the cord properly and secure with the model's required strain relief or clamp to prevent tension on terminals
• Ensure the cord is not pinched and is clear of sharp edges, hot surfaces, and moving parts; test for proper operation

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement gas valve controls gas flow to the burner in a gas dryer, enabling safe ignition and consistent heat. When it fails, the burner may not light and loads can stay damp; replacing it restores proper drying performance.

• Opens and closes gas flow to the burner when heat is called for
• Shuts off gas when the cycle ends or heating is not active
• Common symptoms: dryer runs but has no heat or the burner never ignites
• May present as the ignitor glowing or clicking repeatedly without flame, or intermittent heat

• Disconnect power and shut off the gas supply before servicing
• Work in a ventilated area and allow the dryer and burner to cool
• Use only gas-rated thread sealant on threaded connections
• After installation, turn on gas and check all joints for leaks with a soap-and-water solution

Replacement adjustable leveling feet that stabilize your dryer and help keep it sitting level on uneven floors. Restores proper clearance and reduces rocking, vibration and movement for safer, quieter operation. What it does

• Replaces worn or damaged leveling feet to stabilize the appliance
• Allows height adjustment so the dryer sits level on uneven surfaces
• Helps reduce rocking, rattling or excessive vibration during cycles
• Can improve door alignment and reduce friction-related noise

• One set of replacement leveling feet

• Unplug the dryer and move it away from the wall before installing
• Adjust feet by turning them to raise or lower each corner; use a level for best results
• Use two people when tipping or sliding the dryer to prevent injury or damage
• Do not operate the dryer without all leveling feet installed and secured

The Dryer Clip is an OEM component for Whirlpool electric and gas dryers. It securely fastens critical ductwork attached to the dryer cabinet. Over extended periods, the constant vibrations produced during tumbling cycles cause microscopic fractures or loosening within the clip material where it grips duct joints.

Causes relate to ordinary fatigue from long-term resonance vibrations concentrated at anchoring points.

Symptoms involve:

• Loose or detached venting/ductwork affecting airflow
• Noticeable leaks emerging at separation interfaces
• Reduced drying effectiveness due to compromised ventilation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

Specs: 10-16 x 1/2 inch.

This LP gas conversion orifice adjusts gas flow for compatible gas ranges and cooktops when converting from natural gas to liquid propane, helping the appliance run safely and correctly after conversion. What it does:

• Replaces the burner orifice to reduce gas flow for LP fuel pressure and correct flame size
• Helps restore consistent, stable burner flames after an authorized LP conversion
• Addresses symptoms like unusually large or yellow flames, poor ignition, or unstable burner performance after conversion
• Works with the appliance's existing valve and burner components as part of a proper conversion

• Follow the appliance manufacturer's LP conversion instructions and parts list exactly
• Turn off gas supply and disconnect power before servicing
• Use correct torque and fittings; do not force or cross-thread the orifice
• Always perform an approved gas leak test and check burner flames after installation
