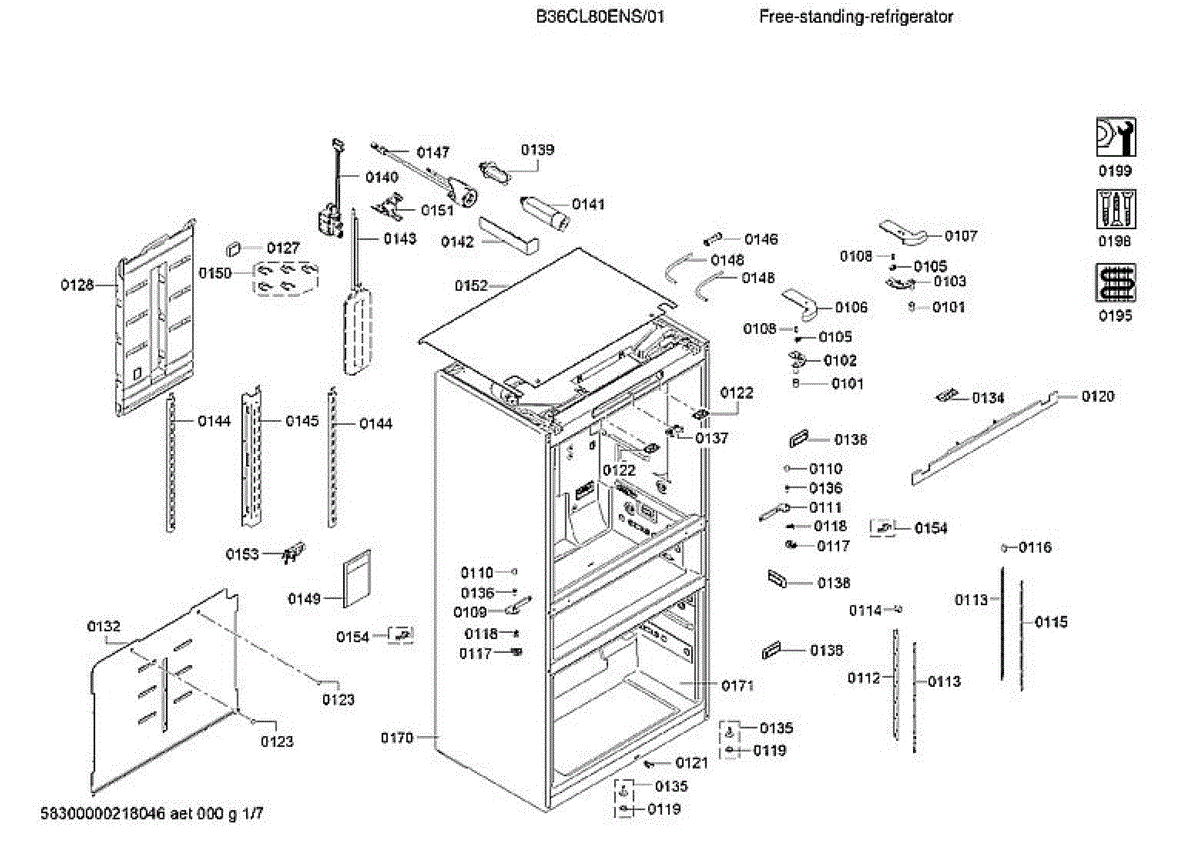

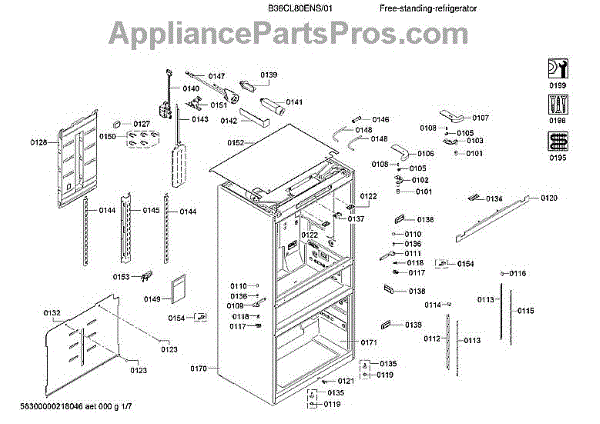

Parts for Bosch B36CL80ENS/01: Cabinet Parts

This hinge bushing is a small replacement sleeve that lines the dishwasher door hinge to reduce wear and restore smooth, quiet door movement. Use it when the door feels loose, sticks, or makes grinding noises. What it does:

• Replaces worn hinge sleeve to prevent metal-on-metal contact and reduce hinge wear
• Restores smoother opening and closing of the door; helps eliminate sticking or rough movement
• Reduces squeaks, grinding, or rattling noises from the hinge area
• Helps maintain proper door alignment and sealing by stabilizing the hinge pin

• One hinge bushing

• Inspect hinge pin and surrounding parts for wear; replace damaged parts as needed
• Remove power to the appliance and follow manufacturer instructions before performing repairs
• Press or slide the bushing into the hinge housing; ensure it seats fully on the hinge pin
• If the door remains loose after installation, check hinge assembly and springs for additional wear

This replacement door hinge restores secure door alignment and smooth opening/closing on compatible Bosch appliances. It replaces a worn or damaged hinge to stop sagging, rubbing or uneven sealing and help the door operate properly. What it does:

• Provides a sturdy pivot point to support and align the appliance door
• Prevents door sag, uneven gaps, and improper sealing that can cause leaks or poor performance
• Restores smooth opening and closing motion if the hinge is bent, worn or noisy
• Works with the existing mounting hardware and door components when the hinge itself is the faulty part

• Disconnect power to the appliance before beginning any repair to avoid electric shock
• Support the door while removing screws or fasteners to prevent dropping or damage
• Use basic hand tools; retain original mounting screws unless replacement hardware is specified
• If multiple hinges show wear, replace all affected hinges for best door alignment

A replacement fixture that secures internal components and keeps assemblies aligned for reliable operation. Restores proper fit and reduces movement-related noise or wear when an original bracket is damaged or missing. What it does:

• Secures and supports nearby parts or assemblies to maintain correct alignment.
• Prevents components from shifting during operation, helping reduce rattles and vibration.
• Helps protect wiring and hoses by keeping them routed and restrained.
• Useful when a broken or missing bracket causes loose parts or intermittent contact.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed to reach the damaged bracket; keep fasteners for reuse unless replacements are provided.
• Install using basic hand tools; avoid forcing the part into place to prevent damage.

This genuine replacement door hinge restores proper door alignment and smooth opening and closing for compatible Bosch appliances. Designed to support the door and keep seals aligned for reliable operation. What it does:

• Supports and pivots the appliance door to maintain correct alignment
• Helps prevent door sag, uneven gaps, or rubbing seals that can reduce performance
• Restores smooth opening and closing when an old hinge is worn or damaged
• Works as a direct-fit replacement when the original hinge is broken or bent

• One door hinge

• Use appropriate tools and follow the appliance manufacturer's instructions for safe installation
• Disconnect power and empty the door of stored items before removing or installing the hinge
• Two-person lift recommended for heavy doors to prevent injury or damage

This light bar replaces the control-panel indicator that provides illumination and status visibility for the appliance. It restores a visible, uniform light source on the control area for easier reading of settings and status. What it does:

• Replaces a cracked, faded or non-functioning control-panel indicator strip
• Restores even illumination across the control area for improved visibility
• Helps fix symptoms such as dim, flickering, or dark indicators on the control panel
• Works as the visible light source tied to control and status indicators

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Access typically requires removing the control panel or fascia.
• Handle the part carefully—the lens/strip and mounting clips can be fragile.
• Test the light before fully reassembling the appliance.

This light bar is the control-panel indicator assembly that illuminates the appliance's buttons and status area, restoring visible feedback for cycle selection and operation. Designed to match original fit and function for compatible models. What it does:

• Illuminates the control panel so buttons and status indicators are visible
• Shows operational feedback such as cycle status and alerts via lighted segments
• Replaces cracked, dim, or non-functioning indicator strips that reduce visibility
• Helps confirm selections and monitor appliance activity at a glance

• Disconnect power to the appliance before beginning any work
• Access typically requires removing the control panel or console; keep screws and fasteners organized
• Handle the assembly carefully to avoid damaging LEDs or flex circuits

This stop is the replacement door stop for dishwashers, helping the door open and close smoothly and stay in the correct position. Replacing a worn or broken stop restores proper door movement and alignment. What it does:

• Acts as the door stop to limit door travel and hold the door at the correct open/closed position
• Prevents the door from dropping, catching, or over-rotating
• Helps reduce stress on hinges and linkage caused by a missing or damaged stop
• Common symptom: door falls open or won't stay in the desired position

• Turn off power to the appliance before beginning any repairs
• Access may require removing the lower kick plate or inner door panel depending on model
• Inspect adjacent hinge and mounting hardware; replace any damaged parts for best results

The Door Stop is an OEM part for Bosch refrigerator doors. It provides controlled opening and closing assistance, facilitating smooth access for users. Working seamlessly within the door hinge assembly, the stop absorbs impacts gently at both full extension and closure.

Causes of failure include damage or wear from continuous open/close cycles over many years. Impacts from overloading may also fatigue or crack the plastic.

Symptoms of a faulty door stop include:

• Door slamming shut or swinging freely without restraint
• Imprecise stopping point changes opening angle control
• Loud banging and jostling sounds disrupt fridge functions

This genuine Bosch replacement restores silent operation and long-term durability. Also compatible with Thermador, Gaggenau, and some Dacor fridges.

This rubber foot cushions and stabilizes a supported component on your appliance, helping prevent sliding, vibration, and surface scratches. Replace a worn or missing foot to restore a secure, level fit and quieter operation. What it does:

• Provides non-slip support and proper spacing for the mating surface
• Dampens vibration to reduce rattling during use
• Helps protect finished surfaces from scuffs and scratches
• Replace if hardened, cracked, flattened, or missing to address wobble, rocking, or noise

• Rubber foot

• Disconnect power before servicing the appliance
• Allow any hot surfaces to cool completely before handling
• Clean and dry the mounting area; seat the new foot fully and evenly
• Refer to your model's parts diagram for exact location and orientation

This display module is the user-facing control panel assembly that shows cycle status, settings and error indicators so you can see and control appliance functions. It restores visible feedback and input response when the original display fails. What it does:

• Provides the visual display and indicator lights for cycle status and options
• Receives user input from touch/buttons and communicates commands to the main control
• Shows error codes or status icons to help diagnose issues
• Replaces a blank, flickering or unresponsive display panel

• One display module (control panel) assembly

• Disconnect power to the appliance before attempting any repair
• Handle the module and circuit board carefully to avoid static or contact damage
• Removing trim or the door panel may be required; keep fasteners and parts organized

This fluorescent lamp is a direct replacement interior light designed to restore bright, even illumination inside your appliance. It replaces a failed or dim fluorescent tube so you can see controls and contents clearly. What it does:

• Provides interior lighting to improve visibility inside the appliance
• Replaces a burned-out or flickering fluorescent tube
• Restores consistent, even illumination without hot spots
• Helps identify damaged light assemblies when physical breakage or discoloration is present

• Disconnect power (unplug appliance or switch off circuit) before servicing to avoid shock
• Handle the lamp carefully to avoid glass breakage and wear gloves if needed
• Replace only with the exact part number to ensure proper fit and function
• Dispose of the old fluorescent lamp per local regulations for lamps

This active carbon filter helps reduce airborne odors and improves air quality inside the appliance by trapping odor-causing molecules. Use it to restore fresh-smelling circulation where a charcoal/odor filter is specified. What it does:

• Adsorbs and neutralizes common food and household odors from the appliance interior
• Helps maintain fresher air circulation when ventilation or recirculation mode is used
• Common fix for persistent or worsening odors despite regular cleaning
• Works as part of the appliance's air/ventilation system to support overall performance

• One active carbon (charcoal) filter

• Follow the appliance owner's manual for correct location and orientation before installing
• Replace only when the manufacturer recommends or when odors return; do not attempt to clean or wash the filter
• Disconnect power or follow appliance safety procedures as required by the manual before accessing the filter

This door switch is the electromechanical switch that tells the appliance when the door is closed so it can start and run. It restores proper door sensing for safe operation and normal cycle starts. What it does:

• Detects when the door is fully closed and completes the circuit to allow the appliance to start.
• Prevents the motor or heating elements from running if the door is open.
• Commonly linked to symptoms such as the unit not starting, stopping mid-cycle, or display/controls not responding to door closure.
• Acts as the interface between the door latch/handle and the appliance's control system.

• One door switch assembly.

• Disconnect power (and water, if applicable) before starting any repair.
• Access may require removing the control panel, door trim, or kick plate—follow OEM service instructions.
• Handle the switch and connector gently to avoid damaging terminals or wiring harnesses.

This Foot is a support piece that attaches to the unit or its assembly to provide stable contact with the surface. Replacing a worn or missing foot restores proper support, alignment, and quieter, smoother operation.

• Provides a stable, non-marring contact point between the product/component and the surface
• Helps maintain level and alignment to reduce wobble and vibration
• Replaces cracked, stripped, or missing feet that can cause rocking or uneven stance
• Helps prevent metal-to-surface contact that can scratch or damage floors or internal surfaces

• Disconnect power and water (if applicable) and allow the unit to cool before servicing
• Access the original mounting point; remove the damaged or missing foot
• Install the new foot by snapping or threading into the original location per model design; do not force
• Adjust for level and check stability before returning the appliance to service

This adjusting screw secures and fine-tunes the height or alignment of an appliance component to restore proper fit and function. It provides a simple, durable way to correct uneven leveling or misaligned doors and panels. What it does:

• Allows precise height or tension adjustment for a door, panel, or leveling foot
• Restores proper alignment to reduce rubbing, gaps, or uneven closure
• Helps correct appliance rocking or uneven countertop contact when used for leveling
• Works with the appliance's existing adjustment mechanism to lock settings in place

• Turn off power and remove any access panels before adjusting near electrical components.
• Make small, incremental adjustments and test fit/operation after each change.
• Use the appropriate screwdriver or socket to avoid stripping the head.
• If the part threads or mounting area look damaged, inspect mating parts and replace as needed.

This dishwasher rack guide helps keep a rack aligned and sliding smoothly on its tracks for consistent loading and unloading. It replaces a worn or damaged guide to restore proper rack movement and stability. What it does:

• Guides the rack along the track so the rack opens and closes smoothly
• Helps prevent the rack from jumping or coming off the rail
• Reduces scraping, sticking, or uneven rack travel caused by a broken guide
• Supports proper alignment of the rack for reliable loading

• Disconnect power to the appliance before beginning any repair.
• Removal often requires opening the rack and releasing end caps or clips; have basic hand tools ready.
• Handle plastic guide pieces carefully to avoid cracking during removal or installation.

The Temperature Sensor is an OEM component specifically designed for Bosch refrigerators. Located inside the refrigerator cabinet, it provides accurate temperature readings to the electronic control system.

Symptoms of a bad temperature sensor include:

• Abnormal or fluctuating interior cabinet temperature
• Frost or moisture buildup inside the refrigerator
• Failure to maintain set temperatures
• The refrigerator not running or cycling properly

Causes of a bad sensor can include damage from impact or moisture exposure compromising insulation and electrical connections. Natural degradation over time also affects precision readings.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Bypass Filter is an OEM part for Bosch refrigerators that use a water filtration system. This bypass filter is used when you choose not to filter the water through the refrigerator’s built-in water filtration system. It is ideal for situations where the household water is already adequately filtered, or when using filter cartridges is not preferred.

Causes for the need of a bypass filter include wanting to use pre-filtered water or reducing the costs associated with frequent filter changes.

Symptoms of a bad or missing bypass filter include:

• Poor water dispensing or ice production
• Water leakage or dripping from the dispenser area
• Unusual noises from the dispenser when attempting to use water or ice

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

The Water Inlet Valve is an OEM replacement part for Bosch refrigerators. It is responsible for controlling the flow of water to the ice maker and dispenser. Over time, inlet valves can fail due to mineral deposits, solenoid failure, or plastic housing cracks.

Symptoms of a defective inlet valve include:

• No water dispensing
• Slow dispensing
• Leaks
• Ice maker not making ice

The inlet valve is compatible with Bosch, Thermador, Gaggenau and some Kenmore refrigerator models.

The Water Filter is an OEM replacement part for Bosch refrigerators. It helps ensure the water supplied to the ice maker and water dispenser is clean and contaminant-free by removing impurities from incoming water lines.

Causes of a bad water filter can include exceeding recommended replacement intervals, accumulation of mineral deposits that restrict flow, or damage to components from contaminants in the water supply.

Symptoms of a bad water filter include:

• Cloudy or stale-tasting water from the dispenser
• Slow ice production or icemaker malfunctions
• Standing water or leaks from water lines
• White mineral residue developing inside the refrigerator

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore refrigerators.

The Valve is an OEM component specifically designed for Bosch refrigerators. Found inside water lines, it directs the flow of water to dispensers within easy access. The valve regulates pressure to eliminate drips during use and prevent flood damage when closed.

Causes of valve failure often relate to mineral buildup clogging pores over extended use. Exposure to constant temperature changes can also warp seals prematurely.

Symptoms of a faulty valve include:

• Water dispenser refusing to function or activating erratically
• Leaks suddenly springing from tubing or drip trays
• Chilled water unavailable or losing cooling unexpectedly

Replacing your valve restores reliable H2O on demand. This genuine Bosch part ensures years of mess-free filling. Compatible with Thermador, Gaggenau, and select Kenmore models.

The Water Filter Head is an OEM part for Bosch refrigerators. This part serves as the housing and connection point for the water filter. It ensures that the water filter is securely attached and properly aligned within the system, facilitating the flow of water through the filter where impurities, such as chlorine, sediment, and other contaminants, are removed.

Causes of damage to the water filter head can include regular wear and tear from changing filters, excessive force when installing or removing filters, or material fatigue over time leading to cracks and leaks.

Symptoms of a bad Water Filter Head include:

• Difficulty in installing or removing the water filter
• Leaking water from the area around the water filter
• Reduced water flow from the dispenser or ice maker

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement tube restores proper fluid routing in compatible appliances, helping direct water where it needs to go and preventing leaks from worn or damaged tubing. Use the exact OEM tube for a correct fit and reliable performance. What it does:

• Routes water between components to support normal appliance operation
• Replaces cracked, split, or hardened tubing that can cause leaks
• Helps restore proper draining or water flow when the original tube fails
• Works as a direct-fit replacement when the OEM tube is required

• Disconnect power and water supply before beginning any repair
• Use proper clamps or connectors; inspect fittings and replace clamps if corroded
• After installation, restore power/water and check carefully for leaks during a test cycle

This replacement cover restores proper protection and fit where the original cover is damaged or missing. It shields the designated opening or component so your appliance operates safely and as designed. What it does:

• Protects internal parts by enclosing the opening/assembly and keeping out debris and splashes
• Maintains proper airflow or water flow paths as engineered for the appliance
• Helps prevent accidental contact with moving or electrical components
• Addresses issues such as visible damage, loose or missing cover, rattling, or gaps

• 1 cover

• Disconnect power before servicing; if your appliance is water-fed, turn off the water supply
• Retain and reuse original screws/clips unless new hardware is supplied
• Align tabs and orientation marks; seat fully without forcing and tighten fasteners evenly
• After installation, run a brief test to check for noise or interference

A small metal/plastic retainer used to secure a dishwasher assembly in place so moving parts stay aligned and stable during operation. Replaces a worn or broken ring to restore proper fit and reduce noise from loose components. What it does

• Secures and holds a specific appliance sub-assembly or component in position
• Prevents axial movement that can cause parts to rub, bind, or rattle
• Restores proper alignment when the original ring is cracked, deformed, or missing
• Helps maintain reliable operation by keeping mating parts firmly seated

• One fastening (retainer) ring as shown

• Always disconnect power and water supply before beginning dishwasher repairs
• Inspect mating surfaces and replace any damaged clips or seals to ensure correct fit

This replacement cover protects internal components and helps keep moving parts and wiring shielded from debris and moisture. It restores the appliance's enclosure integrity and supports normal operation when the original cover is cracked or missing. What it does:

• Shields internal assemblies from dirt, spills, and foreign objects that can cause wear or interference
• Helps maintain correct airflow and containment for components behind the panel
• Reduces risk of contact with hot or moving parts, improving safety during use
• Common symptom: visible cracks, breaks, or a missing cover after impact or disassembly

• Cover

• Disconnect power (unplug or switch off breaker) before removing or installing the cover
• Use appropriate hand tools and keep fasteners in a safe place for reassembly
• Inspect surrounding components for damage while the cover is removed; replace damaged parts as needed

The Door Stopper is an OEM part for Bosch refrigerators. It is a component located on the freezer door that prevents the door from opening beyond 90 degrees. The door stopper is designed to provide stability and safety by limiting the door's range of motion.

Symptoms of a bad door stopper include:

• The refrigerator door opening past 90 degrees and damaging other interior parts
• Difficulty closing the door fully
• Excessive movement or wobbling of the door
• Improper sealing when closed

Causes of a bad door stopper may include damage from repeated impacts as the door is opened and closed, wear and tear over time, or failure of the stopper's locking mechanism.

This replacement part is also compatible with Thermador, Gaggenau, and some Kenmore refrigerators.

This manufacturer-specified service tool is used to perform installation or repair steps exactly as described in the service manual, helping you remove, adjust, or install designated components safely and without damage.

• Purpose-built tool referenced in OEM service/installation instructions
• Provides the correct interface or leverage for the specified procedure
• Helps prevent damage to fasteners and surrounding parts during service
• Use only when the model's documentation calls for this specific tool

• Disconnect power and shut off gas/water before servicing
• Follow your model's service or installation manual for the exact procedure
• Wear cut-resistant gloves and eye protection
• Do not force the tool; stop and recheck alignment if it does not fit as expected
