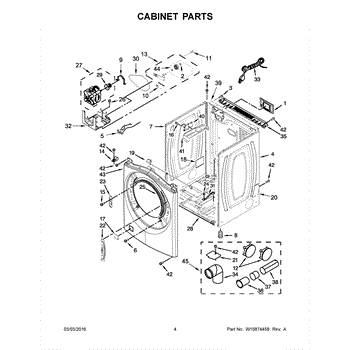

Parts for Whirlpool WGD92HEFC0: 03 - Cabinet Parts

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This control panel is the exterior console trim that houses and protects your appliance's user controls and display, restoring a finished look and reliable button access. Ideal when the panel is cracked, faded, or cosmetically damaged. What it does:

• Protects and supports the appliance's buttons, dials, and display
• Provides the visible interface users interact with to select cycles and settings
• Restores legible labeling and a finished appearance to the console area
• Addresses symptoms like cracked or loose panel, worn graphics, or broken button mounts

• Disconnect power to the appliance before starting any work
• Remove screws or clips securing the old console; handle trim pieces gently to avoid damage
• Transfer any necessary switches or overlays per the service manual if applicable

The Belt Switch is an OEM part compatible with Whirlpool clothes dryers. It plays an important safety role by automatically shutting off power to the dryer when the belt comes off of the tumbler pulley.

Symptoms of a bad Belt Switch include:

• The dryer failing to stop or start as expected
• Inability to control heat, fan, or tumbling functions
• Smoking, burning smells or tripped circuit breakers

Causes can include wear and tear over extended use. Vibrations within the dryer may cause internal wiring to crack or connections to loosen over time.

This genuine Whirlpool replacement is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore as well.

This cover screw secures appliance panels and covers, keeping components protected and aligned. Replace missing, stripped, or corroded screws to restore a tight fit and help eliminate rattles, gaps, or panels that won't stay in place.

• Attaches an access cover or panel to the appliance frame
• Helps maintain proper alignment to protect internal components
• Replaces missing, stripped, or rusted hardware
• Typical signs: loose or rattling panel, cover won't stay secure, damaged or rounded screw head

• Disconnect power before servicing
• Support the panel while removing and installing screws to prevent misalignment
• Start threads by hand to avoid cross-threading; do not overtighten
• Use a matching driver bit to avoid damaging the screw head

Color: Black

Color: Chrome Shadow

Color: White

Color: Silver

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This motor mount clamp secures the dishwasher's pump/motor assembly to its housing, keeping the motor stable and the seal tight. Replace a damaged clamp to help prevent leaks and reduce vibration or rattling noise.

• Secures the pump/motor assembly at the mount to prevent movement
• Helps maintain a watertight seal at the motor connection
• A failed clamp can lead to leaking from the base area
• May cause excessive vibration or rattling during operation

• Disconnect power and turn off the water supply before servicing
• Access the pump/motor from beneath; support the assembly to relieve tension
• Note clamp orientation; ensure the existing seal is properly seated and tighten the new clamp evenly
• After reassembly, run a short cycle and check for leaks

The Idler Arm Spring is an OEM part for Whirlpool dryers, maintains tension in the dryer's belt system. This spring is crucial for the proper operation of the dryer, as it helps to keep the belt tight around the drum and motor pulley, enabling the drum to rotate smoothly during cycles.

Causes of a bad Idler Arm Spring can include stretching or weakening over time due to constant tension, or breakage from wear and tear.

Symptoms of a bad Idler Arm Spring include:

• Unusual noises, such as squeaking or squealing
• The dryer drum may not rotate smoothly or may stop turning altogether
• Clothes take longer to dry, or you may notice uneven drying
• The dryer might not start if the belt is disengaged due to insufficient tension.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Idler Arm Bolt is an OEM part for Whirlpool dryers. It secures the idler pulley, which maintains the proper tension on the dryer drum belt.

Causes of a bad idler arm bolt can include wear and tear from prolonged use, vibration and movement within the dryer, or improper installation.

Symptoms of a bad idler arm bolt include:

• The dryer drum not rotating properly
• Unusual noises such as squeaking or grinding
• The dryer belt slipping or coming off the pulley
• The dryer not drying clothes effectively

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This multi-vent plug seals an unused vent opening to stop unwanted airflow and keep the appliance interior protected. It's a direct-fit replacement designed to restore proper venting and help prevent drafts, debris, and pests. What it does:

• Plugs an unused multi-vent opening to prevent air leakage and drafts
• Helps keep dust, lint, and small debris out of the appliance vent path
• Reduces the chance of pest entry through an open vent
• Restores the intended vent configuration after service or part removal

• Disconnect power or gas to the appliance before servicing for safety
• Install by aligning and pressing the plug firmly into the vent opening until seated
• Do not force if resistance is excessive; inspect for obstructions or damage
• Replace damaged parts before installing the plug

The Idler Pulley Assembly is an OEM part compatible with Whirlpool dryers. It is a crucial component of the dryer's drive system, responsible for maintaining proper tension and alignment of the belt that drives the dryer drum. Measuring 5.5 x 3.5 x 3 inches, this idler pulley assembly typically consists of a pulley mounted on a bracket or arm, which can pivot or move to apply the necessary tension to the belt.

Symptoms of a faulty Idler Pulley Assembly include:

• Loud squeaking or grinding noises during operation
• The dryer drum not spinning or rotating properly
• Excessive vibrations or shaking during the drying cycle
• Visible wear or damage to the belt or pulley components

Causes of a bad idler pulley assembly can include bearing failure, physical damage from foreign objects, or normal wear and tear over time.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This factory fastener secures appliance components and panels, helping keep assemblies properly aligned and tight. Replace worn, stripped, or missing hardware to eliminate looseness and vibration and maintain safe, reliable operation.

• Fastens brackets, panels, trim, and internal assemblies to the cabinet/frame
• Helps maintain alignment of doors, consoles, or covers
• Restores a tight fit to reduce rattling, vibration, or shifting
• Common symptoms: missing screw, stripped head/threads, loose panel or handle, recurring vibration/noise

• Disconnect power (and shut off gas/water if applicable) before servicing
• Match thread and length to the original fastener for proper fit
• Start threading by hand to avoid cross-threading; use the correct driver
• Do not overtighten into plastic or thin sheet metal

This small plug seals and finishes an unused factory or service hole on the appliance cabinet or liner. It restores a clean, finished appearance and helps keep dust and splashes out of the opening. What it does

• Closes an open hole on the cabinet/liner or panel
• Helps reduce entry of debris and incidental moisture into the opening
• Maintains a neat, finished look
• Replace if the original plug is missing, cracked, or won't stay seated

• 1 plug

• Disconnect power before servicing; shut off water supply if working near water lines
• Identify the correct opening per your model's parts diagram
• Remove any remnants of the old plug; clean the area
• Align and press the plug fully into the hole until it sits flush—do not force or deform the panel

This snap-action door switch senses whether the door is open or closed. Replacing a worn switch restores proper start/stop control and correct light/fan response tied to door operation, improving safety and reliability.

• Detects door position and signals the control or interrupts power as designed
• Helps prevent operation when the door is open
• Common fix for: won't start, stops when the door shifts, or "door ajar" messages
• Restores proper interior light or fan behavior linked to door status

• Disconnect power before servicing; for high-voltage appliances (e.g., microwaves), discharge capacitors
• Match terminal orientation to the original and transfer wires one at a time
• Install in the original bracket/orientation so the actuator aligns with the latch/striker
• Verify operation with a continuity test before reassembly

The PAD is an OEM part crafted specifically for Whirlpool dryers. This pad plays a crucial role in the dryer's operation by providing support and cushioning for the dryer drum. Its precise design and compatibility ensure proper fitting and reduce noise during the drying cycles, contributing to smoother operation.

A worn-out or damaged dryer pad can lead to disruptions in the dryer's performance. Causes of a faulty pad might include wear over time, physical damage, or exposure to high heat, resulting in increased noise or imbalance during operation.

Symptoms of a bad PAD may include:

• Unusual or increased noise during dryer operation
• Visible signs of wear or deterioration on the pad
• Drum imbalance or wobbling during use

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This exhaust cover plate protects and finishes the dryer's exhaust outlet, helping direct airflow and keeping the vent opening sealed from debris. It provides a clean, durable surface where the exhaust connects to the dryer cabinet. What it does:

• Covers and seals the dryer exhaust opening to prevent dust and lint buildup around the vent
• Helps direct exhaust airflow into the duct for proper ventilation
• Restores a finished appearance to the exhaust area after repair or replacement
• Can reduce drafts and discourage pests entering through the vent opening

• Disconnect power to the appliance before starting any work.
• Use basic hand tools; handle edges carefully to avoid cuts.
• Verify proper alignment with the exhaust opening and secure with the original screws or hardware.
• Inspect the exhaust duct and surrounding seals for wear.

This strike is the latch receiver the door or lid engages when closed. Replacing a worn or broken strike restores a secure close and ensures the control correctly senses a closed door so cycles can run. What it does:

• Provides the fixed catch point for the latch mechanism
• Keeps the door/lid closed and properly aligned during operation
• Works with the interlock/switch to signal that the door/lid is closed
• Common symptoms: door won't latch or pops open, "door/lid open" message, cycle won't start, visible damage to the strike

• 1 strike

• Disconnect electrical power to the appliance; shut off water if applicable
• Open the door/lid and remove the original strike (typically secured by screws or retaining tabs)
• Position and secure the new strike, reusing original hardware; tighten snugly without over-tightening
• Close and open the door/lid to confirm smooth latch engagement and alignment; adjust if needed

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Front Panel Seal is an OEM replacement part for Whirlpool dishwashers. Measures 24 inches. This seal is located on the dishwasher's front panel and helps prevent water leaks by creating a watertight barrier during the wash cycle. It ensures efficient operation while protecting your kitchen from potential water damage.

Symptoms of a bad Front Panel Seal include:

• Water leaking from the front of the dishwasher during operation
• Visible wear, cracks, or tears in the seal
• Increased noise or vibration due to improper sealing

Causes of a failing Front Panel Seal can include wear and tear from regular use, exposure to high temperatures and moisture, or improper cleaning methods. A damaged seal can compromise the dishwasher’s efficiency and lead to water leakage.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Sold individually, 2 seals are required on front panel.

Specs: 10-16 x 1/2 inch.

The Motor Pulley is an OEM part for Whirlpool dryers, connects the dryer motor to the drum belt, enabling the drum to turn and efficiently dry your clothes. This pulley is crucial for the smooth operation of the dryer, ensuring that the belt is tensioned correctly and runs smoothly without slipping or causing wear.

Causes of a bad Motor Pulley include wear and tear from regular use, a buildup of lint and debris that can interfere with its operation, or a malfunctioning dryer motor that puts undue stress on the pulley.

Symptoms of a bad Motor Pulley include:

• Unusual noises coming from the dryer, such as squeaking or grinding
• The dryer drum failing to turn even though the motor is running
• The dryer taking longer than normal to dry clothes, which can occur if the pulley is not providing proper tension to the belt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drive Belt is an OEM replacement part for Whirlpool dryers. This essential component is responsible for transferring power from the dryer's motor to the drum, allowing it to spin and tumble the clothes during the drying cycle.

Symptoms of needing to replace the drive belt include:

• The dryer drum not spinning or rotating
• Loud squeaking or grinding noises during the drying cycle
• Excessive vibration or shaking from the dryer
• Clothes taking longer to dry or remaining damp

Causes of a faulty drive belt can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or mishandling.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

This replacement power cord restores AC power delivery to the appliance when the original cord is worn or damaged. It provides a direct, durable connection from the wall outlet to the appliance for reliable operation. What it does:

• Supplies mains power to the appliance so it can operate normally
• Replaces frayed, cut, or melted cords that cause intermittent power or safety concerns
• Helps stop symptoms like the appliance not powering on or losing power during use
• Replaces cords with damaged insulation or exposed wiring that may present a shock or fire risk

• Always disconnect power at the breaker or unplug the appliance before servicing
• Route cord and secure strain relief as shown in your appliance wiring diagram

This elbow redirects a fluid or air line inside the appliance to allow routing around components and tight spaces. It restores proper flow path and helps stop leaks or blockages when the original elbow is cracked or worn. What it does:

• Provides a sealed change of direction for a water, drain, or vent line inside the appliance
• Replaces a cracked or broken elbow that can cause leaks, water pooling, or reduced flow
• Re-establishes the correct routing to prevent kinks and stress on connected hoses or tubing
• Helps eliminate intermittent draining or venting issues caused by a damaged fitting

• Disconnect power and shut off water supply before accessing the part
• Verify orientation and routing before removing the old elbow to ensure correct reinstallation
• Inspect and replace any worn clamps, gaskets, or hoses when installing the new elbow
• Tighten fittings to secure but avoid over-tightening which can crack plastic components

This rear bracket secures the dryer's rear panel and helps align internal components for stable operation. It restores proper fit and support when the original bracket is bent, broken, or missing. What it does:

• Secures and positions the dryer's rear panel to the cabinet frame
• Supports internal components and helps maintain proper panel alignment
• Prevents rattling, vibration, and panel separation during operation
• Helps ensure consistent airflow path by keeping the rear housing properly positioned

• Disconnect power (and gas, if applicable) before servicing the dryer
• Access typically requires removing the rear panel; keep fasteners organized for reassembly
• Inspect adjacent mounting points and replace any damaged screws or clips

This exhaust pipe routes exhaust air from the appliance to the home vent, restoring proper airflow for safe, efficient operation. Use when the original pipe is cracked, bent, or leaking. What it does:

• Channels exhaust gases and lint from the appliance to the external vent
• Prevents exhaust leaks that can cause poor drying or cooking performance
• Helps maintain correct airflow to reduce overheating and moisture buildup
• Fits where a damaged or corroded exhaust connection needs replacement

• One exhaust pipe

• Disconnect power (and gas if applicable) before servicing; follow appliance safety procedures
• Inspect surrounding seals and clamps; replace clamps or ducting if damaged
• Secure pipe with OEM-recommended fasteners and ensure vent path is clear

This exhaust pipe directs heated air from the dryer drum to the household vent, restoring proper airflow for efficient drying and reduced lint buildup. It's a direct-fit replacement designed to match the OEM airflow path. What it does:

• Channels dryer exhaust from the appliance to the external vent to maintain proper airflow.
• Helps prevent lint accumulation in the cabinet by providing a sealed exhaust path.
• Can reduce long dry times and overheating caused by restricted or damaged venting.
• Addresses symptoms such as poor drying performance, hot dryer cabinet, or noticeable burning/overheating smells near the dryer vent area.

• One exhaust pipe.

• Disconnect power (and gas, if applicable) before starting work; the appliance is fully de-energized.
• Wear gloves to avoid sharp edges; remove old pipe and clean vent connections before installing the replacement.
• Secure with appropriate clamps or fasteners and ensure a continuous, unobstructed path to the exterior vent.
• After installation, run a short cycle to check for leaks.

This exhaust pipe vents hot, moist air from the dryer to the home venting system, helping the appliance dry clothes efficiently and reduce indoor humidity. Replace a damaged or restricted pipe to restore proper airflow. What it does:

• Channels dryer exhaust air safely from the appliance to the exterior vent
• Helps prevent overheating and long dry times caused by restricted airflow
• Reduces lint buildup in the appliance by providing a clear vent path
• Commonly replaced when cracked, crushed, kinked, or badly corroded

• Disconnect power to electric dryers; shut off gas supply and disconnect for gas dryers before servicing
• Inspect existing vent path for additional damage or lint buildup and clean before installing
• Position pipe without sharp bends or kinks and secure with appropriate clamps or fasteners

This mounting bracket secures internal components to the appliance cabinet, keeping parts aligned and stable for reliable operation. It's a simple replacement that restores proper support where the original bracket is bent, cracked, or missing. What it does:

• Provides a solid attachment point for internal panels, assemblies or hardware
• Restores alignment to components that shift or sag when a bracket fails
• Helps eliminate rattling or abnormal movement caused by a broken bracket
• Works as a direct-fit replacement when the original bracket is damaged

• One mounting bracket

• Intended for users comfortable with basic disassembly; unplug power and shut off water before starting
• Keep track of removed fasteners and any shims or spacers for proper reassembly
• Inspect surrounding parts for damage and replace any worn fasteners to ensure secure mounting

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Color: Black


Color: White


Color: Silver


Color: Chrome/Shadow

WPL VENT KIT, 4-WAY ULT

The Dryer Leveling Foot is an OEM part for Whirlpool dryers. It is designed to support and stabilize the dryer by allowing adjustments to the height and leveling of the unit. Proper leveling ensures the dryer operates smoothly and efficiently, reducing vibrations and preventing unwanted movement during cycles.

Causes of a bad leveling foot can include wear and tear from regular use, damage from moving the dryer, or breakage due to heavy loads and stress. Over time, the threads on the leveling foot can wear out, or the foot itself can become cracked or deformed.

Symptoms of a bad leveling foot include:

• Dryer rocking or wobbling during operation
• Unusual noises or vibrations
• Difficulty in adjusting the dryer's height
• Visible damage or wear on the leveling foot

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.
