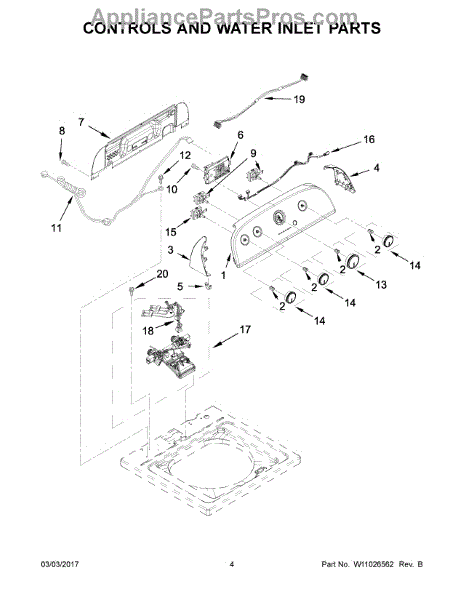

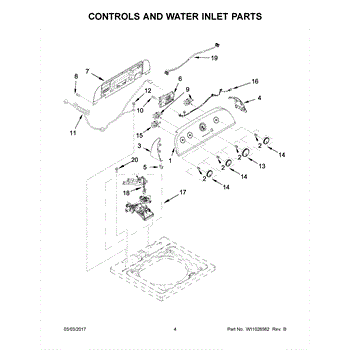

Parts for Whirlpool 4KWTW4815FW0: 03 - Controls And Water Inlet Parts

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This rear panel replaces the backguard that covers the appliance's rear housing, protecting internal components and wiring while giving the unit a finished appearance. It restores a safe, enclosed back area and helps prevent debris entry. What it does:

• Covers and protects control wiring, terminals, and components at the appliance rear
• Prevents accidental contact with electrical parts and reduces debris or grease buildup
• Restores a finished exterior back surface for safety and appearance
• Helps maintain proper airflow routing behind the appliance

• Disconnect power (unplug or shut off circuit breaker) before starting work.
• Handle edges carefully—metal panels may be sharp; wear gloves.
• Typical installation requires removing a few screws and aligning tabs; keep original fasteners if present.
• If clips, insulation, or mounting hardware are missing or damaged, replace with OEM-specified hardware for proper fit.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

The Knob Kit is an OEM replacement part for Whirlpool washing machines and dryers. Including a set of premium knobs color-matched to the appliance controls, this kit restores complete interfaces whenever old or damaged buttons need replacing. The kit includes 1 timer knob and 3 control knobs.

Causes for replacement involve normal wear from repeated touching during cycles as well as impact damage from falls or button presses gone awry over many years of service.

Symptoms necessitating a new knob kit include:

• Cracked, broken or missing buttons impeding normal operations
• Loosened knobs slipping out of holes or wearing partial turns
• Discolored faded markings obscuring switch positions

This OEM Whirlpool part is also compatible with Maytag, Amana, and other major brands.

Rotary encoder that restores precise cycle selection and reliable knob feedback on the control panel. Replaces a worn or unresponsive cycle switch so the control board can detect the chosen program correctly. What it does:

• Senses knob/shaft position and sends cycle-selection signals to the control board.
• Restores tactile detents and accurate position indexing for the user control knob.
• Commonly fixes symptoms like the control not recognizing selected cycles, intermittent cycle changes, or a loose/unresponsive selector.
• Works as the electronic/mechanical cycle switch used by the control assembly to select programs.

• Disconnect power to the appliance before starting any service.
• Access typically requires removing the control knob and control panel—note screw and connector locations during disassembly.
• Handle the part and nearby PCB/terminals carefully to avoid bending contacts or ESD damage.
• Reassemble panels and test cycle selection through several positions to confirm correct operation before finishing.

This wire harness assembly routes power and signals between appliance components to restore proper electrical connections and reliable operation. It replaces a damaged or worn harness to help eliminate intermittent power, control failures, or no-start conditions. What it does:

• Provides factory-style wiring connections between control, motor, heating element, and other components
• Restores lost or intermittent electrical continuity that can cause no-start or inconsistent operation
• Replaces frayed, burnt, or corroded wiring and terminals that create safety or performance issues
• Ensures correct wire routing and secure terminals to prevent shorts and improve reliability

• One complete wire harness assembly with terminals and connectors as shown

• Disconnect all power to the appliance before starting; follow lockout/tagout for safety
• Compare the harness to the original for matching connector types and lengths before installing
• Route and secure wiring away from moving parts and heat sources; use retained clips or ties

This replacement wire harness routes power and control signals between the appliance's electrical components to restore reliable operation and proper connections. It replaces a damaged or worn harness to help stop intermittent power loss or component failures. What it does:

• Provides factory-style wiring connections for controls, motors, sensors and switches
• Restores interrupted circuits that can cause intermittent or no operation of affected components
• Replaces burnt, frayed or broken wiring that can cause arcing or poor contact
• Ensures correct routing and connector fit to prevent chafing and shorting

• Disconnect power to the appliance before starting any repair; verify power is off
• Compare the new harness to the old one for connector type and routing before installing
• Route harness to avoid sharp edges and moving parts; secure with existing clips or ties
• If connectors are damaged or corroded, replace them; do not use the appliance with exposed or repaired wiring

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function
