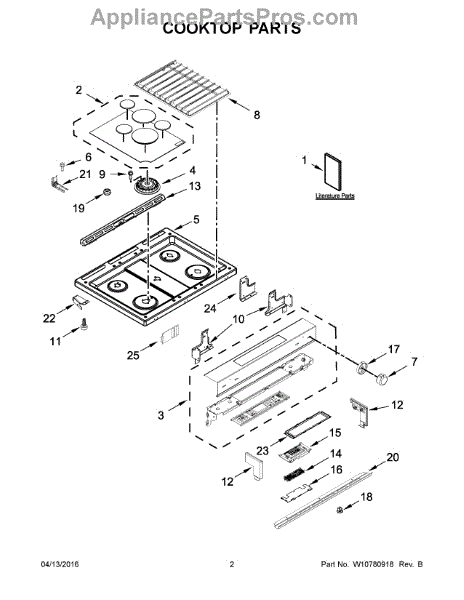

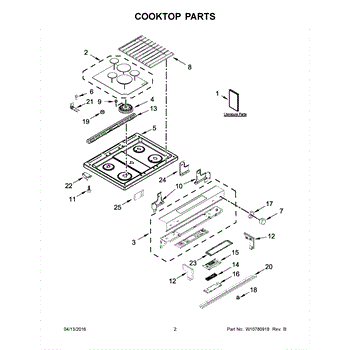

Parts for Whirlpool KSGG700ESS0: 02 - Cooktop Parts

Restore reliable ignition and an even flame with this burner cap. It sits on top of the gas burner head to spread heat uniformly and shield the burner from spills for consistent, efficient cooking performance.

• Sits over the burner head to focus and evenly distribute the flame
• Helps ensure proper ignition and flame shape when seated level
• Shields burner ports from spills, debris, and corrosion
• Common symptoms include hard-to-light burner, uneven/yellow flames, or flame lifting/popping
• Replace if the cap is chipped, warped, or excessively worn

• Disconnect power, shut off gas, and let the cooktop cool completely before servicing
• Lift off the old cap; clean the burner head and seating area if needed
• Position the new cap centered and fully seated on the burner head; it must sit flat
• Restore gas and power; test for a steady, even blue flame and re-seat if needed

The Control Panel is an OEM replacement part for Whirlpool ranges. It serves as the interface for selecting and controlling the various functions of the range, such as temperature settings, cooking modes, and timers. The stainless steel control panel also provides access to the display and buttons, making it an essential component for everyday operation.

Causes of a bad control panel can include exposure to heat or moisture, wear and tear on the buttons or display, or electrical issues such as short circuits or damaged wiring. Physical damage, such as cracks or scratches, can also compromise its functionality.

Symptoms of a bad Control Panel include:

• Unresponsive buttons or touchpad
• Incorrect temperature or timer settings
• Display malfunctions or no display at all
• Inability to operate certain cooking modes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface burner head distributes gas to the flame on a gas cooktop or range burner. Replacing a worn or clogged head helps restore even flame, reliable ignition, and consistent heat on the affected burner.

• Channels gas from the orifice through burner ports to create a uniform flame pattern under the cap
• Works with the spark electrode to ignite the gas
• A damaged or clogged head can cause: burner won't light or only clicks; uneven/yellow flame; weak or low heat on that burner
• Carbon buildup or corrosion on the head can lead to delayed ignition

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove the burner cap; take off the old head and retain any mounting screws
• Align the new head over the orifice and spark electrode; seat flat and secure
• Clean burner ports and cap before testing for a steady, blue flame

This gas range surface burner head distributes fuel through its ports to create an even cooking flame. Replacing a worn or clogged head restores quick ignition and consistent heat for everyday cooking.

• Channels gas from the orifice through burner ports to produce a stable, even flame under the cap
• Provides the proper surface for the spark electrode to ignite the burner
• Replace if the burner won't light or has delayed ignition
• Replace if flames are weak, uneven, yellow, or sputtering
• Also indicated by cracked/warped metal, corrosion, or ports that can't be cleared

• Disconnect power and shut off gas before servicing
• Remove grate and burner cap; lift off or unfasten the old head
• Clean the orifice area; align the new head over the orifice and electrode; seat fully
• Reinstall cap and grate; restore utilities and test ignition and flame pattern

This flame spreader sits between the burner base and cap to distribute gas evenly through the burner ports. Replacing a clogged or warped spreader restores reliable ignition and a steady, balanced flame for consistent cooking. What it does:

• Distributes gas to create an even, circular flame pattern
• Supports reliable ignition by positioning ports around the electrode
• Helps maintain proper heat output and flame stability
• Symptoms include uneven/weak flames, yellow flames, delayed ignition, or a burner that won't light

• One flame spreader

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove grate and burner cap; lift off the old spreader (remove retaining screw if present)
• Align the new spreader over the orifice and igniter; seat fully and secure
• Do not clear ports with hard objects; use a soft brush and verify proper flame and ignition after reassembly

The Burner Head is an OEM part for Whirlpool gas cooktops. It is designed to distribute gas evenly to create a stable and consistent flame for cooking. This part ensures efficient heating and proper ignition, contributing to the overall performance of the cooktop.

Causes of a bad burner head can include regular wear and tear from frequent use, exposure to spills and food debris that can cause clogs, or damage from cleaning with abrasive materials.

Symptoms of a bad burner head include:

• Uneven flame distribution or weak flames
• Difficulty igniting the burner
• Flames that are yellow instead of blue
• Visible damage, rust, or clogs on the burner head

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

Color: Black

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Knob is an OEM part for Whirlpool ranges. It is responsible for controlling oven functions through its precise movements and settings.

Causes of a bad knob can include wear and tear over time resulting in loosening or difficult turning. Paint fading or peeling on the knob is also common.

Symptoms of a bad knob include:

• Functions not activating when turned
• Loose or wobbly movement when adjusting temperature or settings
• Faded, chipped, or peeling paint
• The knob coming off entirely

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Range Knob is an OEM component for Whirlpool gas ranges. Located on the control panel, this plastic knob adjusts baking temperatures and oven functions like Bake, Broil and Warm.

Symptoms of a bad range knob include:

• Difficulty rotating knob to numbered settings
• Loose or wobbly feel during selection
• Faded or illegible printed mode labeling

Causes stem from normal wear over extended use, repeated contact with pot handles, or other impacts compromising sturdiness.

Replace now with this OEM Whirlpool knob to restore precise oven control. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This genuine OEM part is a grate kit for stoves. A grate kit is the metal frame that sits on top of the burners providing a stable surface for pots and pans to sit on while cooking. If the grate kit is no longer sitting securely on the stove or is damaged or cracked, it will need to be replaced.To replace the grate kit, simply pull the old grate off the stove. Once removed, set the old grate kit to the side and proceed to set the new kit in its correct position. Make sure it locks into the stove properly and is secure. Try setting a pot or pan on the grate to make sure it sits evenly and securely.This replacement part is sold individually and is sourced directly from the manufacturer. It is compatible with Whirlpool, Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Sears/Kenmore brand stoves.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This end cap is the outer trim piece that finishes and protects the edge of a appliance panel, restoring a clean appearance and helping keep the panel properly aligned. Ideal for replacing a cracked, missing, or worn end cap. What it does:

• Covers and protects the outer edge of a control or access panel to prevent snagging and moisture intrusion
• Helps hold the panel edge flush for a finished look and proper fit
• Replaces cracked, broken, or otherwise damaged trim that affects appearance or panel alignment
• Matches the OEM shape and attachment points for a direct replacement when part numbers match

• Disconnect power to the appliance before starting any repair
• Usually installs with a few screws or snap clips; keep hardware from the original part when possible
• Handle edges carefully to avoid scratching adjacent surfaces during installation

Color: White

The Trim Vent is an OEM component specifically designed for Whirlpool gas ranges. Located at the rear of the unit above the oven cavity, the trim vent serves an important safety and ventilation purpose.

Constructed of heat-resistant sheet metal with a powder-coated finish, the trim-vent features an internal layered baffle system and a rear-mounted exhaust fan. This facilitates the extraction of hot oven emissions and fumes up and out of the kitchen space.

This exhaust vent adheres to all codes and regulations regarding temperature ratings and venting performance. It attaches securely to the framework of the gas range with mounting brackets.

Symptoms of a bad trim-vent include:

• Excessive heat or smoke escaping from the oven cavity
• Improper venting of emissions leads to buildup of residue
• Detached, bent, or corroded vent body

Color: Black

This OEM part is also compatible with KitchenAid, Jenn-Air, Amana, Kenmore, and select GE gas range models.

This is an oven control board manufactured by Whirlpool. The control board is responsible for transmitting user input to the stove's burners and the oven. This board does not include the digital display or buttons, which are housed on a separate component. The control board is located behind a metal cover within the stovetop. This provides some protection from damage, but it is not impervious. High heat levels and exposure to spills can cause the board to fail over time. Symptoms could include one or more heating elements not working properly, or the stovetop not working at all. The control board will need to be replaced in these instances. Replacing the control board will require unplugging the oven, then removing the metal cover from the display on the stove. Locate the old board, remove the mounting screws, and disconnect the wiring harness.This is an OEM part and it is sold individually. It is compatible with KitchenAid and Whirlpool branded stovetops.

This electronic display/user interface assembly mounts behind the control panel and handles button inputs and the visual readout. Replacing a failed board restores a readable display and responsive controls so you can set and monitor functions reliably.

• Drives the control panel display and indicator lights
• Interprets keypad/touch inputs and sends commands to the appliance
• Interfaces with the main control to execute selected functions
• Typical symptoms: blank or dim display, unresponsive or erratic buttons, incorrect readouts, or UI-related error codes

• Disconnect power before servicing; use ESD protection when handling electronics
• Access through the control panel; note screw and clip locations during disassembly
• Transfer any model-specific brackets, trim, or insulators from the original part as required
• Seat wire harness connectors fully; restore power and perform any model-specific UI reset or calibration.

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

Note: This is a kit of 5 bezels.

This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Note: Oven orifice kit with Bake orifice and "Female" Broil orifice. For an oven orifice kit with a "Male" Broil orifice, order part# W11087486. The Bake orifice is #56, Broil orifice is #100.

The Display Wire Harness is an OEM part for Whirlpool ranges. It connects the control panel display to the range’s main control board, allowing for communication between the user interface and the appliance’s electronic system. This harness ensures that the display panel accurately shows information such as temperature settings, timer functions, and error codes.

Causes of a bad display wire harness can include regular wear and tear, electrical issues, or damage from heat exposure or physical impact. When the wire harness fails, it can disrupt the flow of information between the control panel and the main control board, affecting the operation and display functions of the range.

Symptoms of a bad Display Wire Harness include:

• The display panel not lighting up
• Inaccurate or flickering display readings
• Buttons on the control panel not responding
• Error codes appearing on the display

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Orifice Spud precisely meters gas to a burner so you get a steady, properly sized flame. Replace a damaged, clogged, or incorrect spud to restore reliable ignition, clean flame color, and consistent heating.

• Threads into the burner's orifice holder/valve to control gas flow through a calibrated opening
• Helps maintain correct flame height and color for safe, efficient cooking
• Typical symptoms include irregular or yellow flames, weak or no flame, popping, or delayed ignition
• A clogged or worn spud can make simmer control difficult and lengthen cook times

• Shut off gas supply and power; allow the appliance to cool before service
• Remove grate, cap, and burner head (as applicable) to access the orifice; use the proper wrench or nut driver and avoid overtightening brass parts
• After reassembly, restore gas and check for leaks with soapy water; verify a steady blue flame and adjust air shutters only if directed by the manufacturer

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
