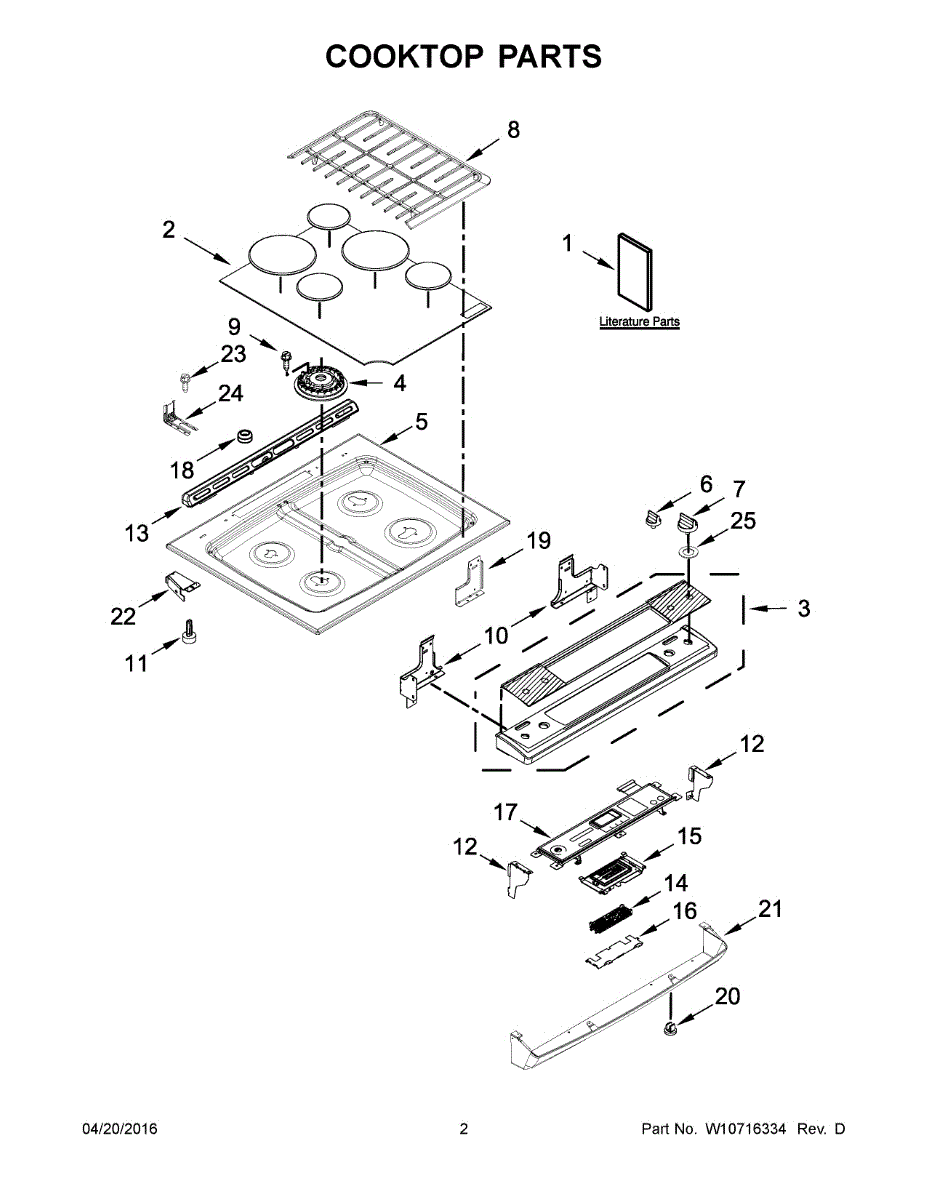

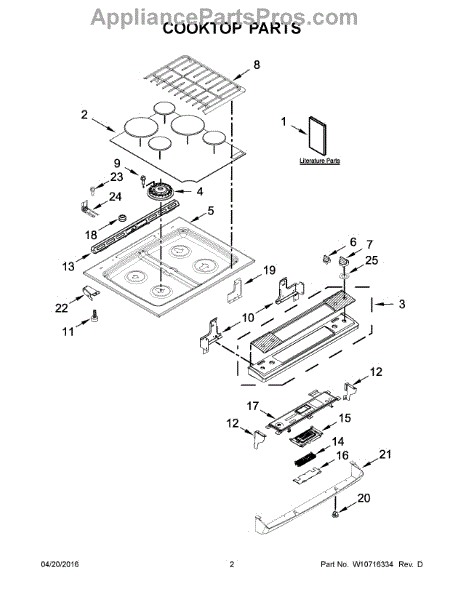

Parts for Whirlpool WEG730H0DB0: 02 - Cooktop Parts

The orifice spud is the fixed jet that meters gas to a burner. Replacing a worn, clogged, or incorrect spud helps restore proper flame size, cleaner combustion, and reliable ignition on your gas cooking appliance.

• Precisely meters gas flow to the burner through a fixed opening
• Helps produce a stable blue flame and consistent heat
• If clogged, damaged, or wrong size, can cause weak/yellow flames, uneven heating, delayed ignition, or burners not lighting
• Supports correct operation when matched to the specified fuel type and burner rating

• Shut off gas supply and power before servicing
• Match the spud to the exact burner position and fuel type specified in your model documentation
• Thread the spud into the orifice holder/manifold with a wrench; do not overtighten
• Restore gas, then leak-test connections and verify proper flame characteristics

The LP Bake and Broil Orifice Kit is an OEM replacement part for Whirlpool gas ranges and ovens. It is a kit containing specially-sized orifices that control gas flow to the bake and broil burners. This allows for optimal gas-air mixture and fuel efficiency specific to liquefied petroleum (LP) gas systems.

Causes of needing a replacement kit include worn or damaged orifices that alter proper gas flow and burner performance over time.

Symptoms include:

• Slow or uneven heating from one or multiple burners
• Burners that create hot or cool spots on cookware
• Ineffective or soft flames that impact cooking results
• Higher appliance operation costs due to inefficient fuel usage

This OEM kit is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Oven orifice kit with Bake orifice and "Male" Broil orifice. For an oven orifice kit with a "Female" Broil orifice, order part# W10859321. The Bake orifice is #56, Broil orifice is #100.

Color: Wetstone (Set of 5 caps)

Color: Black (Set of 5 caps)

Color: Black

This electronic control panel replaces a worn or damaged front user interface to restore reliable oven/range control and display feedback. It provides the buttons and display elements that let you select and monitor cooking functions. What it does:

• Houses the push buttons/touch controls and display used to select cycles, temperatures, and timers
• Registers user input and communicates commands to the range/oven control system
• Shows status, time, and error messages on the built-in display
• Common symptom fix for unresponsive buttons, missing/blank display segments, or intermittent control feedback

What's included: One control panel assembly Install notes:

• Disconnect power at the household breaker before starting any repair
• Handle the panel and ribbon/connector carefully to avoid damage to the display and electronics
• Installation typically requires removing the front trim/screws and reconnecting the existing wiring harness

This gas range surface burner head distributes fuel through its ports to create an even cooking flame. Replacing a worn or clogged head restores quick ignition and consistent heat for everyday cooking.

• Channels gas from the orifice through burner ports to produce a stable, even flame under the cap
• Provides the proper surface for the spark electrode to ignite the burner
• Replace if the burner won't light or has delayed ignition
• Replace if flames are weak, uneven, yellow, or sputtering
• Also indicated by cracked/warped metal, corrosion, or ports that can't be cleared

• Disconnect power and shut off gas before servicing
• Remove grate and burner cap; lift off or unfasten the old head
• Clean the orifice area; align the new head over the orifice and electrode; seat fully
• Reinstall cap and grate; restore utilities and test ignition and flame pattern

This flame spreader sits between the burner base and cap to distribute gas evenly through the burner ports. Replacing a clogged or warped spreader restores reliable ignition and a steady, balanced flame for consistent cooking. What it does:

• Distributes gas to create an even, circular flame pattern
• Supports reliable ignition by positioning ports around the electrode
• Helps maintain proper heat output and flame stability
• Symptoms include uneven/weak flames, yellow flames, delayed ignition, or a burner that won't light

• One flame spreader

• Disconnect power and shut off gas; allow the cooktop to cool completely
• Remove grate and burner cap; lift off the old spreader (remove retaining screw if present)
• Align the new spreader over the orifice and igniter; seat fully and secure
• Do not clear ports with hard objects; use a soft brush and verify proper flame and ignition after reassembly

The Burner Head is an OEM part for Whirlpool gas cooktops. It is designed to distribute gas evenly to create a stable and consistent flame for cooking. This part ensures efficient heating and proper ignition, contributing to the overall performance of the cooktop.

Causes of a bad burner head can include regular wear and tear from frequent use, exposure to spills and food debris that can cause clogs, or damage from cleaning with abrasive materials.

Symptoms of a bad burner head include:

• Uneven flame distribution or weak flames
• Difficulty igniting the burner
• Flames that are yellow instead of blue
• Visible damage, rust, or clogs on the burner head

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

Color: Black

The Burner Knob is an OEM replacement part for Whirlpool ranges. It is designed to control the individual burners on your range, allowing you to adjust the heat levels for cooking.

A bad burner knob can occur due to wear and tear, damage, or malfunction. If you notice symptoms such as difficulty turning the knob, a loose or wobbly fit, or the inability to adjust the burner heat properly, it may be time to replace the burner knob.

Symptoms of a bad burner knob include:

• Difficulty turning the knob
• Loose or wobbly fit
• Inability to adjust the burner heat properly

Repair your range by replacing the faulty or damaged burner knob with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Color: Stainless

Color: White

This control knob mounts on the appliance's control shaft so you can select settings smoothly and precisely. Replacing a cracked or stripped knob restores positive engagement, accurate adjustment, and a clean, factory-fresh look.

• Transfers hand rotation to the underlying control shaft to change settings
• Restores proper feel when the original knob is cracked, loose, or missing
• Helps prevent free-spinning when the hub is stripped or worn
• Improves appearance by replacing a discolored or damaged knob

• Disconnect power and, if applicable, shut off gas before servicing
• Pull the old knob straight off the control shaft
• Align the new knob with the shaft orientation and press firmly until fully seated
• Verify smooth operation and proper engagement after installation

The Knob (stl) is an OEM part for Whirlpool ranges and ovens. This control knob allows users to adjust and select various settings on their appliance, such as temperature and cooking modes. Made from durable materials, it is designed to withstand the rigors of daily use while providing a comfortable grip for precise adjustments.

Over time, knobs can wear out or become damaged due to frequent use, accidental impacts, or exposure to heat. When a knob becomes faulty, it can hinder your ability to control the appliance accurately, leading to potential cooking issues or safety concerns.

Symptoms of a bad knob include:

• The knob becoming loose or difficult to turn
• Cracks or visible damage on the knob
• The knob not aligning correctly with the settings
• The knob detaching from the control panel

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For grate feet, order part# AP6037279. Order quantity needed.

The Burner Grate Kit is an OEM replacement part for Whirlpool ranges. It is designed to provide a stable and durable surface for your pots and pans. It provides even heat distribution and prevents cookware from tipping during cooking.

A bad burner grate kit can occur due to wear and tear, damage, or improper cleaning. If you notice symptoms such as wobbly or unstable pots and pans, discoloration or rust on the grates, or difficulty in maintaining a steady flame, it may be time to replace the burner grate kit.

Symptoms of a bad burner grate kit include:

• Wobbly or unstable pots and pans during cooking
• Discoloration or rust on the grates
• Uneven flame or difficulty in maintaining a steady heat

Repair your range by replacing the faulty or damaged burner grate kit with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Note: For grate foot, use W10919249. Order quantity needed.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

Color: White

The Trim Vent is an OEM component specifically designed for Whirlpool gas ranges. Located at the rear of the unit above the oven cavity, the trim vent serves an important safety and ventilation purpose.

Constructed of heat-resistant sheet metal with a powder-coated finish, the trim-vent features an internal layered baffle system and a rear-mounted exhaust fan. This facilitates the extraction of hot oven emissions and fumes up and out of the kitchen space.

This exhaust vent adheres to all codes and regulations regarding temperature ratings and venting performance. It attaches securely to the framework of the gas range with mounting brackets.

Symptoms of a bad trim-vent include:

• Excessive heat or smoke escaping from the oven cavity
• Improper venting of emissions leads to buildup of residue
• Detached, bent, or corroded vent body

Color: Black

This OEM part is also compatible with KitchenAid, Jenn-Air, Amana, Kenmore, and select GE gas range models.

This electronic control board coordinates your appliance's key functions by interpreting inputs, managing timing, and switching power to components. Replacing a failed board can restore responsive controls, reliable operation, and consistent performance.

• Interprets user inputs and sensor signals to run programmed operations
• Switches power to major components via onboard relays for correct sequencing
• Maintains timing and other operational parameters per model design
• Typical symptoms include a dead/blank control, won't start, unresponsive buttons, error codes, or intermittent/erratic operation

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions; handle the board by the edges to avoid static damage
• Note/photograph connector locations; move wiring one connection at a time
• Inspect wiring/connectors before condemning the board

Restore reliable operation with this electronic control board, the appliance's central "brain." It manages inputs and outputs so programmed functions run correctly, helping resolve unresponsive controls and erratic or failed cycles.

• Directs and times operations based on user commands and sensor feedback
• Distributes power to components such as motors, valves, heaters, lights, or fans as required
• Monitors switches/sensors to maintain proper performance
• Symptoms can include no power, won't start, unresponsive buttons, random resets, incomplete cycles, or error codes

• Disconnect power before servicing; verify no voltage is present
• Use ESD precautions and handle the board by its edges
• Photograph wiring/connectors to ensure correct reassembly
• Mount in the original position and refer to the unit's tech sheet for any required setup or diagnostics after installation

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

Membrane switch touch pad for the oven/range control console that lets you enter cooking settings and commands. Replacing a damaged or unresponsive pad restores reliable button response and control-panel input. What it does:

• Registers user button presses and touch commands, sending inputs to the console control board.
• Replace when buttons do not respond, stick, or the pad is cracked, faded, or visibly worn.
• Restores normal control-panel operation without replacing the entire console assembly.
• Verify fit by matching your appliance's control-board/console part number before ordering.

• Disconnect power (unplug or shut off breaker) before servicing to avoid electrical shock.
• Remove control panel trim/console per OEM instructions; handle the flat flex cable and connector carefully.
• Align and seat the connector without bending pins; test the pad before reassembling the console.

Restore responsive controls with this membrane switch touchpad. This thin, sealed keypad mounts behind the control panel and sends your button presses to the electronic control so you can select settings and operate the appliance reliably again.

• Registers key presses for time, temperature/power, start/stop, and option selections
• A worn or shorted membrane can cause unresponsive or intermittent buttons
• Inputs can register incorrectly or only in certain areas of the keypad

• Disconnect power before servicing; follow all safety precautions
• Remove the console/control panel to access the keypad; note screw locations and wiring
• Carefully release the ribbon-cable lock and note orientation; avoid creasing the cable
• After installation, test all keys before reassembly

This Bumper is an OEM part for Whirlpool ranges. Serving as a protective barrier, it cushions and safeguards various parts of the range. Engineered to fit seamlessly, it ensures stability and protection for specific range models.

What causes a bad part:
Continuous use, exposure to heat, or physical impact can lead to wear and tear of the Bumper. Harsh cleaning agents or abrasive materials during maintenance can also contribute to its degradation.

Symptoms for a bad part:

• Loose or detached bumpers
• Visible cracks or damage on the bumper
• Increased vibration or instability in the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This insert is a small OEM component designed to fit into a specific location on your appliance to secure, align, or finish an assembly. Replacing a worn, damaged, or missing insert restores proper fit and clean appearance.

• Provides a snug interface or cover within the designated assembly
• Helps prevent looseness, vibration, or gaps in the connected part
• Replaces cracked, worn, or missing insert pieces
• Common symptoms include loose or wobbly parts, misalignment, or a missing cap/cover

• Disconnect power and shut off gas/water before servicing
• Refer to your model's parts diagram to confirm location and orientation
• Use non-marring tools to avoid cosmetic damage
• Seat the insert fully; do not overtighten adjacent fasteners

This mounting bracket secures a component or panel to the appliance frame, keeping it aligned and stable during operation. Replace a cracked or bent bracket to stop looseness, rattling, or shifting and restore proper support.

• Anchors the specified component or panel to the chassis
• Maintains correct position and spacing for reliable operation
• Helps reduce vibration and noise from a loose mount
• Common symptoms: broken or missing bracket, bent metal, sagging/misaligned component, difficulty fastening parts

• Disconnect power before service; shut off water supply if applicable
• Note orientation and fastener locations; transfer existing screws/clips if needed
• Support the component while removing/installing the bracket to prevent strain
• Tighten fasteners evenly; avoid overtightening to prevent damage

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

The Bushing is an OEM replacement part for Whirlpool wall ovens. This component acts as a sleeve to reduce friction and ensure smooth movement in various mechanical parts of the oven, such as door hinges or rotating elements. Properly functioning bushings help maintain the alignment and durability of these parts over time.

Causes of a bad Bushing can include wear and tear from repeated use, lack of lubrication leading to increased friction, or damage caused by misalignment or heavy loads. A failing bushing can lead to inefficient operation or damage to connected components.

Symptoms of a bad Bushing include:

• Squeaking or grinding noises during oven door movement
• Difficulty opening or closing the oven door smoothly
• Misalignment of moving parts

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This wire harness assembly routes power and signals between appliance components to restore electrical connectivity and reliable operation. Replace a damaged harness to fix intermittent power, control failures, or burned/melted wiring. What it does:

• Provides the factory wiring connections between controls, motors, switches, and sensors
• Restores lost power or signal paths that cause intermittent or complete component failure
• Replaces frayed, melted, or shorted wires that can create error codes or shutdowns
• Helps prevent arcing and poor connections from worn insulation or broken terminals

• Disconnect power (unplug or switch off breaker) before inspecting or installing the harness
• Route harness along factory clips and strain-relief points to avoid heat and moving parts

The Display Wire Harness is an OEM part for Whirlpool ranges. It connects the control panel display to the range’s main control board, allowing for communication between the user interface and the appliance’s electronic system. This harness ensures that the display panel accurately shows information such as temperature settings, timer functions, and error codes.

Causes of a bad display wire harness can include regular wear and tear, electrical issues, or damage from heat exposure or physical impact. When the wire harness fails, it can disrupt the flow of information between the control panel and the main control board, affecting the operation and display functions of the range.

Symptoms of a bad Display Wire Harness include:

• The display panel not lighting up
• Inaccurate or flickering display readings
• Buttons on the control panel not responding
• Error codes appearing on the display

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
