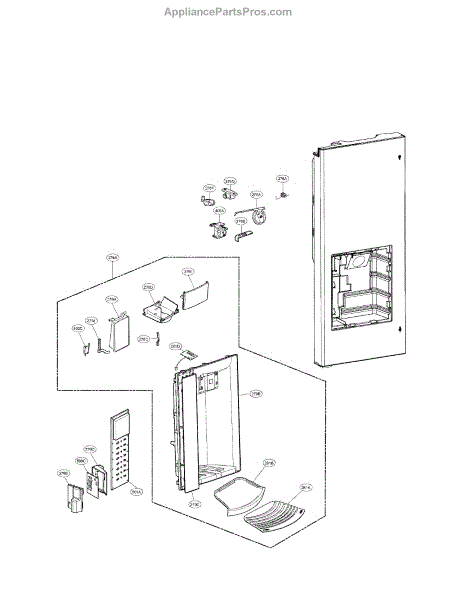

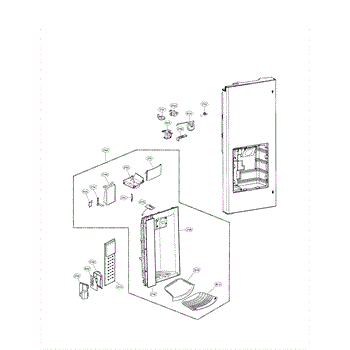

Parts for Lg LFX28979SB / 01: Dispenser Parats Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This holder bracket replaces a damaged or missing mounting support. It secures an internal component so it stays aligned and stable, helping your appliance operate smoothly without looseness or rattling.

• Provides a rigid mounting point to hold a component or assembly in place
• Maintains alignment to reduce vibration, rubbing, and intermittent operation
• Restores support when the original bracket is cracked, warped, or missing
• Common symptoms include a loose/wobbly part, rattling noises, or visible broken tabs

• Disconnect power to the appliance before servicing
• Note the original bracket's orientation and transfer any clips or screws from the old part
• Use existing hardware and tighten fasteners evenly—do not overtighten
• Verify proper fit and alignment before restoring power

This dispenser lever holder is the mounting bracket behind the refrigerator's dispenser paddle. It supports and aligns the lever and switch so water or ice dispenses reliably when the paddle is pressed.

• Holds and guides the dispenser lever and actuator switch inside the dispenser housing
• Provides a secure pivot point for smooth paddle movement
• Helps ensure consistent activation of water and ice dispensing
• Damage can cause a loose or stuck paddle, intermittent dispensing, or no dispense

• Disconnect power and shut off the water supply before servicing
• Remove the dispenser panel/escutcheon to access the lever assembly; note part orientation
• Transfer the lever, switch, and return spring to the new holder and secure with the original fasteners
• Restore power/water and test dispensing before reinstalling trim

The Dispenser Lever Retainer is an OEM part for LG refrigerators. This part secures the dispenser lever in place, this part ensures the smooth operation of the water and ice dispenser.

Causes of a bad Dispenser Lever Retainer can include normal wear and tear from repeated use, accidental damage, or deterioration of the material over time.

Symptoms of a bad Dispenser Lever Retainer include:

• The dispenser lever is loose or wobbly
• Difficulty in dispensing water or ice
• The lever does not return to its original position after use
• Unintended activation or difficulty in activating the dispenser

This OEM LG part is also compatible with some Kenmore models.

The Ice Door Lever Spring is an OEM component compatible with LG refrigerators. It is part of the mechanism that opens and closes the ice door on LG French door refrigerators. Over time, springs can lose resiliency or become misaligned.

Causes may be extensive usage over years or damage like kinking that compromises spring function.

Symptoms of a bad ice door lever spring include:

• The ice door not latching fully when closed
• Difficulty opening or poor balance while moving the door
• The lever rubbing or catching instead of moving smoothly

This OEM LG part is also compatible with Sears/Kenmore side-by-side refrigerators.

The Actuator Lever is an OEM part for LG refrigerators. It plays a crucial role in the dispensing mechanism of the refrigerator, allowing for the controlled release of water and ice. The lever is designed to interact seamlessly with the internal components of the dispenser to ensure smooth and reliable operation.

Over time, the actuator lever can wear out or become damaged due to frequent use or mishandling. Causes of a bad actuator lever include physical wear, breakage from excessive force, or deformation due to constant usage.

Symptoms of a bad actuator lever include:

• Difficulty in dispensing water or ice
• The lever sticking or not returning to its original position
• Unresponsive dispenser mechanism
• Unusual noises when using the dispenser

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Switch is an OEM part for LG refrigerators. It is responsible for controlling the operation of the dispenser, allowing you to dispense water or ice from the refrigerator door. This switch is located in the dispenser house and activates the dispenser when pressed.

Causes of a bad dispenser switch can include wear and tear over time, electrical malfunctions, or damage due to accidental mishandling or impact.

Symptoms of a bad dispenser switch include:

• Inability to dispense water or ice when pressing the buttons.
• The dispenser works intermittently.
• No response or delayed response when pressing the dispenser buttons.

This LG part can also be used on Kenmore/Sears appliances.

The Ice Dispenser Door Motor is an OEM part for LG refrigerators. This motor is responsible for the operation of the ice dispenser door, controlling its opening and closing mechanism to allow ice to be dispensed without letting warm air into the freezer.

Symptoms of a bad Ice Dispenser Door Motor include:

• The dispenser door not opening or closing properly,
• Ice not being dispensed when activated,
• Unusual noises coming from the dispenser mechanism.

Causes of ice dispenser door motor failure can include electrical issues such as shorts or wiring problems, mechanical wear over time, or blockages that strain the motor.

This OEM LG part is also compatible with Sears/Kenmore.

This replacement power control board assembly restores the electronic control for the appliance, allowing regulated power and signal management for proper operation. It replaces a failed sub control board to help recover normal function. What it does:

• Regulates power distribution and control signals to the appliance's subsystems
• Replaces a failed sub PCB that can cause intermittent or total loss of electronic control
• Resolves symptoms such as no power to circuits, unresponsive controls, or erratic operation
• Works with the appliance's main control to restore coordinated electronic control

• Disconnect power (unplug or shut off breaker) before beginning service
• Take photos of wire locations and connector orientation before disconnecting
• Handle the board carefully; avoid static discharge and do not touch components

This display control board assembly powers and manages the appliance display and front-panel controls, restoring visual feedback and button responsiveness for proper operation. What it does

• Receives and routes power to the display and front-panel electronics so icons, LEDs, and the screen light up.
• Interprets user button presses and sends control signals to the main control board.
• Can resolve symptoms such as a blank or flickering display, unresponsive touch/button panel, or missing status indicators.
• Replaces a visibly damaged, burned, or water-exposed display circuit board when diagnosis points to the display electronics.

• One display control board assembly.

• Disconnect power (unplug or turn off breaker) before servicing to avoid shock or damage.
• Handle the board by its edges and avoid touching connector pins or components to prevent static damage.
• Inspect connectors and ribbon cables for pins, corrosion, or bent contacts before reconnecting.

This sub power control board assembly controls and routes electrical power and control signals for the appliance, restoring electronic control when the original sub-PCB fails. Use this board to address power and control-related faults. What it does:

• Regulates and routes power to motors, valves, sensors and other control circuitry.
• Processes low-voltage control signals from the main board, user interface and sensors.
• Common symptoms linked to a failing board: no power or no response, intermittent operation, error codes or unresponsive controls.
• Replacing the faulty sub control board can restore normal electronic operation and command response.

• Disconnect the appliance from power before beginning any service.
• Handle the PCB by the edges and use proper ESD precautions to avoid static damage.
• Verify all connectors are fully seated and wiring matches the replacement before reapplying power.
