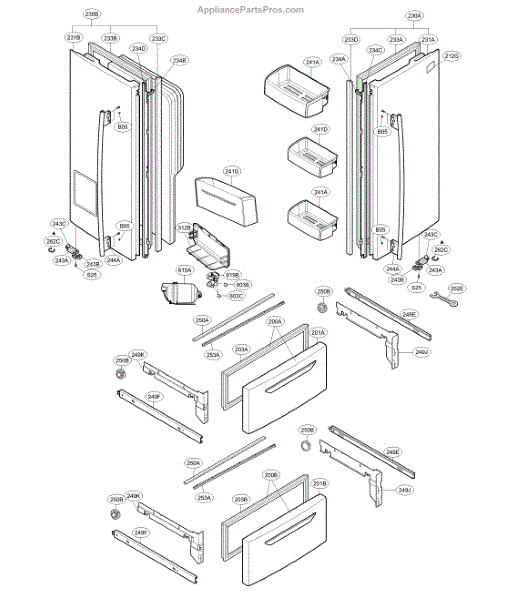

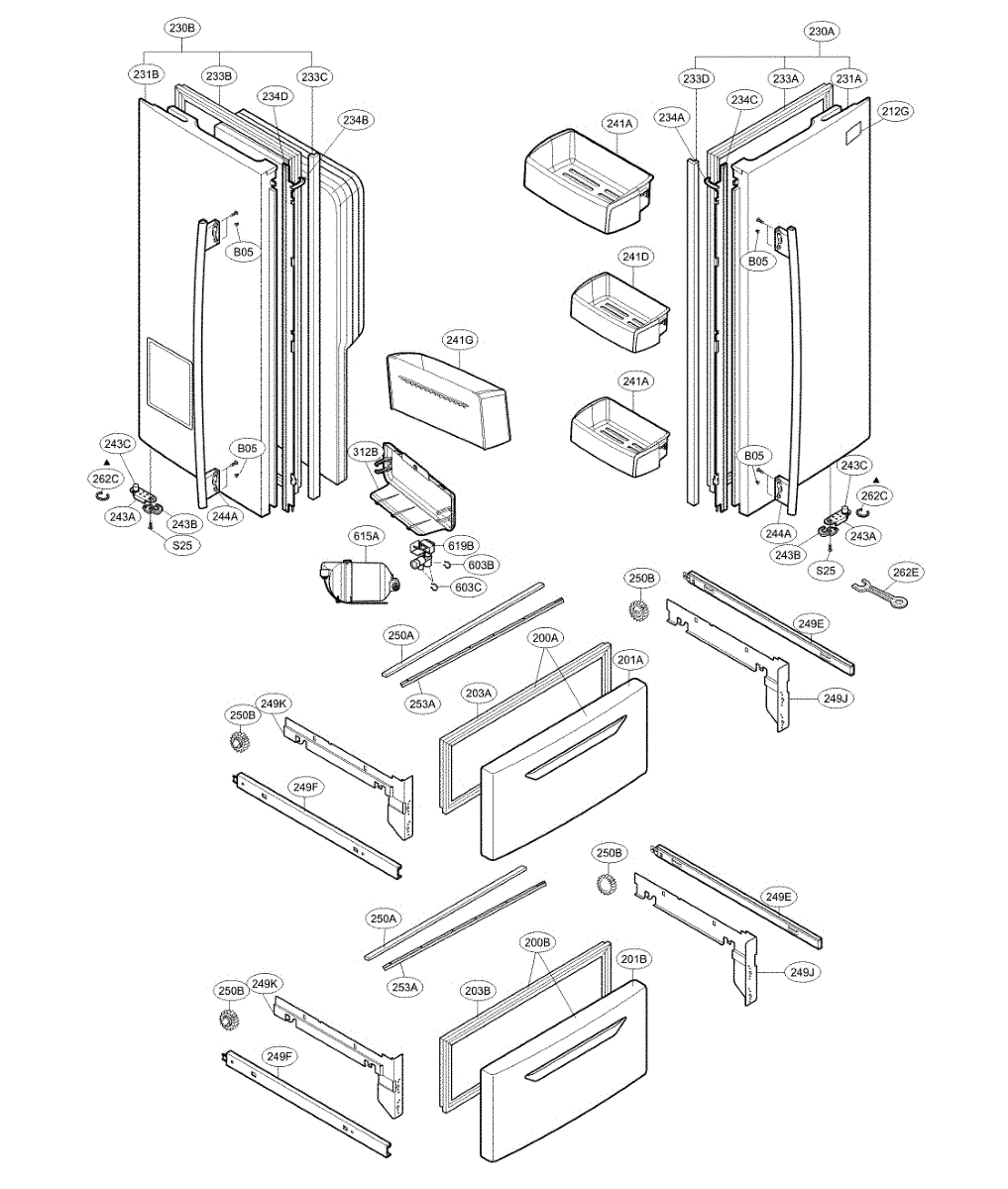

Parts for Lg LMX25964ST/01: Door Parts

The LG Refrigerator Water Filter is an OEM Replacement Part. It is designed to improve the quality of water and protect refrigerators and ice machines from sediment deposits. This NSF-Certified filter effectively reduces iron and particulates. It also preserves beneficial minerals like fluoride. The filter measures 5.6 inches high and 3.3 inches in diameter.

It is installed by removing the top shelf and pulling the old filter downward. Then turn it counter-clockwise, and replace it with the new filter aligned in a horizontal position. To ensure the best performance and the removal of trapped air and contaminants, it's recommended to flush the dispenser with 2.5 gallons of water in alternating cycles. If your model includes a water filter indicator, press and hold the Filter or Reset button for 5 seconds after installation. With a lifespan of 6 months and a 500-gallon capacity, this filter provides both quality and longevity.

This replacement screw secures panels and components on LG appliances to restore proper alignment and prevent rattling or loose parts. It's a direct-fit fastener used where OEM mounting hardware has become stripped, lost, or damaged. What it does:

• Secures panels, brackets, or trim to maintain appliance structure and alignment
• Helps stop vibration noise caused by loose panels or components
• Replaces missing or damaged mounting hardware to prevent parts from shifting
• Restores proper fit where stripped or worn screws no longer hold

• Use the correctly sized screwdriver or bit to avoid stripping the head
• Tighten snugly but do not overtighten; excess torque can strip threads or crack plastic
• If working near electrical components, unplug the appliance first to ensure safety
• Keep removed screws organized during disassembly to match locations on reassembly

This door gasket is the flexible magnetic seal that runs around the edge of the refrigerator door to keep cold air in and warm air out, helping maintain proper temperature and energy efficiency.

• Creates an airtight seal between the refrigerator door and cabinet
• Helps prevent temperature swings, frost buildup, and excess run time
• Common failure signs: torn, warped, or hardened seal; doors not sealing; condensation around the door
• Magnetic strip embedded to pull the door closed against the frame

• Unplug the appliance before starting any repair
• Soften the old or new gasket with warm air (hair dryer on low) to ease removal/fit
• Transfer or seat the gasket fully in the door channel; work evenly around corners
• Check door alignment and perform a dollar-bill test to confirm an even seal

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This is refrigerators door gasket assembly that is used on the right-side door of a french style refrigerator. The gasket assembly is what seals the door to the appliance so that air does not leak into the unit or out of the unit, which helps the appliance maintain a specific temperature.A new refrigerator door gasket assembly will be needed if the gasket is cracked, broken, or damaged in any way. Some refrigerators may begin the beeping alarm that alerts the user that the door is not closed, when in fact, it's just the gasket that has gone bad. The refrigerator door gasket assembly may need to be replaced after normal use over time.This is a genuine LG part and is an OEM part sourced directly from the manufacturer. It is sold individually. This particular refrigerator door gasket assembly is compatible with refrigerators that are manufactured by LG.

A replacement cover frame that restores the finished look and protection around the appliance control area. Replaces a cracked, warped, or scratched trim to keep controls secure and maintain appearance. What it does:

• Covers and protects the control panel edges from bumps, spills, and wear
• Keeps switches and buttons aligned and held in place
• Restores the appliance's finished appearance when the original frame is damaged
• Helps prevent debris from entering the control cavity

• Disconnect power to the appliance before beginning any work
• Remove any outer trim or control panel fasteners to access the existing frame
• Handle the part carefully to avoid scratching the finish during install

Replacement cover frame that restores the appearance around the appliance control area while protecting internal components. Use it to replace cracked, warped, or missing trim and keep the control panel edges aligned and secure. What it does:

• Replaces damaged or cracked trim around the control panel for a finished, uniform look
• Protects underlying switches and electronics from dust and light debris
• Helps keep control-panel edges aligned and prevents loose or flopping trim
• Improves overall appliance appearance after impact or wear

• Disconnect power to the appliance before starting any repairs
• Removal of the control panel or console is typically required; keep all fasteners for reassembly
• Handle edges carefully to avoid scratches or cuts and to prevent damage to the new frame

The Door Latch Cam is an OEM part for LG refrigerators. This component is integral to the proper functioning of the refrigerator door latch system, ensuring the door stays securely closed.

Over time, the door latch cam can become worn out or damaged due to frequent use, exposure to moisture, or accidental impact. When the cam is compromised, it can affect the door's ability to seal properly, which can lead to energy inefficiency and potential spoilage of food.

Symptoms of a bad door latch cam include:

• Difficulty in closing or opening the refrigerator door
• The door not sealing tightly, leading to temperature fluctuations
• Increased energy consumption
• Unusual noises when operating the door latch

This OEM LG part is also compatible with Sears/Kenmore.

The Camshaft is an OEM part for LG refrigerators. It plays a crucial role in the proper operation of the refrigerator's door hinge, ensuring smooth and secure opening and closing. The camshaft helps align the door and maintains the seal, preventing warm air from entering the refrigerator.

You should replace the camshaft if it becomes worn out or damaged. Causes of a bad camshaft can include wear and tear from frequent use, physical damage from impact or mishandling, and misalignment issues that stress the camshaft over time.

Symptoms of a bad camshaft include:

• Difficulty in opening or closing the refrigerator door
• The door not staying closed
• Unusual noises when opening or closing the door
• Misalignment of the refrigerator door

This OEM LG part is also compatible with Sears/Kenmore models.

Replacement door basket that restores the door's storage and keeps items secure during use. Installs quickly to replace cracked, warped, or broken baskets so the door closes and functions as intended. What it does:

• Provides a secure storage shelf mounted to the appliance door for small items
• Replaces cracked or damaged baskets that allow items to fall or shift
• Helps the door close and latch properly when the original basket is broken
• Restores original fit and appearance when the door basket is chipped or warped

• Disconnect power to the appliance before beginning any repair
• Remove items from the door and open it fully to access mounting points
• Inspect mounting clips or fasteners for damage and reuse or replace as needed
• Align the basket with the door mounts and snap or secure into place; test door operation after installation

This refrigerator door shelf bin replaces a broken or missing bin on the door, restoring secure storage for bottles, jars, and condiments. It helps keep items organized and reduces spills when opening and closing the door.

• Attaches to the inner door rails to create usable storage on the door
• Replaces cracked, warped, loose, or missing bins
• Helps prevent items from tipping or falling during door movement
• Common signs: broken mounting tabs, visible cracks, bin won't stay seated

• Remove items from the existing bin; lift up to release it from the door rails
• Align the new bin with the door mounts and press down firmly until fully seated
• Confirm correct position on the door before loading items
• Handle plastic carefully; allow the part to reach room temperature before installation if delivered cold

This small sleeve fits over the hinge pin to provide a smooth pivot and maintain proper door alignment. Replacing a worn bushing helps eliminate wobble and squeaks so the door opens and closes correctly.

• Supports the hinge pin/shaft to reduce friction and wear
• Helps keep the door aligned and at the correct height at the hinge
• Can resolve door wobble, sagging, squeaking, binding, or rubbing
• Improves smooth opening/closing and reduces play at the hinge

• Disconnect power to the appliance; shut off water supply if applicable
• Support the door before removing hinge fasteners; note the order of spacers/washers
• Replace the bushing on the hinge pin and reassemble in the same stack-up
• Verify door alignment and operation after installation

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This ice maker gear drives the ejector blades that push ice from the tray into the bin. Replacing a worn or broken gear restores proper harvest cycles and stops grinding or slipping during ejection. What it does:

• Turns the ice maker ejector to release ice cubes during the harvest cycle.
• Stops or reduces grinding noises and slipping when the gear teeth are stripped or damaged.
• Helps restore regular ice production when the ejector no longer rotates.
• Works as the replacement driven gear in compatible LG ice maker gear trains.

• Disconnect power before servicing the ice maker to avoid shock or injury.
• Remove the ice maker assembly to access the gear; follow OEM instructions for disassembly.
• Inspect the mating gear, motor shaft, and ejector assembly for wear—replace additional damaged parts as needed.
• Use the matching part number to ensure fit.

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This is a ring intended for use in refrigerators. The ring is used to adjust the height of the door. Genuine OEM replacement rings are necessary for the repair to ensure a proper fitting.If the refrigerator door no longer opens or closes easily, or if it is not sealing properly, the rings may need to be replaced. Visual inspection can determine if there are problems with the refrigerator door rings. Make sure to unplug the device before starting any of the disassemblies of the machine. Wear gloves.This ring is an authentic OEM replacement part. It is sold as an individual unit. The ring is made of high-quality, durable materials. The replacement piece is sourced directly from the manufacturer. It can be installed in several models of refrigerators. The genuine OEM replacement ring is compatible with refrigerators produced by both LG and Kenmore.

The Water Line Connector is an OEM replacement part for LG refrigerators. It is responsible for connecting the water supply line from the home plumbing to the refrigerator's internal water distribution system, allowing for ice and water dispenser functionality.

Causes of a bad water line connector can include cracking, leaks, or deterioration of the connector material over time due to regular water pressure and temperature fluctuations. Connectors may also become damaged if exposed to impact.

Symptoms of a bad water line connector include:

• Leaks at the connection point between the line and refrigerator
• Loose, slipping, or disconnected water line fitting
• Reduced water pressure or no water flow to the dispenser
• Error codes related to water flow from the refrigerator diagnostics

 This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Water Tank Assembly is an OEM part for LG refrigerators. It stores and supplies water for the refrigerator's dispenser and ice maker, ensuring a steady and clean water flow for these features.

Causes of a bad water tank assembly can include mineral buildup from hard water, leaks due to cracks or punctures, or contamination from mold or bacteria if the tank is not regularly cleaned. Over time, wear and tear from repeated use can also lead to failure.

Symptoms of a bad water tank assembly include:

• Water dispenser not functioning properly
• Reduced or no ice production
• Leaks or puddles inside the refrigerator
• Unpleasant taste or odor in the water

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Water Inlet Valve is an OEM part for LG refrigerators. It controls the flow of water into the refrigerator for the ice maker and water dispenser, ensuring a steady and controlled supply of water.

You should replace the water inlet valve if it becomes clogged, damaged, or fails to function properly. Causes of a bad water inlet valve can include mineral buildup from hard water, electrical malfunctions, or general wear and tear over time.

Symptoms of a bad water inlet valve include:

• The ice maker not producing ice
• The water dispenser not dispensing water
• Leaking water from the valve area
• Unusual noises when the valve is operating

This OEM LG part is also compatible with Sears/Kenmore refrigerators.
