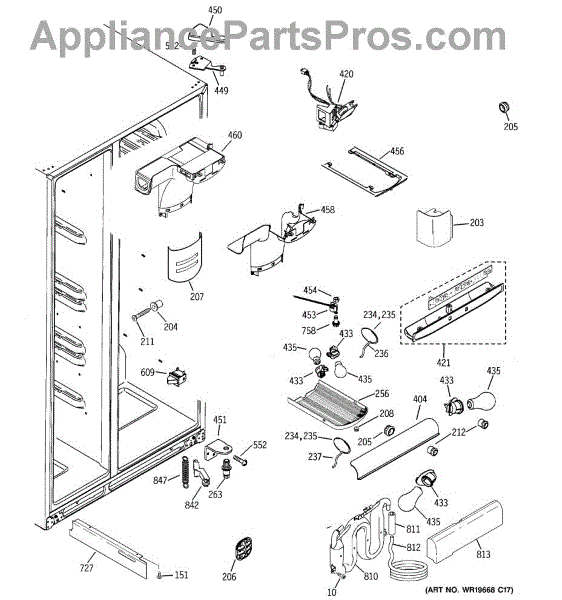

Parts for Ge GCU21YESAFBB: 07 - Fresh Food Section Parts

Size: 10-32 GXTT FLP.595 S

This is a replacement 8-18 x 9/16 machine screw used to secure internal and external appliance components. It restores proper fastening and helps stop rattling or loose panels caused by worn or missing fasteners. What it does

• Secures panels, brackets, or small assemblies to prevent movement and vibration
• Replaces stripped, corroded, or missing screws that can cause rattling or misalignment
• Helps maintain electrical and mechanical connections by holding parts in proper position
• Appropriate where an 8-18 thread size and 9/16" length are required

• Replacement screw

• Disconnect power to the appliance before accessing internal components
• Use the correct driver to avoid stripping the screw head and ensure proper torque
• Do not overtighten; snug until secure to avoid damaging threads or parts

This shelf support is the small rear rail clip that secures a refrigerator shelf or drawer rail in place. A worn or broken support can let the shelf tilt or drop, making storage unstable.

• Holds the rear of the shelf or rail securely to the cabinet wall
• Helps correct issues like a sagging, tilting, or loose shelf
• Replaces cracked, missing, or deformed supports causing poor fit
• Restores proper alignment so bins and shelves slide/seat correctly

• Unplug refrigerator before service
• Remove the shelf/bin to access the support
• Depress locking tabs and slide the old support out; snap the new one into the cabinet slot
• Ensure it's fully seated before reinstalling the shelf

Front mounting grommet.

This replacement screw secures refrigerator panels, brackets, and trim to help keep components aligned and quiet. It matches the specified #8-18 thread and 1-1/2 inch length used at designated mounting points.

• Fastens panels, brackets, covers, and hardware as designed by the manufacturer
• Restores a missing or damaged fastener to keep parts secure and aligned
• Correct #8-18 tapping thread and 1-1/2 in. length for specified locations

• Unplug the refrigerator or disconnect power before servicing
• Wear cut-resistant gloves to protect from sharp edges
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse any model-specific washers or clips originally installed on your unit

This rubber grommet secures the appliance's base grille, helping keep the grille fitted and reducing vibration and rattle. It's a simple replacement part to restore a snug, finished look at the appliance base. What it does:

• Cushions and retains the base grille in place to prevent gaps and movement
• Helps reduce vibration noise and rattling from a loose grille
• Restores proper fit where a grommet is cracked, torn, or missing

• One (1) grommet for the base grille

• Disconnect power to the appliance before beginning any service
• Typically installs by pressing into the grille or cabinet opening—no special tools required
• Inspect surrounding grille tabs or mounting points and replace any damaged hardware as needed

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Temperature Sensor is an OEM replacement part for GE refrigerators, designed to accurately monitor and relay the temperature inside the refrigerator and freezer compartments to the electronic control board. By detecting the slightest changes in internal temperature, the sensor allows the control board to make real-time adjustments to the cooling system, activating the compressor and fans as needed to maintain optimal conditions for food preservation.

Over time, the temperature sensor can fail due to electrical issues, exposure to moisture, or general wear and tear. A malfunctioning sensor can lead to improper temperature regulation, affecting the efficiency of the refrigerator and the freshness of stored food.

Symptoms of a bad Temperature Sensor include:

• The refrigerator or freezer not maintaining the set temperature
• The appliance running continuously or more frequently than normal
• Inaccurate temperature readings displayed

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This is the top light shield for the refrigerator interior that protects the light assembly and helps direct illumination across the compartment. Replaces a cracked or missing shield to restore proper light coverage and appearance. What it does:

• Covers and protects the interior light assembly from food contact and spills
• Helps diffuse and direct light for clearer visibility inside the compartment
• Prevents direct bulb exposure, reducing risk of breakage and soiling
• Commonly replaced when cracked, melted, discolored, or missing

• One top interior light shield

• Disconnect power to the appliance before starting any work
• Remove shelves or clips as needed to access the shield; handle plastic parts gently to avoid cracking
• Reinstall carefully so the shield seats securely on its mounting points; do not force or overtighten fasteners
• If the light bulb was exposed, replace with the correct rated bulb per manufacturer instructions

This bottom hinge pin supports and serves as the pivot for the refrigerator door. An accurate, tight-fitting hinge pin helps the door swing smoothly and seal properly to maintain temperature and reduce wear.

• Serves as the lower pivot point for the door on the bottom hinge
• Helps keep the door aligned for proper closing and gasket contact
• Replacing a worn pin can improve door movement and reduce stress on the hinge

• Unplug the appliance before servicing
• Support the door to relieve weight from the hinge before removing hardware
• Transfer any spacers/shims in their original order to maintain alignment
• Tighten fasteners securely and check door swing and seal after installation

This air diverter is a duct component that directs and balances airflow inside the refrigerator. Replacing a cracked or missing diverter helps restore proper cooling performance and reduce frost or condensation around air passages.

• Guides cold air from the evaporator through the intended duct path
• Helps maintain even temperatures between compartments
• Improves airflow seal and direction to reduce warm-air bypass
• Common symptoms: uneven cooling, weak airflow, frost/condensation near ducts, or visible damage to the diverter

• Disconnect power before servicing
• Remove shelves/drawers and the interior panel to access the diverter per your model's service information
• Note orientation and transfer any reusable screws/clips
• Do not overtighten fasteners into plastic; confirm unobstructed airflow before restoring power

The Refrigerator Damper Assembly is an OEM part for GE refrigerators. It regulates the flow of cold air from the freezer compartment to the refrigerator, ensuring proper temperature control within the fridge.

Causes of a bad damper assembly can include mechanical failure, electrical issues, or blockages caused by ice buildup or debris.

Symptoms of a bad damper assembly include:

• Inconsistent temperatures in the refrigerator compartment
• The refrigerator being too warm or too cold
• Frost buildup in the refrigerator section
• Unusual noises from the damper area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bulb Light is an OEM part for GE refrigerators. It is designed to illuminate the interior of the refrigerator and freezer compartments, making it easier to see and access food items. This light bulb fits securely into the designated socket and provides bright, reliable lighting to enhance visibility.

You should replace the bulb light if it burns out or becomes damaged. Causes of a bad bulb light can include regular wear and tear, electrical issues, or physical damage from impacts or vibrations. A faulty bulb can leave the refrigerator compartments dim or completely dark, making it difficult to find items.

Symptoms of a bad bulb light include:

• The light not turning on when the refrigerator door is opened
• Flickering or intermittent lighting
• A visibly burned-out or broken bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge top and pin assembly secures the refrigerator/freezer door to the cabinet and provides a stable pivot for smooth opening and closing. It helps keep the door aligned and prevents sagging or uneven gaps. What it does:

• Replaces a worn or broken hinge top and pivot pin that allow the door to pivot
• Restores proper door alignment and sealing when the hinge is the cause of sagging
• Stops noisy or sticky door movement caused by a damaged hinge top or pin
• Helps prevent further wear to the door and cabinet by restoring correct pivoting

• One hinge top and pivot pin assembly

• Support the door securely before removing the hinge to prevent injury or damage
• Disconnect power to appliances with electrical components before working near them
• Tighten mounting fasteners to manufacturer torque recommendations; do not overtighten

Refrigerator Door, Black

This light bezel is the trim piece that surrounds and secures the refrigerator/freezer interior lamp, providing a finished appearance and helping keep the lamp in place. It restores a clean fit and prevents light lens movement. What it does:

• Holds the interior lamp assembly or lens in position and covers the lamp opening
• Replaces cracked, broken, or warped trim that lets the lens rattle or sit unevenly
• Helps maintain a sealed appearance around the lamp to reduce light glare and gaps
• Compatible with appliances that use the matching OEM bezel design

• Disconnect power to the appliance before starting any work to avoid shock
• Handle the bezel and lamp lens carefully to avoid cracking; use appropriate tools for retaining clips or screws
• If replacing the lamp or lens, confirm bulb type separately
• Reassemble in reverse order and test the lamp for proper fit and operation after installation

The Refrigerator Damper Assembly is an OEM part for GE refrigerators. It regulates the flow of cold air from the freezer compartment to the refrigerator, ensuring proper temperature control within the fridge.

Causes of a bad damper assembly can include mechanical failure, electrical issues, or blockages caused by ice buildup or debris.

Symptoms of a bad damper assembly include:

• Inconsistent temperatures in the refrigerator compartment
• The refrigerator being too warm or too cold
• Frost buildup in the refrigerator section
• Unusual noises from the damper area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw secures panels, brackets, and other hardware in your appliance. Installing a new fastener restores a tight, rattle-free fit when the original is missing, stripped, or corroded, helping keep components properly aligned.

• Fastens components, trim, and brackets to the cabinet or frame
• Replaces a missing, stripped, or rusted screw
• Helps reduce rattles, vibration, and loose panels or handles
• Maintains proper alignment of panels and hardware

• Disconnect power (and water/gas if applicable) before servicing.
• 12-24 thread, approximately 0.90-inch length; match to the original location.
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening.
• Replace any additional damaged fasteners to ensure even clamping and a secure fit.

The Light Switch is an OEM part for GE refrigerators. It controls the refrigerator's interior light, turning it on when the door is opened and off when the door is closed. This ensures energy efficiency and convenience, illuminating the refrigerator's interior for easy visibility while searching for items.

Causes of a bad light switch include mechanical wear from constant use, damage from an impact, or electrical issues.

Symptoms of a bad Light Switch include:

• The interior light does not turn on when the refrigerator door is opened
• The light stays on when the door is closed, potentially leading to overheating or melted plastic components in the light housing area
• Intermittent functioning of the light, indicating a loose or damaged switch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Tank Assembly is an OEM part for GE refrigerators, designed to store and chill water before it's dispensed through the refrigerator's water dispenser. This integral component ensures that you have immediate access to cold, fresh water without the need to open the refrigerator, helping to conserve energy and maintain the internal temperature.

Over time, the water tank assembly can experience issues such as leaks, cracks, or the buildup of contaminants, all of which can affect the quality and taste of your water.

Symptoms of a bad Water Tank Assembly include:

• Leaks or puddling water beneath the refrigerator
• A noticeable drop in water flow from the dispenser
• Unpleasant taste or odor in the dispensed water
• Visible cracks or damage to the tank or its connections

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This foam insulation tube slips over refrigerator tubing to help reduce condensation and protect lines from moisture and minor abrasion. It's a simple replacement that restores padding and prevents dripping in affected areas. What it does:

• Insulates exposed tubing to reduce surface condensation and water buildup
• Cushions lines to help prevent chafing and minor damage
• Helps maintain a dry cabinet area by limiting drips from sweating lines
• Useful when original insulation is torn, compressed, or missing

• Disconnect power to the appliance before servicing; follow all safety guidelines
• Slide the foam sleeve over the tubing; trim to fit with a sharp blade if necessary
• Replace any damaged or brittle tubing discovered during install
• Do not use if foam is melted, charred, or contaminated

The Water Tank Plastic Tube is an OEM part for GE refrigerators. It functions as a conduit, transporting water from the water tank to the dispenser and ice maker, ensuring a steady flow of water for these features.

You should replace this plastic tube if it becomes damaged or worn out. Causes of a bad water tank plastic tube can include wear and tear over time, blockages from mineral deposits, or physical damage from mishandling or kinks.

Symptoms of a bad water tank plastic tube include:

• Leaks or drips from the tube
• Reduced or no water flow to the dispenser or ice maker
• Visible cracks or damage to the tube
• Air bubbles in the water line

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This foam insulation wraps the refrigerator's water reservoir to reduce sweating and help prevent freezing, keeping dispenser flow consistent and the fresh food compartment dry. Replace if the original insulation is torn, crushed, or missing. What it does:

• Insulates the water reservoir to help maintain a stable temperature
• Helps prevent the reservoir from freezing, which can slow or stop dispenser flow
• Reduces condensation that can drip or puddle inside the refrigerator
• Restores proper cushioning and protection around the tank

• 1 foam insulation piece for the water tank

• Unplug the refrigerator and shut off the water supply before servicing
• Remove shelves/drawers to access the water reservoir area
• Carefully remove the old insulation; avoid stressing or puncturing the reservoir and tubing
• Fit the new foam snugly around the tank, reassemble, restore power/water, and check for leaks and dispenser flow

The Fresh Food Lever Assembly is an OEM part for GE refrigerators. It plays a crucial role in the operation of the refrigerator, enabling the smooth adjustment of settings within the fresh food compartment. This lever assembly is responsible for the user's ability to fine-tune the temperature and humidity levels, ensuring that the food stored inside remains fresh and well-preserved. For the same part in white, purchase WR11X10007.

Over time, the lever assembly may become worn or damaged due to regular use, accidental impacts, or environmental factors such as extreme temperatures or humidity.

Symptoms of a bad Fresh Food Lever Assembly include:

• Difficulty in adjusting the temperature or humidity settings.
• The lever becoming loose or unresponsive.
• Inconsistent temperature control within the fresh food compartment.
• Increased energy consumption as the refrigerator works harder to maintain settings.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.
