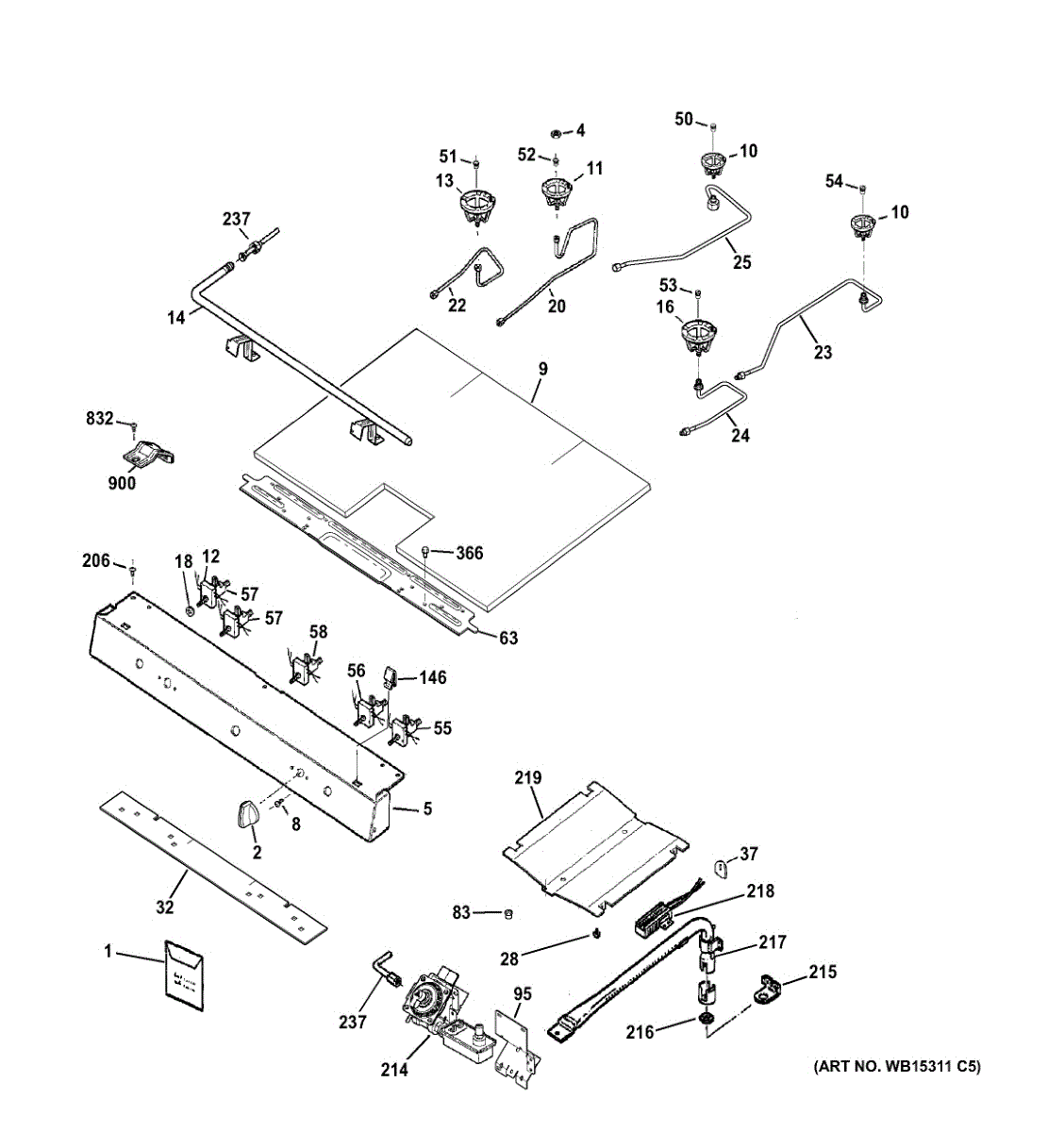

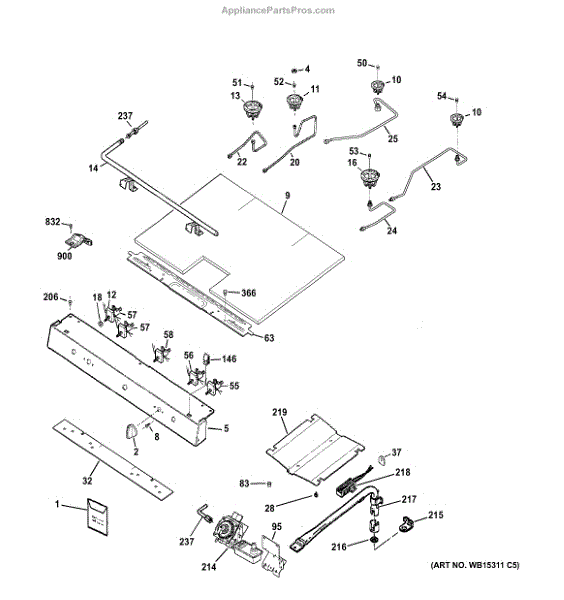

Parts for Ge JGBS65REF1SS: Gas & Burner Parts

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

The Switch and Wiring Harness Assembly is an OEM replacement part for GE gas ranges. This assembly includes all of the switches and wiring responsible for igniting the surface burners on the range.

Causes of a bad switch assembly can include exposed leads cracking from normal heating/cooling cycles over time. Intermittent short circuits may also occur due to stressed wires moving within the insulation.

Symptoms of a bad switch assembly include:

• Unresponsive control dials failing to ignite burners
• Crackling or popping noises heard coming from controls
• Error messages appearing frequently on displays
• Exposed or damaged wiring observed behind the control panel

This genuine GE assembly ensures smooth, accurate cooking throughout the appliance's lifetime. Compatible with Hotpoint, RCA, or Kenmore gas ranges as well.

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

This cooktop bracket secures the cooktop to the range frame, helping keep the surface stable and aligned for safe use. It replaces a worn or damaged support bracket to restore a snug, even fit. What it does:

• Anchors the cooktop to the range cabinet/frame to prevent shifting or rocking
• Helps maintain a flush, even cooktop surface for proper operation
• Can stop gaps that let debris fall between the cooktop and counter
• Useful when a loose, wobbly, or uneven cooktop is observed

• One cooktop mounting bracket

• Turn off power at the breaker and disconnect the appliance before starting work
• Access may require lifting the cooktop or removing trim—use proper support and a helper if needed
• Tighten mounting fasteners securely but avoid over-torquing to prevent damage

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

This orifice holder assembly secures the gas orifice and aligns the burner to ensure consistent fuel flow for cooktop burners. It restores proper gas delivery for safe, even burner ignition and heating performance. What it does:

• Holds the gas orifice in place and positions it under the burner for correct flame shape
• Directs gas from the valve to the burner head to enable consistent ignition
• Commonly replaced when burners sputter, produce uneven flames, or fail to light reliably
• Fits into the burner/burner base area and interfaces with the valve/orifice

• Turn off gas supply and disconnect power to the appliance before servicing
• Use basic hand tools; handle orifices and small parts carefully to avoid damage
• After installation, check for gas leaks and confirm proper ignition and flame pattern

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This igniter cover is a replacement protective shield that helps protect the oven igniter from food spills and debris, extending the igniter's service life and helping the burner ignite reliably. What it does:

• Shields the oven igniter from direct contact with spills, drips and falling debris
• Helps prevent premature igniter damage that can lead to ignition problems
• Can reduce the chance of shorting or erratic ignition caused by contamination
• Matches original shape to ensure proper fit and clearance around the igniter

• Disconnect power to the appliance (and shut off gas if applicable) before servicing
• Allow the oven to cool completely and wear gloves to avoid cuts from sheet metal
• Handle the igniter and cover carefully; avoid touching the igniter surface directly
• Test appliance operation after reinstall

Medium LP orifice

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This orifice spud supplies the correct fuel opening for a range or oven burner when using LP (liquid propane). It restores proper gas flow at the burner to help achieve a steady, consistent flame. What it does:

• Replaces the LP burner orifice/spud that meters propane to the burner
• Helps correct weak, uneven, or yellow flames caused by a worn or clogged orifice
• Used when servicing or converting burner assemblies to LP fuel
• Prevents improper gas flow that can cause poor ignition or unstable flame

• One LP orifice spud

• Turn off gas supply and electrical power before servicing; follow all safety precautions
• Only experienced DIYers comfortable with gas appliances should install this part
• After installation, test for proper flame and check all fittings for leaks using a soap solution

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

The Valve Burner is an OEM part for GE gas ranges. It delivers gas to the cooktop through a valve system. This burner distributes gas evenly across its surface to provide consistent heating for pots and pans.

Causes can be wear over time, defects, dirt/debris buildup affecting the valve mechanism, or damage from mishandling.

Symptoms of a bad valve burner include:

• Uneven or abnormal flames when lit
• Inability to control burner flames and temperatures
• Burner making clicking/hissing noises
• No gas flow or faulty ignition

This GE replacement part is compatible with Hotpoint, RCA, and some Kenmore models.

The Surface Burner Valve is an OEM replacement part for GE gas ranges. Located beneath each burner head, this valve regulates gas flow to its associated burner for consistent temperature control.

Causes of faulty valves often relate to corrosion or debris accumulation from gas vapors over time. Physical damage from impacts or misuse could also restrict proper valve function.

Symptoms include:

•  Burners failing to ignite or heat properly
•  Inability to adjust temperatures across burner settings
•  Abnormally loud noises or small flame projects during use

This genuine GE part is compatible with Hotpoint, RCA, and select Kenmore range models as well.

The Valve and Burner Assembly is an OEM part for GE gas ranges. As the central mechanism delivering gas fuel to each burner, it works to control flames precisely while maintaining consistent heat levels.

Causes of a bad valve and burner assembly include failure of internal valves, cracks in manifolds allowing gas leaks, or blockages restricting proper fuel flow.

Symptoms of a bad valve burner include:

• Inability to ignite or extinguish burners properly
• Burners that produce unstable or excessively large/small flames
• Difficulty maintaining the desired heat setting
• Repeated sensor errors or shutdowns

This GE replacement assembly ensures your range's stove-top functions safely and dependably by accurately metering gas movement. It is also compatible with Hotpoint, RCA, and Kenmore models. Install yours today before minor issues require costly repairs.


This surface burner valve regulates gas flow to a single cooktop burner for smooth, precise flame control. Replacing a worn valve can restore reliable ignition and adjustment on the affected burner while maintaining safe operation.

• Regulates and meters gas from the manifold to one surface burner
• Works with the control knob to provide simmer-to-high flame settings
• Common failure symptoms include: burner won't ignite, weak or unstable flame, gas odor near the knob/valve area, or a knob that is hard to turn
• Labeled "270" per GE specification to match the correct valve style/position used in select models

• Disconnect power and shut off the gas supply before servicing
• Access the manifold; note the valve's position and orientation before removal
• Reassemble and check all connections for leaks using an approved leak-detection solution
• If the burner still won't light, also inspect the burner orifice, igniter, and spark system

The Oven Orifice Spud LP is an OEM part for GE gas ovens and ranges. This part controls the flow of liquid propane (LP) gas into the oven burner box.

The oven orifice spud plays a role in gas combustion, adjusting flow to match the needs of a liquid propane system. It connects directly to the gas supply, so an improperly sized or damaged spud can lead to gas leaks or incomplete burning.

Causes of a bad oven orifice spud include normal wear over time from constant heating cycles, exposure to cleaning chemicals, or damage during part replacement.

Symptoms of needing a replacement include:

• Uneven or inconsistent oven heating
• Extended cooking times or inability to reach desired temperatures
• Gas smell coming from the oven area
• Visible damage or cracks on the spud itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This gas control valve regulates the flow of gas to a surface burner on your cooktop or range. Replacing a worn valve restores smooth, accurate flame adjustment, reliable ignition, and positive shutoff for safe, consistent burner performance.

• Regulates gas to one surface burner for ON/OFF and flame size control as you turn the knob
• Enables proper ignition when opened; supports steady, even flame once lit
• Common failure symptoms: hard-to-turn or wobbly knob, uneven flame or poor adjustment
• May help if the burner won't light despite sparking, or if there's a gas odor at the valve stem

• Shut off the gas supply and disconnect power before servicing
• Remove the knob and access the valve from the control panel/cooktop area
• Transfer the igniter switch and any mounting hardware from the old valve to the new one if applicable
• After reassembly, check all connections with a leak-detection solution before use

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Burner/Oven Assembly is an OEM part for GE gas ranges. It holds ignition and valve components over lower cooking surfaces.

Causes of failure include deterioration of high-temperature seals from repeated heating cycles, stripped mounting points from frequent removal/cleaning access, and impact damage to housing structures.

Symptoms of a faulty burner/oven assembly are:

• Gas leaks around burner bases or control knobs
• Unstable or irregular flame sizes lacking responsiveness
• Potential safety hazards from exposed connections or cracks

This OEM part is compatible with Hotpoint and RCA gas range models as well.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This manifold supply tube carries gas from the pressure regulator to the burner valve manifold on your gas range or cooktop. Replacing a damaged tube restores safe, consistent fuel flow for reliable ignition and steady flames.

• Routes regulated gas to the burner valve manifold
• Restores proper fuel flow when the original tube is kinked, cracked, or corroded
• Typical symptoms include weak or no flame, delayed ignition, or a fuel odor near the manifold
• Replace if leaking or visibly damaged

• Disconnect power and shut off the gas supply; allow the appliance to cool.
• Photograph the original routing and fittings before removal; transfer any clips or brackets.
• Route and support the new tube exactly like the original; avoid kinks or sharp bends.
• After reassembly, check all joints with an approved leak-detection solution—never with an open flame.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
