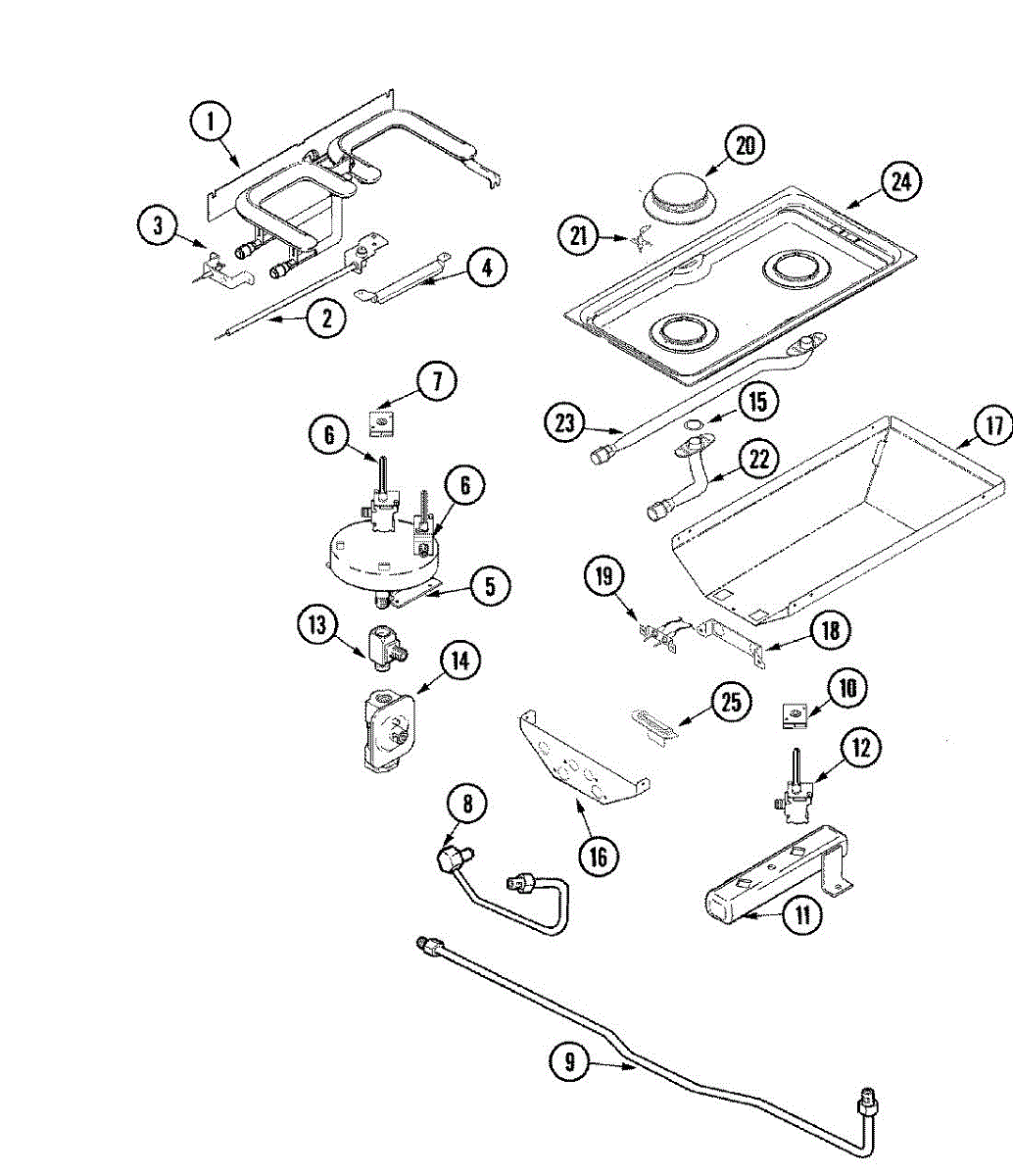

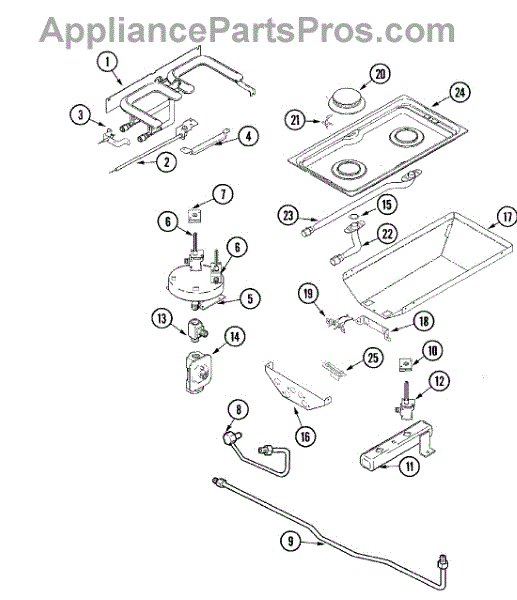

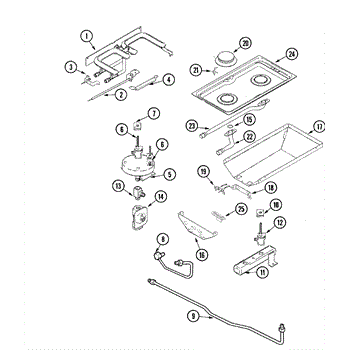

Parts for Jenn-Air JGD8345ADW: 03 - Gas Controls Parts

This replacement E-shaped grill burner supplies an even gas flame to the grill section of compatible cooktops/ranges, restoring consistent grilling performance and heat distribution for searing and cooking.

• Delivers uniform flame across the grill area for even cooking
• Replaces a burner that's warped, corroded, clogged, or not lighting evenly
• Can help resolve weak flame, cold spots, flare-ups, or uneven grilling
• Designed for the grill compartment of compatible gas units

• Disconnect gas and power before servicing
• Allow appliance to cool completely; wear gloves to avoid cuts on metal edges
• Transfer any reusable hardware from the old burner as directed by your model's instructions
• After installation, perform a leak check and verify proper flame pattern

This burner spark igniter produces the electrical arc that lights the gas flame on your range or cooktop. Replacing a worn electrode restores quick, dependable ignition and helps stop continuous clicking when a burner won't light.

• Generates the high-voltage spark that ignites the gas at the burner
• Works with the ignition module to light the burner when the knob is turned
• Common symptoms of a failing igniter: clicking but no flame, no visible spark, burner lights only with a match, intermittent or delayed ignition
• Restores fast, reliable lighting performance at the burner

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Access the electrode at its burner location; note its position and gap relative to the burner before removal
• Handle the ceramic insulator carefully and reuse original mounting hardware if applicable
• Reconnect the spark wire securely, reassemble, and test for proper spark and ignition

This spark ignitor ground assembly creates the spark and grounded path needed to light a gas burner. Replacing a worn electrode restores consistent ignition and helps reduce continuous clicking or burners that fail to ignite.

• Generates a high-voltage spark at the electrode tip to ignite the gas at the burner
• Integral ground bracket completes the circuit and sets the proper spark gap near the flame source
• Common symptoms: no spark at one position, intermittent ignition, continuous clicking, or cracked/corroded electrode or ground
• Intended for a single burner location; match mounting style and connector to your original

• Disconnect power and shut off gas; allow the appliance to cool before servicing
• Note the original electrode position and wire routing; remove the old assembly
• Install the new assembly with clean, tight metal-to-metal ground contact and correct gap to the burner per service instructions
• Reconnect the lead and test for a strong, consistent spark before reassembly

Replacement top surface burner valve that controls gas flow to a single surface burner for safe, consistent flames. Restores burner operation when the control knob no longer ignites or adjusts the flame. What it does:

• Regulates gas flow from the manifold to one top/surface burner so the flame lights and responds to the control knob.
• Replaces valves that stick, fail to open/close, or stop adjusting flame size.
• Common symptoms this part can address: burner won't light, knob turns without affecting flame, flame too low or uneven.
• If you smell gas or suspect a leak, shut off the gas immediately.

• (1) top surface burner valve

• Shut off the gas supply and disconnect power to the appliance before starting; relieve any residual pressure per your appliance instructions.
• Use correct tools and replacement gaskets/seals where required; only install if part number matches your model.
• After installation, check all connections for leaks using a safe leak-test method (soapy water), not an open flame.

Left-side gas valve that controls gas flow to the burner assembly, restoring reliable ignition and stable flame control when a faulty valve causes burners to fail to light, sputter, or produce an inconsistent flame. What it does:

• Regulates gas flow to the left burner assembly for proper ignition and steady flame control.
• Replaces a stuck, damaged, or failed valve often associated with burners that won't light, have weak flames, or flame fluctuation.
• Acts as the control point between the appliance gas supply and the burner; proper operation is required for safe ignition.
• Use the appliance's parts diagram to determine left/right valve location and fit before ordering.

• Turn off the appliance power and shut off the gas supply before starting any service.
• Only install on appliances designed for this left-side valve; follow the service diagram and manufacturer instructions for proper fitment.
• Inspect all fittings and connections for leaks after installation; test using approved leak-detection methods per local codes.

This double valve switch assembly controls two valve circuits to manage water flow and valve operation in compatible appliances. It replaces a failed switch to restore proper valve control and appliance function. What it does:

• Acts as the electrical switching assembly for two valve solenoids or circuits
• Allows the appliance control board to open and close water valves as needed
• Commonly linked to symptoms like no fill, continuous fill, or intermittent valve operation
• Helps stop erratic or unresponsive valve behavior when the original switch fails

• One double valve switch assembly

• Disconnect power (and water, if applicable) before beginning any repair
• Verify power is off with a meter and document wire locations or take photos before disconnecting
• Handle connectors carefully; ensure proper seating and secure mounting during reassembly

This single valve switch is the electrical control that activates a single solenoid valve, restoring proper valve operation so the appliance can open or close the water/flow circuit as designed. It replaces a failed or non-responsive valve control switch. What it does

• Sends the electrical signal to a single solenoid valve so the valve opens or closes when commanded.
• Commonly used when a valve fails to energize, causing no water flow or intermittent operation.
• Helps resolve symptoms such as the valve not activating, intermittent dispensing, or an appliance that won't fill.
• Works as the user-commanded switch interface between control electronics and the valve assembly.

• One (1) single valve switch

• Disconnect power to the appliance before starting any repair to avoid shock.
• Turn off the water supply if the repair requires disconnecting water lines.
• Verify connector orientation and secure electrical connections; do not force connectors.

This single valve switch is the electrical control that activates a single solenoid valve, restoring proper valve operation so the appliance can open or close the water/flow circuit as designed. It replaces a failed or non-responsive valve control switch. What it does

• Sends the electrical signal to a single solenoid valve so the valve opens or closes when commanded.
• Commonly used when a valve fails to energize, causing no water flow or intermittent operation.
• Helps resolve symptoms such as the valve not activating, intermittent dispensing, or an appliance that won't fill.
• Works as the user-commanded switch interface between control electronics and the valve assembly.

• One (1) single valve switch

• Disconnect power to the appliance before starting any repair to avoid shock.
• Turn off the water supply if the repair requires disconnecting water lines.
• Verify connector orientation and secure electrical connections; do not force connectors.

The surface/top burner valve controls gas flow to a cooktop/range burner, letting you turn the flame on and adjust heat. Replacing a worn valve restores smooth knob feel and consistent ignition and flame control on your gas appliance.

• Regulates gas supply to the surface burner from Off to simmer to full flame
• A stiff or seized stem can make the knob hard to turn or stuck
• Failure can prevent the burner from lighting or cause erratic flame adjustment
• A stripped/broken shaft may let the knob spin without changing flame

• Disconnect power, shut off the gas supply, and allow the appliance to cool
• Remove the knob and access panel to reach the valve; label tubing and any wires for correct reassembly
• Transfer any orifice fittings and mounting hardware from the old valve as required; align the stem for proper knob orientation
• Use gas-rated sealant on pipe-threaded joints only and leak-test all connections with a non-corrosive solution before restoring service.

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This brass seal is used on range and cooktop tubing connections to create a tight, leak-resistant joint. Replace a deformed or worn seal whenever the line is serviced so the burner system operates safely. What it does:

• Forms a tight seal in a compression-style fitting between the tube and mating connector
• Helps prevent gas odors or hissing at the joint
• Can improve ignition and flame stability when a leaking connection is corrected
• Intended to be replaced when the connection is disassembled or the old seal is crushed/deformed

• Shut off gas supply and power before servicing; allow components to cool
• Inspect tubing and fitting surfaces; replace any nicked, bent, or out-of-round parts
• Align the tube squarely and tighten per OEM guidance—do not overtighten
• After assembly, leak-test the joint with an approved solution; if leaks persist, stop.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

This is a replacement spark electrode. This is a genuine OEM part made by Whirlpool and has been sourced directly from the manufacturer. This part is intended to replace a burnt-out or faulty spark electrode in various models of gas stoves and ranges.Spark electrodes provide a spark that will catch the gas in order to ignite the burner. If the burners will not light, or the gas igniter glows but won't ignite, this part may be the issue. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any appliances. Please make sure that the stove is entirely disconnected from gas and power before starting the repair work. Proper tools may be required to install this part. For more accurate information on how and where to install this spark electrode, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this spark electrode is suitable for use on several different models of refrigerators manufactured by Whirlpool, Maytag, KitchenAid, Amana, and other Whirlpool brands. This is a genuine part made of high-quality, durable, non-corrosive materials and is sold individually.

Sealed burner assembly that supplies a protected gas flame for a gas range, restoring consistent heat and helping keep spills and debris out of the burner box. Designed as a direct-replacement assembly for affected burners. What it does

• Provides the sealed gas flame source used for cooking on a gas cooktop
• Restores even heat distribution when a burner is warped, damaged, or not producing a steady flame
• Helps prevent spills and food debris from entering the burner cavity, reducing corrosion and ignition problems
• Symptom linkage: commonly replaced for uneven heating, weak or irregular flame, visible burner damage, or excessive soot

• Includes 1 sealed burner assembly

• Turn off the gas supply and electricity to the appliance before starting any service
• Follow model-specific disassembly steps (lift or remove cooktop/grates as required); do not force fittings or gas connections
• If you smell gas, shut off the gas supply immediately

• WP3403M075-29 — confirm this matches your original part before ordering

The Top Burner Spark Igniter is an OEM part for Whirlpool ranges. It is responsible for igniting the gas on the stove burners, allowing you to start cooking quickly and efficiently. The spark igniter produces a spark that lights the gas, providing the flame needed for cooking.

Causes of a bad igniter can include wear and tear over time, buildup of food debris or grease that interferes with the spark, or electrical issues that prevent the igniter from generating a spark.

Symptoms of a bad Top Burner Spark Igniter include:

• Burner not igniting
• Weak or no spark
• Clicking sound without ignition
• Delayed ignition of the burner

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The front venturi is the front section of the burner venturi tube that mixes air with incoming gas for proper burner combustion. Replacing a damaged or clogged venturi helps restore reliable ignition and a steady flame. What it does:

• Directs and mixes air with gas before the burner to support stable, even flames.
• A worn, cracked, bent, or clogged venturi can cause weak flames, uneven heat, or difficulty lighting.
• Sits at the front portion of the burner venturi assembly and aligns gas flow into the burner head.
• Works with the rest of the burner components to maintain proper combustion characteristics.

• Turn off gas supply and unplug appliance before servicing; follow all local codes for gas work.
• Remove burner grates and burner head to access the venturi; handle carefully to avoid deforming the tube.
• Inspect surrounding burner parts and clean any debris before reassembly.
• After reinstalling, check for correct ignition and a steady flame; perform a leak check if gas lines were disturbed.

Rear venturi directs the gas/air flow from the valve to the burner for proper ignition and heating. Replacing a damaged or clogged venturi helps restore consistent flame and improve dryer heating performance. What it does:

• Channels and shapes the air/gas mixture to the burner assembly for reliable ignition.
• Helps maintain consistent burner flame and steady heating during operation.
• Commonly replaced when the dryer has weak or no flame, reduced heat, or intermittent heating.
• Fits the rear mounting location and mates to the burner/gas valve interface.

• Turn off the gas supply and unplug the dryer before beginning work; only service when the appliance is cool.
• Remove the dryer rear panel or access cover to reach the burner housing and venturi; handle internal components carefully.
• Inspect gaskets and seal surfaces; replace any damaged seals and check gas connections for leaks after reassembly.

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold
