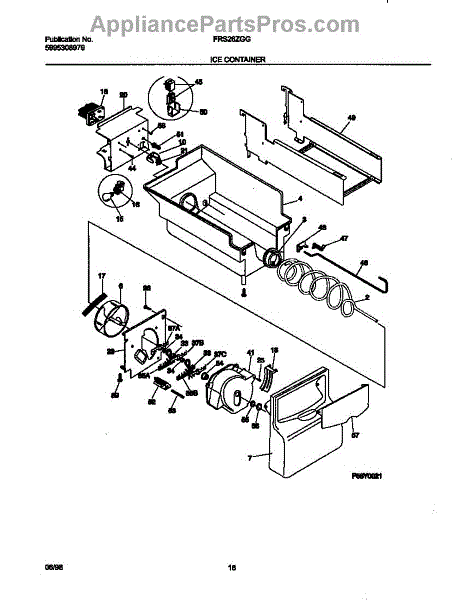

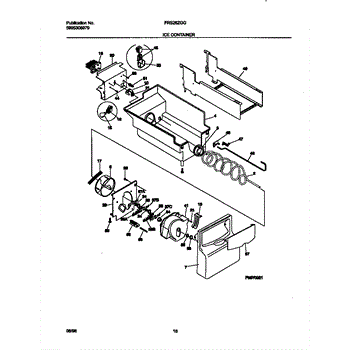

Parts for Frigidaire FRS26ZGGB4: 09 - Ice Container Parts

An ice auger rotates inside the freezer's ice bin to move cubes to the crusher and out the dispenser chute. Replacing a worn or broken auger restores consistent dispensing and helps eliminate jams and grinding from a slipping spiral.

• Advances ice through the bin toward the crusher/dispenser chute
• Works with the crusher assembly to deliver cubed or crushed ice based on the selector
• A stripped or cracked auger may result in little/no ice dispensing while the motor runs
• Damage can cause ice jams, uneven dispensing, or grinding noises from the bin

• Unplug the refrigerator; remove and empty the ice bin, allowing any frost to thaw
• Wear cut-resistant gloves—crusher blades and sheet-metal edges are sharp
• Disassemble the crusher/blade stack and note the exact blade/spacer order
• Transfer the blade stack, bushings, and hardware to the new auger; reassemble and confirm smooth rotation before reinstalling

This drive cam is the rotating plastic cam used in the refrigerator's ice system. It transfers the motor's motion to linked parts to advance the cycle so ice can be produced and dispensed smoothly.

• Transfers rotation from the motor to move internal levers/gears in the ice assembly
• Advances the ice-making/dispensing cycle
• Wear or cracks can cause stalling, clicking/grinding, or no/weak ice dispensing
• May lead to ice not ejecting or jamming mid-cycle

• Disconnect power and shut off water before servicing
• Remove the ice bin; access the ice maker or dispenser mechanism as your model requires
• Note the cam's orientation and alignment marks; seat the new cam fully on the shaft
• Reassemble, restore power, and run a test cycle to confirm operation

The Ice Bucket Housing is an OEM part for Frigidaire refrigerators. This component serves as the main enclosure for the ice bucket, supporting and protecting the ice maker's storage bin. It is designed to fit securely within the freezer compartment, helping to maintain the ice in a solid state by insulating it from varying freezer temperatures and ensuring that ice production is efficient and consistent.

Symptoms of a failing Ice Bucket Housing include:

• Ice melting or clumping together due to poor insulation
• Difficulty in removing or replacing the ice bucket because of misalignment or damage to the housing
• Cracks or damage in the housing that can lead to frost buildup or leakage
• Unusual noises from the ice dispenser if the housing obstructs the dispensing mechanism

Causes of a bad ice bucket housing often involve physical impacts from handling, thermal stress from fluctuating freezer temperatures, or degradation of materials over time, leading to brittleness and breakage.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models

Note: For the complete ice container assembly with auger and moving parts, order part number 241860803.

The Ice Dispenser Drum is an OEM part for Frigidaire refrigerators. This component is essential for the proper dispensing of ice, rotating to move ice from the storage bin to the dispenser chute.

You should replace the ice dispenser drum if it becomes damaged or worn out. Causes of a bad ice dispenser drum can include physical damage from ice jams, wear and tear from regular use, or issues with the motor that drives the drum.

Symptoms of a bad ice dispenser drum include:

• The ice dispenser not dispensing ice properly
• Grinding or clicking noises from the dispenser area
• Ice getting stuck or jammed in the dispenser
•  Reduced ice flow or inconsistent dispensing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement ice container front is the front cover for the freezer's ice bucket. It restores a secure front wall so cubes stay contained and the bucket seats and dispenses correctly. What it does:

• Forms the front face of the ice container to keep ice contained
• Helps the bucket fit and align for proper dispensing
• Replaces a cracked, broken, loose, or missing front panel
• May help if ice spills from the bin or the bucket won't slide in or latch properly

• 1 ice container front (front cover only)

• Unplug the refrigerator and remove the ice bucket from the freezer
• Empty the bucket; transfer any screws, clips, or labels from the old front to the new part
• Align tabs and snap/fasten the new front to the bucket; do not overtighten screws
• Reinstall the bucket and check seating and dispenser operation

The Ice Auger Drive Bar is an OEM replacement part for Frigidaire refrigerators. It plays an important role in allowing the icemaker assembly to function properly by transmitting rotational force from the motor to the ice auger. Without a properly functioning drive bar, ice cubes may not be dispensed as needed. Please Note: The nut is no longer separate. It is now part of this drive bar.

Causes of a bad ice auger drive bar can include wear and tear from frequent use, damage due to heavy ice loads, or corrosion from moisture exposure. A malfunctioning drive bar can result in inefficient ice dispensing or complete failure of the ice dispensing mechanism.

Symptoms of a bad drive bar include:

• Ice cubes not dispensing when requested
• Noise or grinding sounds coming from the icemaker area
• Stalling or failure of the icemaker assembly to rotate fully
• Inability to harvest or eject ice from the ice molding trays

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

This temperature control thermostat regulates refrigerator cooling by cycling the compressor and fans to maintain set temperatures. Replaces a faulty thermostat to restore proper temperature control and more consistent cooling. What it does

• Senses cabinet temperature and closes or opens the electrical circuit to run the compressor and cooling system
• Helps maintain steady temperatures so food stays properly chilled or frozen
• Commonly replaces a thermostat that causes the unit to run constantly, not run at all, or fail to reach set temperatures
• Works with the fridge's control assembly to respond to user temperature adjustments

• One temperature control thermostat

• Disconnect power to the appliance before starting any repair
• Locate the thermostat behind the control knob or panel; refer to your model's service manual for exact access
• Handle the capillary tube and sensor bulb carefully to avoid kinks or damage

The Ice Crusher Housing is an OEM part for Frigidaire refrigerators. This housing encloses the ice crusher assembly, ensuring that ice is crushed efficiently and delivered smoothly through the dispenser. It is designed to securely hold the crusher components in place and guide the ice into the dispenser chute.

You should replace the ice crusher housing if it becomes damaged or worn out. Causes of a bad ice crusher housing can include repeated impact from ice, cracks or breaks from overloading, or wear and tear from regular use.

Symptoms of a bad ice crusher housing include:

• Ice not crushing properly
• Leaks or moisture around the ice crusher area
• Loud or unusual noises during operation
• Visible cracks or damage to the housing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Specs: 4 - 24 x 0.750

This micro switch detects door or lid position and tells the appliance when the door is closed so cycles can start or safety interlocks stay engaged. It restores reliable door sensing and helps prevent operation with the door open. What it does:

• Acts as a position sensor that completes or breaks the control circuit when the door/lid is closed or opened
• Keeps the appliance from starting or continuing a cycle if the door is open (safety interlock)
• Common symptom fix: appliance won't start, stops mid-cycle, or shows door-related error codes
• Small electrical switch designed to mount at the door latch or frame and connect to the appliance wiring harness

• Disconnect power (unplug or shut off breaker) before attempting service
• Access may require removing panels, trim, or the door latch assembly; keep track of screws and fasteners
• Observe wiring orientation and connector positions; replace exactly as removed or tag wires

The Light Bulb (40W) is an OEM part for Frigidaire appliances. Specifically designed to fit and function with Frigidaire models, this 40-watt bulb illuminates the interior of your oven, making it easier to check on the progress of your baking or roasting without opening the oven door.

Over time, oven light bulbs can burn out or be damaged from high temperatures or accidental bumps during cleaning or cooking. A functioning light bulb is crucial for the optimal operation of your oven, enhancing visibility and improving your cooking experience.

Symptoms of a bad Light Bulb include:

• The oven interior remains dark when the light switch is engaged.
• Flickering light, indicating a loose connection or nearing the end of the bulb's lifespan.
• Completely non-functional light, which can hinder your ability to monitor cooking progress.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

The Drive Blade is an OEM part for Frigidaire refrigerators. This component is crucial for the ice maker, as it helps to crush and dispense ice properly. The drive blade ensures that ice cubes are broken down to the desired size and pushed through the dispenser efficiently.

Over time, the drive blade can wear out or become damaged due to repeated use, ice buildup, or mechanical stress. Replacing a faulty drive blade is necessary to maintain the ice maker's functionality and ensure a continuous supply of ice.

Symptoms of a bad drive blade include:

• The ice maker not dispensing ice properly
• Unusual noises coming from the ice maker
• Ice cubes being dispensed in irregular sizes or not at all
• Visible damage or wear on the blade

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Refrigerator Ice Maker Assembly is an OEM replacement part for Frigidaire refrigerators. It plays a crucial role in the appliance by automatically producing ice, ensuring you have a constant supply of ice cubes for your beverages and cooling needs. Designed to fit perfectly into your Frigidaire refrigerator, this ice maker assembly includes the ice mold and the control device that fills it with water, freezes the water into ice, and then ejects the ice into a storage bin.

Causes of a bad Ice Maker Assembly can include mechanical failures, water supply issues, or electrical malfunctions.

Symptoms of a bad ice maker assembly can include-

• No ice production
• Debris in the ice
• Ice not emptying from the icemaker
• Leaking water

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This ice ejector is the plastic arm that pushes cubes out of the ice maker mold and into the ice bin, restoring proper ice ejection and dispenser function. It's a direct-replacement component for affected ice maker assemblies. What it does:

• Physically strips and pushes formed ice cubes from the mold into the bin or dispenser
• Helps restore normal ice dispensing when cubes remain stuck in the mold
• Works with the ice maker's motor/gear train to time ejection during the harvest cycle
• Commonly replaced when the ejector is broken, cracked, or worn and no longer contacts cubes

• One ice ejector (ejector arm)

• Disconnect power to the refrigerator before starting any repairs
• Remove the ice maker/cover or access panel as required to reach the ejector
• Inspect related components (drive gear, motor, and mounting pins) for wear while replacing the ejector
• After installation, run a test harvest/dispense cycle to correct operation

This auger motor powers the ice dispenser, rotating the ice-bin auger to feed cubes or crushed ice to the door chute. A failed motor stops dispensing, leaving ice in the bucket when the paddle or lever is pressed.

• Drives the auger that moves ice from the bin to the dispenser chute
• Restores dispensing when the original motor is seized or burned out
• Common symptoms: no ice through the door, auger doesn't turn, motor only hums or clicks
• Note: Won't resolve issues from a jammed auger, frozen ice bucket, or broken drive parts

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the ice bin to access the motor area as designed on your model
• Note wire orientation; transfer any reusable brackets or hardware from the original motor
• Align the drive interface and secure; test both cube and crush functions before reassembly

Specs: 8 - 18 x 3/8

The Ice Auger Drive Bar is an OEM replacement part for Frigidaire refrigerators. It plays an important role in allowing the icemaker assembly to function properly by transmitting rotational force from the motor to the ice auger. Without a properly functioning drive bar, ice cubes may not be dispensed as needed. Please Note: The nut is no longer separate. It is now part of this drive bar.

Causes of a bad ice auger drive bar can include wear and tear from frequent use, damage due to heavy ice loads, or corrosion from moisture exposure. A malfunctioning drive bar can result in inefficient ice dispensing or complete failure of the ice dispensing mechanism.

Symptoms of a bad drive bar include:

• Ice cubes not dispensing when requested
• Noise or grinding sounds coming from the icemaker area
• Stalling or failure of the icemaker assembly to rotate fully
• Inability to harvest or eject ice from the ice molding trays

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Specs: 8 - 18 x 1

Front plate restores the appliance's front-facing cabinet, protecting internal components and improving appearance. It replaces cracked, dented or worn front trim so the appliance looks finished and covers internal parts. What it does:

• Covers and protects internal components behind the appliance's front cabinet.
• Restores cosmetic appearance when the existing front is dented, cracked, or scratched.
• Helps maintain proper fit and alignment of adjacent trim and access points.
• Reduces exposure of internal components to dust and incidental contact.

• Always disconnect power (and water, if applicable) before beginning work.
• Removal typically requires removing fasteners, clips or adjacent trim panels—keep track of all screws.
• Handle carefully; edges may be sharp and panels can be awkward to position alone.

This #8-32 x 3/8 screw secures appliance panels, brackets, and assemblies. Replace a missing or stripped fastener to keep parts tight and aligned, reduce vibration, and restore proper fit in compatible refrigerators and freezers.

• Machine-thread fastener sized #8-32, 3/8-inch length
• Secures control housings, trims, covers, and support brackets per model design
• Replaces missing, worn, or corroded screws that cause loose or rattling parts
• Helps maintain alignment and stability after service

• Unplug the appliance; shut off water if applicable
• Match thread size to the original and start by hand to avoid cross-threading
• Use the correct driver; do not overtighten, especially into plastic
• Verify component alignment and operation after fastening

• Thread size: #8-32
• Length: 3/8 inch

Specs: 4 - 24 x 3/8

Specs: 10-16 X 0.500

Specs: 4 - 40 x 0.375

Specs: 4 - 40 x 3/4

This spacer fits the refrigerator door hinge to set proper clearance and alignment so the door swings smoothly and seals correctly. Replace a worn or missing spacer to eliminate rubbing and uneven gaps at the door.

• Maintains the specified distance between hinge components for correct door height and alignment
• Helps the door open and close without rubbing or binding
• Supports consistent gasket contact for a reliable seal
• Common signs of wear: door sagging, scraping noises, uneven gaps, or the door not closing flush

• Unplug the refrigerator; remove items from the door and support the door before working on the hinge
• Note the order of any washers, cams, and spacers during disassembly for correct reassembly
• Reinstall hardware in the same sequence; do not overtighten fasteners to avoid deforming the spacer
• After reassembly, check door alignment and gasket seal; adjust as needed

This spacer is a small positioning piece used in refrigerator assemblies to maintain proper clearance and alignment between parts. Replacing a worn or missing spacer helps restore smooth operation and prevents rubbing or binding. What it does:

• Maintains the designed gap between mating parts to prevent friction and wear
• Helps keep assemblies aligned for smooth, consistent movement
• Reduces looseness, rattling, or poor fit caused by a missing or deformed spacer
• Typical signs include visible damage or a missing spacer and misalignment or scraping noises in the area it installs

• 1 spacer

• Disconnect power; if working near water components, shut off the water supply
• Use your model's parts diagram to determine exact location and orientation
• Retain and reuse original fasteners or clips unless damaged
• Do not overtighten hardware; ensure smooth operation after installation

The Water Inlet Valve is an OEM part for Frigidaire refrigerators. It controls the flow of water into the refrigerator's ice maker and water dispenser, ensuring a steady and reliable water supply. This valve opens and closes as needed, allowing water to enter the ice maker and dispenser for proper operation.

Causes of a bad water inlet valve can include mineral buildup, wear and tear, or electrical issues. A malfunctioning valve can lead to problems with water flow, affecting the refrigerator’s ability to produce ice and dispense water properly.

Symptoms of a bad water inlet valve include:

• No water dispensing from the refrigerator
• Ice maker not producing ice
• Leaks from the valve area
• Unusual noises coming from the valve

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.
