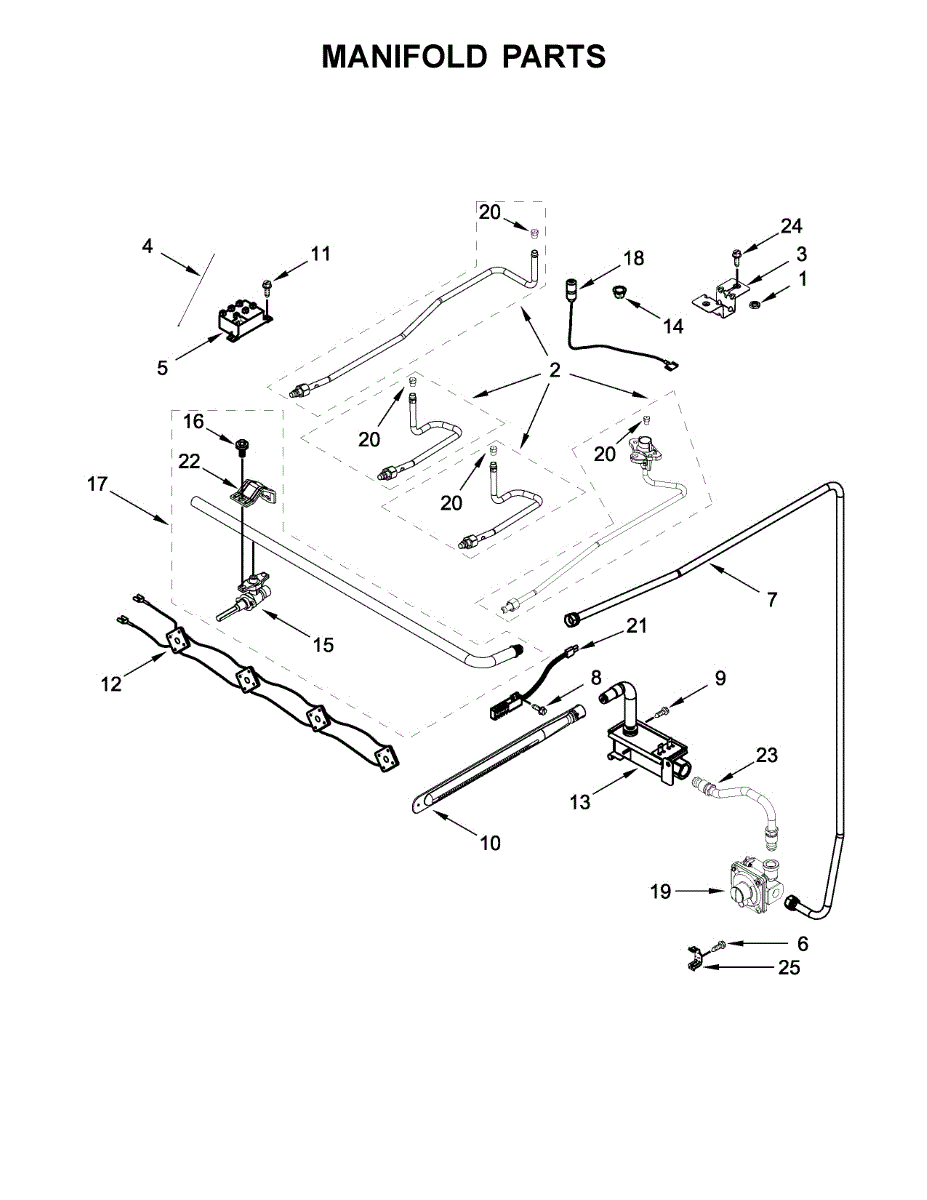

Parts for Amana AGR5330BAS3: Manifold Parts

This burner venturi channels gas from the valve orifice to the burner head and mixes in the right amount of air to produce a stable flame. Replace a corroded or clogged venturi to restore reliable ignition and flame quality.

• Directs gas from the orifice to the burner head and blends in combustion air
• Helps maintain an even flame pattern and consistent heat output
• Addresses weak/low or yellow flames, uneven heating, or delayed ignition
• Replaces venturis damaged by corrosion or blocked by spills/debris

• Shut off gas supply and disconnect power before servicing
• Remove grates, caps, and burner head to access the venturi; remove per your model's procedure
• Note orientation and transfer any existing gasket/seal from the original part
• Reassemble, restore gas, check connections for leaks with a soap solution, and verify proper ignition and flame

The Surface Burner Orifice Holder is an OEM part specially designed for Whirlpool gas ranges and cooktops. This part holds and positions the burner orifice above the surface burner, facilitating the mixture of gas and air required for combustion.

Symptoms of a bad orifice holder include:

• Yellow or incomplete burner flames
• Flames not remaining centered on the burner surface
• Burners that will not light or stay lit
• Gas leaks detected around the burner area

This is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Roper gas ranges and cooktops.

The Gas Range Orifice Holder is an OEM part for Whirlpool gas ranges. This component is responsible for securely holding the gas orifice in place to allow proper gas flow to the range burners.

Causes of a bad orifice holder can include wear and tear over time, damage from impact or shocks, or warping of the holder that prevents it from fully enclosing and retaining the orifice.

Symptoms of a bad orifice holder include:

• Improper gas flow to one or more burners
• Burners that will not light or that light unevenly
• Changes in flame color or intensity
• Reduced burner performance

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner venturi mixes incoming gas with air and channels the mixture to the surface burner head. Replacing a corroded or clogged venturi helps restore reliable ignition and a steady, properly-shaped blue flame. What it does:

• Draws and mixes gas with air for proper combustion at the burner
• Directs the gas-air mixture to the burner head for consistent flame
• Supports efficient heating and cleaner combustion

• One venturi

• Shut off gas supply and disconnect power before servicing
• Allow the cooktop/range to cool; remove burner cap and head to access the venturi
• Detach the old venturi from the orifice holder; install the new venturi with proper alignment
• Restore gas/power, check for leaks with an approved solution, and verify flame quality

The Spark Module is an OEM replacement part for Whirlpool ranges. This module generates and distributes the electrical current needed to ignite the range burners. Dependable sparking is essential for safe and efficient burner ignition.

Causes of a bad spark module can include cracked circuit boards, worn-out electrodes, or malfunctions in the module's timing mechanism.

Symptoms of a bad spark module include:

• Burners failing to light or taking excessive time to ignite
• Constant tripping of the oven or range thermal fuse
• Visible flames or smells coming from under the burners
• Inability to start or maintain oven/range heating functions

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This genuine ground screw secures appliance grounding connections to the chassis, helping maintain electrical safety and reliable grounding. It's a direct-fit fastener used where a secure ground point is required. What it does:

• Provides a secure chassis grounding point for appliance electrical safety
• Secures ground wires or grounding straps to sheet metal or grounding posts
• Helps prevent loose ground connections that can cause intermittent faults or safety risks
• Matches OEM thread and length for correct fit and electrical contact

• Use appropriate tools; avoid stripping the head or over-tightening which can damage threads or the grounding surface
• Ensure the mating surfaces are clean and free of paint or corrosion for good electrical contact
• Disconnect power to the appliance before servicing electrical grounding connections

This gas tubing routes fuel from the appliance's gas valve to the burner or manifold. Replacing a bent, corroded, or leaking tube restores safe gas flow for reliable ignition, steady flame, and proper heating.

• Carries regulated gas from the valve to the burner/manifold
• Maintains a sealed pathway; damage can cause leaks, weak/no flame, or ignition failure
• Routed along the factory path to clear components and prevent kinks
• Replace if the tube shows cracks, corrosion, or deformation

• Shut off gas supply and electrical power; allow all surfaces to cool
• Work in a well-ventilated area; check every connection with an approved leak-detection solution after installation
• Route the tube exactly like the original—do not bend, crimp, or modify
• Tighten fittings securely; use thread sealant only where specified by the OEM (do not use tape on flare connections)

This is a replacement screw used to secure panels, trim, or small components on compatible Whirlpool appliances. Installing the correct fastener restores proper fit and helps stop rattles or loose trim. What it does:

• Secures trim, panels, or control components to prevent movement and rattling
• Replaces missing or damaged hardware that can cause gaps or loose parts
• Helps maintain proper alignment of panels and movement-free operation
• Used wherever a factory screw of this size and head style is specified

• Always disconnect power (and water, if applicable) before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Install by hand until threads engage, then tighten snugly—do not overtighten
• Keep removed hardware organized before final reassembly

The Burner Tube is an OEM part for Whirlpool ovens. It ensures the proper flow of gas to the burner, allowing for efficient and reliable heat distribution during the cooking process. It is responsible for delivering the necessary fuel to create the desired cooking temperatures.

A bad burner tube can occur due to wear and tear, clogs, or damage. If you notice symptoms such as uneven heating, weak flame, or a gas smell coming from the oven, it may be time to replace the burner tube.

Symptoms of a bad burner tube include:

• Uneven heating or hot spots in the oven
• Weak or irregular flame
• Gas smell coming from the oven

Repair your oven by replacing the faulty or damaged burner tube with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Factory replacement screw that secures appliance components and hardware. Use it to replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and help prevent loosening or damage from vibration.

• Fastens brackets, panels, or internal parts at the original mounting points
• Replaces worn or missing hardware to correct loose or misaligned components
• Helps reduce vibration-related noise and movement
• Matches the original thread and length specified for the application

• Disconnect power; shut off water or gas if applicable before servicing
• Compare to the original for thread and length match before installation
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any original spacers/washers if present; replace if damaged

This wire harness is the factory wiring assembly that links electrical components within the appliance using the correct, keyed connectors. Replacing a damaged harness restores solid connections and can resolve intermittent operation, no-start, or component-not-running issues.

• Routes power and control signals between key components
• Correct, keyed connectors help ensure proper, secure fit
• Replaces cut, heat-damaged, or brittle wiring and terminals
• Helps with: won't start, intermittent operation, components not energizing, visible burned/melted connectors

• Disconnect power to the appliance before servicing.
• Photograph and/or label original routing and connections for reference.
• Match each keyed connector; do not force. Route wiring as originally secured, away from sharp, hot, or moving parts.
• Inspect mating terminals for heat damage or corrosion and correct any issues before reassembly.

The Gas Safety Valve is an OEM replacement part for Whirlpool gas ranges. This important safety device works to automatically shut off the gas supply to the range if abnormal flame conditions, such as flame rollout, occur.

Causes of a bad gas safety valve can include wear and tear from extended use over time, damage due to rust or corrosion from exposure to moist environments, or failure of internal components like springs or seals.

Symptoms of a bad gas safety valve include:

• Gas leaking around the range
• Burners or oven failing to ignite or stay lit
• Improper or uneven heating
• Other abnormal burner flame conditions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Clip is an OEM part for Whirlpool ranges. This part holds the surface igniter in place, ensuring that it remains properly positioned to ignite the gas burner efficiently.

Causes of a bad surface igniter clip can include wear and tear from regular use, damage from high heat exposure, or breakage due to improper handling during maintenance.

Symptoms of a bad surface igniter clip include:

• The igniter not staying in place
• Difficulty in lighting the burner
• The burner not igniting at all
• Visible damage or deformation of the clip

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This burner valve controls the gas flow to a single surface burner, restoring reliable ignition and consistent flame control for gas ranges. It's a direct-fit replacement when the existing valve fails. What it does

• Regulates gas delivery to one surface burner so the burner lights and holds a steady flame
• Commonly replaces valves that cause weak or no flame at a burner
• Helps stop erratic flame behavior caused by faulty gas regulation
• Works with the range's control knob to adjust flame size safely

• One burner valve

• Turn off the gas supply and electrical power before starting work
• Verify the fit and orientation before final installation; some disassembly of the cooktop or manifold may be required
• Use proper gas fittings and check all connections for leaks with a soapy-water test after installation

This surface burner valve controls the flow of natural gas to a cooktop or range-top burner. Replacing a worn valve restores smooth flame adjustment and helps prevent leaks for safer, reliable everyday cooking performance. What it does:

• Regulates gas flow to one surface burner as you turn the control knob
• Provides a positive OFF shutoff to stop gas when the knob is off
• Helps deliver consistent flame levels from simmer to boil
• Common symptoms: burner won't light or is inconsistent, flame won't adjust, gas odor near the knob, or the knob is stiff/loose

• Disconnect power and shut off the gas supply before servicing
• Remove the knob and access the manifold; transfer burner tubing and any brackets/spark switch from the original valve to the replacement
• Use two wrenches on compression fittings; tighten securely without overtightening
• After reassembly, leak-check connections with soapy water and verify proper flame; follow your model's conversion procedure if changing gas type

This surface burner spark electrode creates the electrical arc that lights the gas at your cooktop/range burner. Replace a cracked or fouled electrode to restore quick, reliable ignition on the affected burner and reduce repeated clicking.

• Generates the high-voltage spark that ignites surface-burner gas
• Promotes fast, consistent ignition and stable flame startup
• Common symptoms: burner won't light, lights intermittently, or sparks weakly at one burner while others work
• Visual clues: cracked porcelain insulator, bent tip, or heavy buildup on the electrode

• Disconnect power and shut off gas supply before servicing
• Remove grate, cap, and burner head to access the electrode
• Transfer mounting hardware from the old electrode
• Route and reconnect the lead securely; keep it away from heat and sharp edges, then test for proper spark before reassembly

The Surface Burner Ignitor is an OEM part for Whirlpool gas ranges. This part ignites the gas to create a flame on the burner, allowing for efficient cooking.

Causes of a bad ignitor can include wear and tear from regular use, electrical issues, or physical damage to the ignitor element.

Symptoms of a bad surface burner ignitor include:

• The burner not lighting or taking longer to light
• Clicking sounds without ignition
• Weak or inconsistent flame
• The smell of gas without ignition

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This gas pressure regulator controls and stabilizes the incoming gas to your appliance, maintaining correct manifold pressure for consistent burner flames and reliable oven performance. Replacing a weak regulator can restore even heating across the unit. What it does:

• Reduces incoming supply pressure and maintains proper manifold pressure to the appliance
• Helps ensure uniform flame height and stable temperatures
• Symptoms may include weak or fluctuating flames on multiple burners, delayed ignition, or oven not reaching set temperature
• Set up for the correct gas type (natural/LP) during installation per your model's conversion procedure

• Includes: 1 gas pressure regulator

• Disconnect power and shut off gas; allow the appliance to cool before service
• Observe gas-flow direction and regulator orientation; transfer any model-specific fittings from the original part if required
• Use gas-rated thread sealant on threaded connections and leak-test all joints with an approved method after installation
• Verify proper natural gas/LP configuration per your model instructions

Natural gas.

Natural gas.

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

The Igniter is an OEM part for Whirlpool ovens. It is responsible for igniting the gas to start the oven's burner. This crucial component ensures the oven reaches the desired temperature for cooking.

You should replace this igniter if it becomes faulty. Causes of a bad igniter can include wear and tear from frequent use, exposure to high temperatures, or damage due to electrical issues.

Symptoms of a bad Igniter include:

• The oven not heating up
• The oven taking longer than usual to heat
• A lack of flame ignition

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This gas tubing is the preformed line that carries fuel from the appliance's gas valve/manifold to a burner. Replacing a damaged or kinked tube restores safe, consistent gas flow for reliable ignition and even heating. What it does:

• Routes gas from the valve or manifold to a specific burner
• Maintains proper fuel delivery to support steady flame and correct burner performance
• Common signs it's needed: weak or uneven flame, no ignition on that burner, visible kinks/damage, hissing or gas odor (do not operate if a leak is suspected)
• Direct, shaped replacement to restore original gas routing

• 1 gas tube

• Shut off gas supply and disconnect power before servicing; ventilate the area
• Match the original routing and orientation; avoid bending or kinking the new tube
• Use two wrenches on flare/compression fittings to avoid stressing components
• After reassembly, check all connections with an approved leak-detection solution—never with an open flame

This appliance screw secures panels, brackets, and internal components. Replacing a stripped or missing screw keeps parts tight and aligned, reducing vibration and preventing noise for reliable day-to-day operation.

• Secures mounting points for panels, brackets, or assemblies
• Replaces stripped, rusted, or missing hardware to restore a solid attachment
• Helps reduce rattling, vibration, and misalignment from loose fasteners
• Maintains proper fit so components operate as intended

• Disconnect power; turn off water or gas before service
• Match the screw to its original location and replace one at a time
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver type/size specified for your model

The LP Conversion Kit is an OEM part for Whirlpool ranges and cooktops. This kit allows compatible models to be converted from natural gas to liquid propane fuel. The conversion kit includes all necessary components to safely and efficiently operate the appliance on liquid propane such as orifice jets, burners, valve, and install instructions.

Causes for requiring an LP conversion include changing your fuel source from natural gas to liquid propane. It ensures your range flame characteristics and heat output are optimized for the new fuel type.

Symptoms of the need for an LP conversion kit include:

• Inability to ignite or light burner flames
• Uneven or incomplete burner combustion
• Strong gas smells coming from the appliance
• Poor cooking performance

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
