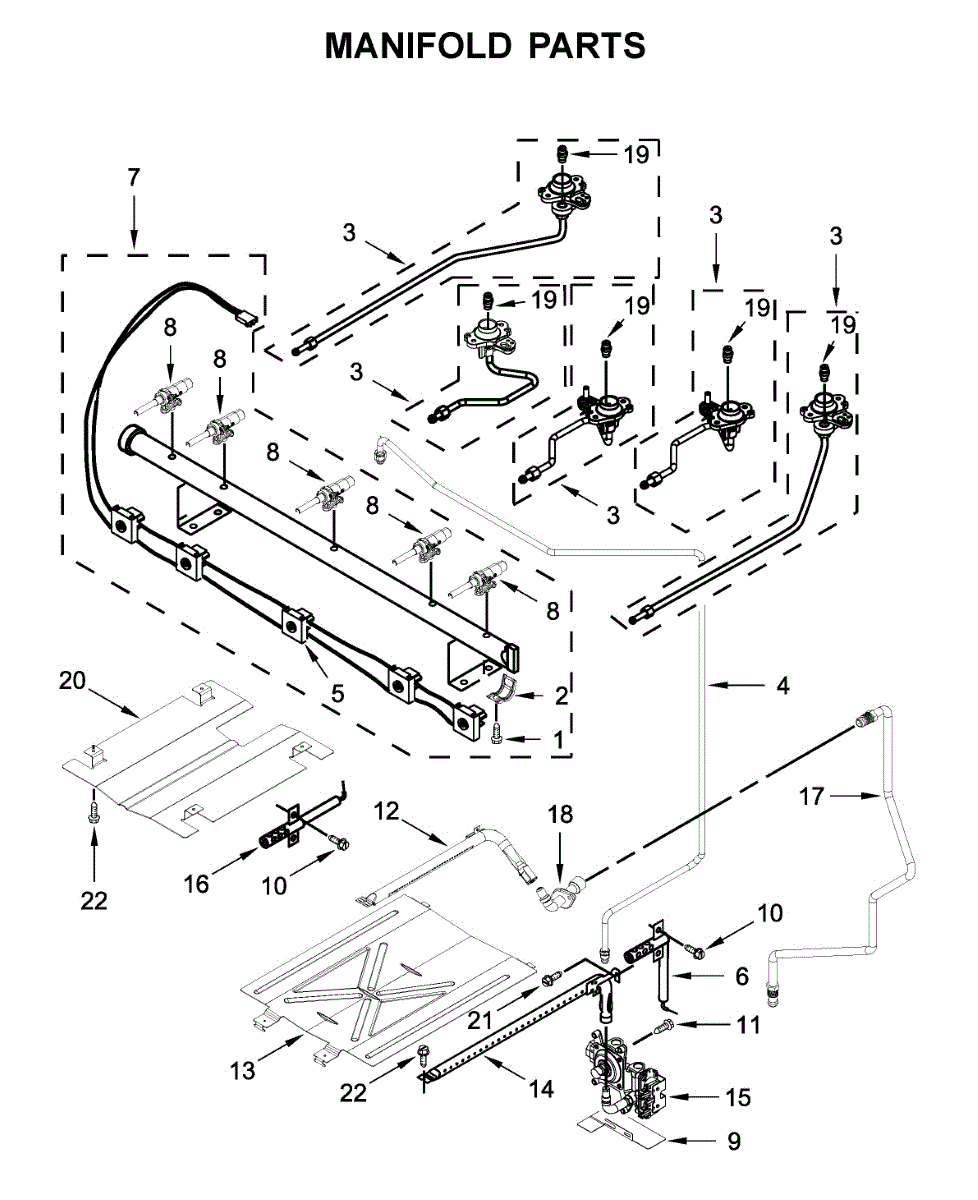

Parts for Maytag MGR6600FB1: Manifold Parts

The Conversion Kit is an OEM part for Whirlpool gas ranges and cooktops. It allows the unit to be converted from natural gas to liquid propane fuel. The kit includes all 5 orifices.

Causes of needing a new conversion kit include a change in fuel source from natural gas to propane or vice versa. It may also be required if any gas system parts like valves or regulators become damaged or fail inspection.

Symptoms of improperly converted or missing conversion components include:

• Incorrect burner flame pattern or color
• Inefficient or irregular heating
• Gas smell
• Visible yellow flame instead of blue

This Whirlpool OEM kit is compatible for use on Whirlpool, Maytag, KitchenAid, and some Jenn-Air and Kenmore models.

This LP bake orifice meters propane to the oven's bake burner to deliver the specified BTU output. It helps ensure a stable, blue flame and consistent baking performance after LP conversion or when replacing a damaged or missing spud.

• Meters LP gas to the bake burner for the intended BTU output
• Promotes correct flame size and color for efficient, even baking
• Useful after LP conversion or when the original orifice is clogged, damaged, or missing
• Symptoms can include weak or unstable bake flame, oven not reaching temperature, or yellow/sooty flame

• For LP use only; verify the correct orifice for your model and gas type
• Disconnect power and shut off gas; allow the oven to cool completely before service
• Access the bake burner orifice holder; start threads by hand to avoid cross-threading and tighten snugly—do not overtighten brass
• After reassembly, leak-check all gas connections and verify proper flame/air-shutter adjustment.

The LP Bake and Broil Kit is an OEM replacement part for Whirlpool ranges. It is a kit containing everything needed to convert the oven from Natural gas to LP.

Causes of a bad bake/broil system can include cracks, leaks, or corrosion in gas lines that produce unsafe flames over time. Pilot lights may fail to light consistently.

Symptoms of failures include:

• Inability to ignite bake/broil burners
• Erratic or intermittent baking temperatures
• Uneven cooking due to improper burner positioning
• Strong gas or chemical smells from the oven

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This replacement mounting bracket secures internal appliance components to restore proper fit and reduce movement. It's a direct-fit part designed to replace a worn or broken holder and help restore stable operation. What it does:

• Holds and supports an internal component or assembly to prevent shifting or rattling
• Replaces a cracked, broken, or missing bracket that can allow parts to move out of position
• Common symptom: loose or vibrating parts, parts that won't stay aligned, or intermittent contact caused by a failing holder
• Helps restore proper alignment and reduces noise from unsecured components

• One holder

• Disconnect power before starting any repair to avoid electrical shock
• Basic hand tools (screwdriver, nut driver) are typically required; retain fasteners for reuse unless new ones are supplied
• Inspect surrounding parts for damage and replace as needed

The HOLDER-ORFICE is an OEM component specifically designed for Whirlpool brand gas ranges and cooktops. It serves as the mounting bracket that secures the gas orifice fitting in the proper position. Correct orifice placement is critical for targeted gas flow and optimal flame adjustment.

Symptoms of a bad holder-orifice \include:

• Flames that cannot be properly adjusted and controlled from high to low
• Potential safety hazards such as gas leaks due to a loose fitting
• Inefficient or uneven heating from erratic gas flow issues

Causes of failure include normal wear over time exposed to heat and vibration, or damage from accidental impact that warps the holder.

This OEM Whirlpool replacement ensures the orifice fitting remains firmly in position. Compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models. Replace your holder orifice today for safe, dependable gas range functionality.

The HOLDER-ORFICE is an OEM component specifically designed for Whirlpool brand gas ranges and cooktops. It serves as the mounting bracket that secures the gas orifice fitting in the proper position. Correct orifice placement is critical for targeted gas flow and optimal flame adjustment.

Symptoms of a bad holder-orifice include:

• Flames that cannot be properly adjusted and controlled from high to low
• Potential safety hazards such as gas leaks due to a loose fitting
• Inefficient or uneven heating from erratic gas flow issues

Causes of failure include normal wear over time exposed to heat and vibration, or damage from accidental impact that warps the holder.

This OEM Whirlpool replacement ensures the orifice fitting remains firmly in position. Compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, and select Kenmore models. Replace your holder orifice today for safe, dependable gas range functionality.

The Orifice Holder is an OEM part for Whirlpool gas ranges. It is a small but critical component responsible for securely holding the burner orifices in place on the stovetop. The orifice holder positions each burner orifice to ensure proper gas flow and optimum flame size during operation.

Causes of a bad orifice holder can include damage or wear over time due to heat exposure on the stovetop. The holder material degrading could allow orifices to shift position.

Symptoms of a bad orifice holder include:

• Improper or inconsistent burner flame size
• Difficulty achieving or maintaining desired flame height
• Gas smell or leaks around burner area
• Burners that do not light or ignite as expected

This OEM replacement is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas range models.

The Orifice Holder is an OEM part for Whirlpool ranges. This part secures the orifice through which gas flows into the range cooktop and oven burners.

Causes may include natural wear, cracks or damage incurred over years of use. Gas leaks are also a risk if the holder fails.

Symptoms of a bad orifice holder can manifest as:

• Unpredictable or intermittent burner ignition
• Flames that appear abnormally tall, yellow or noisy
• Cooktop that heats unevenly or inadequately

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Wire Harness is an OEM part for Whirlpool ranges. It is responsible for initiating the spark that ignites the gas burner on your range. The switch controls the flow of electricity to the spark module, while the wire harness connects the switch to the rest of the ignition system.

A bad wire harness can occur due to wear and tear, loose connections, or electrical malfunctions. If you notice symptoms such as no spark when turning on the burner, intermittent sparking, or a complete lack of ignition, it may be time to replace the ignition switch and wire harness.

Symptoms of a bad wire harness include:

• No spark when turning on the burner
• Intermittent sparking
• Complete lack of ignition

Repair your range by replacing the faulty or damaged wire harness with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner valve controls gas flow to a single cooktop burner so you can adjust and maintain the flame for cooking. Replaces a worn or leaky valve to restore safe, steady burner operation. What it does:

• Regulates gas flow to one cooktop burner so flame size responds to the control knob
• Helps stop unwanted gas flow when the valve is closed
• Commonly replaced for leaks, a burner that won't light, or inconsistent flame size
• Works as the control point between the manifold and the burner orifice

• Turn off gas supply and unplug the appliance before any service
• This part mounts between the manifold and burner; some disassembly of the cooktop or control panel may be required
• Inspect fittings and gaskets for proper sealing during reassembly; do not reuse damaged seals

The Burner Valve (RR) is an OEM part for Whirlpool ranges. It controls the flow of gas to the rear-right burner, allowing for precise regulation of the flame during cooking. The valve ensures safe and efficient operation by opening and closing as needed to adjust the burner’s heat output.

Over time, burner valves can become faulty due to wear and tear, grease buildup, or internal damage. Exposure to high heat and repeated use may cause the valve to stick, leak, or fail to regulate gas properly. If the valve becomes obstructed or worn out, it can compromise cooking performance and safety.

Symptoms of a bad burner valve include:

• Inconsistent or weak flame
• Gas smell near the burner when turned off
• Difficulty igniting the burner
• The burner not shutting off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner valve is a direct-replacement valve that controls gas flow to a cooktop or range burner, restoring proper ignition and steady flame for safe cooking. What it does:

• Regulates gas flow to an individual burner for normal ignition and flame control
• Helps correct issues like burners that won't light or have weak/uneven flames
• Prevents continuous flow when the valve is in the off position (safety-related function)
• Works as the component between the appliance gas line/manifold and the burner port

• Always shut off the appliance gas supply and power before beginning service
• Check all connections for leaks after installation (soap-and-water test recommended) and follow local codes
• Do not test for leaks with an open flame; follow OEM instructions and safety precautions

This surface burner valve controls gas flow to an individual cooktop or range burner, enabling safe, precise flame adjustment. Replacing a worn valve restores reliable ignition, smooth flame control, and proper shutoff at the knob.

• Regulates gas supply to one surface burner as you turn the control knob
• Helps address a burner that won't ignite, erratic or unresponsive flame adjustment, or a stiff/stripped valve stem
• Provides positive shutoff when the knob is in the Off position
• Saddle-style mounting on the gas manifold

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the manifold and note knob orientation and tubing/orifice connections for reassembly
• Use an approved thread sealant only where specified by the manufacturer; do not overtighten fittings
• After installation, leak-check all joints with a soap-and-water solution and verify ignition and low-flame adjustment

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

This flame spreader directs and evens the oven burner flame for more uniform heating and improved bake results. Replacement spreaders restore proper flame pattern and help reduce hot spots in the oven cavity. What it does:

• Distributes burner flame across the oven surface to promote even cooking and baking.
• Helps prevent concentrated hot spots that can cause unevenly cooked food.
• Can restore correct flame pattern when the existing baffle is warped, damaged, or missing.
• Supports stable burner operation by shielding and guiding the flame.

• Turn off power to the range and shut off the gas supply before servicing.
• Handle carefully to avoid bending or damaging the baffle; reinstall in the original orientation.
• Use appropriate hand tools and follow the oven's service manual for removal/installation steps.
• After installation, restore gas and power and check burner ignition and for any gas leaks per safety procedures.

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

This gas valve controls the flow of gas to a burner, enabling safe ignition and a stable flame. Replace a sticking or failed valve to restore dependable lighting and consistent heat output from your cooking appliance.

• Regulates and shuts off gas flow from the manifold to the burner
• Supports clean ignition and steady flame during operation
• Common symptoms: burner won't light even with spark/igniter present, flame won't adjust or is erratic, control stem is stiff or stripped
• Can help resolve intermittent flame-out or weak flame caused by internal valve wear

• Disconnect power and shut off the gas supply before servicing
• Note tubing/orifice orientation and transfer fittings as required
• Apply gas-rated thread sealant to tapered pipe threads only
• After installation, open gas and leak-test all joints with an approved solution; verify ignition and proper flame height

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

This is a replacement fitting used to connect and secure a flexible hose or water line to the appliance, restoring a proper sealed connection and helping stop leaks at the joint. What it does:

• Provides a secure connection point for a flexible hose or water line
• Restores a sealed joint to prevent drips or slow leaks at the connection
• Helps maintain proper water flow to components that rely on a direct hose feed
• Replaces damaged, cracked or worn fittings that cause poor seals

• Shut off water supply and unplug the appliance before servicing
• Inspect mating hose and clamp for damage; replace clamp or hose if needed for a reliable seal
• Hand-start threads or push-fit connections to avoid cross-threading; tighten per OEM guidance

Replacement orifice spud that controls gas flow to a burner for proper flame size and reliable cooking. Helps restore consistent ignition and heat so burners operate safely and efficiently. What it does:

• Meters gas from the manifold to the burner to produce the correct flame size for cooking.
• Ensures even, stable combustion for consistent heat across the burner.
• Common symptoms of a worn or clogged orifice spud include weak or uneven flames, burners that are slow to light, or poor cooking performance.
• A properly functioning orifice helps prevent fuel waste and supports safe appliance operation.

• Turn off the gas supply and electrical power to the appliance before starting any service.
• Replace with the correct OEM part and thread carefully; seat securely but avoid overtightening which can damage the part.
• After installation, check all connections for gas leaks and test the burner for proper flame shape and operation.

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

This natural-gas burner orifice spud meters the correct fuel flow for a 15,000-BTU surface burner. Replacing a clogged, damaged, or wrong-size orifice restores proper flame size, cleaner combustion, and reliable cooktop performance. What it does:

• Meters gas through a calibrated opening to the burner head for correct flame height
• Sized for a 15,000-BTU surface burner using natural gas
• Installs in the orifice holder/valve body beneath the burner
• Typical symptoms of a faulty or mismatched orifice: weak/small flames, yellow/sooty flames, uneven heating, delayed ignition, burner won't reach high heat

• 1 natural-gas 15,000-BTU orifice spud

• Shut off gas supply and disconnect power; allow all burners to cool completely
• Remove grates, caps, and burner heads; lift the top or access the orifice holder as required
• Match each orifice to the correct burner location by BTU rating; do not overtighten
• After reassembly, check all connections for leaks with a non-corrosive soap solution and verify proper flame color/size

• For natural gas applications only; use the correct LP/propane orifice when converting fuel types

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal
