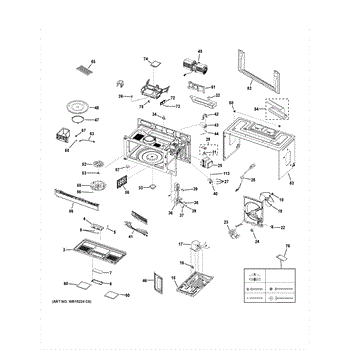

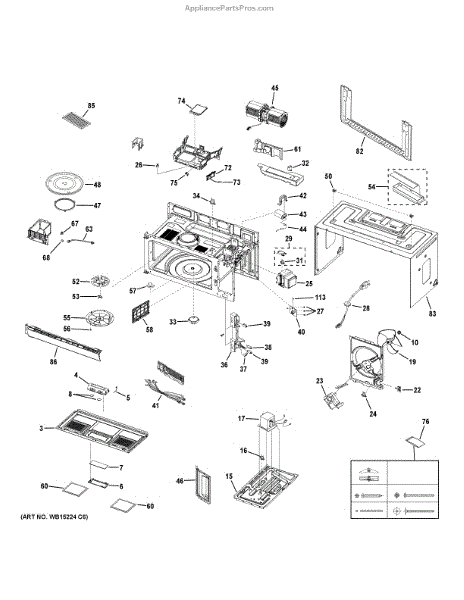

Parts for Ge PVM9215DK2BB: Oven Cavity Parts

A replacement bottom lamp bracket that secures the refrigerator light assembly so the bulb and socket stay properly positioned. Restores a stable lamp mount for reliable interior lighting. What it does:

• Holds the lamp housing or socket at the bottom of the compartment so the bulb stays aligned
• Prevents the light assembly from shifting or rattling when the door opens and closes
• Helps ensure the bulb makes proper contact with the socket for consistent illumination
• Useful when the original bracket is cracked, broken, or missing

• Disconnect power to the appliance before servicing to avoid electrical shock
• Remove the bulb and any trim panels needed to access the bracket
• Replace bracket using existing screws or clips; do not overtighten fasteners
• If the light still fails after bracket replacement, inspect the bulb and socket for damage

This is the clear glass lens that covers the cooktop light on select GE over-the-range units. It shields the bulb from grease and splatters while allowing bright, even illumination of the cooking surface below.

• Protects the cooktop light bulb from grease, moisture, and debris
• Restores proper lighting if the original lens is missing, cracked, or stained
• Helps maintain safe, even illumination of the range area
• Common symptoms: broken or missing lens, dim or uneven light due to a damaged cover

• Disconnect power to the appliance before servicing
• Allow bulbs and surrounding area to cool completely
• Handle glass carefully to avoid chipping; wear cut-resistant gloves
• Ensure the lens seats fully and any retaining tabs/screws are secured per the product's service instructions

The Glass Light Lens is an OEM part for GE microwaves. It covers the light bulb inside the microwave, protecting it from food splatters and ensuring even illumination.The lenses measure approximately 7" x 3".

Causes of a bad glass light lens can include accidental impact, exposure to high heat, or general wear and tear.

Symptoms of a bad glass light lens include:

• Cracks or breaks in the glass
• Diminished visibility inside the microwave
• Light not being properly diffused
• Potential exposure of the light bulb to food splatters

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This halogen lamp socket provides a safe connection point for the oven/stove halogen light, restoring interior illumination for cooking and inspection. It secures the lamp and transfers power so the bulb can operate reliably. What it does:

• Holds the halogen bulb and provides the electrical contacts needed for the lamp to light
• Restores oven interior light when the old socket is burnt, loose, or corroded
• Helps stop intermittent lighting and flicker caused by poor contacts
• Compatible with in-oven halogen style lamps that use a matching socket connection

• One halogen lamp socket

• Disconnect power to the appliance at the breaker before servicing to avoid shock
• Allow the appliance and bulb to cool completely before touching the socket or lamp
• Inspect wiring and connectors; replace damaged wiring per manufacturer guidance
• After installing, restore power and confirm the lamp operates; use only the specified bulb type and wattage

This spring blade is a small metal tension spring that restores proper tension and movement in the appliance's linkage or latch assembly. It replaces worn or broken blades to help restore normal door or component action. What it does:

• Provides tension and return force in linkage, latch or lever assemblies
• Helps stop sagging, slipping or loose movement in the affected mechanism
• Can reduce related rattling or binding caused by a worn spring blade
• Restores reliable engagement where a broken or fatigued blade allowed failure

• Unplug the appliance or shut off power before starting any repair
• Verify orientation and engagement of the blade before final assembly
• Use proper hand tools; the blade may be under tension—wear safety goggles and gloves
• If the assembly uses multiple springs, replace all worn parts to ensure balanced function

This temperature-control thermostat senses compartment heat with a capillary bulb and cycles the heating circuit to maintain your set temperature. Replacing a worn thermostat restores more consistent performance and helps correct underheating, overheating, and erratic temperature swings.

• Regulates heat to match the temperature you set
• Senses temperature via an integral capillary tube and sensor bulb
• Opens and closes contacts to control the heating element or burner
• Failure symptoms can include long warm-up, inaccurate temps, overheating, or uneven results

• Disconnect power and, if applicable, shut off gas; allow the unit to cool completely.
• Handle the capillary tube carefully—do not kink, crease, or cut it.
• Route the sensor bulb and tubing through original clips and path for accurate sensing.
• After installation, perform temperature calibration per service instructions if required.

This fan motor spins the oven/convection fan to circulate heat for even cooking and help exhaust hot air. Replaces a worn or noisy motor to restore proper airflow and temperature consistency in the appliance. What it does:

• Drives the convection/circulation fan blade to move air through the oven cavity
• Helps maintain even cooking and consistent oven temperatures
• Reduces buzzing, grinding, or failure-to-spin symptoms when the old motor is failing
• Works as the mechanical drive for air exhaust and internal circulation systems

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the motor and wiring gently; match mounting orientation and connector type during install
• Verify blade and shroud clearance before powering the unit

This thermostat switch is a temperature-sensitive safety device used in select appliances to open or close an electrical circuit at a set temperature. Replacing a failed switch helps restore proper temperature control and protects components from overheating.

• Monitors temperature and changes state (open/closed) at its calibration point
• Helps prevent overheating or incorrect temperature regulation
• Common failure signs: no heat/overheating, intermittent cycling, or unit shutting off prematurely
• May be mounted to a bracket or surface near the heated area, depending on the model

• Disconnect power before servicing; verify no voltage is present
• Note wire positions and orientation of the original switch before removal
• Transfer any mounting hardware from the old part if not reusable
• After installation, test operation and observe initial heating cycle for proper function

The Magnetron Thermal Cut Off is an OEM part for GE microwave ovens. It is a safety component that protects the magnetron tube from overheating.

Symptoms of a bad magnetron thermal cut off include:

• Inability to heat or cook food
• Repeated blowing of fuses or tripping of circuit breakers
• Magnetron tube failure due to lack of overheat protection

Causes can be wearing out of the component over many heating and cooling cycles.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore microwave models.

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

This is a turntable motor intended for use with microwave ovens. A turntable motor is required to rotate the turntable so that food is heated evenly. With time, because of misuse, or as a result of accidental damage, the turntable motor may malfunction or fail. To continue using the appliance efficiently, the turntable motor must be replaced.The primary indication that there is something wrong with the turntable motor is a tray that doesn't spin. When replacing the turntable motor, it is essential to disconnect the machine from the power source. Wear gloves for safety. The part can be replaced easily by removing screws from the back and side of the microwave, which allows the panel to swing open. Take the wires of the old motor and reconnect them to the new one.This turntable motor is an authentic OEM replacement part. It is sold as an individual unit. The turntable motor is made of high-quality, durable materials. The component comes sourced directly from the manufacturer. The replacement part can be installed in several models of microwaves. It is compatible with appliances produced by General Electric, RCA, and Hotpoint brand appliances.

This temperature control thermostat regulates refrigerator temperature to help keep food cold and maintain proper cooling cycles. Replaces a failing mechanical control to restore consistent compressor on/off operation. What it does:

• Senses cabinet temperature and signals the compressor to cycle on and off
• Helps correct symptoms like inconsistent temperature, fridge running constantly, or not cooling
• Works with mechanical capillary-style temperature control systems
• Restores user control over interior temperature settings

• Disconnect power to the appliance before starting any repair
• Handle the capillary tube and sensing bulb carefully—avoid kinks or sharp bends
• Verify proper routing and secure mounting of the bulb per the original layout

This latch body is the plastic housing for the door interlock system. It holds the door switches in position and guides the door latch so the appliance can sense when the door is closed and operate safely.

• Holds and aligns the door interlock switches
• Guides the latch to properly engage/disengage when the door opens and closes
• Can help resolve issues like the unit not starting, running with the door open, or showing door error messages
• Restores proper, safe door sensing and operation

• Unplug the appliance to disconnect power before servicing
• Access is typically from the front; remove necessary panels to reach the latch body and switches
• Transfer switches and hardware from the old housing to the new one as configured
• Verify correct switch orientation and secure mounting before reassembly and testing

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Capacitor is an OEM part for GE microwaves. This component stores and releases electrical energy to help power the microwave's high-voltage circuits, essential for the proper functioning of the appliance.

Over time, capacitors can fail due to electrical surges, overheating, or degradation of the internal components. When a capacitor goes bad, it can affect the microwave's ability to generate heat and operate efficiently.

Symptoms of a bad Capacitor include:

• The microwave not heating food
• Unusual humming or buzzing noises
• The microwave shutting down or not starting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This high-voltage rectifier diode is used in the microwave's high-voltage circuit. It converts AC to DC so the magnetron can produce heat. A failed diode can cause no heat, loud humming, or a blown fuse when starting. What it does:

• Rectifies high-voltage AC to DC to power the magnetron
• Blocks reverse voltage in the HV circuit
• Common failure symptoms can include: runs but doesn't heat; loud hum then shutdown; line fuse blows at startup

• 1 high-voltage diode

• Unplug the microwave and properly discharge the high-voltage capacitor before servicing—dangerous voltage can remain even when unplugged
• Match diode orientation/polarity to the original and ensure a solid chassis ground connection where used
• Route leads and reinstall any clamps/insulators exactly as found; keep wiring clear of sharp edges and hot components
• If the original diode failed, inspect the HV capacitor and transformer for related issues before reassembly

This ventilation motor is the appliance's fan motor that moves air for proper ventilation, helping prevent overheating and maintaining consistent airflow. It replaces a worn or failed fan motor to restore normal vent performance. What it does:

• Spins the vent/blower to circulate air through the appliance's ventilation path
• Helps exhaust heat and maintain proper operating temperatures
• Stops or slows when motor bearings fail or windings short
• Common symptom: fan not running, weak airflow, or unusual grinding/noise from the vent area

• One ventilation motor

• Disconnect power to the appliance before beginning work
• Match wiring and connector types exactly; secure all electrical connections
• Support the motor during removal/installation to avoid stressing mounts or wiring
• Test operation after installation and restore all access panels and safety shields

This turntable roller ring supports the microwave's glass tray and lets it rotate smoothly for even heating. Replace a worn or warped guide to stop wobbling, scraping noises, or a tray that no longer turns consistently.

• Supports and guides the glass tray as the motor and coupler rotate
• Keeps the tray level for smooth, low-friction turning
• Worn ring may cause the turntable not to rotate or to turn intermittently
• Other signs include tray wobble, squeaking/grinding sounds, and uneven heating

• Disconnect power to the microwave
• Remove the glass tray; lift out the old ring and clean the track
• Set the new ring in place with rollers facing down and centered on the track
• Reinstall the tray on the coupler, restore power, and test rotation

The Cooking Tray is an OEM part for GE microwaves. This glass tray rotates to ensure even cooking and heating of food. It is designed to fit perfectly in the microwave, providing a stable platform for cookware and dishes.

Over time, the cooking tray can become damaged or worn out due to regular use, accidental drops, or exposure to extreme heat. Replacing a damaged cooking tray is essential to maintaining the microwave’s functionality and ensuring food is heated evenly.

Symptoms of a bad cooking tray include:

• Cracks or chips in the glass
• Difficulty in rotating or wobbling during operation
• Uneven cooking or heating of food
• The tray not fitting properly in the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder nut assembly secures a component to the appliance frame, restoring proper mounting and reducing vibration or movement. Replace a damaged or missing holder nut to keep connected parts stable and functioning. What it does:

• Secures a component or assembly to the appliance frame or mounting bracket
• Prevents looseness, rattling, and misalignment caused by worn or missing mounting hardware
• Restores a safe, stable connection that helps maintain normal operation
• Matches OEM mounting geometry for a direct replacement when the original nut is damaged

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the mounting area by removing the appropriate panel or cover per your model's service instructions
• Start threads by hand to avoid cross-threading, then tighten with the correct tool; do not overtighten
• If any fasteners or nearby components are damaged, replace them as needed for a secure installation

This hood damper assembly opens to allow exhaust airflow and closes to help block outside drafts and odors when the fan is off. It restores proper venting and prevents back-drafts in over-the-range hoods and microwaves. What it does:

• Opens with the vent fan to let cooking smoke and steam exit the home.
• Closes when the fan is off to reduce backdrafts, outside air, and odors.
• A faulty or stuck damper can cause reduced airflow, rattling noises, or air blowing back into the kitchen.
• Works as the moving flap between the appliance exhaust and the ductwork to control airflow direction.

• Disconnect power to the appliance (unplug or shut off the circuit breaker) before servicing.
• Access typically requires removing the hood or microwave grille/cover; keep track of screws and mounting hardware.
• Basic hand tools (screwdrivers, possibly a nut driver) are usually sufficient; handle the damper flap gently to avoid bending.
• After installation, restore power and run the fan to ensure the damper opens and closes smoothly.

This cover stirrer protects the microwave's stirrer assembly and helps ensure even microwave energy distribution for more consistent cooking results. Durable plastic construction designed to fit the OEM stirrer location. What it does

• Covers and shields the stirrer/stirrer motor area from food splatter and debris.
• Helps maintain even heating by allowing the stirrer system to disperse microwave energy properly.
• Reduces noise from the stirrer assembly when installed correctly.
• Common symptom: uneven cooking or arcing in the cavity when a damaged or missing cover is present.

• 1 cover stirrer

• Disconnect power to the appliance before attempting any service.
• Handle the cover gently to avoid cracking; align and snap into place per the oven's service manual.
• Use only factory-recommended replacement parts and refer to the OEM instructions.
• Do not attempt repairs with the appliance energized.

This turntable coupler connects the microwave's turntable motor to the glass tray to drive smooth rotation during cooking. Replacing a worn coupler restores even heating and prevents the tray from slipping, stalling, or wobbling. What it does:

• Transfers rotation from the turntable motor to the glass tray
• Centers and supports the tray for stable, even spinning
• When worn or cracked, may cause the turntable not to turn, slip, wobble, or click/grind at the center hub
• Helps restore consistent heating by ensuring proper tray movement

• 1 turntable coupler

• Disconnect power by unplugging the microwave or switching off the breaker before service
• Remove the glass tray and roller ring; lift the old coupler straight up off the motor shaft
• Align the new coupler with the shaft and press firmly until fully seated

Protective cover that shields the appliance's management/control assembly and internal wiring from dust, debris, and accidental contact. Helps keep controls insulated and reduces the chance of damage to internal components during normal use. What it does:

• Covers and protects the appliance control/management module and wiring harness from physical damage and contamination.
• Helps prevent accidental contact with live components that can cause shorts or shock hazards.
• Replace if the cover is cracked, broken, missing, or if exposed wiring is visible.
• Can reduce rattling or vibration-related noise when a broken cover allows movement of internal parts.

• Always disconnect power to the appliance before beginning any repair.
• Handle edges carefully; part and surrounding areas may have sharp metal or plastic tabs.
• Reuse original fasteners unless damaged; ensure cover is seated and secured to avoid interference with moving parts.

The Air Filter is an OEM part for GE microwaves. It is designed to filter out grease, smoke, and odors from the air that passes through the microwave's ventilation system, helping to keep your kitchen air clean and free from contaminants. This part measures approximately 7" by 7".

You should replace the air filter if it becomes clogged or saturated with grease and debris. Over time, the filter can lose its effectiveness, reducing the microwave's ventilation performance and potentially leading to unpleasant odors.

Symptoms of a bad air filter include:

• Reduced ventilation performance
• Lingering odors after cooking
• Visible grease buildup on the filter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement wire harness routes power and signals between an appliance's control and functional components so the unit operates reliably. It restores proper electrical connections when the original wiring is damaged or worn. What it does:

• Re-establishes electrical connections between control(s) and components for reliable operation
• Helps resolve symptoms like intermittent power, controls not responding, or components failing to start
• Keeps wire routing and connector fit consistent with the original harness design
• Avoids DIY splices by restoring original plug-and-play connections

• Disconnect all power (unplug or shut off breaker) before starting any work
• Take photos of the original routing and connector positions to ensure correct reinstallation
• Route the harness along the same path and secure with existing clips or ties; avoid sharp edges and heat sources
• If connectors are corroded or damaged, replace them rather than using temporary splices

This gas sensor monitors moisture levels during sensor-cook cycles so the control can adjust time and power for consistent results. Replacing a failed sensor restores reliable sensor-cook performance. What it does:

• Detects steam/vapor inside the cavity and sends feedback to the control board
• Helps the appliance automatically set or adjust cooking time on sensor settings
• Failure symptoms can include sensor-cook not starting, stopping early, or running too long
• May trigger "Sensor" or general error messages related to sensor-cook functions

• Disconnect power before servicing; if working on a microwave, discharge the high-voltage capacitor
• Access is typically behind the control panel or air channel; avoid touching/contaminating the sensing surface
• Transfer any mounting clips/brackets and ensure the wiring connector is fully seated
• After installation, run a simple sensor-cook test to confirm operation

This 50-watt halogen lamp restores bright, reliable lighting in your appliance. Replace a burned-out bulb to see clearly while cooking and checking food progress, keeping the cavity or cooktop area illuminated as designed.

• Provides focused illumination for the interior cavity or cooktop/task lighting
• Restores light when the door opens or the light pad/switch is used
• Common symptoms: no light, dim or flickering light, or darkened/burned-out bulb
• Using the correct 50-watt halogen rating helps protect the socket and wiring

• Disconnect power (unplug or switch off the breaker) before replacing the lamp
• Allow the lamp and surrounding area to cool completely
• Do not touch the glass; handle with clean gloves or a tissue to avoid oil contamination

This hardware assembly secures designated components in your appliance, restoring a tight, rattle-free fit after service or wear. Replacing damaged or missing fasteners helps keep panels and parts aligned and operating as designed.

• Provides the correct fasteners/spacers for the specified location on the unit
• Replaces stripped, lost, or corroded hardware
• Helps eliminate looseness, vibration, or rattling noises
• Supports proper alignment and fit of the associated part or panel

• Disconnect power before servicing; allow hot surfaces to cool
• Support the part being fastened to prevent damage or misalignment
• Match each fastener one-for-one; note orientation and any washers/spacers
• Hand-start threads and do not overtighten; verify clearances and operation after install

This mounting plate assembly is the rear wall bracket that supports and secures the microwave during installation. Replacing a bent or missing plate ensures a safe, level mount and stable operation without vibration or shifting.

• Acts as the rear-wall support the microwave hangs on and bolts to
• Maintains proper, level alignment of the unit and door
• Helps prevent vibration, rattling, or shifting during use
• Replace if the plate is bent, damaged, corroded, or missing

• Disconnect power and have a second person support the microwave before removal/installation
• Follow your model's installation template and manual for hole locations and hardware
• Fasten to wall studs or appropriate anchors; level the plate before tightening
• Verify clearances and door swing before fully tightening mounting hardware

The Charcoal Filter is an OEM part for GE microwave ovens. This filter is designed to remove smoke, odors, and grease from the air while cooking. It is typically used in over-the-range microwaves that recirculate air rather than vent it outdoors.

Over time, the charcoal filter can become saturated with grease and odors, losing its effectiveness. This can lead to a noticeable decrease in air quality and an increase in cooking odors in your kitchen.

Symptoms of a saturated or bad Charcoal Filter include:

• Persistent odors after cooking
• Smoke not being effectively filtered during or after microwave use
• A visible accumulation of grease or debris on the filter

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This grille vent is a replacement front/trim vent that restores proper airflow and appearance for affected appliances. It keeps internal components ventilated while covering the vent opening for a finished look. What it does:

• Directs and protects ventilation openings so air can flow properly through the appliance
• Helps prevent dust and debris from entering internal compartments
• Restores a secure, finished appearance when the original vent is cracked, loose or missing
• Can reduce hot-spot symptoms by allowing proper exhaust or intake airflow

• Disconnect power to the appliance before starting any repair
• Typically installs from the front or bottom with a few screws or clips; follow your model's service instructions
• Avoid overtightening fasteners to prevent cracking the plastic
• Check fit and airflow after installation; replace if damaged or warped

The Fuse is an OEM part for GE microwaves. It serves as a safety device designed to protect the microwave from excessive current that can cause overheating and potential fire hazards. When the current flowing through the microwave circuit exceeds a certain level, the fuse blows or breaks, cutting off the power to prevent damage or fire.

Common causes for a fuse to blow include power surges, faulty wiring within the appliance, or the use of microwave inappropriate containers that cause sparks. It is essential to address these issues not only to replace the fuse but also to correct the underlying problems to prevent future failures.

Symptoms of a bad fuse include:

• The microwave suddenly stops working.
• No signs of power or response even when the microwave door is closed and the start button is pressed.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
