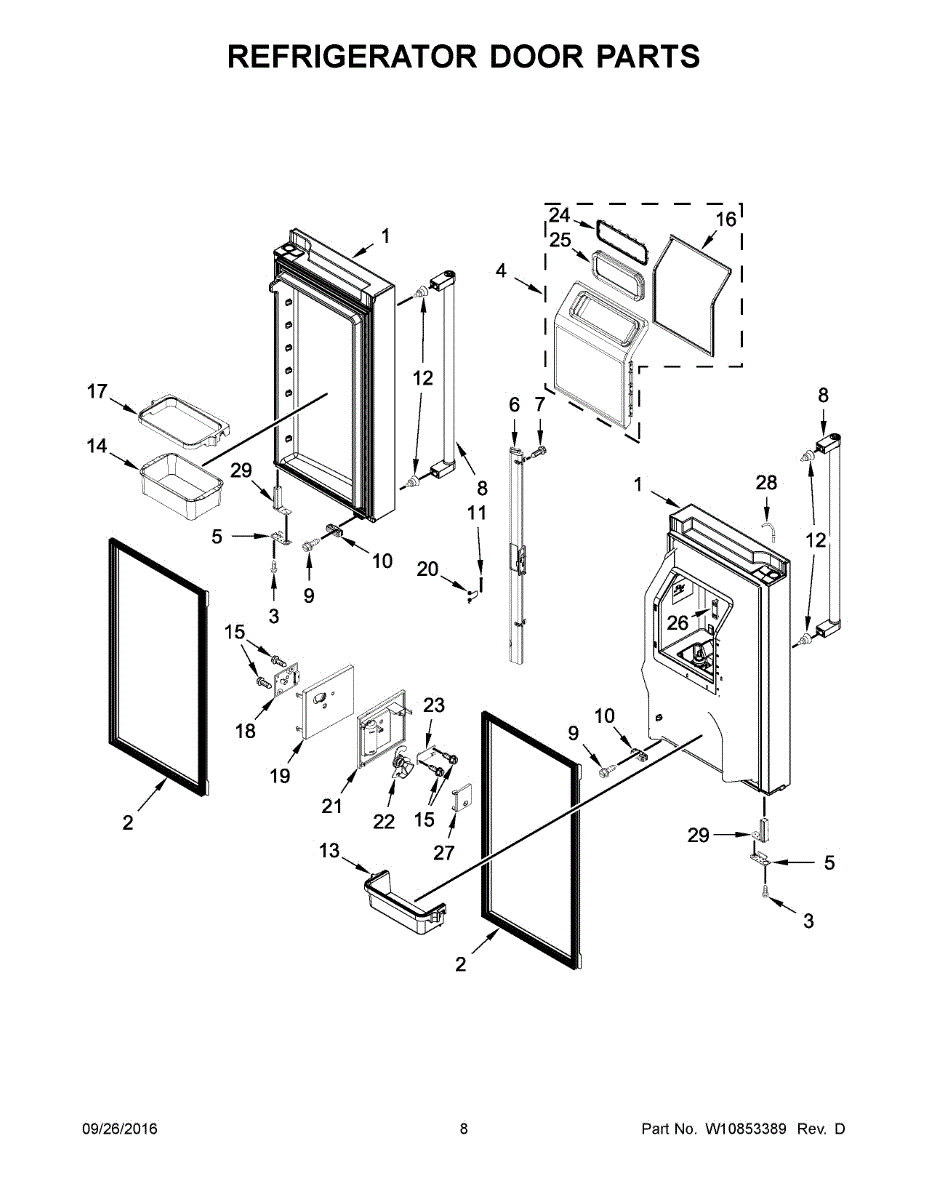

Parts for Kitchenaid KRMF706EBS01: 05 - Refrigerator Door Parts

The Door Gasket is an OEM part for Whirlpool refrigerators. It is a seal between the refrigerator door and the main body, ensuring an airtight closure to maintain the temperature inside the fridge.

A bad door gasket can be caused by wear and tear, damage from frequent use or cleaning, or improper installation. If you notice air leaks, condensation buildup, or inconsistent temperature in your refrigerator, it may indicate a problem with the door gasket.

Symptoms of a bad door gasket include:

• Air leaks or drafts around the refrigerator door
• Condensation or frost buildup along the door edges
• Increased energy consumption
• Spoiled food or inconsistent temperature inside the fridge

Replace your faulty door gasket with this genuine OEM part to ensure a proper seal and cooling for your refrigerator.

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


Color: Black

The Door Gasket is an OEM part for Whirlpool refrigerators. It creates an essential seal around the refrigerator door, helping to maintain cool interior temperatures and energy efficiency.

Causes of a bad door gasket can include cracks, tears, or compressions from repeated closing of the door over many years of use. Exposure to heat or sharp objects may also damage the sealing material.

Symptoms of a bad door gasket include:

• Ineffective sealing allowing warm air into the refrigerator
• Increased cooling requirement from the compressor to maintain temperatures
• Frost or moisture buildup around the door seal
• Gaps are visible along the door frame where the gasket makes contact

Color: Grey

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This factory screw fastens appliance components securely. Replacing a missing, stripped, or rusty screw helps stop rattles, keep panels and brackets aligned, and restore a solid, as-designed fit.

• Secures panels, brackets, and trim to the appliance cabinet or frame
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces damaged, corroded, or missing hardware
• Can resolve loose or shifting components

• Disconnect power and shut off gas/water to the appliance before service.
• Use the correct driver; start threads by hand to avoid cross-threading and do not overtighten.
• Install in the original location and match the OEM fastener type specified in your model's parts diagram.

This door assembly replaces the ice compartment door on compatible 36-inch refrigerators, restoring a proper seal and access to the ice area for reliable ice dispensing and storage. Designed to match OEM fit and finish. What it does:

• Replaces a cracked, warped, or damaged ice compartment door to prevent drafts and ice melting
• Restores proper alignment for the ice chute and door closure
• Helps stop moisture buildup and ice clumping inside the compartment
• Improves appearance by replacing a scratched or discolored door

• One complete ice compartment door assembly

• Disconnect power to the refrigerator before starting any work
• Handle the assembly carefully to avoid damaging trim, clips, or the finish
• Installation may require removing interior panels or freezer shelving; keep track of fasteners

This mullion rail is the interior trim piece that covers and protects the vertical mullion area between refrigerator doors, restoring a finished look and helping maintain an effective door seal. It replaces cracked, warped, or broken mullion trim. What it does:

• Covers the vertical mullion area to protect underlying components and provide a smooth finished surface.
• Helps maintain proper gasket alignment for a tighter door seal.
• Prevents drafts and reduces the chance of cold air leakage around the door edge.
• Restores appearance when the original trim is cracked, dented, or discolored.

• One mullion rail trim piece.

• High-level, snap-in or screw-in replacement—remove the old trim before installing the new piece.
• Disconnect power to the appliance only when working near electrical components; otherwise no electrical disconnection is typically required.
• Use hand tools and avoid excessive force to prevent damage to the surrounding door or seals.
• If clips or fasteners are damaged or missing, replace them with OEM equivalents for secure fit.

This replacement screw fastens appliance components securely in place. Use it to replace missing, stripped, or corroded hardware so panels, brackets, and covers stay aligned and rattle-free.

• Secures parts such as panels, brackets, covers, or internal assemblies
• Restores alignment and helps eliminate vibration or rattling from loose hardware
• Replaces lost, rusted, or damaged screws during service
• Maintains safe, stable operation by keeping components tight

• Disconnect power before service; if applicable, also shut off water and/or gas
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Use the correct driver bit to prevent stripping the head

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

This door bumper cushions and stabilizes the appliance door to reduce noise and wear from slamming. It helps the door close smoothly and maintain proper alignment for reliable operation. What it does:

• Absorbs impact to prevent metal-on-metal contact and reduce slamming noise
• Helps the door sit evenly to improve latch engagement and sealing
• Reduces vibration and rattling during operation
• Simple replacement that restores proper door feel and alignment

• Disconnect power to the appliance before starting any repair
• Access the bumper by opening the door; some models may require removing the door or inner panel
• Press or snap the bumper into the locating hole or slot until secure; replace any retaining clips if present

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Trivet is an OEM part for Whirlpool refrigerators. It is responsible for providing convenient storage within the refrigerator door for items that need to be easily accessible, such as condiments, drinks, eggs, and other small items. The door bin is designed with adjustable shelves and dividers to accommodate containers of various sizes and shapes.

Causes of a bad door bin can include wear and tear over time, broken or cracked shelves, or damage to the bin itself.

Symptoms of a bad door bin include:

• Items falling through cracks or gaps in the bin
• Shelves that no longer support weight
• Difficulty inserting or removing the bin due to misalignment

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Bin is an OEM part for Whirlpool side-by-side refrigerators. Located internally on the refrigerator door, it provides convenient storage for taller items like bottles and cartons.

Symptoms of a faulty door bin include:

• Cracked or broken plastic that causes items to fall out
• Detached or loose mounting brackets unable to securely hold the bin
• Warped or collapsed bin walls reducing usable capacity

Causes can be normal wear and impact damage over time from loading/unloading. Temperature fluctuations may also cause brittle plastic to crack or warp.

This OEM replacement is compatible with additional Whirlpool, Maytag, and some Kenmore side-by-side models.

This door gasket seals the refrigerator door to help maintain consistent internal temperature and improve energy efficiency by preventing warm air from entering. It replaces a worn, torn, or compressed seal to restore proper closure. What it does:

• Creates an airtight seal between the refrigerator door and cabinet to help keep food cold.
• Helps prevent frost buildup and reduces moisture intrusion around the door.
• Can stop cold air leaks that may cause the compressor to run more frequently.
• Commonly replaced when the seal is cracked, torn, flattened, or no longer seats properly.

• One door gasket as shown

• Remove power or unplug the appliance before starting any repair.
• Install by seating the gasket into the door channel and tightening any retaining screws or clips if required; some gaskets require gentle heating to form correctly.
• Inspect the door liner and mounting channel for damage or debris before installing.

The Frame-Shelf is an OEM part for Whirlpool refrigerators. It is a sturdy plastic frame and shelf that provides organization and storage space inside the refrigerator door. The frame-shelf is designed to hold condiments, snacks, beverages, and other small food items that need frequent access. It assists in keeping these items within easy reach and in view while also preventing them from toppling over during opening and closing of the refrigerator door.

Causes of a bad frame-shelf can be normal wear and tear from frequent usage, accidental damage due to dropping heavy items, or stresses from overloading the shelf's weight capacity.

Symptoms of a bad frame-shelf include:

• Cracking or breaking of the plastic material
• Difficulty installing or removing items due to a poorly fitting shelf
• Warping or bending of the frame over time

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This flipper spring returns the refrigerator's ice dispenser door (chute flapper) to the closed position after dispensing. It helps keep warm air and moisture out to minimize frost at the chute and reduce ice clumping in the bin.

• Provides the closing tension for the ice chute door/flapper
• Helps maintain a proper seal at the dispenser opening
• If worn or broken, you may notice the flapper not closing fully
• Frost/condensation around the chute or ice clumping in the bucket may occur

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control to access the ice chute door assembly; note spring orientation and anchor points
• Install the new spring in the same orientation; the flapper moves freely and closes under spring tension
• Wear gloves and use caution—metal edges in the dispenser area can be sharp

This chute door retainer secures the ice chute door in place so the dispenser opens and closes properly, helping keep ice inside the bin and preventing jams at the dispenser opening. What it does:

• Holds the ice chute/door assembly in the correct position during dispensing
• Helps ensure the ice door seals and swings closed to keep cold air in the bin
• Reduces jammed or stuck ice at the dispenser opening
• Works with the chute/door linkage so the dispenser actuates smoothly

• One chute door retainer as shown

• Disconnect power to the refrigerator before beginning any service
• Remove ice bin and any obstructions, then unclip or unscrew the old retainer and replace with the new part
• Reassemble components in reverse order and verify proper door movement before restoring full use

This vent directs and protects an appliance's exhaust, helping airflow move from the appliance to the ductwork for safe, efficient venting. It replaces a worn or damaged exhaust outlet to restore proper ventilation. What it does:

• Provides the finished outlet for appliance exhaust, guiding airflow into the duct system
• Helps reduce backflow and air leakage when properly installed
• Prevents larger debris and physical damage at the exhaust opening
• Can correct symptoms like reduced venting efficiency, unusual airflow, or visible damage at the vent opening

• One vent outlet piece

• Disconnect power (and gas if applicable) before servicing the appliance
• Use basic hand tools; avoid over-tightening fasteners that could distort the part
• If ductwork shows heavy lint, corrosion, or damage, repair or replace ducting for best results

The Tube is an OEM component specifically designed for Whirlpool refrigerators. It provides the critical supply and return path for water to circulate between the door dispenser components and internal water filter housing.

Causes of a bad water tube can include cracks or splits developing from repeated bending during installation/removal, mineral buildup restricting flow, or tubing becoming disconnected at connection points.

Symptoms include:

• Slow or inconsistent water dispensing
• Dripping or spraying of water from tube ends
• Inability to filter and transport water as designed

This OEM replacement tube directly replaces the original with an identical design. Compatible models include those from brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and Kenmore.

The Door Closer is an OEM part for Whirlpool refrigerators. It is a hydraulic piston positioned behind the refrigerator's gasket seal that controls door closing pressure.

Symptoms of a bad door closer include:

• Door not latching or staying firmly closed
• Excessive force needed to open/close the door
• Leaks occurring around door joints
• Improper cooling due to loose door seal

Causes of a bad door closer typically include dried-out fluid after years of usage stresses. Impact damage to mounting points may cause improper alignment as well.

The door closer plays a crucial role in maintaining a tight fit between refrigerator components every time the door shuts. It prevents warm air and moisture exchange for efficient energy usage.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Closing Cam is an OEM component used in Whirlpool side-by-side refrigerators. It is the mechanism located on the inner refrigerator door that utilizes a rotating cam configuration to gently pull the door closed.

Causes of a damaged closing cam can include stresses from opening and closing the door many times over the years. The constant motion wears down parts through normal use.

Symptoms of a faulty cam include:

• Door not latching securely in the closed position
• Loud slamming sound instead of a soft pull to close
• Cracks, fractures or a wobbly cam shaft

This Whirlpool OEM part is also compatible for use in some KitchenAid, Jenn-Air and select Kenmore refrigerator models.
