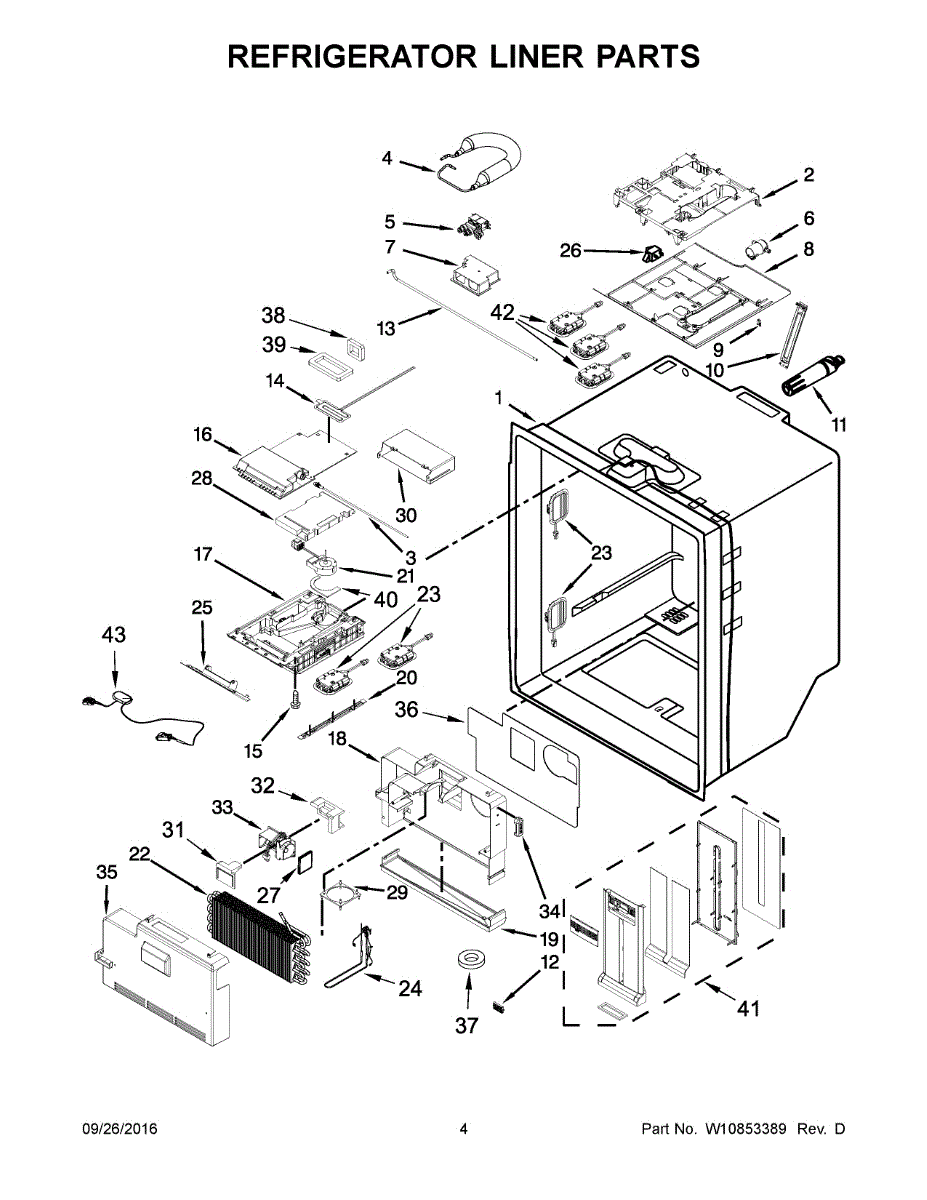

Parts for Kitchenaid KRMF706EBS01: 03 - Refrigerator Liner Parts

The Dishwasher Dispenser is an OEM part compatible with Whirlpool dishwashers. Located inside the dishwasher door, it is responsible for dispensing detergent at the proper time during cycle.

Causes of a bad dispenser can include leakage, blockages in the dispensing mechanism, door or latch issues that prevent proper opening.

Symptoms of a bad dispenser include:

• Improper or incomplete dispensing of detergent
• Dishes not getting fully clean due to insufficient detergent
• Leakage from the dispenser door or tub area
• Dispenser door remaining open or closed during cycles

This genuine Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models as well.

This water tube routes water from the supply to the refrigerator's dispenser/ice system, restoring proper water flow and reducing leaks where the line is damaged or cracked. It replaces a worn or broken factory water line. What it does

• Carries water from the household supply to the refrigerator dispenser/ice maker.
• Replaces cracked, split, or collapsed tubing that can cause leaks or reduced flow.
• Helps restore normal dispenser and ice-maker fill operations when the original tube is damaged.
• Prevents internal water damage caused by pinholes or separated fittings.

• One replacement water tube.

• Disconnect the refrigerator from power and shut off the water supply before starting.
• Use appropriate tools to remove clamps or fittings; avoid over-tightening new connections.
• Inspect and replace any worn clamps or fittings for a secure, leak-free seal.

The Reservoir is an OEM part for Whirlpool refrigerators. It is designed to store and dispense water within the refrigerator, typically connecting to the water dispenser and ice maker. This reservoir ensures a consistent supply of water, facilitating the production of ice and providing chilled water for consumption.

Causes of a bad reservoir can include mineral buildup from hard water, cracks or leaks due to wear and tear, or contamination from foreign particles.

Symptoms of a bad reservoir include:

• Water leaks inside the refrigerator
• Reduced or no water flow to the dispenser or ice maker
• Odd tastes or odors in the water
• Ice production issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Duel Water Valve Assembly is an OEM part for Whirlpool refrigerators. This component is responsible for controlling the flow of water to the ice maker and water dispenser, ensuring proper operation.

Causes of a bad water valve can include mineral buildup from hard water, electrical failure, or physical damage from freezing or kinking of the water line.

Symptoms of a bad valve assembly include:

• Leaks from the valve or water line
• No water flow to the ice maker or water dispenser
• The ice maker not producing ice
• Unusual noises when the water dispenser is activated

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This refrigerator water filter housing holds the filter and routes water through it to the dispenser and ice maker. Replace it if the housing is cracked, leaking, or won't engage the filter to help restore consistent water flow. What it does:

• Directs household water through the installed filter to the dispenser and ice maker
• Locks and seals the filter; opens/closes the internal shutoff when the filter is engaged
• Helps maintain proper flow and reduce leaks at the filter connection
• Common failure symptoms may include water dripping from the filter area, the filter not seating or popping out, low/no dispenser flow, or no ice production

• 1 water filter housing assembly

• Unplug the refrigerator and shut off the water supply; dispense water to relieve pressure
• Place a towel under the area to catch residual water
• Remove any cover/bracket as needed; disconnect tubing from quick-connect fittings and note routing/orientation
• Install the new housing, fully seat tubing in the fittings, restore water and power, check for leaks, and flush per your model's instructions

This cover is an access panel that protects internal components and restores the appliance's appearance. It provides a clean, finished surface while allowing service access when removed. What it does:

• Shields wiring and internal parts from dust, spills, and accidental contact
• Keeps controls and components secure and out of reach
• Restores a worn, damaged, or missing exterior surface for a finished look
• Allows access to internal assemblies when removed

• One cover/access panel

• Always disconnect power (unplug or switch off breaker) before servicing
• Remove mounting screws or clips to lift cover off; align tabs and fasteners to reinstall
• Use only parts and fasteners specified for your model; replace damaged clips or screws

This small, spring-action push latch mounts in trim or liner to secure a flip-down compartment door or cover. Replacing a worn latch restores a positive close and smooth push-to-open operation to the affected door or panel.

• Provides the push-to-latch/push-to-release catch for a small door or cover
• Helps prevent nuisance pop-opens and rattling
• Common symptoms: door/cover won't stay shut, latch feels loose, cracked or missing latch
• Restores proper engagement and closing feel

• Disconnect power to the appliance before starting
• Open the compartment; depress retaining tabs or gently pry the old latch straight out
• Match orientation and snap the new latch fully into the opening
• Test operation: close to latch, press to release

This water tube directs water from the dispenser/water system to the appliance's internal components, restoring proper water flow and preventing leaks when the original tube is cracked or clogged. Durable replacement for wet or restricted lines. What it does:

• Routes water from the inlet/valve to the dispenser, icemaker, or internal plumbing.
• Replaces cracked, split, or collapsed tubing that can cause leaks or reduced water flow.
• Helps stop visible pooling or dripping under the cabinet or inside the fresh food section.
• Restores normal water delivery to the dispenser or icemaker when the original tube is obstructed or damaged.

• Disconnect power and shut off the water supply before beginning any repair.
• Inspect fittings and seals; replace any worn gaskets or clamps to ensure a leak-free connection.
• Tighten fittings by hand first, then snug with an appropriate tool—avoid overtightening plastic fittings.
• Test the system at low pressure after installation and check carefully for leaks before restoring full operation.

The Heater is an OEM part for Whirlpool refrigerators. It helps prevent frost and ice buildup in the refrigerator. It is responsible for melting any accumulated ice or frost, allowing for proper airflow and maintaining ideal temperature levels.

A bad refrigerator heater can occur due to electrical malfunctions, wear and tear, or damage to the heating element. If you notice symptoms such as excessive frost or ice buildup, reduced cooling efficiency, or water leakage, it may be time to replace the refrigerator heater.

Symptoms of a bad refrigerator heater include:

• Excessive frost or ice buildup
• Reduced cooling efficiency
• Water leakage

Repair your refrigerator by replacing the faulty or worn-out heater with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This replacement screw fastens trim, panels and small components to restore secure attachment and reduce rattling or movement. Use when a screw is missing, stripped, or damaged to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets and trim to appliance assemblies
• Prevents vibration, rattling and misalignment caused by missing or damaged fasteners
• Replaces lost or stripped screws that can allow gaps or loose parts
• Helps maintain safe, stable operation by keeping components properly fastened

• Disconnect power (and water if applicable) before accessing interior panels
• Use the proper screwdriver or driver bit to avoid stripping the head
• Align parts before tightening and tighten until snug—do not overtighten
• Replace only with the correct OEM part to ensure proper fit and function

The Pan-Drip is an OEM part for Whirlpool refrigerators. It is designed to collect and manage condensation and any water that may drip inside the refrigerator, preventing it from pooling at the bottom of the appliance. This pan measures approximately 20 inches by 16 inches with a 2-inch depth.

Causes of a bad pan-drip can include wear and tear over time, cracks or breaks due to impact, and buildup of dirt or debris that can block proper drainage. When the pan-drip fails, it can lead to water accumulation and potential leaks.

Symptoms of a bad Pan-Drip include:

• Water pooling inside the refrigerator
• Leaks from the bottom of the refrigerator
• Visible cracks or damage to the pan
• Mold or mildew buildup due to improper drainage

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Evaporator fan that circulates cold air through the refrigerator to help maintain even temperatures and reduce frost build-up. Replacing a failed fan restores airflow so the appliance cools more consistently. What it does:

• Circulates cold air across evaporator coils and interior compartments to help maintain set temperatures.
• Helps prevent localized frost buildup by keeping air moving over the evaporator.
• A worn or failed fan may make whining or rattling noises or run intermittently.
• Loss of fan operation can cause warm spots or reduced cooling performance.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Access may require removing interior panels or evaporator cover—keep fasteners in a safe place.
• Handle sharp sheet-metal edges carefully and support the fan assembly to avoid dropping it.

The Dual Evaporator Assembly is an OEM part for Whirlpool refrigerators. Found within the refrigerator cabinet behind the sidewalls, these dual evaporator coils absorb heat from the refrigerated air and help maintain the optimal cold temperatures needed in each section.

Symptoms of a bad dual evaporator assembly include:

• Fluctuating or inadequate temperatures in both freezer and fresh food sections
• Frost or ice buildup inside cabinets
• Increased humidity levels allowing food to spoil faster

Causes can be normal component wear over time, damage to coils from falls/impacts within the refrigerator, or refrigerant leaks decreasing cooling ability.

This OEM replacement part is also compatible with refrigerator models from brands including Maytag, Jenn-Air, Amana, Magic Chef, and some Kenmore units.

The LED Module Kit is an OEM component specifically designed for Whirlpool refrigerators. This kit contains 12 individual LED lights that illuminate targeted refrigerator sections.

As the primary light source, the module kit is responsible for clearly illuminating refrigerated spaces to easily locate and identify stored items. Uniform lighting is essential for accessible organization.

Causes of malfunctioning LED modules include bulb burnout over time or intermittent electrical connections.

Symptoms of a failing module kit involve:

• Dim lighting throughout compartments
• Flickering or hot spots within illuminated areas
• Entire sections are left in shadow making visibility poor

Note: The factory changed to a warmer color instead of the old cool blue design.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

The Evaporator Fan Motor is an OEM part for Whirlpool refrigerators. It circulates air over the refrigerator's evaporator coils, which helps maintain a consistent and even temperature throughout the fridge and freezer compartments. This ensures that your food stays fresh and properly cooled.

Causes of a bad evaporator fan motor can include normal wear and tear, electrical issues, or debris buildup that restricts the fan’s movement.

Symptoms of a bad evaporator fan motor include:

• The refrigerator or freezer compartments not cooling properly
• Unusual noises coming from the back of the refrigerator
• The refrigerator running constantly or intermittently shutting off

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Heater is an OEM component designed specifically for Whirlpool refrigerators. It plays a crucial role in maintaining an optimal interior temperature.

The heater is responsible for engaging under certain conditions to prevent freezing or provide brief bursts of warmth inside during temperature fluctuations. Its precise controls accurately regulate temperature.

Causes of a bad heater can include gradual insulation breakdown, cracks in heating coils, or faulty temperature sensors that disrupt the activation process.

Symptoms of a bad heater include:

• Inability to control temperature swings inside
• Frost or ice accumulates on surfaces and packages
• Food begins to freeze that normally wouldn't
• Cool air blows inside even when the heater should engage

This genuine Whirlpool part restores critical temperature regulation. It is also compatible with models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Support is an OEM part for Whirlpool refrigerators. This part holds the fan motor in place within the fresh food compartment, ensuring proper air circulation to maintain consistent temperatures and keep food fresh.

Causes of a bad fan motor support can include regular wear and tear, accidental impacts, or exposure to extreme temperatures.

Symptoms of a bad fan motor support include:

• Noisy or rattling fan motor
• Poor air circulation in the fresh food compartment
• Inconsistent temperatures or food spoilage
• Visible damage or warping of the support structure

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This adapter is a replacement connection fitting designed to restore a secure, leak-resistant connection between appliance components. It provides a straightforward way to repair a worn or damaged connection and get the appliance back to normal operation. What it does:

• Re-establishes a proper mechanical connection between mating parts to prevent leaks and poor fit
• Replaces a cracked, worn, or missing fitting that can cause loose hoses or connections
• Helps maintain flow and sealing where two parts interface
• Commonly used when a connection becomes loose, warped, or damaged

• One adapter connection fitting

• Disconnect power and shut off water/gas supply before beginning any repair
• Use appropriate hand tools; protect surrounding components from damage
• After installation, restore supplies/power and check the connection for leaks or movement

A small replacement retainer that secures internal components and trim pieces so they stay properly aligned and stable. Restoring a broken retainer helps stop rattling and keeps parts seated for reliable operation. What it does:

• Secures panels, trim, or small assemblies in place to prevent shifting
• Reduces vibration and rattling caused by a loose or broken clip
• Keeps wiring or hoses routed and held away from moving parts
• Helps maintain proper alignment of the part it supports

• Disconnect power to the appliance before servicing to avoid shock
• Use basic hand tools; inspect surrounding parts for damage before reinstalling
• Handle sharp sheet-metal edges carefully and wear gloves if needed
• Replace only the failed retainers; verify fit before final reassembly

This support is a replacement mounting bracket that secures internal components and panels so they stay properly aligned and stable. It restores correct fit and reduces movement from normal use. What it does:

• Provides a secure mounting point for internal panels or components to prevent sagging or rattling
• Restores alignment for panels that sit uneven or loose
• Helps stop vibration noise caused by worn or broken supports
• Protects connected parts from stress or damage due to improper support

• One support

• Disconnect power to the appliance before starting any repair
• Basic tools typically required; handle parts carefully to avoid scratching or bending
• Keep fasteners and hardware; replace any damaged screws or clips as needed
• Refer to the parts diagram for exact placement and torque specs

The Damper Control is an OEM replacement part for Whirlpool refrigerators. It is located inside the refrigerator, just above the evaporator cover, and controls the flow of cool air from the refrigerator compartment into the freezer. The damper control works with a bi-metal spring to open and close based on temperature levels, directing cold air where needed for balanced cooling.

Causes of a bad damper control can include damage or wear to the bi-metal spring over time, failure of electronic components, or blockage preventing proper movement.

Symptoms of a bad damper control include:

• Inability to maintain proper temperature levels in the refrigerator or freezer
• Frost or ice build-up in unexpected areas
• warmer temperatures in one compartment and colder in the other
• loud noises or vibrations coming from the damper area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement door gasket seals the refrigerator or freezer door to maintain proper temperature and help prevent moisture and frost buildup. A direct-fit seal that restores an airtight closure and improves appliance efficiency. What it does:

• Creates an airtight seal around the door to help keep cold air in and warm air out
• Reduces frost and condensation buildup inside the compartment
• Helps the appliance maintain set temperatures for better food preservation
• Can reduce run time by preventing air leaks that force the compressor to work harder

• One replacement door gasket

• Inspect the door frame and mounting channel for damage or debris before installing
• Warm the gasket slightly (per OEM guidance) to ease alignment, and press into the mounting channel uniformly
• Check for an even seal around the full door after installation; adjust as needed
• Unplug the appliance before performing any service and follow all safety warnings from the manufacturer

A replacement icebox rear gasket that seals the freezer compartment to help keep cold air in and reduce moisture intrusion. Restores the door seal to help maintain proper temperature and reduce frost buildup. What it does

• Seals the icebox/freezer door edge to maintain cold compartment temperature.
• Helps prevent warm air and moisture from entering, reducing frost and ice buildup.
• Can improve cooling consistency and help reduce excessive run time caused by a poor seal.
• Common symptom fix: visible gaps, torn or deformed seal, or recurring frost around the door.

• One icebox rear gasket.

• Disconnect power to the appliance before replacing the gasket.
• Remove the old gasket, clean the door/frame sealing surface, and align the new gasket evenly.
• Press the gasket into the channel firmly; some models may require gentle warming or minor adjustment for a snug fit.

This rear icebox gasket seals the freezer/icebox compartment to help maintain proper temperature and reduce frost buildup. It restores the door seal so the appliance runs more efficiently and prevents moisture intrusion. What it does:

• Seals the icebox/freezer compartment to keep cold air in and warm, humid air out
• Helps prevent frost and ice buildup inside the icebox
• Reduces temperature fluctuations that can cause food spoilage
• Can stop condensation or water pooling caused by a failing door seal

• Unplug the appliance before attempting replacement
• Remove the old gasket fully and clean the mounting channel before installing the new seal
• Press the new gasket into the channel evenly; allow time for the gasket to form to the door

This fan gasket seals the fan housing to help direct airflow and maintain proper cooling performance. It replaces a worn or damaged seal to reduce air bypass and improve temperature consistency in the appliance. What it does:

• Seals the fan housing to keep airflow directed through the evaporator/condenser as designed
• Helps prevent air leaks that can cause uneven cooling or longer run cycles
• Reduces the chance of frost buildup or moisture intrusion around the fan area
• Can minimize wind noise from air escaping gaps at the fan assembly

• Disconnect power to the appliance before beginning any repair
• Remove access panels and the fan housing to reach and replace the gasket
• Ensure the gasket seats evenly around the fan housing; trim none unless specified by the OEM
• Inspect surrounding components (fan blade, housing) for damage and replace if needed

The Refrigerator LED Light Module is an OEM part compatible with Whirlpool brand refrigerators. This kit features 12 LED modules. It features energy-efficient LEDs that illuminate the inside of the fresh food and freezer compartments.

Causes of a bad light module can include failure of the circuit board or LEDs themselves due to regular use over extended periods of time and exposure.

Symptoms of a bad light module include:

• One or multiple LED lights failing to illuminate properly
• Flickering or inconsistent lighting
• Lights that remain constantly bright and do not dim as intended

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore models.
