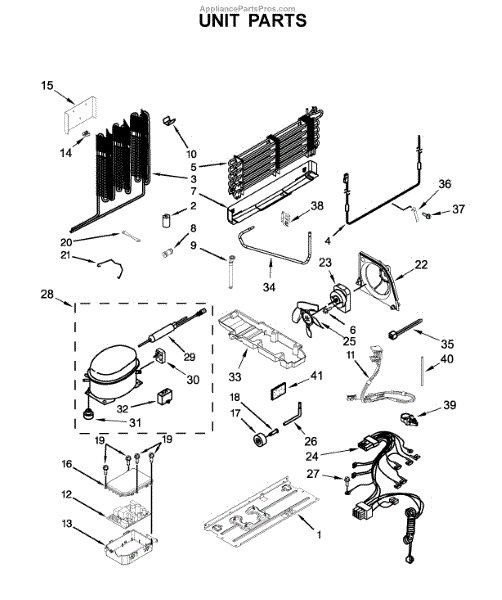

Parts for Whirlpool WRF560SEHB00: Unit Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

The defrost heater melts frost off the evaporator coil during the automatic defrost cycle so cold air can circulate freely. Replacing a failed heater helps clear recurring ice buildup and restores stable refrigerator and freezer temperatures.

• Heats the evaporator to remove frost/ice during the defrost cycle
• Prevents airflow blockages to maintain consistent cooling
• Common symptoms: heavy frost behind the rear panel, fan noise from ice contact, weak cooling or warm spots, ice returning soon after manual defrost
• When the heater is open/burned out, frost accumulates on the coil and restricts airflow

• Disconnect power before servicing; wear cut-resistant gloves
• Safely defrost any heavy ice; do not chip at coils to avoid fin or tubing damage
• Route and secure wiring as original; reuse existing clips/brackets as required and keep leads clear of the fan
• After reassembly, ensure panels seal properly and the defrost drain path is clear for meltwater

This evaporator coil circulates refrigerant and absorbs heat inside the freezer compartment to help keep food cold and control humidity. Replacing a faulty evaporator restores cooling performance and reduces frost buildup. What it does

• Circulates refrigerant through the freezer to absorb heat and enable cooling
• Removes moisture from air inside the freezer, where it can form frost when the coil is not working
• Helps maintain consistent freezer temperature for food preservation
• Can cause reduced cooling or visible frost/ice buildup when damaged or leaking

• One evaporator assembly

• Disconnect power before starting work and follow basic electrical safety procedures
• If significant ice is present, fully defrost and dry the area before installing the new evaporator
• Inspect related seals, gaskets, and the evaporator fan during installation and replace as needed for optimal performance

This heat shield protects nearby components from high oven temperatures, helping prevent heat damage and maintain safe operation. It's a direct-fit replacement designed to restore proper thermal protection. What it does

• Deflects and shields adjacent parts from radiant heat generated by the oven cavity.
• Helps prevent discoloration, warping, or premature failure of nearby panels and wiring.
• Can stop heat-related smells or scorching around the oven interior or cabinet.
• Restores intended oven airflow and thermal clearance when the original shield is damaged or missing.

• One replacement heat shield

• Disconnect electrical power (and shut off gas for gas ranges) before starting any repair.
• Handle carefully — edges may be sharp; wear gloves and eye protection.
• Verify correct mounting orientation and fasteners; reuse original screws if in good condition or replace with OEM-specified hardware.

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This drain tube directs defrost/condensate water from the appliance's drain outlet into the drain pan, helping prevent water from pooling inside the cabinet or leaking onto the floor for reliable, mess-free operation. What it does:

• Channels defrost/condensate water from the drain outlet to the pan
• Helps prevent interior leaks, puddles beneath the unit, and ice at the drain
• Restores proper drainage when the original tube is cracked, misshapen, or clogged
• Addresses symptoms like water under drawers/shelves or musty odors from standing water

• 1 drain tube

• Disconnect power and pull the unit forward for rear access; turn off water supply if applicable
• Remove the old tube and clear any debris/ice from the drain opening
• Fully seat the new tube on the drain outlet and position the outlet over the pan, following original routing
• Test by pouring a small amount of warm water into the drain to ensure proper flow and no leaks

This wire harness routes low-voltage signals between control components to restore reliable electrical connections and proper appliance function. It replaces a damaged or frayed harness to help resolve intermittent control or power issues. What it does:

• Carries low-voltage control and sensor signals between modules and components
• Restores secure connections when original wiring is damaged, burned, or corroded
• Helps address intermittent control panel behavior, no-start conditions, or erratic operation related to wiring failures
• Matches OEM routing and connector types for a direct-replacement fit

• Disconnect power to the appliance before servicing to avoid shock or injury
• Compare connectors and wire routing to the original harness before installation
• Handle terminals carefully; avoid pulling on wires—use connector bodies when disconnecting

This electronic control board is the appliance's central controller, directing power and timing to key components. Replacing a failed board can resolve unresponsive controls, cycles that won't start or advance, no display, or recurring error codes.

• Distributes power and manages timing for motors, pumps, fans, heaters, and valves
• Interprets inputs from sensors and switches to execute programmed operations
• Stores and runs the appliance's control logic and settings
• Common failure symptoms: no power/display, won't start, stops mid-cycle, intermittent operation, or error codes

• Disconnect power at the breaker or unplug the appliance before servicing
• Use ESD precautions; handle the board by the edges only
• Photograph wiring and move connectors one at a time to the new board
• Some models require configuration or programming after install—follow the service/tech sheet for your unit

This replacement housing is the main cabinet-style enclosure that supports and protects the appliance's internal components, helping maintain proper alignment and structural integrity. Use it to restore secure mounting and reduce vibration from a damaged or cracked enclosure. What it does:

• Replaces a cracked, broken, or deformed housing that can allow components to shift or rub
• Restores proper alignment for internal assemblies to reduce noise and vibration
• Provides a secure mounting surface for panels, controls, or internal parts
• Helps maintain safe, stable operation by protecting internal wiring and components

• One replacement housing

• Disconnect power and water before starting any repair
• Take photos of the original assembly to aid reassembly; keep fasteners and clips organized
• Use appropriate hand tools; avoid forcing panels—check for hidden clips or screws

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

The Compressor Start Device is an OEM part for Whirlpool refrigerators. This device is essential for initiating the compressor, which is responsible for circulating refrigerant through the cooling system, thus maintaining the refrigerator's temperature. The start device works by providing the necessary power boost to get the compressor running.

Over time, the compressor start device can wear out or fail due to electrical issues, regular wear and tear, or overheating. A faulty start device will prevent the compressor from starting, resulting in cooling problems.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling
• The compressor not running or starting intermittently
• Clicking sounds coming from the refrigerator
• Overheating of the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover box is the exterior service access cover that protects internal wiring and components, keeping them secure while allowing access for service. It helps prevent accidental contact and protects connections from dust and debris. What it does:

• Covers and protects wiring, connectors and control components behind the access area
• Provides a secure barrier to reduce risk of accidental contact with live parts
• Keeps dust, lint and debris out of the service cavity to help maintain reliable operation
• Visible damage, cracked or loose cover, exposed wiring, or intermittent electrical symptoms can indicate this cover needs replacement

• One cover box

• Disconnect power before removing or installing this cover to avoid electrical shock
• Remove mounting screws or fasteners, lift cover off, and retain fasteners for reinstallation unless new fasteners are supplied
• Align cover and reinstall screws snugly—do not overtighten or modify the cover
• If wiring or components behind the cover are damaged, address those issues before replacing the cover

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This bale strap is a direct-replacement part that helps secure the dryer's latch/bale assembly so the door closes and stays closed during operation. Replacing a worn or broken strap restores reliable door engagement and safer drying cycles. What it does:

• Anchors the dryer door's latch/bale so the door remains properly closed during operation
• Prevents intermittent door opening that can stop cycles or cause heat loss
• Replaces a stretched, torn, or broken strap that no longer holds the latch securely
• Works with the door/latch mechanism to maintain safe operation during drying

• One bale strap

• Disconnect power before beginning any repair to avoid electrical shock
• Verify strap routing and attachment points match the original before reinstalling
• Basic hand tools are typically required; avoid forcing plastic clips to prevent breakage

This condenser bracket assembly secures the refrigerator condenser in place to prevent movement and vibration, helping maintain proper airflow and reduce noise from loose components. What it does:

• Holds the condenser coil or condenser assembly firmly against the cabinet/frame
• Prevents rattling or vibration that can cause noise during operation
• Keeps the condenser positioned for consistent airflow around cooling components
• Replaces damaged, bent, or missing condenser mounting hardware

• Disconnect power to the appliance before starting any repair
• Wear gloves to protect hands from sharp sheet metal edges
• Basic hand tools (screwdriver/socket) are typically required; verify fastener types before beginning
• Inspect surrounding mounts and hardware; replace any damaged fasteners and torque to manufacturer specs

The Condenser Fan Motor is an OEM part for Whirlpool refrigerators. It is responsible for cooling the condenser coils by circulating air across the condenser coils, dissipating heat and preventing the compressor from overheating.

A faulty or malfunctioning condenser fan motor can occur due to various reasons, such as motor failure, electrical issues, or excessive dust accumulation. If you notice symptoms such as the refrigerator not cooling properly, unusual noises coming from the back of the unit, or the fan not spinning, it may be time to replace the condenser fan motor.

Causes of a bad condenser fan motor include:

• Motor failure or malfunction
• Electrical issues or wiring problems
• Excessive dust or debris accumulation

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement fan blade that moves air across the evaporator and through the cabinet to help maintain even temperatures. Restores proper airflow and reduces noise and vibration caused by cracked, bent, or worn blades. What it does:

• Circulates cold air from the evaporator throughout the refrigerator/freezer compartments
• Helps maintain consistent temperatures and reduce hot spots
• Reduces noise and vibration when replacing damaged or unbalanced blades
• Works with the evaporator/air-movement motor to support normal defrost and cooling cycles

• Disconnect power before accessing the evaporator/fan area to avoid electric shock.
• Remove shelves, panels, and the evaporator cover as needed to reach the fan assembly.
• Handle the blade carefully — edges and nearby sheet metal can be sharp.
• Inspect the fan motor shaft and mounting hardware; replace any worn or damaged components for best results.

Screw: 8-16 x 3/8 inch.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Evaporator drip pan that collects defrost water and directs it to the drain, helping prevent leaks and puddles under the appliance. Restores proper drainage for reliable operation. What it does:

• Catches and channels defrost/condensate water away from the evaporator to prevent leaks beneath the unit.
• Helps stop water pooling or dripping from the bottom of the appliance.
• Reduces the risk of moisture-related odors or mildew by keeping drainage contained.
• Works with the refrigerator's drain system to promote normal defrost water flow.

• Disconnect power to the appliance before beginning any service.
• Access may require removing the toe grille or pulling the appliance out; follow the OEM service instructions for your model.
• Inspect and clear the drain tube and drain outlet while replacing the pan to ensure proper flow.
• Handle the pan carefully during installation and ensure it is seated so water flows into the drain as intended.

Size: 8 x 1/2 ab.

A small retainer clip that secures panels, hoses or wiring to keep components in place and reduce noise from loose parts. Replacing a worn or broken clip restores proper fit and helps prevent intermittent contact or rattling. What it does

• Secures trim, panels, hoses or wire harnesses to mounting points to prevent movement.
• Keeps components aligned so switches and seals engage correctly.
• Stops rattling or vibrating noises caused by loose parts.
• Helps prevent abrasion or chafing of wires and hoses by holding them away from edges.

• Install by snapping or sliding the clip into the factory mounting slot; use needle-nose pliers if needed.
• Power off and unplug the appliance before accessing internal parts.
• Inspect surrounding mounts and mating tabs for damage; replace if worn for a secure fit.
• If removal is difficult, apply a small amount of penetrating lubricant and work carefully to avoid breaking adjacent plastic.

This drain tube directs defrost/condensate water from the appliance's drain outlet into the drain pan, helping prevent water from pooling inside the cabinet or leaking onto the floor for reliable, mess-free operation. What it does:

• Channels defrost/condensate water from the drain outlet to the pan
• Helps prevent interior leaks, puddles beneath the unit, and ice at the drain
• Restores proper drainage when the original tube is cracked, misshapen, or clogged
• Addresses symptoms like water under drawers/shelves or musty odors from standing water

• 1 drain tube

• Disconnect power and pull the unit forward for rear access; turn off water supply if applicable
• Remove the old tube and clear any debris/ice from the drain opening
• Fully seat the new tube on the drain outlet and position the outlet over the pan, following original routing
• Test by pouring a small amount of warm water into the drain to ensure proper flow and no leaks

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
