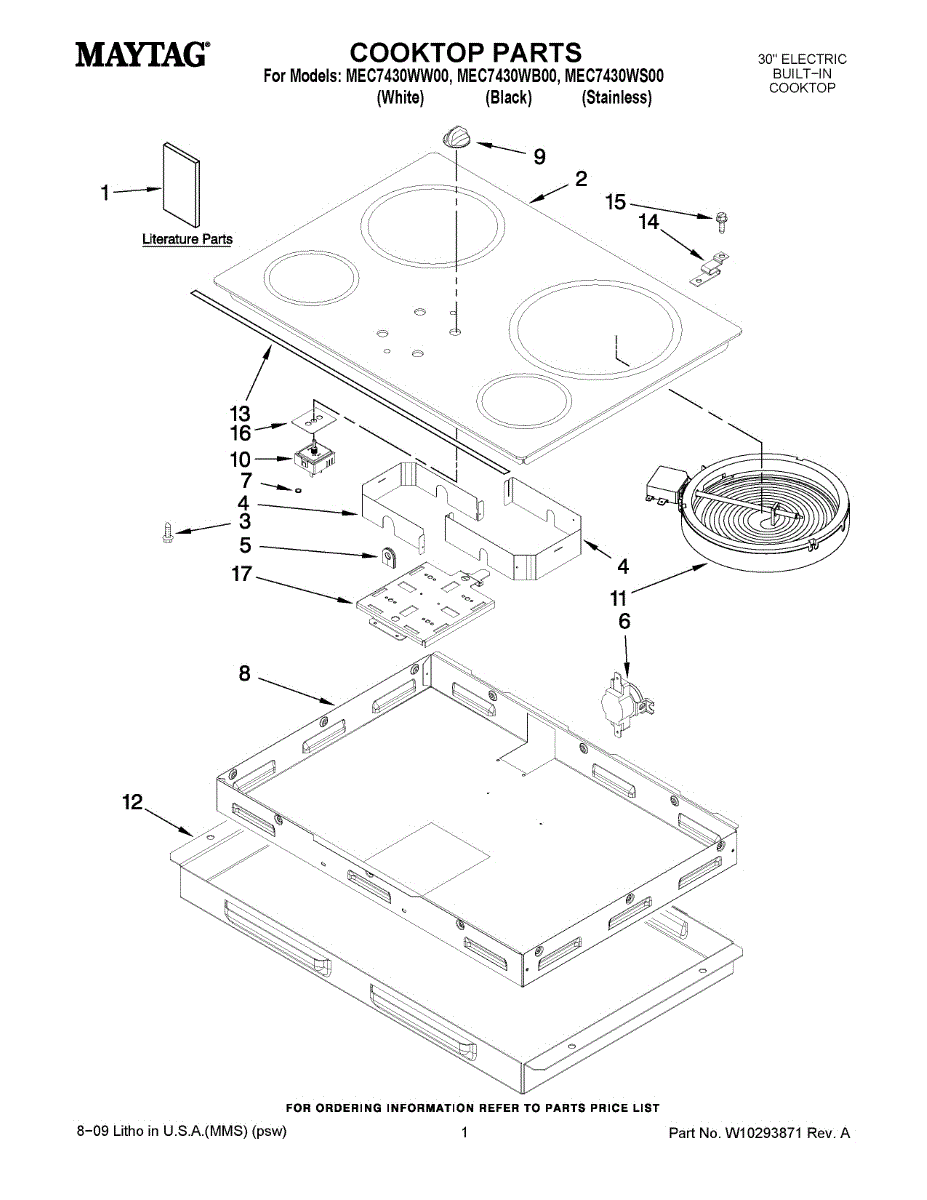

Parts for Maytag MEC7430WS00: 01 - Cooktop Parts

This latch knob screw secures the latch knob to its shaft on compatible appliances. Replace a missing, stripped, or rusted screw to restore a firm, reliable attachment and proper latch/knob operation. What it does:

• Attaches the latch knob securely to the latch mechanism/shaft
• Helps maintain proper door latch engagement and knob control
• Common fix for a loose, wobbly, or falling-off knob
• Replaces a lost, corroded, or cross-threaded screw

• 1 latch knob screw

• Disconnect power and allow the appliance to cool completely before servicing
• Align the knob on the shaft and start the screw by hand to avoid cross-threading
• Tighten with the correct screwdriver; do not overtighten to prevent damage
• The latch engages and releases smoothly after installation

This safety thermostat monitors internal temperature and opens the circuit if the appliance overheats. Replacing a failed high-limit thermostat restores heat and helps protect controls, wiring, and nearby components from thermal damage. What it does:

• Monitors temperature and interrupts power to the heating circuit if an unsafe temperature is reached
• Helps prevent overheating damage to internal components
• When failed open, can cause no heat or cause the unit to shut off during high-heat operation
• At room temperature it should read closed/continuous; an open reading indicates replacement is needed

• 1 high-limit thermostat

• Disconnect power at the breaker (and shut off gas supply if applicable) before servicing
• Access location varies by model; commonly mounted to the oven cavity, plenum, or rear panel
• Transfer wires one at a time and mount the thermostat flush to its surface or bracket
• After replacement, verify proper airflow/cooling and address any root causes of overheating

Color: black. Measures about 1-1/2 inches in diameter.

This control knob replaces a worn or broken appliance control knob to restore safe, easy adjustment of settings. Its simple fit and grip make it easy to use for regular adjustments on compatible units. What it does:

• Provides a secure, tactile interface for selecting oven/range or appliance settings
• Replaces cracked, stripped, or missing knobs that prevent proper control
• Restores accurate pointer alignment for clear setting selection
• Helps eliminate slipping or loose operation caused by damaged knobs

• One control knob

• Pull off the old knob straight out; push the new knob onto the shaft until it seats
• Unplug the appliance or shut off power before servicing electrical controls

This is a surface burner control knob for electric cooktops. It replaces a worn or broken knob so you can accurately turn the burner switch to the desired heat setting and restore a matched look on the cooktop.

• Attaches to the surface burner (infinite) switch shaft to set heat level
• Helps when a knob is cracked, stripped, loose, hard to turn, or missing
• Restores positive engagement and clear pointer alignment for temperature selection

• Disconnect power before servicing
• Pull the old knob straight off the switch shaft; align flat/"D" shape and press the new knob on
• If the knob does not seat, inspect the switch stem for damage or mismatch
• Test each position for smooth rotation and proper detent feel before use

This infinite surface element switch controls the heat output of a cooktop/range element. Replacing a worn switch restores smooth, reliable temperature adjustment for the designated Flex element, preventing issues like stuck-on-high heat, no heat, or erratic cycling.

• Regulates power to the surface element by cycling on and off at the selected setting
• Dedicated control for the unit's Flex element circuit
• Common failure symptoms: element won't heat, only heats on high, won't shut off, or heats inconsistently

• Disconnect power at the breaker before servicing to avoid electrical shock
• Pull the control knob straight off; access the switch from the control panel and note its orientation
• Label and transfer wires one at a time to matching terminals on the new switch
• Reassemble, restore power, and test all heat settings for proper operation

Replacement infinite switch that restores variable heat control for a surface heating element on an electric range, letting you adjust burner temperature smoothly and accurately. What it does:

• Regulates power to a surface heating element so the burner produces the selected heat level.
• Replaces a failed or worn rotary control that no longer changes element output.
• Common symptoms: burner won't heat, only heats at one setting, temperature jumps or fluctuates, or knob turns with no effect.
• Fits behind the console and connects to existing element wiring and control knob.

• Disconnect the appliance power before removing the console or control panel to avoid electrical shock.
• Confirm wire locations and take a photo before disconnecting to ensure correct reconnection.
• Secure the switch in place and reconnect wires firmly; test all settings after reassembly.

This Hiper-style top burner infinite switch regulates power to a surface element on your range or cooktop. Replacing a worn switch restores smooth, accurate heat selection across all settings.

• Regulates electrical power to the surface/radiant element based on the knob setting
• Cycles the element on and off to maintain steady heat from low to high
• Common failure symptoms include: no heat, only high heat, erratic temperatures, or no response when turning the control

• Disconnect power at the breaker before servicing
• Remove the burner knob and access the switch from the control panel area
• Photograph wiring and transfer wires one at a time to matching terminals on the new switch
• Secure the switch, reassemble panels, restore power, and test the burner through all settings

The Infinite Switch is an OEM replacement part for Whirlpool ranges. This component regulates the power supply to the heating elements, allowing users to adjust the temperature levels on the stovetop. By turning the knob connected to the infinite switch, users can set the cooking temperature to low, medium, high, or anywhere in between, ensuring precise heat control for various cooking needs.

Symptoms of a bad Infinite Switch include:

• Heating elements not heating up or overheating
• Inability to adjust the temperature of the burners
• The burners heating intermittently or not at all
• Electrical buzzing or sparking noises during operation

Causes for a malfunctioning Infinite Switch can include electrical issues such as wiring problems, wear and tear from regular use, or internal failures within the switch that affect its ability to regulate power.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement surface heating element for electric cooktops that restores high-heat performance and reliable stovetop cooking. The 3200W Hyper design provides strong heat output for everyday boiling and frying needs. What it does:

• Heats cookware on the stove when the burner control is turned on.
• Replaces a burned-out, cracked, or non-heating top burner element.
• Helps resolve issues such as no heat, uneven heating, or visible element damage.
• Works with compatible electric range surface terminals to restore burner function.

• Disconnect power to the range at the breaker before servicing.
• Allow the old element and cooktop to cool completely before handling.
• Handle the element by the base and reconnect only to matching terminals; ensure it seats securely.

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

A replacement support bracket that secures the oven heating element in the cavity so the element stays properly positioned for safe, even heating and reliable operation. Restores stable mounting after breakage or wear. What it does:

• Holds the bake/oven heating element in place so it doesn't sag or contact the oven cavity
• Helps maintain consistent heating and prevents element movement or rattling during use
• Commonly used when the existing support is cracked, bent, or missing
• Works with the oven's internal mounting points to align the element correctly

• Always disconnect power to the appliance before starting any repair
• Handle the heating element carefully; support may attach directly to the element terminals or mounting studs
• Basic hand tools are typically required; refer to your model's service instructions for exact steps

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement gasket that seals the infinite (surface) control switch to the cooktop or console, helping keep moisture, grease and debris out of the switch area for cleaner operation and a better seal. What it does

• Seals the infinite switch to the panel to help prevent liquid and food intrusion into the switch housing.
• Cushions and stabilizes the switch for a firmer knob fit and reduced vibration.
• Helps protect the switch contacts from contamination that can cause intermittent control behavior.
• Use when the existing gasket is cracked, flattened, missing, or allowing spills into the controls.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove the control knob and access the infinite switch per your model's service instructions.
• Seat the gasket fully around the switch housing so it lies flat against the console; replace if damaged or compressed.
• Inspect the switch and wiring while replacing the gasket; replace the switch if there is visible damage.
