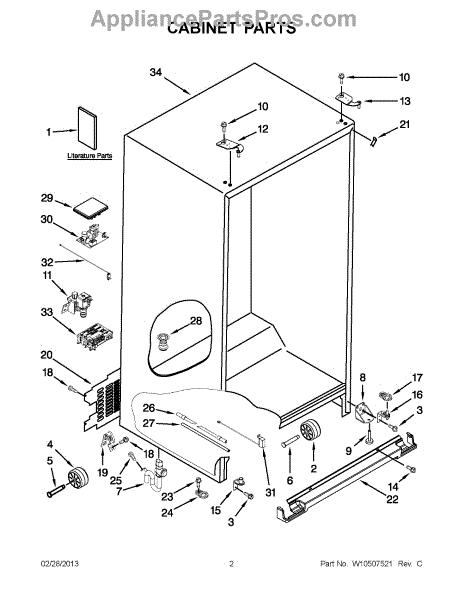

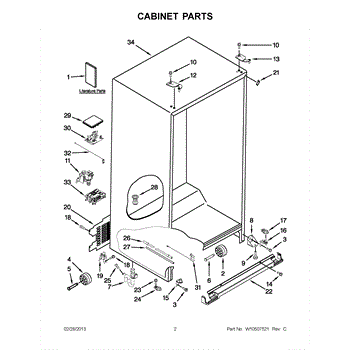

Parts for Whirlpool WRL767SIAM00: 01 - Cabinet Parts

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This 1/4-20 screw is a direct replacement fastener used to secure appliance panels, brackets, and assemblies. It restores proper fit and prevents rattling or loose components for safe, reliable operation. What it does:

• Fastens panels, mounting brackets, and components in place
• Replaces missing or stripped screws that cause loose or rattling parts
• Maintains alignment of assemblies to prevent wear and vibration
• Works wherever a 1/4-20 machine screw is specified by the manufacturer

• Disconnect power and follow the appliance manufacturer's safety instructions before servicing
• Use the correct-size driver or socket to avoid stripping the head
• Do not overtighten; snug until secure to avoid damaging threads or components
• If the original screw was rusted or seized, apply penetrating lubricant and use proper extraction tools

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

Replacement bracket that secures and supports internal components, restoring firm mounting and reducing rattling. Replaces a worn or damaged bracket to help keep appliance parts aligned for quieter, more reliable operation. What it does:

• Provides a stable mounting point to hold internal components in place
• Reduces rattling, vibration, and misalignment caused by a loose or damaged bracket
• Restores proper component spacing to help prevent contact and wear
• Works as a direct replacement for a failed bracket to return proper function

• Disconnect the appliance from power (and water, if applicable) before servicing
• Handle edges carefully; wear gloves to avoid cuts during removal/installation
• Reuse existing fasteners unless new hardware is specified; ensure bracket is securely tightened and component alignment is checked

The Leveling Leg is an OEM replacement part for Whirlpool refrigerators. It is one of four legs situated internally at the base corners for proper tilt positioning. It raises or lowers each leg independently to stabilize units on uneven kitchen floors.

Causes of replacement consist of wear from continual torque required during positioning processes. Thread damage or corrosion buildup attributable to floor locations over extended use necessitates periodic renewal as well.

Symptoms involve:

• Doors that fail to align or seal completely during open-close cycles
• Noisy imbalances traced to feet contacting floor surfaces
• Appliance rocking is unable to be remedied through existing leg corrections

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models

This hinge screw secures the door hinge to the appliance cabinet or door. Replacing a missing or stripped screw restores a tight, aligned hinge connection for smooth opening and reliable sealing.

• Fastens the hinge to the frame or door to prevent looseness
• Helps maintain door alignment for smooth opening/closing
• Direct replacement for lost, rusted, or stripped hinge screws
• Common symptoms: loose hinge, door sagging, rubbing/binding, or poor sealing

• Disconnect power before service; if working on a refrigerator, also shut off the water supply
• Support the door before loosening or tightening hinge hardware
• Start threads by hand to avoid cross-threading; tighten securely without over-torquing

This OEM Replacement Part is a single water inlet valve designed for use in Whirlpool refrigerators. Its key function is to supply water to the refrigerator's ice maker and water dispenser. When energized, this valve releases water from the supply line into the ice mold. If the water valve develops a crack, it will need replacement. The valve accommodates two different sizes of tubing: the smaller inlet measures 1/4", and the larger inlet measures 5/16".

By maintaining the integrity of this component, users can ensure the proper functioning of the refrigerator's ice maker and water dispenser. Always consult your appliance manual for accurate installation and replacement guidelines. This part is compatible
with select brands including Whirlpool, KitchenAid, Kenmore, and Maytag.

Color: Grey

The Hinge-Door is an OEM part for Whirlpool refrigerators. The refrigerator door hinge is a crucial component that allows the door to properly open and close while securely holding it in place. These hinges are responsible for smooth and reliable door operation through thousands of openings and closings.

Causes of a bad hinge can include wear and tear from prolonged use, stress from overloading the door, or accidental impact damage.

Symptoms of a bad hinge include:

• The door not closing properly or staying fully shut
• Difficulty or resistance when opening/closing the door
• The door sagging or wobbling excessively
• Noise or grinding sounds coming from the hinge area

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw fastens panels, brackets, and internal components so they stay secure during operation. Replace worn, rusted, or missing screws to restore a solid fit and help reduce vibration, rattles, and misalignment.

• Secures appliance parts to maintain proper fit and alignment
• Helps reduce noise and vibration from loose panels or trim
• Replaces stripped, corroded, or missing fasteners
• Can resolve issues like rattling, gaps, or shifting components

• Disconnect power; turn off gas/water if applicable before servicing
• Match to the original screw and start threads by hand to avoid cross-threading
• Use the correct driver and tighten snugly; do not overtighten into plastic or thin sheet metal
• Replace additional worn fasteners in the same location if needed for even clamping

Color: Grey

This door hinge supports and pivots the appliance door for smooth, aligned opening and closing. Replacing a worn hinge restores proper closing and helps the latch and door seal make consistent contact. What it does:

• Provides the pivot point and structural support for the door
• Maintains door alignment for correct latch engagement and seal contact
• Helps prevent binding, sagging, uneven movement, and squeaks
• Common fix for doors that won't close fully or feel loose/wobbly
• Replaces hinges that are bent, cracked, or show excessive play

• 1 door hinge

• Disconnect power (and shut off gas/water if applicable) before servicing
• Support the door to prevent strain; removal may be required to access the hinge
• Remove hinge cover/trim and mounting screws; transfer any hardware to the new hinge
• After installation, verify alignment and closure; adjust as needed for proper latch and seal contact

This door hinge supports and pivots the appliance door for smooth, aligned opening and closing. Replacing a worn hinge restores proper closing and helps the latch and door seal make consistent contact. What it does:

• Provides the pivot point and structural support for the door
• Maintains door alignment for correct latch engagement and seal contact
• Helps prevent binding, sagging, uneven movement, and squeaks
• Common fix for doors that won't close fully or feel loose/wobbly
• Replaces hinges that are bent, cracked, or show excessive play

• 1 door hinge

• Disconnect power (and shut off gas/water if applicable) before servicing
• Support the door to prevent strain; removal may be required to access the hinge
• Remove hinge cover/trim and mounting screws; transfer any hardware to the new hinge
• After installation, verify alignment and closure; adjust as needed for proper latch and seal contact

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

The cover-unit protects the appliance's control console and provides a finished appearance. It shields buttons, knobs and internal control components from dust, moisture and incidental damage so controls stay usable and the cabinet looks complete. What it does:

• Covers and protects the control console and the underlying control assembly
• Helps prevent debris and moisture from reaching buttons, switches and electronic components
• Restores the appliance's finished look when the original cover is cracked, broken or missing
• Keeps controls stable and reduces the chance of accidental contact or damage

• Disconnect power before servicing to avoid shock or injury
• Remove any trim or console fasteners before replacing the cover
• Handle carefully to avoid scratching the finish; use proper fasteners and align tabs during reassembly
• If controls or wiring are exposed or damaged, inspect wiring and control components.

This cover corner replaces a missing or damaged corner trim piece to restore the refrigerator's interior/exterior finish and help keep shelves and bins seated properly. It provides a clean, finished look and protects edges from wear. What it does:

• Replaces the corner trim/filler that covers panel edges or joins interior liners
• Helps keep adjoining panels, shelves or bins aligned and reduces gaps
• Restores appearance after chipping, cracks or impact damage

• Designed for drop-in or snap-on installation; verify fit against the appliance before final assembly
• Use basic hand tools; avoid excessive force which can crack plastic parts
• Disconnect power if removing interior panels or working near electrical components

This base grille covers the lower front of the refrigerator in a midnight gray finish. It directs airflow to the condenser and protects internal components—restoring proper ventilation and a clean, finished look when the original is damaged or missing.

• Covers the toe-kick area and helps channel cooling air through the condenser compartment
• Protects coils and lower components from bumps and debris
• Restores the unit's finished appearance
• Common symptoms include a cracked or missing grille, loose/rattling panel, or broken mounting tabs

• Disconnect power before servicing; use gloves to protect hands from sharp edges
• Open the doors; remove any retaining screws or release the grille's clips, then pull the old grille forward
• Align the new grille with the mounting points and snap or screw into place
• Ensure vents are unobstructed and the grille is secure before restoring power

This door closing cam mounts at the bottom of the refrigerator door and mates with the hinge cam to raise and lower the door as it swings, promoting smooth self-closing action and a reliable gasket seal.

• Provides lift-and-drop detent at the lower hinge to guide door movement
• Helps the door self-close in the final inches for a consistent seal
• Supports proper door alignment to reduce air leaks and temperature fluctuations
• Common symptoms: door won't self-close, pops/clicks at the hinge, sags or binds, poor seal or moisture around the door

• Disconnect power and remove items from the door to reduce weight
• Support the door; remove hinge cover and lower hinge/pin, then lift the door off carefully
• Replace the cam on the door/hinge as designed; inspect the mating cam and hinge pin and lightly lubricate
• Reinstall, level, and verify smooth closing and proper gasket contact

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This water inlet tube routes supply water from the inlet valve into the appliance's internal water path, restoring a secure flow path and helping prevent leaks, spray, or fill problems caused by cracked, brittle, or clogged tubing.

• Directs water from the inlet valve into the unit's water system/tub
• Replaces tubing that is cracked, kinked, brittle, or mineral-clogged
• Helps resolve leaks near the inlet connection or water dripping during/after fill
• Improves fill performance when the original tube is restricted or collapsing

• Disconnect power and shut off the water supply before servicing
• Place a towel or pan to catch residual water when lines are opened
• Note the tube's routing/orientation; transfer any fittings or clamps and avoid kinks
• Restore water and power, run a test fill, and inspect carefully for leaks

This water outlet tube routes water within the appliance's water system, maintaining a secure, leak-resistant path to its outlet. Replace a cracked, kinked, or leaking tube to restore proper water flow and prevent leaks. What it does:

• Directs water from internal plumbing to the designated outlet/assembly
• Maintains a sealed connection to help prevent drips and leaks
• Typical failure symptoms: water leaking inside or onto the floor; weak or no water flow; visible cracks, kinks, or a loose fit at connections

• 1 water outlet tube

• Disconnect power and shut off the water supply before servicing
• Note tube routing and connection points; remove any clips/fasteners as needed and pull the old tube free
• Fully seat the new tube into each port; ensure any existing seals or clips are positioned correctly
• Run a short test cycle and check all joints for leaks

This fitting connects a flexible water or drain hose to the appliance, restoring a secure, leak-free connection. It's a small replacement part that prevents drips and keeps water flowing where it's needed. What it does:

• Joins a hose to the appliance inlet, outlet, or valve for a sealed connection
• Helps stop leaks at the hose connection point
• Restores proper water flow when a damaged or corroded fitting is replaced
• Works with the appliance hose system; commonly replaced when connections are loose or leaking

• Turn off and unplug the appliance and shut off the water supply before replacing the fitting
• Drain residual water from the hose or lines to avoid spills
• Hand-start threads, then tighten securely with appropriate tool; avoid over-tightening
• Inspect and replace any O-rings or gaskets if worn to ensure a watertight seal
