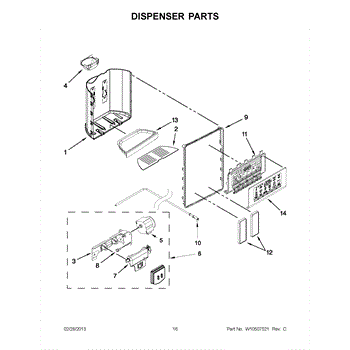

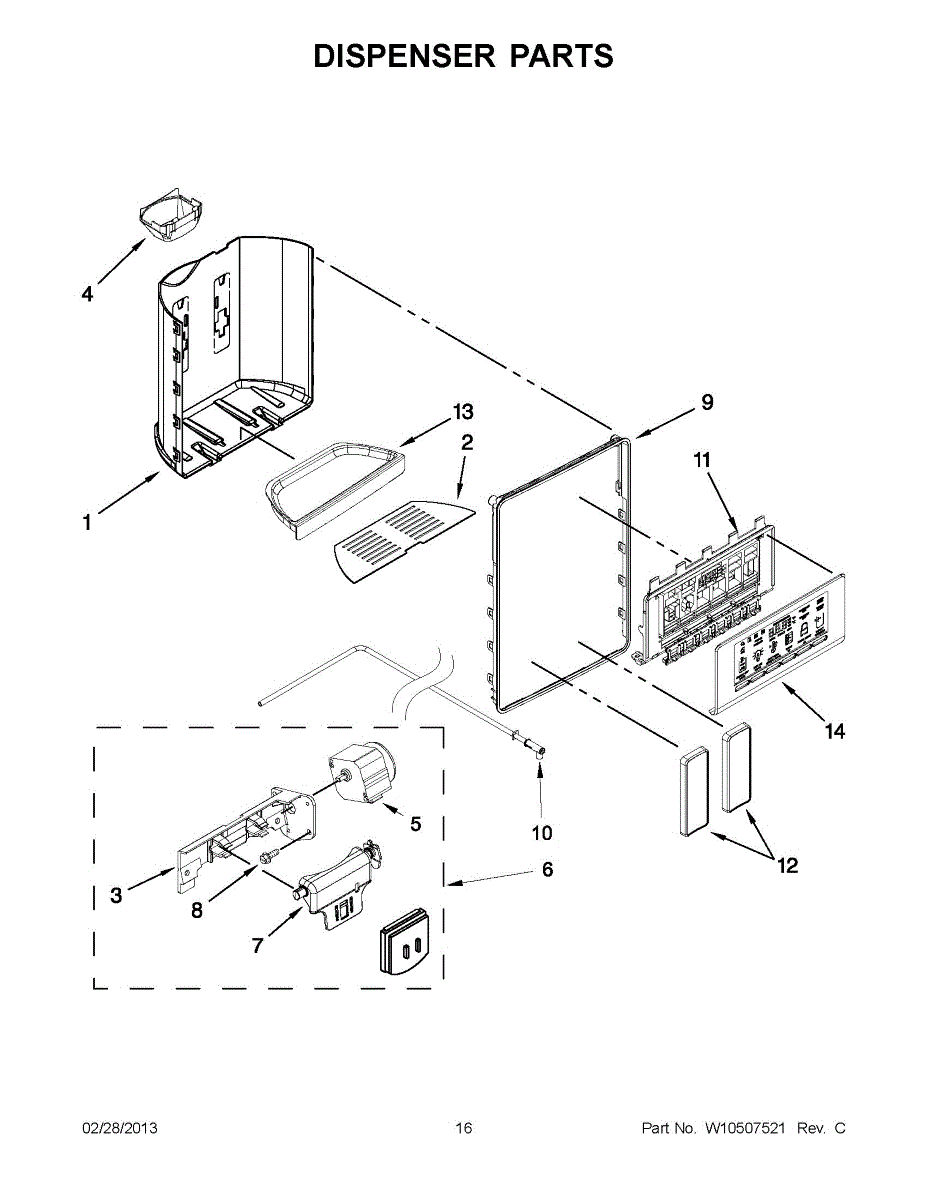

Parts for Whirlpool WRL767SIAM00: 08 - Dispenser Parts

This dispenser drip tray grille sits on the refrigerator's ice/water dispenser tray. It provides a stable rest for cups and lets drips pass into the tray below, keeping the dispenser area neat with a finished, stainless look.

• Supports glasses and mugs while dispensing ice or water
• Slotted design allows moisture to drain into the tray beneath
• Replaces a cracked, warped, stained, or missing grille
• Restores a clean, factory appearance around the dispenser

• Lock the dispenser or disconnect power before servicing near controls
• Lift out the old grille from the drip tray and clean any debris or mineral buildup
• Place the new grille into the tray; ensure it sits flat and drain openings remain clear
• Avoid abrasive cleaners that can damage the finish

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

Color: Midnight Grey

This drip tray is the evaporator drain pan that collects defrost and condensate water to help prevent leaks and water damage beneath the appliance. It restores proper drainage and keeps the cabinet dry. What it does:

• Collects and channels defrost/condensate water away from internal components
• Helps prevent water pooling under or around the appliance
• Reduces risk of water-related damage and odors when installed correctly
• Fits into the factory location to restore original drainage performance

• Disconnect power to the appliance before beginning service to avoid shock.
• Access the tray by removing the lower access panel or grille per the owner's manual.
• Inspect surrounding seals and drain tubing; clear any clogs before installing the new tray.
• Handle parts carefully to avoid damaging adjacent panels; for model-specific instructions.
