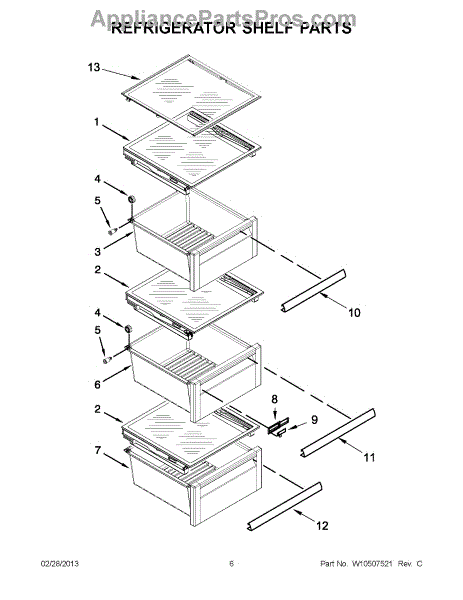

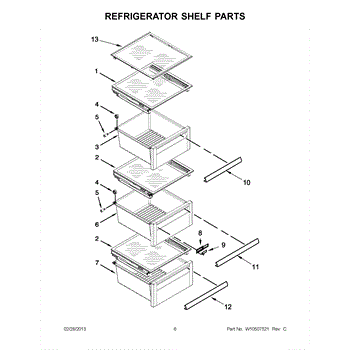

Parts for Whirlpool WRL767SIAM00: 03 - Refrigerator Shelf Parts

The Snack Pan is an OEM part for Whirlpool refrigerators. This part stores snacks and other small food items, providing an organized and accessible storage solution within the refrigerator.  The pan measures approximately 17.25" wide at the front, 20" long, and 5" high.

Common causes of a faulty snack pan include cracks or breaks due to heavy items being placed on it, wear and tear from frequent use, or warping from exposure to temperature fluctuations.

Symptoms of a bad snack pan include:

• Cracks or splits in the pan
• Difficulty sliding the pan in and out
• The pan not fitting securely in its designated space
• Visible warping or bending

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

The Crisper Drawer is an OEM replacement part for Whirlpool refrigerators. Used within the fresh food compartment, this crisper creates a specialized storage area for preserving fruits and vegetables longer. Its precise sliding mechanics and vapor-sealed design maintain optimal humidity for crisping foods while preventing moisture build-up.

Causes of a bad crisper drawer include damaged seals, broken rollers inhibiting opening/closing, or cracking reducing humidity control.

Symptoms of a bad crisper drawer include:

• Warped or stuck drawer movement
• Moisture inside the refrigerator or on stored items
• Dried out or wilted produce due to improper humidity
• Unpleasant odors from lack of proper sealing

It is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, and Kenmore models.

This replacement meat pan restores the refrigerator's deli drawer, giving you a dedicated space for meats and snacks while sliding smoothly on the existing rails. Replace cracked or missing pans to keep contents organized and contained.

• Provides a sliding storage drawer for meats and deli items in the fresh food compartment
• Fits into existing shelf rails for smooth access and organization
• Helps contain spills and prevent items from falling into lower areas
• Replace if the drawer is cracked, broken, warped, missing, or no longer slides/stays on its tracks

• Remove food from the drawer and slide the old pan straight out of the rails
• Inspect/clean the rails and check for bends before installing the new pan
• Transfer any removable trim or accessories from the old drawer, if present
• Align with the rails and slide in until fully seated; do not force

This humidity sensor housing holds and protects the fridge's humidity/control assembly, helping maintain proper humidity-sensing operation and reliable climate control. Designed to replace a cracked or damaged housing to restore proper sensor placement and protection. What it does:

• Secures and shields the humidity sensor and related control components
• Keeps the sensor correctly positioned for accurate humidity detection
• Prevents physical damage and moisture exposure to the sensor assembly
• Helps resolve symptoms like inaccurate humidity readings or loose sensor fit

• Disconnect power to the appliance before starting any repair
• Handle the humidity sensor carefully; remove and reinstall per manufacturer guidance
• Uses basic hand tools; refer to the service manual or OEM instructions for disassembly/reassembly steps
• Replace the affected components rather than reusing damaged parts
