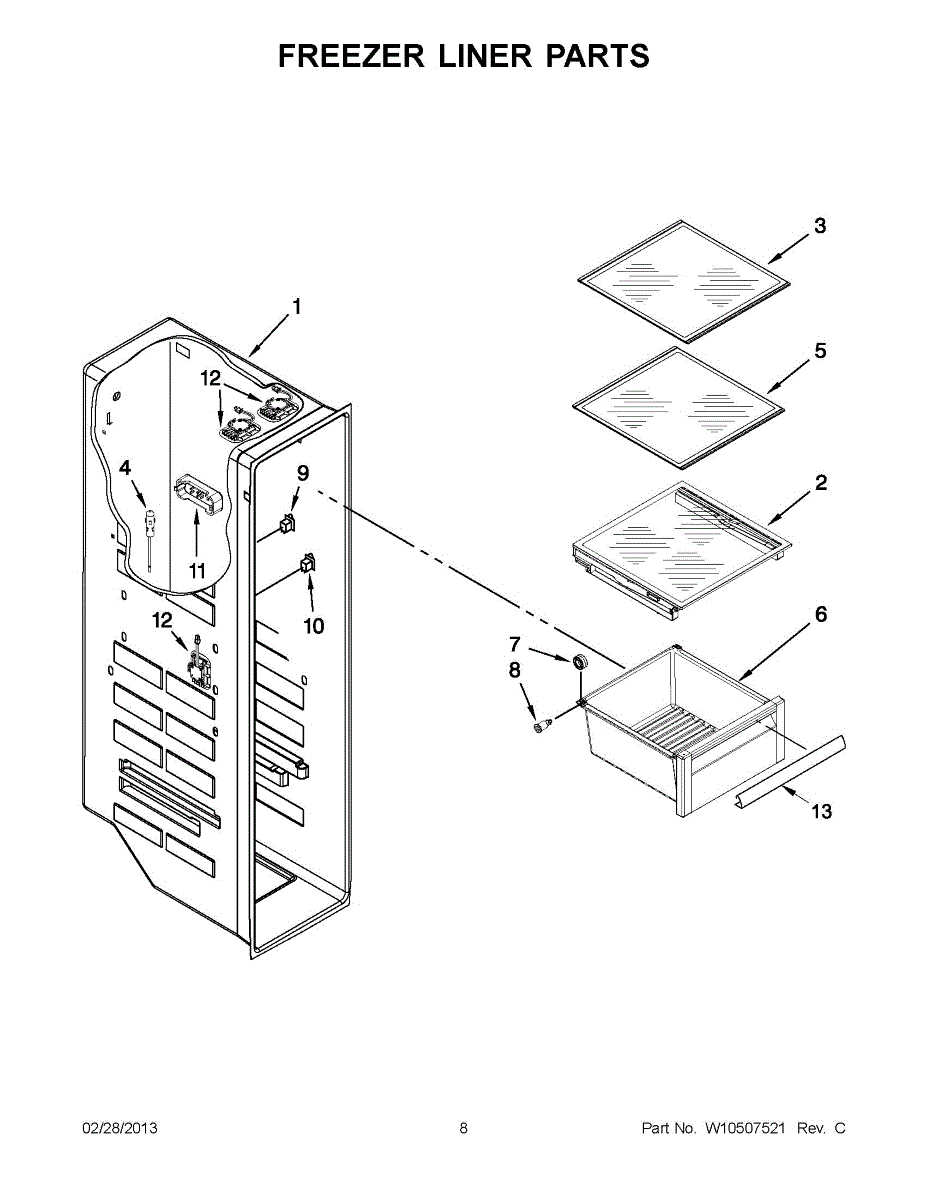

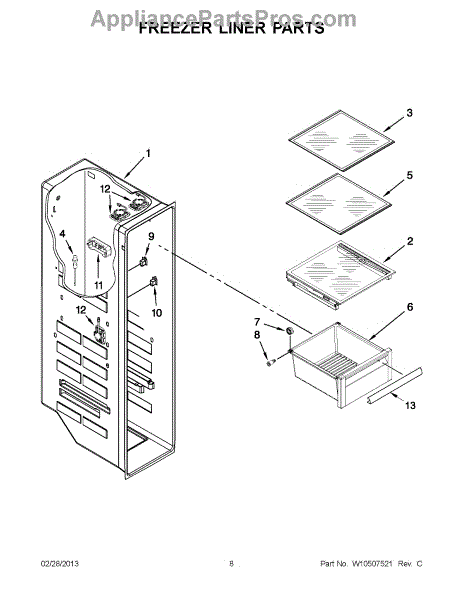

Parts for Whirlpool WRL767SIAM00: 04 - Freezer Liner Parts

This cover assembly replaces a cracked, warped, or missing refrigerator pan cover and restores a stable, flat surface for storing items while helping contain minor spills. Designed to fit into the appliance's existing support rails. What it does:

• Replaces damaged or broken pan cover that no longer supports items or creates uneven shelving
• Provides a flat, stable surface for food storage and beverage containers
• Helps contain small spills on the shelf surface for easier clean-up
• Prevents items from falling into lower compartments when properly installed

• Remove food and any loose items from the shelf area before replacing the cover
• Slide the new cover into the existing rails or support brackets until it seats securely
• Inspect rails or brackets for damage and clean contact areas before installation

This tempered glass shelf provides a flat, stable surface for organizing refrigerated items and restoring proper storage in your refrigerator. It replaces damaged or missing shelving to help keep food items secure and visible. What it does:

• Replaces a broken, cracked, chipped, or missing refrigerator shelf
• Restores a level storage surface for food containers and grocery items
• Helps prevent spills by providing a stable, easy-to-clean work surface
• Re-establishes proper shelf spacing when used with existing rails or supports

• Remove all items from the shelf area before installing
• Handle with care and consider wearing cut-resistant gloves for safety
• Slide the shelf into the existing rails or align it with shelf supports until seated
• Do not force; inspect rails/retainers for damage and replace if they won't hold the shelf securely

This one-piece freezer bin is the molded drawer for the freezer compartment. Replacing a cracked or warped pan restores storage capacity and smooth sliding, keeping frozen items organized and the drawer securely seated on its rails. What it does:

• Holds and organizes frozen food within the freezer compartment
• Interfaces with slide rails for smooth opening and closing
• Replace when cracked, warped, or when mounting tabs are broken
• Common symptoms: drawer wobbles, jams, falls off rails, or won't stay seated

• One freezer bin

• Disconnect power before servicing
• Empty the freezer drawer; remove any upper basket if your model has one
• Lift the old bin off the slides; align and fully seat the new bin on the rails
• Do not force parts; verify smooth travel before reloading food

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
