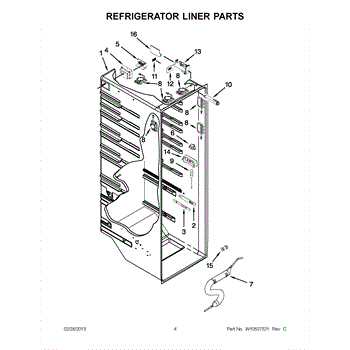

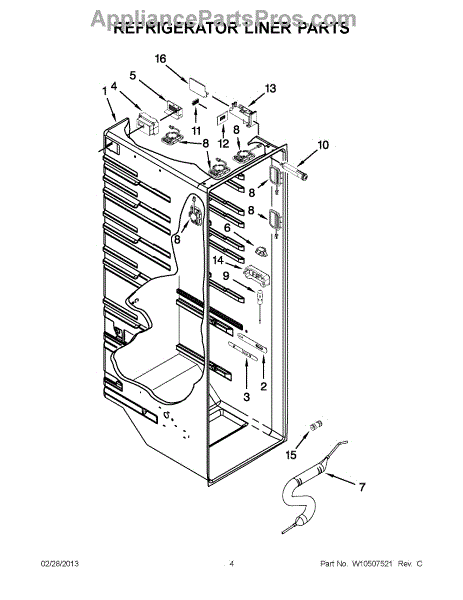

Parts for Whirlpool WRL767SIAM00: 02 - Refrigerator Liner Parts

The Air Diffuser is an OEM component for Whirlpool refrigerators. Located inside the refrigerator compartment, it distributes cold air evenly to all storage shelves and ensures balanced temperatures throughout the space.

Causes of a bad air diffuser can include cracks in the plastic housing from years of fluctuating temperatures or jammed louvers obstructing optimal circulation patterns.

Symptoms of a bad air diffuser include:

• Warm or cooler spots noticed on certain shelves
• Faster melting of ice packs or frost buildup in some areas
• Increased humidity causing moisture condensation issues

This Whirlpool replacement part is also compatible with KitchenAid, Jenn-Air, Amana, and select Kenmore models.

This air diffuser cover replaces the small plastic cover that directs airflow inside the refrigerator fresh food compartment, helping maintain even cooling and proper air circulation for stored foods. What it does:

• Guides and directs cold air from the evaporator into the fresh food area
• Helps maintain consistent temperature distribution on shelves and door bins
• Prevents direct airflow that can cause localized freezing or uneven cooling
• Restores proper fit and appearance where the original cover is cracked or missing

• 1 air diffuser cover

• Designed for drop-in or snap-in installation;
• Power to the appliance is not usually required, but unplug the refrigerator or shut off power if accessing internal components near wiring
• Handle the plastic carefully to avoid cracking; use basic hand tools as needed

The Door Switch is an OEM part for Whirlpool refrigerators. This switch plays a crucial role in monitoring the status of the refrigerator door. It detects when the door is open and closed and signals the refrigerator to suspend or resume cooling operations accordingly.

Causes of a bad door switch can include general wear and tear over time, exposure to moisture, or impact damage. Please check for proper connection and that the wires are intact before replacing the switch.

Symptoms of a bad door switch include:

• The refrigerator fails to resume cooling after closing the door
• The inside light fails to turn on when the door is opened
• Abnormal energy usage due to improper door monitoring

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The LED Module is an OEM part for Whirlpool refrigerators. This module plays a role in illuminating the inside of the refrigerator and freezer compartments. Properly functioning LED lights are necessary for visibility when accessing refrigerator contents.

Over time, exposure to temperature fluctuations and general use can cause LED modules to fail or burn out prematurely. Replacing this OEM Whirlpool part will restore full illumination inside your refrigerator.

Symptoms of a bad LED Module can include:

• Dim or flickering lights inside the refrigerator or freezer
• Partial lighting with some LEDs not working
• Lights that will not turn on at all

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door air diffuser cover protects and directs chilled air inside the refrigerator door, helping maintain even cooling and preventing debris from entering the diffuser assembly. It's a simple cosmetic and airflow-related replacement. What it does

• Covers the door air diffuser to keep the diffuser fins and vents clear
• Helps direct cold air from the evaporator into the door bins and compartments
• Restores proper airflow when a cracked or missing cover causes drafts or reduced cooling in door areas
• Prevents small debris from entering the diffuser assembly

• One door air diffuser cover

• Disconnect power to the appliance before beginning any repair
• Usually replaces by removing the inner door trim or pulling the old cover off the diffuser snaps; handle clips gently to avoid breakage
• Inspect surrounding seals and diffuser fins for damage when replacing the cover

The Water Filter Housing is an OEM part for Whirlpool refrigerators. This part securely holds the water filter in place, ensuring proper water filtration and flow to the dispenser or ice maker.

Causes of a bad part can stem from physical impact or mishandling, excessive force applied when changing the water filter, or general wear and tear over time, leading to deterioration of the housing's materials or mechanisms.

Symptoms of a bad Water Filter Housing include:

• Water leaks around the housing area
• Difficulty in inserting or removing the water filter
• Visible cracks, breaks, or damage to the housing itself

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

This water tube connector joins sections of your refrigerator's water line for the dispenser and ice maker. It restores a secure, leak-resistant connection when the original coupling is damaged or leaking.

• Connects two segments of refrigerator water tubing
• Helps maintain proper water flow to dispenser and ice maker
• Resolves leaks caused by a cracked, worn, or loose connector
• Useful when replacing or rerouting water lines during service

• Disconnect power and shut off the water supply before servicing
• Dispense water to relieve line pressure
• Cut tubing square and insert fully until seated; tug gently to confirm a secure fit
• Restore water and check all connections for leaks; replace any damaged tubing as needed

This small white water filter cover secures and protects the refrigerator's inline/replaceable water filter, keeping the filter seated and helping direct water flow for the dispenser and ice maker. Replaces a cracked, warped, or missing cover to restore a proper seal. What it does:

• Holds the water filter in place so it seals correctly and prevents leaks
• Shields the filter from dirt and damage inside the housing
• Helps maintain correct water flow to the dispenser and ice maker
• Commonly replaced when cover is cracked, broken, or will not latch

• One water filter cover (small, white)

• Turn off the refrigerator water supply and dispense any remaining pressure before removing the old cover
• Handle gently to avoid damaging the filter housing or sealing surfaces
• Ensure the replacement cover is fully seated and latched; check for leaks after restoring water
