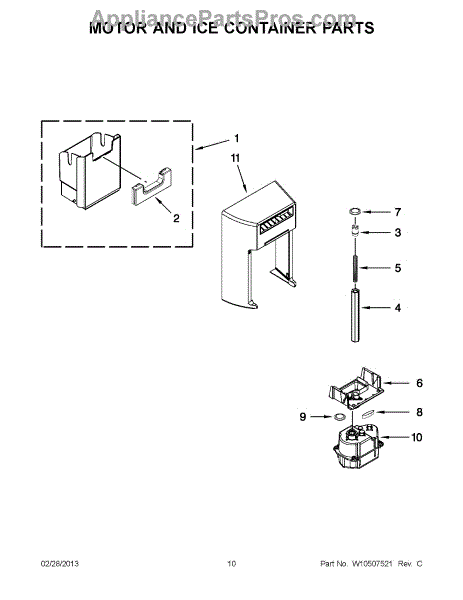

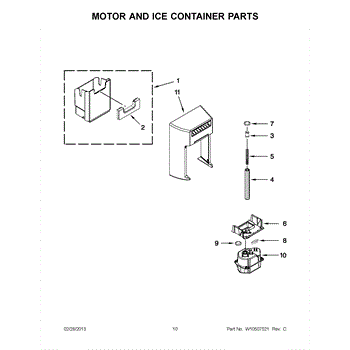

Parts for Whirlpool WRL767SIAM00: 05 - Motor And Ice Container Parts

This ice bin latch assembly secures the refrigerator's ice container so it stays seated and aligned with the auger drive. Replace a worn or broken latch to restore consistent ice dispensing and a snug fit.

• Locks the ice bin in place and aligns it with the auger/dispenser drive
• Helps prevent the bin from wobbling, shifting, or popping loose
• Can resolve no or intermittent ice dispensing caused by bin misalignment
• Direct replacement when the latch is cracked, worn, or missing

• Disconnect power to the refrigerator; turn off the water supply if needed
• Remove the ice bin to access the latch area
• Release retaining tabs/fasteners, note orientation, and install the new latch assembly
• Verify smooth latch engagement before reinstalling the bin and restoring power

The Ice Maker Coupler is an OEM part for Whirlpool refrigerators. It connects the ice maker drive motor to the auger shaft and gear assembly inside the ice storage bin. This allows rotational force to be transferred between components, ensuring efficient ice harvesting and delivery.

Symptoms of a bad ice maker coupler include:

• Slow or inconsistent dispensing of ice
• Improper filling of the storage bin
• Ice that is jammed or dispensed in clumps

Causes can involve normal wear and tear over time that leads to slippage between connected parts. Cracks or fractures in the coupler housing also inhibit smooth transmission of motor power throughout ice vending operations.

This genuine Whirlpool OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hex drive shaft sits inside the ice bucket auger/crusher assembly. It transfers rotation from the dispenser motor to the auger so ice dispenses and crushes smoothly, helping restore consistent ice flow when the original shaft is worn.

• Couples the dispenser motor to the ice-bin auger/crusher assembly
• Maintains positive hex engagement to reduce slippage under load
• Helps with symptoms such as no ice dispensing, auger not turning while the motor runs, clicking/grinding during dispense, or a visibly rounded/corroded shaft
• Replace if bent, stripped, or excessively worn

• Disconnect power and remove the ice bin before service
• Disassemble the auger/crusher stack, noting the exact order of blades, spacers, and washers (take a photo for reference)
• Transfer all components to the new shaft in the same orientation and reassemble per your model's service information
• Ensure the hex end fully seats in the drive coupling; verify smooth auger rotation before reinstalling the bin; wear cut-resistant gloves—edges and blades are sharp

The Spring is an OEM part for Whirlpool refrigerators. It is a small but important internal part that applies pressure to dispense cubed or crushed ice from the refrigerator door. The spring is located within the ice dispenser mechanism and works with a lever to push ice out through the dispenser chute upon activation.

Causes of a bad spring can include wear and tear over time, putting undue pressure on the dispenser by jamming items into the chute, or damage from excessive force applied during dispensing.

Symptoms of a bad spring include:

• Ice cubes or crushed ice becoming jammed or failing to dispense properly
• The ice dispenser failing to push ice fully through the chute
• Excessive pressure needs to be applied to activate the dispenser
• Ice cubes are dispensed in irregular sizes or clumps rather than individual pieces

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Chute Mounting Bracket is an OEM replacement part for Whirlpool side-by-side refrigerators. It securely positions the removable ice chute opening above the storage bin.

Causes for bracket failure involve standard wear from long-term usage. Repeated lifting of the chute subjects mounting screws and anchors to consistent force strains over many seasons.

Symptoms requiring replacement involve:

• Loose, sagging or detached ice chute positioning
• Lost or stripped mounting fasteners
• Ice jamming or spillage due to misaligned openings
• Safety hazards from potential pinch points

This authentic Whirlpool replacement is compatible with Jenn-Air, KitchenAid and Maytag panel-ready stainless steel refrigerators as well.

The Drive Shaft Seal is an OEM part for Whirlpool washing machines. It plays a role in preventing water from leaking out of the tub and onto the drive system. This seal ensures that the connection between the drive shaft and the washing machine tub remains watertight, protecting the mechanical components from water damage and corrosion.

Causes of a bad drive shaft seal include aging and deterioration of the material, excessive load sizes that strain the washer, and foreign objects caught between the seal and the shaft, which can lead to tears or breaks.

Symptoms of a bad Drive Shaft Seal include:

• Water leakage from the underside of the washing machine
• Unusual noises during the spin cycle
• A visible tear or damage to the seal itself
• Increased vibration and movement of the machine during operation

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This ice chute gasket seals the dispenser funnel opening to the freezer door. A tight seal keeps warm air and moisture out of the chute, helping prevent frost buildup, condensation, and drips around the dispenser. What it does:

• Seals the ice dispenser chute/funnel to prevent air leaks
• Helps reduce frost and ice buildup in the chute area
• Minimizes condensation and water droplets at the dispenser opening
• Supports consistent ice flow by limiting clumping from warm air intrusion

• 1 ice chute gasket

• Disconnect power to the refrigerator before servicing
• Remove dispenser trim/control and funnel to access the gasket
• Note orientation; press the new gasket evenly into place without stretching
• Reassemble and verify the ice door closes and seals properly

The Coupling is an OEM replacement part for Whirlpool French door bottom-mount refrigerators equipped with an interior automatic icemaker. As an internal part, this coupling connects the auger motor to the ice mold assembly, allowing the motor to transmit rotational force during the ice harvest cycle.

Causes of a damaged coupling can include regular wear from years of exposure to changing temperatures inside the refrigerator. Mineral deposits accumulating on surfaces over many harvest seasons have the potential to deteriorate plastic material. Physical obstructions lodged in the icemaker mechanism could potentially bend or crack the coupling.

Symptoms of a failing coupling involve:

• Inability of the auger motor to engage fully and eject frozen cubes
• Grinding or knocking sounds emitting from the icemaker
• Restricted or incomplete ice harvest that leaves cubes in molds

This OEM replacement is compatible with some Kenmore Elite French door models.

The Auger Motor is an OEM part for Whirlpool refrigerators. This motor powers the auger mechanism in the ice maker, which is responsible for dispensing ice through the door. The auger motor turns the auger blade, pushing ice from the bin through the chute to the dispenser.

Common causes of a bad auger motor include wear and tear from regular use, electrical failures, or damage from ice jams. A malfunctioning auger motor can lead to issues with ice dispensing and may prevent ice from being dispensed altogether.

Symptoms of a bad auger motor include:

• Ice not dispensing when the lever or button is pressed
• Unusual noises or grinding sounds during ice dispensing
• The auger not turning or moving intermittently
• No ice being pushed through the chute

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This ice container (ice bin) stores ice made by the icemaker and interfaces with the dispenser drive to deliver cubes or crushed ice. Replacing a cracked or worn bin restores dependable ice storage and dispensing performance.

• Holds finished ice and guides it to the dispenser chute
• Engages the drive to move ice out when the dispenser is activated
• A cracked, warped, or stripped bin can cause no/slow ice dispensing or jams
• Damage may prevent the bin from seating fully or allow ice to spill/frost up

• Unplug the refrigerator or switch off power at the breaker before servicing
• Remove the old bin, clear any clumped ice, and seat the new bin so the rear drive interface engages—do not force
• Restore power and allow the icemaker to produce ice before testing dispensing
