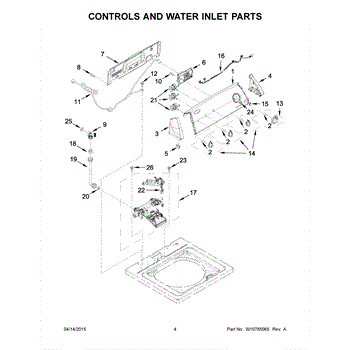

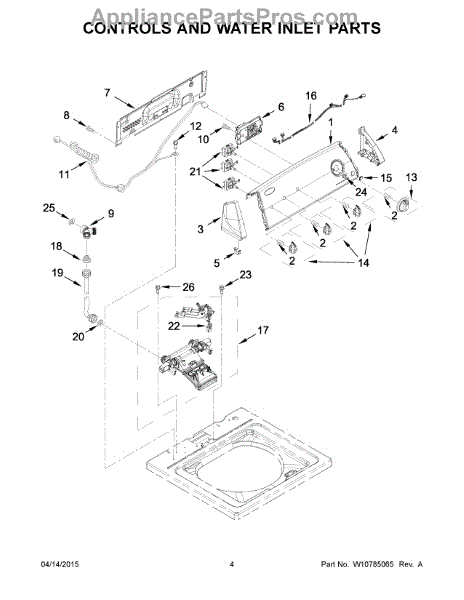

Parts for Whirlpool 1CWTW4800YQ2: 03 - Controls And Water Inlet Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This control panel finish assembly replaces the front console trim and user interface area to restore a clean, secure control surface and readable button/labeling. Ideal for repairing cosmetic damage or replacing a cracked or worn panel. What it does

• Provides the exterior finish and mounting surface for the appliance's control buttons and display
• Restores worn, cracked or discolored console appearance
• Helps resolve issues where buttons or the control overlay are damaged or detached
• Re-establishes proper fit and alignment between the control electronics and the front console

• Disconnect power to the appliance before starting any repair
• Handle the panel carefully to avoid scratching the finish or damaging mounting tabs
• Basic hand tools are usually required; follow your model's service instructions for removal and reinstallation
• If the electronic control or display is damaged, replace that component separately.

The Knob Spring Clip is an OEM part for Whirlpool appliances, specifically designed for use in washers and dryers. This small but essential component is responsible for securing the control knob to the control panel, ensuring that the knob stays firmly in place during operation.

Common causes of a bad spring clip include frequent use, accidental impacts, or wear and tear over time. A faulty spring clip can result in the control knob becoming loose or falling off, making it difficult to operate the appliance.

Symptoms of a bad knob spring clip include:

• The control knob is loose or wobbly
• The control knob falls off easily
• Difficulty in turning or setting the control knob
• The appliance not responding correctly to knob adjustments

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This left end cap assembly replaces a damaged or missing left-side trim piece to restore the appliance's finished appearance and protect internal components from debris. It fits where a left end cap mounts on the control/door edge. What it does:

• Covers and protects the left edge of the control panel/door area from impacts and dirt
• Restores the factory appearance when the original end cap is cracked, broken, or missing
• Helps secure adjacent trim and prevents gaps that can catch clothing or allow debris
• Prevents vibration or rattling caused by a loose or damaged end cap

• One left end cap assembly

• Disconnect power (unplug or shut off breaker) before beginning work
• Removal/installation typically requires removing nearby trim or screws; handle clips gently to avoid breakage
• Use existing mounting hardware unless replacement hardware is explicitly specified

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This Y-shaped connector hose diverts water between two inlet lines to route supply where needed. It restores proper water flow paths and replaces damaged or leaking split-connection plumbing on compatible appliances. What it does:

• Splits a single water inlet into two outlets so water can serve two components
• Provides a sealed path to prevent cross-flow between lines
• Commonly replaced when the connector leaks, cracks, or becomes brittle
• Helps restore normal water delivery when a split supply is required

• Turn off the appliance and shut off the water supply before beginning.
• Inspect mating fittings and replace any damaged clamps or seals.
• Hand-start fittings to avoid cross-threading, then tighten securely; check manufacturer torque guidance if available.
• After installation, restore water and power and check all connections carefully for leaks.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This heavy-duty replacement power cord restores the appliance's connection to household power, delivering reliable electrical continuity for normal operation. Ideal when the original cord is damaged, burned, or fails to supply power. What it does:

• Carries mains electricity from the wall outlet to the appliance so controls and heating elements can operate
• Replaces frayed, cracked, melted, or otherwise damaged cords that may cause intermittent power or no power
• Helps eliminate sparking, overheating, or visible insulation damage at the cord or plug
• Matches the OEM fit and wiring configuration for a direct replacement when compatible

• One power cord

• Disconnect power at the breaker or unplug the appliance before beginning any work
• Verify wiring color and connector orientation match the appliance before attaching
• Secure strain relief and routing to prevent pinching or chafing; tighten terminal connections firmly

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: gray. Measures about 3 inches in diameter.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This grommet fits around the start/pause pushbutton to cushion the button, keep it aligned, and help block moisture and debris from entering the control console. It restores reliable button feel and appearance. What it does:

• Cushions and centers the start/pause pushbutton for smooth operation
• Helps seal the control panel around the button to reduce moisture and debris intrusion
• Prevents button wobble and improves tactile feedback when pressing start/pause
• Common symptom: button sticks, feels loose, or the console shows wear around the button

• One start/pause button grommet

• Disconnect power to the appliance before starting any work
• Access usually requires removing the control console or panel
• Snap the grommet into the control panel and reinstall the button; avoid stretching or using solvents
• If the button or switch shows damage, inspect those components as well before finishing reassembly

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

Size: 1-1/16 x 5/8 inch. Used for fill hose. For a 4 pack order 285448A

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

This main wire harness routes power and signals between the appliance control and internal components to restore proper electrical connections and operation. It's a direct-fit replacement when the original harness is damaged. What it does:

• Connects control board, motors, switches and sensors so circuits receive power and communicate correctly
• Replaces frayed, broken, or corroded wiring that can cause intermittent operation or component failure
• Helps stop issues like no power to controls, intermittent runs, or unexpected shutdowns when caused by damaged wiring
• Maintains factory routing and connector types for reliable electrical connections

• One main wire harness

• Disconnect power (unplug or shut off breaker) before inspecting or replacing the harness
• Compare harness and connectors to the original and route wires following factory paths to prevent chafing
• Secure connectors fully until they click; avoid stretching wires when reinstalling

This replacement screw secures panels, brackets, and internal components within your appliance. Replacing a missing or damaged fastener restores a tight fit, reduces vibration and noise, and helps keep parts properly aligned during operation.

• Fastens panels, trim, brackets, or internal components to the chassis
• Maintains proper alignment and stability during normal use
• Replaces missing, rusted, or stripped hardware
• Common symptoms: loose or rattling panels, vibration, difficulty fastening, or a visibly missing screw

• Disconnect power; for gas appliances, also shut off the gas supply
• Match length and thread to the original; replace one-for-one in the same location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving hole is stripped, repair threads or replace the clip/nut before installing

This small mounting screw secures the appliance's timer to its bracket or control console. It replaces missing or stripped hardware to keep the timer stable, properly aligned, and operating smoothly when you turn the control knob.

• Fastens the timer assembly securely to its mounting bracket or console
• Prevents shifting and vibration that can make the control feel loose or wobbly
• Helps maintain proper alignment of the timer shaft/knob
• Ideal replacement when original hardware is missing or threads are damaged

• Disconnect power before servicing; shut off gas if applicable
• Access the control console and support the timer while removing/reinstalling hardware
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening into plastic or thin metal
• Replace screws one at a time to keep the timer aligned

This washer hose adapter provides a secure connection between the machine inlet and external water supply fittings on export-style washers. It restores a proper water feed and helps stop leaks at the hose-to-appliance connection. What it does:

• Adapts the washer's inlet to match export-style water supply hoses and fittings.
• Creates a watertight seal at the hose-to-appliance connection to prevent leaks.
• Restores proper water flow when the original adapter is damaged, cracked, or missing.
• Helps eliminate intermittent filling or slow-fill symptoms caused by a poor hose connection.

• One washer hose adapter (export) as pictured.

• Turn off water supply and unplug the washer before installing.
• Hand-tighten connections, then give a quarter-turn with pliers if needed; avoid overtightening.
• Inspect inlet and hose threads/seals for damage and replace if worn.

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function
