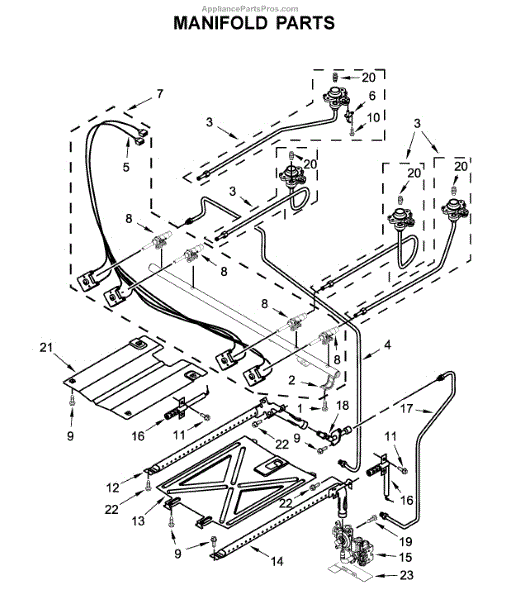

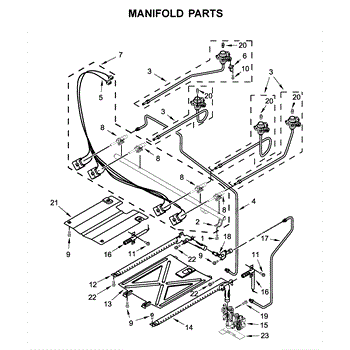

Parts for Ikea IGS426AS2: Manifold Parts

This is a direct-replacement screw used to secure appliance panels, brackets and other small components. It restores proper fastening where the original screw is missing, stripped, or corroded to help reduce rattles and looseness. What it does

• Fastens panels, trim, brackets and similar small appliance parts
• Restores a secure connection when the original fastener is missing or damaged
• Helps stop vibration-related rattling and movement of mounted components
• Matches the original mounting point to maintain proper alignment

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and do not overtighten to prevent damage to the mating part
• Replace only with the same part number or equivalent for proper fit

This Holder ORF is a small replacement mounting bracket that secures the ORF assembly or related component in your appliance, restoring stable placement and preventing movement that can cause noise or functional issues. What it does

• Secures the ORF assembly or adjacent component to the appliance frame to keep it properly positioned
• Prevents vibration and rattling caused by a loose or damaged holder
• Helps maintain correct alignment for connected parts or wiring
• Reduces risk of intermittent operation caused by a loose mount

• Disconnect power to the appliance before servicing to avoid shock or injury
• Basic hand tools (screwdriver/needle-nose pliers) are typically required;
• Inspect surrounding clips and fasteners; replace any that are worn or broken for a secure fit

This is a replacement Holder for securing the ORF assembly in the appliance. It restores support and alignment to the ORF component so the assembly stays properly positioned and reduces movement or noise. What it does:

• Secures the ORF assembly to the appliance frame to maintain proper alignment
• Helps prevent rattling, shifting, or sagging of the attached component
• Restores stable operation of the ORF-related parts and improves fit
• Can address symptoms such as loose or misaligned parts and unusual noises

• One Holder

• Disconnect power to the appliance before starting any repair
• Follow the appliance service manual for exact removal and replacement steps
• Keep small fasteners and clips organized during disassembly

This orifice holder assembly secures the burner orifice and helps regulate gas flow for a consistent cook flame. It replaces a worn or damaged holder to restore proper burner alignment and reliable ignition. What it does:

• Holds the gas orifice in position at the burner for stable flame delivery
• Ensures correct spacing between orifice and burner for consistent ignition
• Helps reduce uneven flames or burner misalignment that can affect cooking
• Used when the holder is cracked, bent, or no longer secures the orifice

• Turn off gas supply and disconnect power before servicing; follow local codes.
• Handle small parts carefully and verify orifice seating during reassembly.
• Do not force parts; inspect nearby seals and valves for related damage.

This wire harness routes power and signals between controls and components to restore correct electrical connections. It replaces a damaged or worn harness to help appliances regain reliable operation and reduce electrical faults. What it does:

• Connects control board, switches, and powered components so they can communicate and receive power
• Restores broken, burnt, or loose wiring paths that cause intermittent or lost function
• Helps resolve symptoms such as controls or indicators not responding, elements or motors not powering, or intermittent operation
• Maintains insulated, organized wiring to prevent shorts and improve safety

• Disconnect all power (unplug or shut off breaker) before starting any repair
• Compare connectors and wire lengths to the original harness before installing
• Route harness to avoid sharp edges and moving parts; secure with existing clips or ties

This surface burner spark electrode creates the arc that lights the gas at the burner. Replacing a worn or cracked electrode restores quick, reliable ignition on your gas cooktop or range.

• Generates a high-voltage spark to ignite the surface burner gas
• Sits beside the burner head and fires when a control knob is turned
• Common symptoms: burner won't light, no/weak/intermittent spark at one burner, visible cracks in the ceramic, arcing to the cooktop
• Helps restore consistent ignition when the original electrode is damaged or contaminated

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove burner cap and head to access the electrode; access may be from the top or beneath the cooktop per your model's service information
• Transfer any mounting hardware from the old part; route the spark wire as originally and seat the tip at the same gap/position to the burner
• Avoid striking or overtightening the ceramic insulator; keep the tip clean and dry during installation

The Burner Valve (RR) is an OEM part for Whirlpool ranges. It controls the flow of gas to the rear-right burner, allowing for precise regulation of the flame during cooking. The valve ensures safe and efficient operation by opening and closing as needed to adjust the burner’s heat output.

Over time, burner valves can become faulty due to wear and tear, grease buildup, or internal damage. Exposure to high heat and repeated use may cause the valve to stick, leak, or fail to regulate gas properly. If the valve becomes obstructed or worn out, it can compromise cooking performance and safety.

Symptoms of a bad burner valve include:

• Inconsistent or weak flame
• Gas smell near the burner when turned off
• Difficulty igniting the burner
• The burner not shutting off completely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This surface burner valve controls gas flow to an individual cooktop or range burner, enabling safe, precise flame adjustment. Replacing a worn valve restores reliable ignition, smooth flame control, and proper shutoff at the knob.

• Regulates gas supply to one surface burner as you turn the control knob
• Helps address a burner that won't ignite, erratic or unresponsive flame adjustment, or a stiff/stripped valve stem
• Provides positive shutoff when the knob is in the Off position
• Saddle-style mounting on the gas manifold

• Shut off gas supply and disconnect power; allow the appliance to cool
• Access the manifold and note knob orientation and tubing/orifice connections for reassembly
• Use an approved thread sealant only where specified by the manufacturer; do not overtighten fittings
• After installation, leak-check all joints with a soap-and-water solution and verify ignition and low-flame adjustment

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

This is a genuine replacement screw used to secure appliance components. It provides a simple, reliable fastener for reattaching panels, brackets, or assemblies so parts stay properly mounted and stable during operation. What it does

• Secures panels, trim, brackets or small assemblies in place
• Restores proper fastening where a missing or damaged screw causes loose parts or rattling
• Prevents movement that can lead to noise or misalignment of adjacent components
• Used wherever the original screw was removed or lost during repairs

• One replacement screw

• Use the matching screw head and thread engagement; do not force if it does not seat smoothly
• Tighten until snug—avoid overtightening to prevent stripping or cracking plastic parts
• Disconnect power before working on electrical appliances and follow basic safety precautions
• If original screw was rusted, check mating threads for damage before installing new fastener

This broiler burner provides the gas flame for the oven's broil function, restoring high-heat cooking performance for searing and browning. Designed for direct-spark-ignition (DSI) ranges, it replaces a worn or damaged broil element. What it does:

• Produces the high, direct flame used for broiling food on the oven's top rack
• Replaces a cracked, rusted, or clogged burner that causes uneven or weak broiling
• Stops burner-related ignition issues when the burner tube or ports are damaged
• Helps restore proper heat distribution for faster browning and searing

• One broiler burner

• Disconnect electrical power and shut off the gas supply before starting work
• Handle gas connections and igniter areas carefully; inspect for leaks after installation
• Use basic hand tools; ensure the burner seats and aligns with the gas orifice and igniter

This flame spreader directs and evens the oven burner flame for more uniform heating and improved bake results. Replacement spreaders restore proper flame pattern and help reduce hot spots in the oven cavity. What it does:

• Distributes burner flame across the oven surface to promote even cooking and baking.
• Helps prevent concentrated hot spots that can cause unevenly cooked food.
• Can restore correct flame pattern when the existing baffle is warped, damaged, or missing.
• Supports stable burner operation by shielding and guiding the flame.

• Turn off power to the range and shut off the gas supply before servicing.
• Handle carefully to avoid bending or damaging the baffle; reinstall in the original orientation.
• Use appropriate hand tools and follow the oven's service manual for removal/installation steps.
• After installation, restore gas and power and check burner ignition and for any gas leaks per safety procedures.

This oven bake burner is designed for Direct Spark Ignition (DSI) ranges. It channels gas from the bake orifice and distributes an even flame under the oven floor for consistent baking performance and reliable light-off during the bake cycle.

• Distributes gas through burner ports to create an even bake flame
• Works with the DSI spark electrode to ignite the bake flame
• Can address uneven or weak flame patterns and delayed ignition in bake

• Disconnect power and shut off gas; allow the oven to cool completely
• Remove the oven bottom and flame spreader to access the burner
• Transfer any reusable mounting hardware or shields from the original burner
• After reassembly, restore gas/power and leak-test any disturbed gas connections per local code

This gas valve controls the flow of gas to a burner, enabling safe ignition and a stable flame. Replace a sticking or failed valve to restore dependable lighting and consistent heat output from your cooking appliance.

• Regulates and shuts off gas flow from the manifold to the burner
• Supports clean ignition and steady flame during operation
• Common symptoms: burner won't light even with spark/igniter present, flame won't adjust or is erratic, control stem is stiff or stripped
• Can help resolve intermittent flame-out or weak flame caused by internal valve wear

• Disconnect power and shut off the gas supply before servicing
• Note tubing/orifice orientation and transfer fittings as required
• Apply gas-rated thread sealant to tapered pipe threads only
• After installation, open gas and leak-test all joints with an approved solution; verify ignition and proper flame height

This broil burner spark electrode generates the ignition spark at the oven's broil burner so the flame lights reliably when you select Broil. Replacing a worn or cracked electrode restores consistent broil ignition and reduces repeated clicking.

• Provides a high-voltage spark at the broil burner to ignite gas
• Works with the range's spark/ignition module to light the broiler
• Common symptoms: broiler won't light, intermittent or delayed ignition, continuous clicking with no flame, cracked ceramic insulator
• Spark-style component (not a glow-bar igniter)

• Disconnect electrical power and shut off gas; allow the oven to cool completely.
• Remove oven racks and any flame spreader/guard to access the broil burner area.
• Note electrode position and gap to the burner port; transfer mounting hardware and avoid stressing the ceramic insulator.
• Route and reconnect the ignition wire/harness away from heat and sharp edges; restore gas and power and test ignition.

The Oven Igniter is an OEM part for Whirlpool ovens. It is designed to ignite the gas in the oven burner, providing the heat necessary for baking or broiling. This igniter is critical for the oven’s functionality, as it must heat up to a specific temperature to open the gas valve and begin the combustion process.

Symptoms of a bad Oven Igniter include:

• The oven failing to heat up despite the gas being turned on.
• A gas smell indicating that gas is being released without ignition.
• Intermittent heating, where the oven fails to maintain a consistent temperature.

Causes of a bad oven igniter can include aging and wear that reduce the igniter’s ability to reach the required temperature, electrical issues such as faulty wiring or connections, or a malfunctioning safety valve that doesn’t open properly.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This is a replacement fitting used to connect and secure a flexible hose or water line to the appliance, restoring a proper sealed connection and helping stop leaks at the joint. What it does:

• Provides a secure connection point for a flexible hose or water line
• Restores a sealed joint to prevent drips or slow leaks at the connection
• Helps maintain proper water flow to components that rely on a direct hose feed
• Replaces damaged, cracked or worn fittings that cause poor seals

• Shut off water supply and unplug the appliance before servicing
• Inspect mating hose and clamp for damage; replace clamp or hose if needed for a reliable seal
• Hand-start threads or push-fit connections to avoid cross-threading; tighten per OEM guidance

A self-tapping screw used to secure appliance panels and components, providing reliable fastening to sheet metal and plastic parts. Replaces worn or missing fasteners to restore proper fit and reduce rattling. What it does:

• Fastens panels, brackets, or trim to appliance frames and housings
• Creates its own threads in sheet metal or plastic for a secure hold
• Helps stop loose panels, vibration noise, and misaligned parts
• Commonly used where a short, durable fastener is needed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or driver bit to avoid stripped heads
• Start threads carefully and avoid over-torquing to prevent damage
• Wear eye protection and gloves when working with sheet metal

This orifice is a small gas flow fitting for a range or cooktop burner that helps regulate fuel delivery for proper flame performance. It restores correct burner operation when the existing orifice is clogged or damaged. What it does:

• Controls the amount of gas delivered to a specific burner for correct combustion
• Helps restore even, steady flame or consistent heat output
• Commonly replaced when burners sputter, produce weak flames, or will not light reliably
• Works as a direct-fit replacement for the matching OEM orifice on compatible gas ranges/cooktops

• One orifice

• Turn off the gas supply and unplug the appliance before beginning service
• Use correct-sized wrenches and avoid overtightening; follow OEM torque if available
• After installation, check all connections for leaks with a soap solution or approved gas leak detector

This natural-gas orifice spud is sized for the 5K burner position on compatible gas cooktops and ranges. It meters gas to the burner to set proper flame height, helping restore consistent heat when the original orifice is clogged, damaged, or incorrect. What it does:

• Regulates gas flow for the designated burner; calibrated for the 5K position on natural gas systems
• Can help resolve weak or oversized flames, yellow/lazy flames, uneven heating, or intermittent ignition
• Required when converting back to natural gas on applicable units; not for LP gas
• Installs in the orifice holder/manifold beneath the burner head

• Shut off gas supply and power; allow the cooktop/range to cool completely
• Remove burner cap and head to access the orifice
• Use the correct nut driver; hand-start threads and tighten snugly—do not overtighten
• Reassemble, leak-check connections with soapy water, and verify flame quality per the service instructions

Precision-machined orifice spud that meters natural gas to a range or cooktop burner. The #9 size restores correct fuel flow and flame characteristics when replacing a clogged or damaged orifice or when installing the model's specified natural-gas orifice.

• Regulates gas flow to the burner for proper flame size with natural gas
• Replaces a worn, blocked, or stripped orifice to improve flame quality
• Used during fuel conversion when the model calls for a #9 NG orifice
• Helps with symptoms: small/weak flame, uneven flame pattern, or a burner that won't stay lit

• Disconnect power and shut off the gas supply; allow the appliance to cool
• Hand-start threads, then snug gently—do not overtighten; keep the orifice and holder free of debris
• Restore gas, check all connections for leaks with a soapy-water solution, and verify proper flame

This orifice spud meters gas to a burner on your range or cooktop, setting proper flame size for efficient, even heating. Replacing a damaged or incorrect spud restores consistent burner performance and flame quality.

• Meters gas flow through the burner orifice to control flame height and shape
• Supports efficient combustion and consistent heat output
• Common fix for flames that are too high/low, yellow/sooty, or uneven
• Used when setting up or converting a model for the specified fuel type (LP or natural), per the position of each burner

• Shut off the gas supply and disconnect electrical power before servicing
• Remove the burner cap and head to access the spud; lift the cooktop or open the range top if required
• Remove/install with a properly sized wrench; do not overtighten. Apply thread sealant only if specified by the manufacturer
• Match each spud to the correct burner and fuel type per your model documentation; after reassembly, restore gas and leak-test with a soapy-water solution

The LP Bake and Broil Kit is an OEM replacement part for Whirlpool ranges. It is a kit containing everything needed to convert the oven from Natural gas to LP.

Causes of a bad bake/broil system can include cracks, leaks, or corrosion in gas lines that produce unsafe flames over time. Pilot lights may fail to light consistently.

Symptoms of failures include:

• Inability to ignite bake/broil burners
• Erratic or intermittent baking temperatures
• Uneven cooking due to improper burner positioning
• Strong gas or chemical smells from the oven

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.
