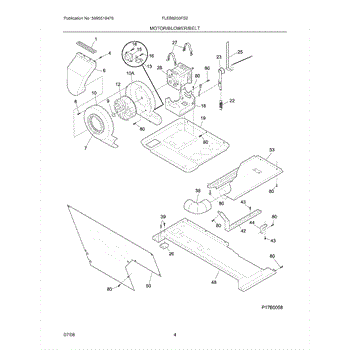

Parts for Frigidaire FLEB8200FS2: 05 - Motor / Blower / Belt Parts

This air duct seal creates a tight barrier between the dryer's lint housing and cabinet. Replacing a worn seal helps prevent air leaks, maintain proper airflow through the lint filter, and restore consistent drying performance.

• Seals the air duct/lint housing to the front panel to direct airflow through the lint screen and drum
• Helps maintain dryer efficiency and temperature control by preventing bypass air leaks
• Common symptoms of a failed seal include longer dry times, weak exhaust airflow, excess lint inside the cabinet, or lint around the door opening
• Replaces a deteriorated or missing seal to restore the intended air path

• Disconnect power; shut off gas supply for gas models
• Access the air duct by removing the lint screen and top/front panels as needed
• Remove the old seal and any residue; clean mating surfaces before installing the new seal
• Seat the duct evenly against the panel when reassembling to ensure a uniform seal

A replacement mounting screw used to fasten panels and components in compatible Frigidaire appliances. Replacing a missing or damaged screw restores secure fastening, reduces vibration/rattling, and helps keep parts aligned for reliable operation. What it does:

• Secures panels, trim, brackets or small components to prevent movement and rattling
• Replaces missing, stripped, or damaged fasteners that can cause loose or misaligned parts
• Helps maintain proper fit and finish of appliance panels and access covers
• Useful when a loose screw causes vibration noise or minor part movement

• Unplug the appliance or shut off power at the breaker before servicing electrical appliances
• Use the correct screwdriver or bit to match the screw head to avoid stripping
• Start threads by hand, then tighten until snug; avoid overtightening which can strip threads or crack plastic
• Keep small parts away from children and retain any removed hardware for reuse

The blower housing seal is a perimeter gasket that closes the gap between the blower housing and the adjoining duct or bulkhead. It keeps airflow contained for efficient operation and helps prevent air leaks and debris from escaping.

• Seals the blower housing joint to minimize air leakage
• Helps maintain proper airflow for consistent performance
• Reduces dust/debris escape into the cabinet or surrounding area
• Replaces torn, brittle, flattened, or missing seals that can cause weak air output or rattling

• Disconnect power; turn off gas supply before servicing.
• Access the blower housing; note the original routing/orientation of the seal.
• Remove the old seal and clean mating surfaces of lint and residue.
• Seat the new seal evenly with no gaps or twists; reassemble and verify airflow.

PPH ab st/z/ch `6 - 18x.60

This factory clamp secures a hose or tubing connection so it stays tight during normal operation. Replace a worn or rusted clamp to restore a firm hold and help prevent leaks, drips, or accidental disconnections.

• Holds a hose, tube, or duct firmly to its fitting
• Helps maintain a sealed connection under vibration
• Helps resolve loose connections, drips/moisture at a joint, or rattling noises
• Common wear includes loss of tension, corrosion, or visible damage

• Disconnect power; if servicing a water line, shut off the water supply
• Note the original clamp position and orientation before removal
• Use appropriate hand tools (pliers, screwdriver, or nut driver as applicable)
• After installation, test for leaks or movement

This replacement housing is the body that holds the washer's detergent drawer and channels rinse water through each compartment into the tub. Replacing a cracked or warped housing restores proper dispensing and helps prevent leaks at the dispenser area.

• Supports and aligns the detergent/bleach/softener drawer
• Routes incoming water to flush each compartment into the wash tub
• Interfaces with inlet hoses and outlet chute for proper flow
• Common symptoms: water leaking from the dispenser/front panel, detergent or softener left in the drawer, poor dispensing, drawer difficult to open/close

• Disconnect power and shut off water supply before servicing
• Remove necessary panels/trim, pull out the drawer, and release mounting screws/clips to access the housing
• Label and disconnect hoses; note routing. Transfer any reusable siphon caps, seals, and the drawer from the original housing
• Reassemble, restore water and power, and run a test fill to check for leaks

The Blower Wheel is an OEM part for Frigidaire clothes dryers. This component works to propel hot air through clothes during drying cycles.

Causes of a bad blower wheel involve wear from years of operation, such as bearing deterioration or plastic fan blade cracking/warping. Foreign object damage or improper cleaning techniques pose other risk factors.

Symptoms of a bad blower wheel include:

• Slow or weak drying even on high heat settings
• Loud clanking or grinding noises from inside the duct
• The dryer not activating or functioning when turned on
• Reduced air discharge observable at the vent

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This dryer thermostat monitors internal air temperature and opens/closes the heater circuit to keep drying safe and consistent. Replacing a weak or failed thermostat restores proper heat and helps prevent overheating or nuisance shutdowns. What it does:

• Senses exhaust/heater housing temperature and switches the heating circuit based on temperature
• Helps maintain target drying temperatures for consistent performance
• Provides over-temperature protection by opening the circuit if heat rises too high
• Common symptoms include no heat or weak heat, long dry times, heat cutting out mid-cycle, or the dryer running hotter than normal

• 1 thermostat

• Disconnect power before servicing; heating components can be live and hot
• Access location varies by model; typically mounted on the heater or blower housing behind a rear or front panel
• Transfer wires from the old thermostat to the new one one-at-a-time and secure firmly; ensure the mounting surface is clean and flat
• After replacement, check and clear the venting/duct for proper airflow to prevent repeat failures

Keep your dryer tumbling smoothly by restoring proper belt tension. This idler spring attaches to the idler arm and maintains tension on the drive belt so the drum turns reliably without slipping or squealing. What it does:

• Applies constant tension to the idler pulley to keep the drive belt tight around the drum and motor
• Helps resolve a drum that won't turn or tumbles intermittently
• Addresses belt issues such as slipping off, appearing loose, or premature breakage from low tension
• Can reduce squealing/chirping from the idler area caused by belt slip

• 1 idler spring

• Disconnect power; for gas dryers, also shut off the gas supply
• Access the idler assembly by removing the front or lower access panel per your model
• Relieve belt tension, unhook the old spring from the idler arm/frame, and install the new spring in the same orientation and holes
• Rotate the drum by hand to check smooth operation before reassembly

The Idler Arm Assembly is an OEM part for Frigidaire dryers. It is an essential component of the dryer's drum support system, responsible for maintaining the proper alignment and smooth rotation of the drum during operation. The idler arm assembly typically consists of an idler arm, pulley, and bearings, working together to support the weight of the drum and facilitate its rotational movement.

Symptoms of a bad idler arm assembly in a dryer include:

• Loud squeaking or grinding noises during operation
• Excessive vibration or shaking of the dryer
• Difficulty in starting or maintaining the drum's rotation
• Potential damage to other components due to misalignment

Causes of a bad idler arm assembly can include wear and tear over time, damage from foreign objects entering the drum, or issues with the bearings or pulley components. A faulty idler arm assembly can lead to improper drum alignment, increased friction, and potential damage to other parts of the dryer.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drum Belt is an OEM part for Frigidaire dryers. It plays a pivotal role in the mechanism of the dryer, connecting the motor to the drum to enable its rotation. Without a functioning belt, the dryer's drum will not turn, preventing clothes from drying properly.

Symptoms of a failing Drum Belt include:

• A dryer that turns on but does not spin
• Unusual noises, such as thumping or squealing, coming from the dryer
• Clothes taking longer than usual to dry
• The dryer stopping unexpectedly during a cycle

Common causes for Drum Belt issues are general wear and tear from regular use, the belt becoming stretched or misaligned, and excessive load sizes that strain the belt beyond its capacity.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Motor Mounting Clamp is an OEM part for Frigidaire dryers. This clamp secures the motor in place within the dryer, ensuring it operates smoothly and remains stable during the drying cycles. The motor mounting clamp is essential for maintaining the proper alignment and function of the dryer motor.

Over time, the motor mounting clamp can become worn out or damaged due to constant vibration and movement. Accidental impacts or mishandling during maintenance can also cause the clamp to fail, leading to motor misalignment or instability.

Symptoms of a bad motor mounting clamp include:

• Excessive noise or vibration during the drying cycle
• Motor shifting or moving within the dryer
• Reduced drying efficiency
• The dryer not starting or stopping abruptly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

No.8 pan head `10 - 10b x 0.50 `cr/sq drive

No.12 - 24 x .63 hex head

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

The Terminal Block is an OEM replacement part for Frigidaire clothes dryers. It is the part the power cord connects to. This kit includes 3 screws and 3 terminals.

Causes of a bad terminal block can include damage from age, overheating from worn wires or loose connections, or improper installation during manufacturing.

Symptoms of a bad terminal block include:

• The dryer not powering on
• Intermittent heating issues
• Loose, frayed, or damaged wires

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.
