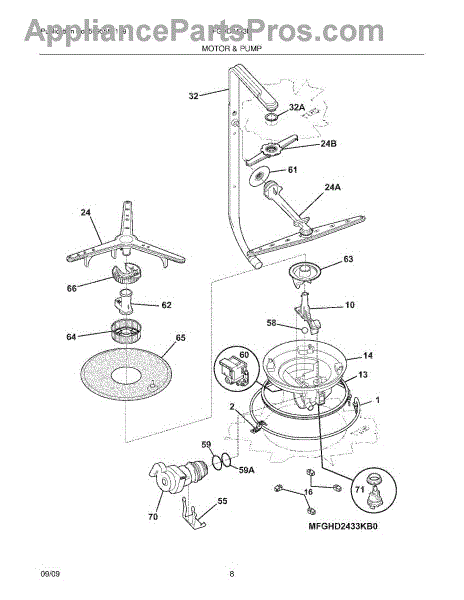

Parts for Frigidaire FGHD2433KF0: 09 - Motor & Pump Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Heating Element is an OEM part for Frigidaire dishwashers. It heats water to the right temperature for washing dishes and aids in drying by promoting evaporation. Situated at the dishwasher's bottom, this element is vital for excellent cleaning and dry dishes.

Over time, the Heating Element may fail due to reasons like mineral buildup from hard water, corrosion, or electrical problems. A faulty heating element can cause issues, impacting the dishwasher's cleaning and drying performance.

Symptoms of a bad Heating Element include:

• Dishes not being cleaned properly due to the water not reaching the required temperature.
• The dishwasher not drying dishes at the end of the cycle.
• Visible signs of damage to the element
• The dishwasher taking longer than usual to complete a cycle.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This replacement bracket is used in Frigidaire-made dishwashers to secure an associated component or panel. Replacing a broken or missing bracket restores a tight fit, alignment, and stability so parts don't loosen, rattle, or shift during cycles. What it does:

• Provides a rigid mounting point for the connected part or panel
• Maintains proper alignment and stability during operation
• Helps reduce rattling or vibration from a loose component
• Replaces a broken, bent, rusted, or missing bracket

• 1 bracket

• Disconnect power and turn off the water supply before servicing
• Access and mounting location vary by model; refer to your service or installation manual
• Wear cut-resistant gloves; bracket edges may be sharp
• Save and reuse the original screws/fasteners; install in the same orientation and tighten securely

The Pump Cover is an OEM part for Frigidaire dishwashers. It is designed to cover and protect the dishwasher's pump, which is essential for the proper circulation of water during the wash cycle. This cover helps ensure that the pump operates efficiently and prevents debris from entering and damaging the pump.

Causes of a bad pump cover can include repeated exposure to high water pressure, accidental impact during loading or unloading of dishes, or buildup of debris and hard water deposits.

Symptoms of a bad Pump Cover include:

• Leaks coming from the pump area
• Unusual noises during the wash cycle
• Decreased washing performance
• Visible cracks or wear on the cover

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This sump gasket seals the connection between the dishwasher tub and the sump/pump assembly. Replacing a flattened or cracked gasket restores a watertight barrier to help stop leaks from the base and protect floors and cabinetry.

• Creates a seal between the tub and sump to contain wash water
• Helps prevent leaks during fill, wash, and drain cycles
• Replace if the gasket is cracked, brittle, deformed, or compressed
• Common symptoms: water under the dishwasher, dripping from the base, moisture around the toe-kick

• Disconnect power and shut off the water supply; pull the dishwasher out if needed for access
• Access the sump area (often by removing the lower rack, spray arm, and filters); note gasket orientation
• Clean mating surfaces; seat the gasket evenly without twists. Do not use sealants unless specified by the manufacturer
• Reassemble and run a short test cycle while inspecting for leaks

This dishwasher sump assembly houses the pump path and turbidity sensor that helps the machine detect water clarity for proper wash cycles. Replaces a worn or damaged sump to restore draining and turbidity sensing. What it does:

• Circulates and directs wash and drain water through the pump housing
• Houses the turbidity sensor that helps the control detect soil level for cycle adjustment
• Helps prevent leaks and maintains correct water flow for cleaning performance
• Can resolve symptoms like poor draining, error codes related to turbidity or water quality sensing, and reduced wash performance

• Disconnect power and water supply before attempting service; follow factory service instructions
• Inspect seals and mounting gaskets; replace any brittle or damaged gaskets to ensure a watertight fit
• Handle the turbidity sensor carefully and avoid contaminating the sensing surface

This sump retainer secures the appliance sump assembly and helps keep the pump seal and surrounding components properly positioned to reduce leaks and maintain correct water flow. It's a small replacement part used during sump or pump repairs. What it does:

• Holds the sump housing or pump assembly in place to maintain a reliable seal
• Helps prevent water leaks from the pump/sump area when installed correctly
• Keeps internal components aligned for proper water circulation and drainage
• Commonly replaced when sump hardware is cracked, warped, or no longer secures the pump

• One sump retainer

• Power off and unplug the appliance before starting any repair
• Verify you have full access to the sump/pump area; removal of panels or racks may be required
• Inspect surrounding seals and gaskets; replace if damaged to ensure a watertight fit

Color: light gray. Each prong goes out about 10 inches from the center.

The Upper Rack Assembly is an OEM part for Frigidaire dishwashers. It is designed to hold dishes, glasses, and other items in the upper section of the dishwasher, allowing for efficient and organized cleaning.

Causes of a bad Upper Rack Assembly can include wear and tear over time, damage from heavy or improperly placed items, or issues with the rollers and tracks that allow the rack to slide in and out smoothly.

Symptoms of a bad Upper Rack Assembly include:

• Difficulty sliding the rack in or out
• The rack falling off its tracks
• Rust or corrosion on the rack
• Broken or missing tines that hold dishes in place

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Upper Spray Arm is an OEM part for Frigidaire dishwashers. This component is crucial for the cleaning process as it rotates and sprays water onto dishes located in the upper rack, ensuring they are thoroughly washed and rinsed. The spray arm is designed to distribute water evenly, enhancing the dishwasher's efficiency and performance.

Symptoms of a failing Upper Spray Arm include:

• Dishes in the upper rack coming out dirty or not thoroughly cleaned
• The spray arm not rotating or spinning during the wash cycle
• Low water pressure or uneven water distribution from the spray arm
• Visible cracks, clogs, or damage to the spray arm

Causes of a bad spray arm can include blockages from food particles or mineral deposits, wear and tear from regular use, or physical damage from improper loading of the dishwasher.

This OEM part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Upper dishwasher washarm delivery tube gasket.

The Delivery Tube is an OEM replacement part for Frigidaire dishwashers. This tube is designed to supply water to the upper spray arm from the pump assembly. By doing so, it plays a role in ensuring that the upper rack of dishes receives adequate water coverage for effective cleaning.

Causes for a malfunctioning Delivery Tube can include blockages from food particles or mineral deposits, general wear and tear from regular use, or damage incurred during maintenance or installation.

Symptoms of a bad Delivery Tube include:

• Inadequate cleaning of dishes on the upper rack
• Water not reaching the upper spray arm
• Unusual sounds during the wash cycle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement bracket secures a component to the appliance frame, keeping it aligned and stable during operation. Install it to replace a bent, cracked, or missing bracket and restore a solid, rattle-free mount.

• Provides a rigid mounting point to hold the specified part in place
• Helps maintain alignment to reduce vibration, rubbing, or noise
• Replaces damaged or corroded hardware to restore a secure fit
• Common symptoms: loose or sagging component, unusual vibration/noise, or part shifting out of position

• Disconnect power before servicing; shut off water supply if working near water lines
• Note original orientation and fastener locations; take a reference photo
• Transfer and reuse existing screws/clips as needed; tighten fasteners evenly without over-torquing
• Verify alignment and test operation before final reassembly

This small check ball helps control water flow inside the refrigerator's water/ice system to prevent backflow and ensure proper filling. It restores reliable water seating where valves or distributor ports use a ball-style check. What it does:

• Acts as a one-way seal to stop water from flowing backward into the supply line or valve bore
• Helps the ice maker and dispenser fill correctly by allowing water in but not back out
• Common symptom: intermittent or incomplete ice maker fills
• Common symptom: slow or continuous dripping from dispenser or valve area

• Shut off water supply and unplug the appliance before starting
• Small part — handle carefully and note orientation/seat before removal
• Inspect valve bores and seals for debris; clean area before installing new check ball

The Rear O-Ring is an OEM part for Frigidaire dishwashers. This small but crucial component ensures a watertight seal within the dishwasher's internal systems, preventing leaks by sealing connections between various parts, such as the pump or valve assemblies. The front O-ring is part number AP2109102

Causes of a bad rear O-ring can include regular wear and tear, drying out or cracking due to age, and damage from chemical exposure or improper installation. A compromised O-ring can lead to water leaks and reduced efficiency of the dishwasher.

Symptoms of a bad rear O-ring include:

• Water leaking from the dishwasher
• Puddles forming underneath the appliance
• Reduced washing performance due to water pressure loss
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Front O-Ring is an OEM part for Frigidaire dishwashers. This component is essential for maintaining a watertight seal in the front areas of the dishwasher's internal systems, such as around the pump or valve connections. It prevents water leaks and ensures the efficient operation of the dishwasher. The rear O-ring is part number AP2109101

Causes of a bad front O-ring can include regular wear and tear, exposure to high temperatures, and chemical degradation from detergents and rinse aids. Over time, the O-ring may dry out, crack, or become deformed, leading to leaks and decreased performance.

Symptoms of a bad front O-ring include:

• Water leaking from the front of the dishwasher
• Puddles forming under the appliance
• Reduced cleaning performance due to water pressure issues
• Noticeable wear, cracks, or deformation on the O-ring

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Drain Pump Assembly is an OEM part for Frigidaire dishwashers. It plays a critical role in the dishwasher's operation by removing the used water at the end of each wash cycle, ensuring the machine is ready for the next load. This assembly includes the pump that powers the expulsion of water, along with any necessary housing and fittings to connect it securely to the dishwasher's system.

Causes of a bad part can vary from clogs formed by food particles or other debris, to mechanical failure of the pump motor itself.

Symptoms of a bad Drain Pump Assembly include:

• Water not draining properly from the dishwasher
• Unusual noises coming from the pump area
• The dishwasher fails to start a wash cycle due to the system detecting water from a previous cycle still inside.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

A rubber mounting grommet that cushions and positions components to reduce vibration and wear, helping parts seat securely for reliable operation. What it does:

• Cushions and isolates parts to reduce noise and vibration.
• Protects metal components and wiring from abrasion where they pass through openings.
• Helps maintain proper alignment and fit of the mounted component.
• Prevents premature wear by absorbing movement and impacts.

• Disconnect power to the appliance before servicing.
• Press-fit into place; ensure proper orientation and full seating.
• Inspect surrounding parts for damage and replace if worn.
• Use manufacturer-recommended replacement; do not use solvents or adhesives unless specified.

This support is a refrigerator mounting bracket that stabilizes internal components and keeps assemblies aligned for reliable operation. It replaces worn or broken supports to help reduce rattling and improper panel fit. What it does

• Secures and aligns internal cabinet or component panels to prevent shifting during normal use
• Helps maintain proper spacing for doors, panels, or internal assemblies
• Reduces vibration or rattling caused by loose or damaged supports
• Commonly replaced when a support is cracked, broken, or no longer holds mating parts securely

• High-level replacement: typically accessible from inside the cabinet or behind a trim panel; exact steps depend on model
• Use proper tools and retain all fasteners during removal for reinstallation
• Disconnect power before servicing any electrical components or removing panels near wiring

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

This base is the lower cabinet support that helps keep the appliance stable and holds internal components in their correct position. Replacing a damaged base restores proper fit, alignment and reduces cabinet movement. What it does:

• Provides structural support for the appliance cabinet and mounting points
• Keeps internal components aligned and maintains correct clearance
• Helps prevent rocking, vibration and gaps at the bottom of the cabinet
• Protects lower components from contact with floor-level debris or uneven surfaces

• Disconnect power and, if applicable, water before beginning work
• Access may require removing the toe kick or lower access panels
• Keep track of mounting screws and brackets; use replacement hardware if original fasteners are corroded

Filter only. Fine filter not included.

This trap is a molded drain fitting used in select Frigidaire-built appliances. It helps keep water flowing in the correct direction while limiting backflow of air and debris, supporting proper drainage and reducing leaks or odors when the original fails. What it does

• Creates a water seal in the drain path to reduce backflow and odors
• Guides condensate or wash water toward the drain pan/outlet for proper removal
• Helps protect internal components by limiting debris entry into the drain path
• Common symptoms of a bad trap: slow or no draining, water pooling/leaks, unpleasant odors, or visible cracks/warping

• 1 trap

• Disconnect power and, if applicable, shut off the water supply before servicing
• Access the drain area per your model's service/owner documentation; place towels to catch residual water
• Note hose routing and trap orientation; transfer and securely reinstall any clamps or seals
• After reassembly, run a small amount of water through the system to check for leaks

Due to manufacturer changes, part may differ in appearance and will include two o-rings.

This dishwasher turbidity sensor measures how dirty the wash water is and reports to the control. Replacing a faulty sensor can restore proper cycle times and cleaning performance for consistent results.

• Monitors water clarity/soil level during the wash
• Sends feedback to the control to adjust cycle length, rinses, and heating
• Failure can cause very long or very short cycles
• Can trigger sensor-related fault indications

• Disconnect power at the breaker and shut off water before servicing
• Access the sensor from the bottom near the sump; remove the toe panel if needed
• Unplug the wire harness; release the locking tabs or twist-lock to remove; avoid touching the optical window
• Inspect and reuse the existing seal/retainer if in good condition; seat fully and check for leaks after reassembly

This genuine replacement screw secures appliance panels and components so assemblies stay tight and stable. It's a simple, direct fix when a missing or damaged screw causes loose trim, rattling, or misaligned parts. What it does:

• Fastens panels, brackets, and trim to restore proper alignment and stability
• Stops rattling or vibration caused by loose hardware
• Replaces stripped or corroded screws to ensure secure connections
• Works wherever the OEM screw is specified in the appliance

• Use the matching driver and proper torque to avoid stripping the head or threads
• Replace only with the exact OEM screw to maintain fit and function
• Disconnect power before accessing internal components; follow appliance safety instructions
• Replace all like-for-like for best results

NO.8 - .625 Truss

A replacement switch mounting screw that secures control switches and switch assemblies in place for reliable operation. Replaces lost or stripped mounting hardware to restore secure panel and switch attachment on compatible appliances. What it does:

• Fastens the switch or switch bracket to the appliance frame or control panel
• Keeps electrical switch connections stable to prevent intermittent contact or movement
• Helps eliminate loose or rattling switches and noisy control panels
• Restores proper alignment of the switch for reliable user control

• Turn off power to the appliance before accessing the control panel to avoid shock
• Use the matching screwdriver size to avoid stripping the screw head
• Tighten securely but do not over-torque to prevent damage to the switch or panel
• Replace all affected fasteners for a secure fit

No.10 - 16 x 3/8

This hose clamp secures flexible water or drain hoses to fittings to prevent leaks and keep connections tight. It's a simple replacement that restores a secure seal and helps stop drips or loose hoses. What it does:

• Holds a rubber or plastic hose firmly to a barb or nipple to prevent leaks
• Restores a tight connection when original clamp is corroded, bent, or broken
• Helps eliminate water dripping, puddling, or intermittent leaks at hose joints
• Prevents hoses from slipping off during vibration or normal appliance use

• Disconnect power and shut off water supply before starting any repair
• Tighten clamp securely with pliers or the appropriate tool; avoid over-tightening which can damage the hose
• After installation, restore water and power, then check the connection for leaks

This is a genuine replacement mounting screw used to secure components in compatible Frigidaire appliances. It restores proper fastening so panels and parts stay aligned and stable during normal operation. What it does:

• Fastens appliance components, panels, or brackets to maintain secure assembly
• Replaces worn, stripped, or missing screws that cause rattling or loose parts
• Helps eliminate vibration-related noise by restoring correct fastening
• Matches OEM fit and function for reliable, long-lasting hold

• One replacement mounting screw, as pictured

• Use the proper size driver to avoid stripping the head; tighten until snug but do not overtighten
• Match screw location and length to the original for correct fit; keep any removed hardware for reference
• Disconnect power to the appliance before working in internal areas to reduce shock risk

The Side Mount Kit is an OEM replacement part for Frigidaire dishwashers. It contains mounting brackets, screws, and other hardware required to securely install the dishwasher against cabinetry in a side-by-side configuration. Proper attachment is necessary for stability and safety during operation.

Symptoms of damaged or missing mounting hardware include:

• Excessive movement or rocking of the dishwasher body
• Potential detachment from cabinets
• Screws pulling loose from repeated vibrations
• Improper door alignment causing difficulty closing fully

Causes related to normal wear over extended use periods. Damage may occur if weight is applied during improper lifting or installation attempts.

Compatible models include Electrolux, Gibson, and select Kenmore units.

This flapper valve is the dishwasher's one-way drain check. It directs wastewater out and helps prevent backflow into the tub, promoting complete draining and reducing standing water, odors, and water returning after the drain cycle.

• Maintains one-way water flow from the sump/pump to the drain hose
• Helps prevent backflow from the sink or air gap into the dishwasher tub
• Wear, warping, or sticking can lead to slow draining or water left in the tub
• May also present as water backing into the tub after a cycle or intermittent drain faults

• Disconnect power and turn off water supply before servicing
• Access the valve at the drain outlet/pump area; note hose and clamp orientation
• Match the original valve orientation; the flapper should open toward the drain hose (direction of flow)
• After reassembly, run a short fill-and-drain test and inspect for leaks and proper draining

The Heating Element Nut is an OEM part for Frigidaire dishwashers. It plays a crucial role in securing the heating element in place, ensuring it functions effectively to heat water during the wash cycle. This component ensures the stability and proper operation of the dishwasher's heating element, contributing to the machine's overall efficiency and performance.

Causes of a bad part can include physical damage during maintenance or installation, corrosion over time due to exposure to water and detergents, or general wear and tear that affects its ability to securely hold the heating element in place.

Symptoms of a bad Heating Element Nut include:

• Loose heating element, leading to inefficient heating or water not heating at all
• Water leakage from the heating element area, potentially caused by a poor seal
• Unusual noises during the dishwasher cycle

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces
