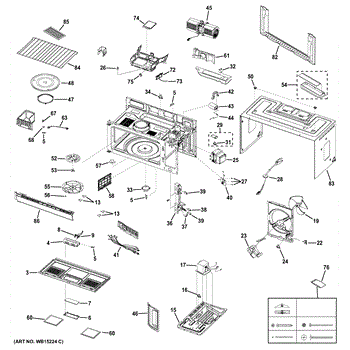

Parts for Ge PVM9195DF2BB: Oven Cavity Parts

This rigid cable clamp secures a power or wiring harness where it passes through a cabinet or panel, protecting wires from abrasion and preventing loose or pulled connections that can cause intermittent power or sparks. What it does:

• Anchors and strains-relieves the power cord or internal wiring at the entry point
• Prevents chafing and wear where wires pass through metal or plastic openings
• Helps maintain reliable electrical connections and reduces risk of shorts
• Common fix when cords pull loose, wires chafe, or connectors become stressed

• Always disconnect power before starting any repair
• Access may require removing an appliance panel or control console
• Slide or snap clamp around the cord/wire and seat it into the cabinet opening; secure fastener if applicable
• Inspect wiring for damage and replace any frayed wires before reassembly

This is the clear glass lens that covers the cooktop light on select GE over-the-range units. It shields the bulb from grease and splatters while allowing bright, even illumination of the cooking surface below.

• Protects the cooktop light bulb from grease, moisture, and debris
• Restores proper lighting if the original lens is missing, cracked, or stained
• Helps maintain safe, even illumination of the range area
• Common symptoms: broken or missing lens, dim or uneven light due to a damaged cover

• Disconnect power to the appliance before servicing
• Allow bulbs and surrounding area to cool completely
• Handle glass carefully to avoid chipping; wear cut-resistant gloves
• Ensure the lens seats fully and any retaining tabs/screws are secured per the product's service instructions

The Glass Light Lens is an OEM part for GE microwaves. It covers the light bulb inside the microwave, protecting it from food splatters and ensuring even illumination.The lenses measure approximately 7" x 3".

Causes of a bad glass light lens can include accidental impact, exposure to high heat, or general wear and tear.

Symptoms of a bad glass light lens include:

• Cracks or breaks in the glass
• Diminished visibility inside the microwave
• Light not being properly diffused
• Potential exposure of the light bulb to food splatters

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Halogen Light Bulb is an OEM part for GE microwaves. It provides bright interior lighting, allowing you to monitor food while it's cooking and to see clearly when opening the microwave door.

You should replace the halogen light bulb if it burns out or becomes damaged. Halogen bulbs can wear out over time or may break due to impacts or electrical surges.

Symptoms of a bad halogen light bulb include:

• No light inside the microwave during operation
• Flickering or dim light
• Visible damage to the bulb

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement light socket restores safe, consistent power to the appliance light. If the original socket is heat-damaged, loose, or shorted, installing a new socket brings back reliable illumination and solid electrical contact.

• Provides the electrical connection and physical support for the light bulb
• Replaces cracked, scorched, or worn sockets that cause poor contact
• Helps resolve a light that won't turn on, flickers, or works intermittently with a known-good bulb
• Designed for a secure fit to maintain dependable lighting performance

• Disconnect power at the breaker before servicing.
• Allow the area to cool before working near any heated light cavity.
• Transfer wires one at a time (or take a quick photo) to ensure correct reconnection.
• Install a bulb type and wattage specified for your model; avoid touching bulb glass with bare hands if your model uses a halogen lamp.

This temperature-control thermostat senses compartment heat with a capillary bulb and cycles the heating circuit to maintain your set temperature. Replacing a worn thermostat restores more consistent performance and helps correct underheating, overheating, and erratic temperature swings.

• Regulates heat to match the temperature you set
• Senses temperature via an integral capillary tube and sensor bulb
• Opens and closes contacts to control the heating element or burner
• Failure symptoms can include long warm-up, inaccurate temps, overheating, or uneven results

• Disconnect power and, if applicable, shut off gas; allow the unit to cool completely.
• Handle the capillary tube carefully—do not kink, crease, or cut it.
• Route the sensor bulb and tubing through original clips and path for accurate sensing.
• After installation, perform temperature calibration per service instructions if required.

This blade fan is the rotating plastic fan blade that moves cold air across the evaporator and through the fresh-food compartment to help maintain even refrigerator temperatures. It replaces a worn or damaged blade to restore airflow and cooling performance. What it does:

• Spins on the evaporator/evaporator motor shaft to circulate cold air through the freezer and refrigerator sections
• Helps reduce warm spots and slow cooling caused by a cracked, chipped or missing blade
• Commonly replaced when fan noise increases, the fan wobbles, or airflow is reduced
• Works with the existing evaporator fan motor and mounting hardware to re-establish proper circulation

• One blade fan

• Unplug the appliance and/or shut off power at the breaker before servicing
• Remove interior panels and ice/water components as needed to access the evaporator fan area
• Handle the plastic blades carefully to avoid cracking; ensure the blade is fully seated on the motor shaft

This fan motor spins the oven/convection fan to circulate heat for even cooking and help exhaust hot air. Replaces a worn or noisy motor to restore proper airflow and temperature consistency in the appliance. What it does:

• Drives the convection/circulation fan blade to move air through the oven cavity
• Helps maintain even cooking and consistent oven temperatures
• Reduces buzzing, grinding, or failure-to-spin symptoms when the old motor is failing
• Works as the mechanical drive for air exhaust and internal circulation systems

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the motor and wiring gently; match mounting orientation and connector type during install
• Verify blade and shroud clearance before powering the unit

This thermostat switch is a temperature-sensitive safety device used in select appliances to open or close an electrical circuit at a set temperature. Replacing a failed switch helps restore proper temperature control and protects components from overheating.

• Monitors temperature and changes state (open/closed) at its calibration point
• Helps prevent overheating or incorrect temperature regulation
• Common failure signs: no heat/overheating, intermittent cycling, or unit shutting off prematurely
• May be mounted to a bracket or surface near the heated area, depending on the model

• Disconnect power before servicing; verify no voltage is present
• Note wire positions and orientation of the original switch before removal
• Transfer any mounting hardware from the old part if not reusable
• After installation, test operation and observe initial heating cycle for proper function

This thermostat with bracket replaces the temperature control switch that senses and helps regulate appliance temperature, restoring proper cycling and temperature response. It provides a direct-fit mounting bracket for secure installation. What it does:

• Senses internal temperature and signals the control system to start or stop cooling/heating
• Helps maintain consistent temperature by cycling compressor or heating elements
• Common symptoms this can address: unit not cooling consistently, runs constantly, or compressor cycles on and off quickly
• Works as the mechanical/electrical interface between the appliance and its temperature control circuitry

• One thermostat and one mounting bracket

• Disconnect power to the appliance before beginning any repair to avoid shock or injury
• Handle terminals and wiring carefully; note wire locations or take a photo before disconnecting
• Mount the bracket securely and verify the thermostat is positioned to sense temperature as OEM directed
• Test the thermostat for continuity with a multimeter

This run capacitor helps the appliance motor start and run smoothly by storing and releasing electrical energy. Replacing a worn capacitor can restore reliable motor operation and reduce abnormal motor noise or cycling. What it does:

• Provides the brief power boost motors need to start and maintain RPM
• Helps stabilize motor voltage and improve run efficiency under load
• Commonly linked to symptoms such as motors that hum but won't start, slow or intermittent motor operation, or unusual motor noise
• Reduces stress on motor windings that can lead to premature failure when functioning properly

• One motor capacitor

• Always disconnect power at the breaker or unplug the appliance before servicing
• Capacitors can hold a charge; discharge safely
• Observe proper polarity and mounting location during installation; secure wiring and connectors

This is a turntable motor intended for use with microwave ovens. A turntable motor is required to rotate the turntable so that food is heated evenly. With time, because of misuse, or as a result of accidental damage, the turntable motor may malfunction or fail. To continue using the appliance efficiently, the turntable motor must be replaced.The primary indication that there is something wrong with the turntable motor is a tray that doesn't spin. When replacing the turntable motor, it is essential to disconnect the machine from the power source. Wear gloves for safety. The part can be replaced easily by removing screws from the back and side of the microwave, which allows the panel to swing open. Take the wires of the old motor and reconnect them to the new one.This turntable motor is an authentic OEM replacement part. It is sold as an individual unit. The turntable motor is made of high-quality, durable materials. The component comes sourced directly from the manufacturer. The replacement part can be installed in several models of microwaves. It is compatible with appliances produced by General Electric, RCA, and Hotpoint brand appliances.

This temperature control thermostat regulates refrigerator temperature to help keep food cold and maintain proper cooling cycles. Replaces a failing mechanical control to restore consistent compressor on/off operation. What it does:

• Senses cabinet temperature and signals the compressor to cycle on and off
• Helps correct symptoms like inconsistent temperature, fridge running constantly, or not cooling
• Works with mechanical capillary-style temperature control systems
• Restores user control over interior temperature settings

• Disconnect power to the appliance before starting any repair
• Handle the capillary tube and sensing bulb carefully—avoid kinks or sharp bends
• Verify proper routing and secure mounting of the bulb per the original layout

This latch body is the plastic housing for the door interlock system. It holds the door switches in position and guides the door latch so the appliance can sense when the door is closed and operate safely.

• Holds and aligns the door interlock switches
• Guides the latch to properly engage/disengage when the door opens and closes
• Can help resolve issues like the unit not starting, running with the door open, or showing door error messages
• Restores proper, safe door sensing and operation

• Unplug the appliance to disconnect power before servicing
• Access is typically from the front; remove necessary panels to reach the latch body and switches
• Transfer switches and hardware from the old housing to the new one as configured
• Verify correct switch orientation and secure mounting before reassembly and testing

The Lower Lever Switch is an OEM replacement part for GE microwaves. This component activates the door interlock switch when the microwave door is closed. It ensures that the microwave only operates when the door is securely closed, preventing any operational hazards.

Symptoms of a bad Lower Lever Switch include:

• The microwave not starting, indicating the door isn't recognized as closed
• The appliance operating with the door open, a clear safety hazard
• Unusual sounds or issues when attempting to start the microwave
• The need to apply extra pressure to keep the door closed

Common causes for a malfunctioning Lower Lever Switch can be attributed to mechanical wear from frequent use, damage incurred during cleaning or use, or internal issues affecting the switch’s activation mechanism.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Monitor Switch is an OEM replacement part for GE microwave ovens. Located internally on the turntable control circuit board, this switch monitors rotation of the turntable during cooking cycles.

Causes of failure involve degradation of the electrical contacts from continuous arcing loads over years of use combined with vibration stresses.

Symptoms of a faulty monitor switch include:

• The turntable no longer rotates or spinning intermittently
• Cooking cycles aborting prematurely with error messages
• Screeching or grinding noises emanating from beneath cavity
• Visible burnt spots on turntable drive assembly

This genuine GE switch is also compatible with select Hotpoint and RCA models.

The Microwave Door Switch is an OEM part for GE microwaves, designed to prevent the microwave from operating when the door is open by interrupting the power whenever the door is not securely closed. The door switch is an essential safety feature.

Symptoms of a failing Microwave Door Switch include:

• The microwave not starting or heating
• Running when the door is opened
• Unusual noises when the door is closed

Causes of a bad Microwave Door Switch can result from repeated opening and closing of the door or slamming that can cause the switch to degrade or become misaligned, leading to intermittent or failure.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Capacitor is an OEM part for GE microwaves. This component stores and releases electrical energy to help power the microwave's high-voltage circuits, essential for the proper functioning of the appliance.

Over time, capacitors can fail due to electrical surges, overheating, or degradation of the internal components. When a capacitor goes bad, it can affect the microwave's ability to generate heat and operate efficiently.

Symptoms of a bad Capacitor include:

• The microwave not heating food
• Unusual humming or buzzing noises
• The microwave shutting down or not starting

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Voltage Diode is an OEM part for GE microwaves. This high-voltage diode is crucial for converting alternating current (AC) to direct current (DC), enabling the magnetron to generate the microwave energy needed for cooking. Measuring approximately 3-1/2" in length, this diode features a banded side with a #8 ring terminal and a non-banded side with a 1/4" female quick connect.

You should replace the diode-H.V assembly if it becomes faulty due to electrical issues, wear and tear, or physical damage. Continuous exposure to high voltage can cause the diode to deteriorate over time, leading to malfunction.

Symptoms of a bad diode-H.V assembly include:

• The microwave not heating food
• A burning smell or unusual noises during operation
• The microwave shutting off unexpectedly
• Visible damage or burn marks on the diode

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Guide roller assembly that restores smooth, stable movement for a sliding rack or appliance drawer. Replaces worn or broken rollers to reduce sticking, grinding, or misalignment during use. What it does:

• Guides a sliding rack/drawer so it opens and closes evenly without binding
• Helps stop noisy or jerky movement caused by damaged or worn rollers
• Restores proper alignment to prevent racks from slipping or dropping
• Used where a roller rides along a track or guide to support smooth travel

• Disconnect power (and gas, if applicable) and remove any loose items from the appliance before beginning.
• Remove the affected rack/drawer or access panel to reach the guide; keep mounting hardware for reuse unless damaged.
• Align the guide and reinstall hardware securely; test the rack/drawer movement before completing reassembly.
• If mounting clips or brackets are broken, replace those parts as needed for a secure fit.

The Cooking Tray is an OEM part for GE microwaves. This glass tray rotates to ensure even cooking and heating of food. It is designed to fit perfectly in the microwave, providing a stable platform for cookware and dishes.

Over time, the cooking tray can become damaged or worn out due to regular use, accidental drops, or exposure to extreme heat. Replacing a damaged cooking tray is essential to maintaining the microwave’s functionality and ensuring food is heated evenly.

Symptoms of a bad cooking tray include:

• Cracks or chips in the glass
• Difficulty in rotating or wobbling during operation
• Uneven cooking or heating of food
• The tray not fitting properly in the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This holder nut assembly secures a component to the appliance frame, restoring proper mounting and reducing vibration or movement. Replace a damaged or missing holder nut to keep connected parts stable and functioning. What it does:

• Secures a component or assembly to the appliance frame or mounting bracket
• Prevents looseness, rattling, and misalignment caused by worn or missing mounting hardware
• Restores a safe, stable connection that helps maintain normal operation
• Matches OEM mounting geometry for a direct replacement when the original nut is damaged

• Disconnect power to the appliance before servicing to avoid shock or injury
• Access the mounting area by removing the appropriate panel or cover per your model's service instructions
• Start threads by hand to avoid cross-threading, then tighten with the correct tool; do not overtighten
• If any fasteners or nearby components are damaged, replace them as needed for a secure installation

This hood damper assembly opens to allow exhaust airflow and closes to help block outside drafts and odors when the fan is off. It restores proper venting and prevents back-drafts in over-the-range hoods and microwaves. What it does:

• Opens with the vent fan to let cooking smoke and steam exit the home.
• Closes when the fan is off to reduce backdrafts, outside air, and odors.
• A faulty or stuck damper can cause reduced airflow, rattling noises, or air blowing back into the kitchen.
• Works as the moving flap between the appliance exhaust and the ductwork to control airflow direction.

• Disconnect power to the appliance (unplug or shut off the circuit breaker) before servicing.
• Access typically requires removing the hood or microwave grille/cover; keep track of screws and mounting hardware.
• Basic hand tools (screwdrivers, possibly a nut driver) are usually sufficient; handle the damper flap gently to avoid bending.
• After installation, restore power and run the fan to ensure the damper opens and closes smoothly.

This cover stirrer protects the microwave's stirrer assembly and helps ensure even microwave energy distribution for more consistent cooking results. Durable plastic construction designed to fit the OEM stirrer location. What it does

• Covers and shields the stirrer/stirrer motor area from food splatter and debris.
• Helps maintain even heating by allowing the stirrer system to disperse microwave energy properly.
• Reduces noise from the stirrer assembly when installed correctly.
• Common symptom: uneven cooking or arcing in the cavity when a damaged or missing cover is present.

• 1 cover stirrer

• Disconnect power to the appliance before attempting any service.
• Handle the cover gently to avoid cracking; align and snap into place per the oven's service manual.
• Use only factory-recommended replacement parts and refer to the OEM instructions.
• Do not attempt repairs with the appliance energized.

This turntable coupler connects the microwave's turntable motor to the glass tray to drive smooth rotation during cooking. Replacing a worn coupler restores even heating and prevents the tray from slipping, stalling, or wobbling. What it does:

• Transfers rotation from the turntable motor to the glass tray
• Centers and supports the tray for stable, even spinning
• When worn or cracked, may cause the turntable not to turn, slip, wobble, or click/grind at the center hub
• Helps restore consistent heating by ensuring proper tray movement

• 1 turntable coupler

• Disconnect power by unplugging the microwave or switching off the breaker before service
• Remove the glass tray and roller ring; lift the old coupler straight up off the motor shaft
• Align the new coupler with the shaft and press firmly until fully seated

The Air Filter is an OEM part for GE microwaves. It is designed to filter out grease, smoke, and odors from the air that passes through the microwave's ventilation system, helping to keep your kitchen air clean and free from contaminants. This part measures approximately 7" by 7".

You should replace the air filter if it becomes clogged or saturated with grease and debris. Over time, the filter can lose its effectiveness, reducing the microwave's ventilation performance and potentially leading to unpleasant odors.

Symptoms of a bad air filter include:

• Reduced ventilation performance
• Lingering odors after cooking
• Visible grease buildup on the filter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement wire harness routes power and signals between an appliance's control and functional components so the unit operates reliably. It restores proper electrical connections when the original wiring is damaged or worn. What it does:

• Re-establishes electrical connections between control(s) and components for reliable operation
• Helps resolve symptoms like intermittent power, controls not responding, or components failing to start
• Keeps wire routing and connector fit consistent with the original harness design
• Avoids DIY splices by restoring original plug-and-play connections

• Disconnect all power (unplug or shut off breaker) before starting any work
• Take photos of the original routing and connector positions to ensure correct reinstallation
• Route the harness along the same path and secure with existing clips or ties; avoid sharp edges and heat sources
• If connectors are corroded or damaged, replace them rather than using temporary splices

This gas sensor monitors moisture levels during sensor-cook cycles so the control can adjust time and power for consistent results. Replacing a failed sensor restores reliable sensor-cook performance. What it does:

• Detects steam/vapor inside the cavity and sends feedback to the control board
• Helps the appliance automatically set or adjust cooking time on sensor settings
• Failure symptoms can include sensor-cook not starting, stopping early, or running too long
• May trigger "Sensor" or general error messages related to sensor-cook functions

• Disconnect power before servicing; if working on a microwave, discharge the high-voltage capacitor
• Access is typically behind the control panel or air channel; avoid touching/contaminating the sensing surface
• Transfer any mounting clips/brackets and ensure the wiring connector is fully seated
• After installation, run a simple sensor-cook test to confirm operation

This lamp cover is the replacement light lens that protects and diffuses the appliance's interior lamp, restoring proper illumination and shielding the bulb from spills and debris. It helps keep the lamp visible and reduces hot-spot glare. What it does:

• Protects the interior lamp or bulb from food, moisture, and impacts
• Diffuses and directs light for more even interior illumination
• Prevents direct contact with the bulb for safer operation
• Replaces cracked, discolored, or missing lamp covers that cause poor lighting

• Disconnect power or unplug the appliance before starting any repair
• Handle carefully to avoid chipping or cracking the lens during installation
• Replace only with the correct cover to ensure proper fit and safe operation
• Do not operate the appliance with a damaged or loose lens in place

This 50-watt halogen lamp restores bright, reliable lighting in your appliance. Replace a burned-out bulb to see clearly while cooking and checking food progress, keeping the cavity or cooktop area illuminated as designed.

• Provides focused illumination for the interior cavity or cooktop/task lighting
• Restores light when the door opens or the light pad/switch is used
• Common symptoms: no light, dim or flickering light, or darkened/burned-out bulb
• Using the correct 50-watt halogen rating helps protect the socket and wiring

• Disconnect power (unplug or switch off the breaker) before replacing the lamp
• Allow the lamp and surrounding area to cool completely
• Do not touch the glass; handle with clean gloves or a tissue to avoid oil contamination

This hardware assembly secures designated components in your appliance, restoring a tight, rattle-free fit after service or wear. Replacing damaged or missing fasteners helps keep panels and parts aligned and operating as designed.

• Provides the correct fasteners/spacers for the specified location on the unit
• Replaces stripped, lost, or corroded hardware
• Helps eliminate looseness, vibration, or rattling noises
• Supports proper alignment and fit of the associated part or panel

• Disconnect power before servicing; allow hot surfaces to cool
• Support the part being fastened to prevent damage or misalignment
• Match each fastener one-for-one; note orientation and any washers/spacers
• Hand-start threads and do not overtighten; verify clearances and operation after install

This mounting plate assembly is the rear wall bracket that supports and secures the microwave during installation. Replacing a bent or missing plate ensures a safe, level mount and stable operation without vibration or shifting.

• Acts as the rear-wall support the microwave hangs on and bolts to
• Maintains proper, level alignment of the unit and door
• Helps prevent vibration, rattling, or shifting during use
• Replace if the plate is bent, damaged, corroded, or missing

• Disconnect power and have a second person support the microwave before removal/installation
• Follow your model's installation template and manual for hole locations and hardware
• Fasten to wall studs or appropriate anchors; level the plate before tightening
• Verify clearances and door swing before fully tightening mounting hardware

This wire oven rack provides a stable, heat-resistant surface for cookware and bakeware, restoring proper support and cooking alignment in your oven. Designed to slide into existing shelf tracks for everyday use. What it does

• Supports pots, pans and bakeware for even cooking and roasting
• Restores proper shelf height and prevents cookware from tipping
• Allows smooth sliding in and out of the oven on existing track guides
• Replaces bent, warped or missing oven shelving that interferes with cooking

• One wire oven rack

• Slide the rack into the oven's shelf guides until fully seated; no tools typically required
• Allow the oven to cool before handling and wear gloves to avoid sharp edges
• Verify correct orientation (flat side up) and that rack locks into track stops
• Check for bent guides or obstructions before forcing

The Charcoal Filter is an OEM part for GE microwave ovens. This filter is designed to remove smoke, odors, and grease from the air while cooking. It is typically used in over-the-range microwaves that recirculate air rather than vent it outdoors.

Over time, the charcoal filter can become saturated with grease and odors, losing its effectiveness. This can lead to a noticeable decrease in air quality and an increase in cooking odors in your kitchen.

Symptoms of a saturated or bad Charcoal Filter include:

• Persistent odors after cooking
• Smoke not being effectively filtered during or after microwave use
• A visible accumulation of grease or debris on the filter

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.
