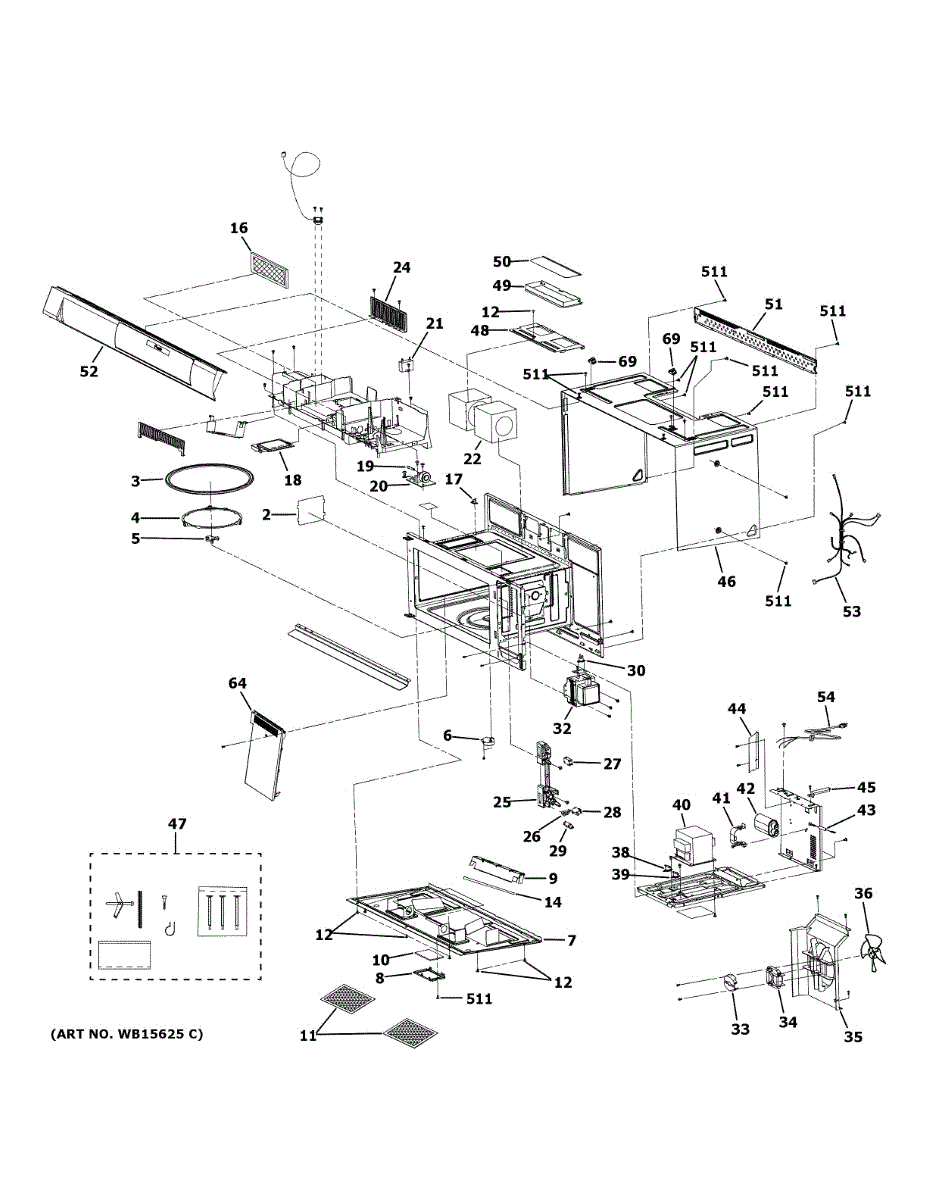

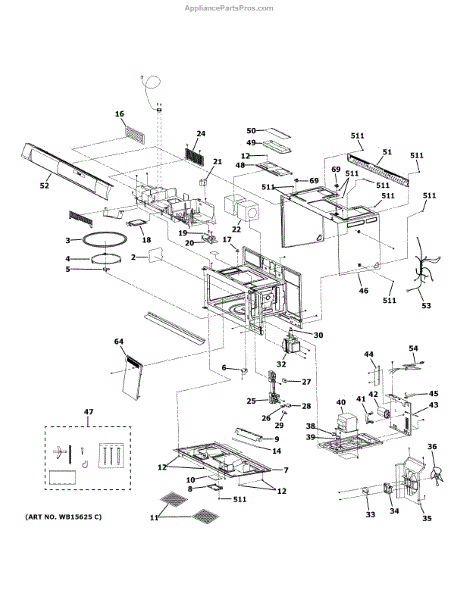

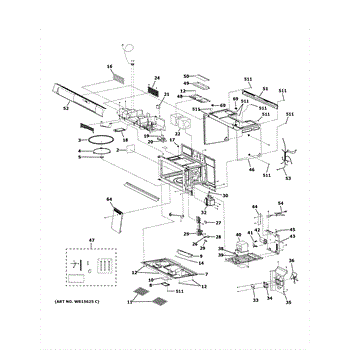

Parts for HVM7167RN1TS: Oven Cavity Parts

This turntable support ring sits beneath the microwave's glass tray and rides on small rollers to enable smooth rotation. Replacing a worn ring restores stable, quiet turning for more consistent heating and helps prevent tray wobble.

• Supports the glass tray and allows it to rotate smoothly
• Helps maintain even heating by keeping the tray centered and turning
• Common symptoms: tray not turning or stopping intermittently; tray wobbling or slipping
• Reduces grinding or squeaking caused by a worn ring

• Disconnect power by unplugging the unit or switching off the circuit breaker
• Remove the glass tray; lift out the old ring and clean the track
• Position the new ring with the rollers facing up and seated evenly
• Reinstall the glass tray and verify free rotation before restoring power

The Turntable Motor is an OEM part for GE microwaves. It is responsible for rotating the glass turntable plate during cooking, ensuring food is evenly heated throughout the microwave cavity.

Symptoms of a bad turntable motor include:

• The turntable not spinning at all or rotating unevenly
• Loud grinding or clicking noises coming from the motor area
• The turntable plate wobbles excessively during the operation

Causes can be normal wear and tear over time from continuous use, failure of electronic components in the motor, or damage from heavy loads or impact. This GE replacement motor restores even cooking performance.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models. Replace yours today before a minor problem becomes a major repair bill. Continued use without a properly functioning turntable can damage other microwave components.


The Grease Filter is an OEM part for GE range hoods and microwaves. It captures grease and other airborne particles generated during cooking, preventing them from accumulating in the appliance and ductwork. This filter helps maintain the efficiency of the exhaust system and reduces the risk of grease fires.

Over time, the filter can become saturated with grease and other residues, reducing its effectiveness and potentially causing odors or airflow issues.

Symptoms of a bad grease filter include:

• Reduced airflow or ventilation performance
• Persistent cooking odors
• Visible grease buildup on the filter
• The filter appearing damaged or worn

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This control mounting panel secures the appliance control/console assembly, providing a stable mounting surface that helps keep buttons, switches, and electronics aligned for reliable operation and easier repairs. What it does:

• Provides a rigid mounting surface for the control/console assembly
• Keeps control board and user interface components properly aligned
• Helps prevent movement or vibration-related contact issues
• Common replacement for cracked, bent, or damaged control panels that misalign controls

• Disconnect power to the appliance before starting any repair
• Typically accessed by removing the console or outer panel; keep fasteners organized
• Handle the control board and connectors carefully to avoid damage

The Charcoal Filter is an OEM part for GE microwave ovens. This component is crucial for absorbing odors and filtering out grease and other contaminants from the air circulated by the microwave's exhaust system. By maintaining a cleaner airflow, the charcoal filter ensures that your microwave remains efficient and free from odors that can affect the taste and smell of your food. The filter measures about 10 inches wide by 2-1/2 inches high.

Causes of a bad charcoal filter include saturation with grease or odors over time, which reduces its efficacy. Additionally, accidental damage or prolonged use without replacement can impair its ability to filter air effectively.

Symptoms of a bad charcoal filter include:

• Persistent odors even after cooking has completed
• Visible grease buildup on the filter
•  Reduced efficiency in air recirculation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Temperature-sensing thermostat that controls an appliance's heating cycle to keep temperatures within a safe operating range. Replacing a failed thermostat restores proper temperature cycling, helps prevent overheating, and stabilizes performance. What it does:

• Opens or closes at its designed trip point to control heating elements or temperature circuits.
• Stops heating when the set temperature is reached and allows heating to resume when temperature falls.
• A faulty thermostat can cause no heat, continuous heating, erratic cycling, or temperature that never stabilizes.
• Used as the temperature control device in the appliance's heat-regulation system.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Match wiring and mounting to the original thermostat; do not force terminals or sensor elements.
• Handle the sensor and terminals carefully to avoid damage; do not kink or crush the sensing element.

This is a fuse that is used on microwaves. This fuse shuts off the microwave if there happens to be a power surge. This helps prevent damage to the microwave unit and also prevents fires from being started from the power surge. Be sure to unplug the microwave from its power source prior to attempting the replacement of the fuse. The process to replace the fuse is relatively easy and can be completed in about 30 to 60 minutes time.A new fuse may be needed if the microwave will no longer turn on. If the fuse has been blown, it will show scorch marks, and the filament inside will be melted.This fuse is a genuine General Electric part and is an OEM part sourced directly from the manufacturer. It is sold individually. This specific fuse is compatible with microwaves that are manufactured by the General Electric brand.

A noise filter that helps suppress electrical interference on the appliance power line, reducing hum, arcing and radio-frequency interference for more reliable operation. Fits into the appliance mains to limit unwanted electrical noise. What it does

• Suppresses line noise and radio-frequency interference that can cause humming, buzzing or intermittent operation.
• Helps prevent electrical interference that affect controls, displays or nearby audio equipment.
• Used where power-line filtering is required to maintain stable operation of the appliance's electronics.
• Common symptom: intermittent control response, audible electrical noise, or interference-related malfunctions.

• One noise filter.

• Disconnect power at the breaker or unplug the appliance before servicing.
• Access may require removing a rear or control panel; keep track of fasteners and grounding connections.
• Replace only with the exact part number; ensure proper orientation and secure mounting.

This capacitor helps the appliance motor start and run smoothly, restoring proper motor operation and reducing startup strain. Use this exact replacement to address motor performance issues. What it does:

• Provides the electrical phase shift needed for the motor to start and run
• Restores normal motor startup and running behavior
• Can resolve humming, slow or non-starting motors, and intermittent motor stalls
• Works with the motor's control circuitry to stabilize performance under load

• Always disconnect power to the appliance before starting work
• Discharge the capacitor before handling to avoid electrical shock
• Match terminals and wiring exactly to the original; secure connections firmly

The Vent Motor is an OEM part for GE microwaves. It is responsible for circulating air through the appliance and venting moisture, heat, and odors outside the home.

Causes of a bad Vent Motor can include normal wear and tear from extended use over time, exposure to grease or debris that causes increased friction or interference, or damage to motor windings from surges in electrical current.

Symptoms of a bad Vent Motor include:

• Lack of airflow when the vent is turned on
• Strange noises or knocking sounds coming from the vent system
• Grease or residue building up inside the appliance
• Excessive heat inside the oven or microwave

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Latch Support is an OEM part for GE microwaves. It is a component that helps guide and secure the latch mechanism as it fastens the microwave door closed.

Causes of bad latch support include normal wear and tear from repeated door openings and closings, damage from excessive force applied to the door, or failure of stabilizing clips or mounts.

Symptoms of a bad latch support include:

• The latch catching or sticking during opening/closing
• Difficulty fully engaging or disengaging the latch
• Noise or vibration emanating from the latch area
• Misalignment or wobbling of the door in the closed position

This OEM GE replacement part is also compatible with Hotpoint, RCA and select Kenmore microwave models.

The Interlock Switch Lever is an OEM part for GE microwaves. This mechanical component works with the microwave door interlock switch to disable power to the unit when the door is open.

Symptoms of a bad interlock lever include:

• Microwave remaining powered on with door open
• Delayed enabling or disabling of power when opening/closing door
• Loose or unstable door closing and sealing

Causes can be normal wear from repeated opening and closing of the microwave door over many years of use. The lever and its surrounding components experience stress with every operation.

This GE part is also compatible with Hotpoint, RCA, and select Kenmore models.

This microswitch senses the microwave door position and controls the safety interlock circuits. Replacing a worn switch restores proper start/stop behavior so the oven only runs when the door is fully closed.

• Detects door open/closed status to enable or disable cooking
• Part of the safety interlock system that stops operation if the door opens mid-cycle
• Replace if the switch fails a continuity check or shows heat or terminal damage

• Disconnect power before service; microwave capacitors can retain a dangerous charge
• Note wire positions and move them to the same terminals on the new switch
• Ensure the door latch cleanly actuates the switch; test operation before reassembly

The Microwave Monitor Switch is an OEM part for GE microwaves. This part monitors the position of the microwave door, ensuring that the microwave does not operate when the door is open. It acts as a crucial safety feature, preventing the microwave from emitting radiation when the door is not securely closed.

Causes of a bad monitor switch can include general wear and tear, repeated use, or electrical issues.

Symptoms of a bad monitor switch include:

• Microwave not starting or running intermittently
• Microwave operating with the door open
• Error codes or safety warnings displayed
• Unusual noises or sparking inside the microwave

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Micro Switch is an OEM part for GE microwaves. This part ensures the appliance operates only when the door is securely closed. It controls the electrical circuit, allowing the microwave to start heating food when the door latch engages the switch.

Causes of a bad micro switch can include wear and tear from frequent use, electrical issues, or physical damage from slamming the microwave door.

Symptoms of a bad micro switch include:

• The microwave not starting or stopping unexpectedly
• The microwave running even with the door open
• Intermittent power issues
• The door not latching or the microwave indicating the door is open

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Thermostat is an OEM part for GE microwaves. It acts as a temperature-sensing component that monitors internal heat levels and provides feedback to electronic controls.

Causes of thermostat failures can involve deterioration over extended use under intermittent high heat stresses.

Symptoms of a bad thermostat include:

• Inability to properly cook or reheat foods thoroughly
• Temperature readings malfunction triggering errors
• Magnetron shutting off unexpectedly mid-cooking cycle
• Cook settings not functioning optimally

This OEM GE replacement is compatible with Hotpoint, RCA and some Kenmore microwave models as well.

This magnetron is the microwave's high-frequency energy source. Replacing a weak or failed tube restores consistent heating performance so food warms evenly and cook cycles complete properly.

• Generates the microwave energy that heats food
• Works with the transformer, capacitor, and diode in the high-voltage circuit
• Failure signs include: runs but does not heat, intermittent or weak heating, or a loud humming/buzzing noise

• Disconnect power; the high-voltage capacitor can retain a dangerous charge—discharge per service information before servicing
• Do not run the microwave with the cover removed
• Handle by the metal body; avoid touching or damaging the antenna/insulator. Secure mounting screws and reconnect terminals firmly
• After reassembly, test with a cup of water to ensure proper heating and fan operation

The Microwave Thermostat is an OEM part for GE Countertop Microwaves. It is a critical component that monitors the microwave's internal temperature to ensure safe operation.

Causes of a bad thermostat can include failure of internal components due to prolonged heat exposure during cooking cycles over many years of use. Steam and splatters introduced into the microwave from heated foods can also damage sensors.

Symptoms of a bad thermostat include:

• Inability to heat or reheat foods adequately
• Short cycling of the microwave interior lights
• Erratic power levels during cook functions
• Overheating errors or shutoffs for safety

This replacement thermostat is also compatible with RCA and some Kenmore countertop microwave models.

This temperature-sensitive thermostat helps protect the microwave and nearby components by switching the circuit based on heat. It typically engages the cooling/vent fan or opens the circuit if excessive heat is detected, preventing overheating damage.

• Monitors temperature and changes state around the 70°C/40°C range
• Helps prevent overheating of internal components during heavy cooking
• Can trigger or regulate the vent/cooling fan on over-the-range units
• Common failure signs: vent fan not auto-cycling with cooktop heat, microwave shutting off from heat, or no continuity when tested at room temp and when heated

• Disconnect power to the appliance before servicing
• Note wire positions; transfer leads one at a time to the new thermostat
• Mount firmly to its bracket or surface for correct heat sensing
• After installation, verify fan operation and monitor for proper cycling

The Capacitor is an OEM part for GE microwaves. It is an electronic component within the microwave's high voltage circuitry. The capacitor works to store and deliver high-voltage electrical energy from the main control board to the magnetron tube in short, powerful bursts required for microwave cooking.

Causes of failure can be due to natural breakdown of the capacitive material over time and use. Capacitors have a limited lifespan that is greatly reduced if subjected to heat, moisture or electrical surges.

Symptoms of a bad capacitor include:

• Inconsistent or incomplete cooking even at high power levels
• Slow or inefficient heating during use
• Sparking or burning smells emanating from inside the microwave

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The High Voltage Diode is an OEM replacement part for GE microwaves. It converts the high voltage of the microwave's power supply into a lower voltage suitable for the magnetron. It acts as a one-way valve for electrical current, allowing it to flow in one direction while preventing it from flowing back in the opposite direction.

Symptoms of a faulty high voltage diode include:

• No power or complete loss of power to the microwave
• Inconsistent or inadequate heating performance
• Unusual electrical smells during operation

A bad high voltage diode can occur due to electrical malfunctions, power surges, or excessive heat exposure. If you notice issues such as no power, uneven heating, or unusual electrical smells coming from the microwave, it may be time to replace the old or damaged high voltage diode with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


This nut assembly is a small mounting fastener that secures appliance components to studs or brackets, helping keep panels and internal parts stable for safe, quiet operation. What it does

• Secures components to threaded studs or bolts to prevent movement and vibration
• Restores proper fit of panels, trim, or internal assemblies when a worn or missing nut causes looseness
• Prevents electrical or mechanical contact caused by shifting parts
• Simple, durable replacement for a single mounting point

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct size wrench or socket to avoid rounding the nut; snug, not overly tight
• Verify the mating stud/bolt and threads are clean and undamaged before installation
• If other mounting hardware is corroded or damaged, replace all affected fasteners for a secure fit

This damper bracket secures the air damper assembly to the appliance, keeping the damper aligned for proper venting and reducing vibration. Replacing a damaged bracket helps restore stable damper movement and correct airflow. What it does:

• Secures and supports the air/vent damper so it can open and close correctly
• Prevents rattling or vibration caused by a loose or broken bracket
• Helps resolve improper venting or inconsistent temperature control linked to a misaligned damper
• Works as the mounting point for the damper assembly to the cabinet/chassis

• One damper bracket

• Always disconnect power (and water, if applicable) before servicing the appliance
• Access typically requires removing panels—watch for sharp edges and keep fasteners organized
• Bracket installs with mounting screws; verify damper alignment and smooth movement before reassembly

This damper is the oven vent assembly that controls airflow and venting during cooking, helping the oven purge steam and maintain consistent temperatures. Replacing a faulty damper restores proper vent operation and helps improve cooking performance. What it does:

• Opens and closes the oven vent to regulate airflow and release steam during bake/broil cycles
• Helps maintain proper cooking temperatures by directing exhaust flow
• A failed damper can cause poor temperature recovery, uneven baking or unexpected venting behavior
• Works as the airflow control component in the oven vent system

• Disconnect power to the appliance before starting any repair
• Installation typically requires basic hand tools (screwdriver, nut driver); follow the service manual for disassembly steps
• Handle sheet metal and vents carefully — wear gloves to avoid cuts

This replacement mounting plate secures internal assemblies to the appliance chassis, restoring stable support and alignment. It helps reduce movement and prevents loose or misaligned components for safer, quieter operation. What it does:

• Anchors and supports internal assemblies or housings to the appliance frame.
• Keeps parts aligned to maintain proper fit and operation.
• Helps reduce vibration, rattling, and shifting of mounted components.
• Use when the original plate is bent, cracked, or missing and causes loose mounting or misalignment.

• Disconnect power and water before starting any repair.
• Wear gloves and eye protection; the plate and surrounding areas can have sharp edges.
• Retain or reuse original mounting hardware unless replacements are specified elsewhere.
• Follow the appliance's service manual for removal, orientation, and torque specifications.

This nut assembly is a small mounting fastener that secures appliance components to studs or brackets, helping keep panels and internal parts stable for safe, quiet operation. What it does

• Secures components to threaded studs or bolts to prevent movement and vibration
• Restores proper fit of panels, trim, or internal assemblies when a worn or missing nut causes looseness
• Prevents electrical or mechanical contact caused by shifting parts
• Simple, durable replacement for a single mounting point

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct size wrench or socket to avoid rounding the nut; snug, not overly tight
• Verify the mating stud/bolt and threads are clean and undamaged before installation
• If other mounting hardware is corroded or damaged, replace all affected fasteners for a secure fit
