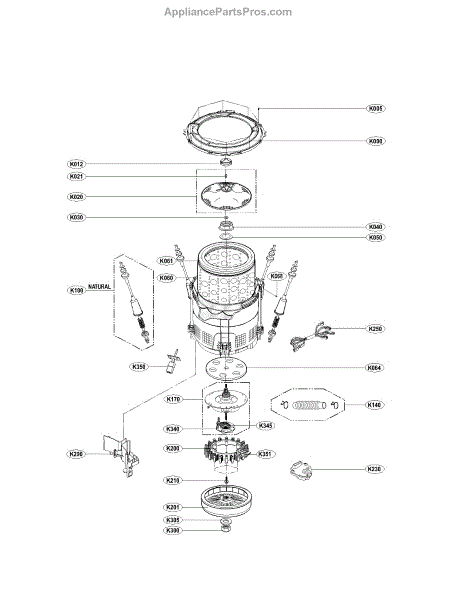

Parts for Lg WT4801CW: Tub Assembly Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This tapping screw fastens appliance panels and components for a secure, lasting hold. Replace stripped, rusted, or missing hardware to restore proper fit, reduce vibration and rattling, and keep brackets, covers, and trim tightly in place.

• Fastens metal or plastic panels, trim, or brackets to the appliance cabinet/frame
• Cuts its own threads in pre-drilled holes for a tight, reliable fit
• Helps maintain alignment and reduce movement that can cause noise
• Replace when the original screw is missing, stripped, corroded, or will not tighten

• Disconnect power and shut off water/gas before servicing
• Match the screw's position and length to the original hardware
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any washers or spacers from the original assembly if present

The Pulsator Cap is an OEM part for LG washing machines. It is designed to secure the pulsator (or agitator) in place, ensuring proper movement of the wash plate during the wash cycle. This component helps in the effective distribution of water and detergent, promoting thorough cleaning of clothes.

You should replace this pulsator cap if it becomes damaged, lost, or worn out. Causes of a bad pulsator cap can include regular wear and tear, exposure to heavy loads, or damage from improper handling. A compromised cap can lead to inefficient washing and potential damage to the pulsator.

Symptoms of a bad Pulsator Cap include:

• The pulsator becoming loose or dislodged
• Unusual noises during the wash cycle
• Clothes not being cleaned properly
• The washer experiencing imbalance issues

This OEM LG part is also compatible with Sears/Kenmore models.

This pulsator assembly is the wash plate at the bottom of the tub in select top-load washers. It circulates water and clothes during the wash cycle, so replacing a worn or cracked pulsator restores proper agitation and cleaning performance.

• Creates the wash action by oscillating to move water and fabrics
• Helps maintain even turnover for effective cleaning
• Common symptoms of failure: little or no agitation, poor cleaning results
• Other signs: grinding/knocking during wash, a wobbling/loose wash plate, or visible cracks/stripped center

• Disconnect power and turn off water supplies before servicing
• Remove the center cap and mounting bolt, then lift the old wash plate straight up
• Clean the hub splines; align and press the new pulsator fully onto the hub
• Reinstall the mounting bolt and cap; tighten securely and run a quick test cycle

The Customized Screw is an OEM part for securing the wash plate in LG washing machines. This screw maintains the wash plate's position and stability during the washer's operation. The Customized Screw ensures the wash plate performs efficiently, contributing to the effectiveness of the washing process by enabling proper agitation and circulation of clothes.

Causes of a bad Customized Screw can include wear and tear over time, especially from the constant motion and stress during the wash cycles.

Symptoms of a bad Customized Screw include:

• The wash plate becoming loose or detached
• Ineffective washing due to improper motion of the wash plate
• Unusual noises during the wash cycle indicating a loose component

This OEM LG part is also compatible with some Kenmore models.

This hardware washer sits beneath a screw or nut to spread load and help keep fasteners tight inside your appliance. Replacing a bent or missing washer restores a secure fit and can reduce vibration-related noise. What it does:

• Distributes clamping force to protect mounting surfaces
• Helps resist loosening from vibration and movement
• Restores proper alignment when a washer is damaged or missing
• Common symptoms: loose or wobbling parts, rattling noises, screws backing out

• 1 washer

• Disconnect power; if working on a washer, also turn off water supply
• Note the original hardware stack order and take photos for reference
• Place the washer between the fastener head or nut and the part being secured
• Tighten to manufacturer guidance; avoid overtightening to prevent damage

A small fastening nut that secures drawer-related hardware and helps keep moving parts aligned and stable. Replacing a worn or missing nut restores secure attachment and reduces play or noise in the drawer assembly. What it does:

• Holds drawer hardware or related components in place to prevent shifting during use
• Helps maintain proper alignment of sliding or moving parts
• Can eliminate looseness, rattling, or intermittent catching caused by a missing or damaged nut
• Provides a secure threaded connection when used with the matching bolt or stud

• Disconnect power and remove the drawer or access panel before servicing to avoid injury
• Use the correct size wrench or socket; hand-start threads to avoid cross-threading
• Tighten snugly but avoid overtightening to prevent stripping the threads or damaging components
• If the original nut failed due to wear or corrosion, inspect the mating bolt/stud and replace if damaged

This genuine hardware washer installs at the specific joint shown in your model's parts diagram. It spreads clamp force and keeps the connection aligned and secure to support smooth operation of the related component. What it does:

• Distributes fastener load and protects mating surfaces from damage
• Maintains proper spacing and alignment within the assembly
• Helps resist loosening from vibration over time
• Clues it may be needed or worn: loose/rattling parts, unusual vibration or noise, or visible wear at the fastener location; on some models, seepage at that joint

• 1 washer

• Disconnect power and turn off water supply before servicing
• Support the assembly, remove the fastener, and install the washer in the same orientation
• Tighten the fastener snugly without overtightening; replace any damaged bolts, nuts, or seals

A suspension assembly that supports and stabilizes the washer tub to reduce vibration and restore smooth spin cycles. Replacing a worn suspension helps prevent excessive tub movement and noisy, unbalanced operation. What it does:

• Supports the washer drum and maintains proper tub alignment during wash and spin cycles.
• Absorbs and dampens vibration to reduce shaking, banging, and excessive movement.
• Helps prevent premature wear to bearings, seals, and other suspension components by keeping the tub balanced.
• Common symptoms indicating replacement: loud thumping or banging during spin, excessive rocking, or visible tub sagging.

• Disconnect power and water supply before starting any repair; use a grounded, unplugged work area.
• Remove the washer cabinet or access panel to access the suspension—follow OEM disassembly steps.
• Support the tub when removing/installing the suspension to prevent sudden drops; use appropriate tools and two-person lift if needed.
• Inspect surrounding components (shocks, springs, mounts) for wear and replace as necessary for best results.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Tub to Pump Hose Assembly is an OEM part for LG washing machines. This hose connects the tub to the drain pump, allowing water to be efficiently drained from the washing machine during the spin and drain cycles.

Over time, the hose can become clogged, develop cracks, or experience wear due to constant water flow and agitation. Damage can also occur from accidental mishandling or impact, leading to leaks or improper drainage.

Symptoms of a bad Tub to Pump Hose Assembly include:

• Water leaking from the washing machine
• Slow or incomplete drainage
• Error codes related to drainage issues
• Excess water remaining in the tub after the cycle

This OEM LG part is also compatible with Sears/Kenmore.

This clutch assembly is a genuine OEM replacement part sourced directly from the manufacturer and is intended for use in washing machines. The clutch assembly controls the movement of the internal tub and agitator during operation. Over time and with regular use, the clutch assembly may become worn and fail to work correctly. If the washing machine tub is not moving back and forth during the wash cycle or is not spinning during the spin cycle, the clutch is broken. If it is moving or spinning, but not efficiently or fast enough, the clutch is worn and beginning to fail. In both of these instances, the clutch assembly should be replaced. Excessively wet clothes at the end of the laundry cycle can also be indicative of a broken clutch.A screwdriver, socket set, putty knife, and impact wrench with a large 38mm socket are required to make this replacement. Ensure the power is disconnected and the machine is drained. While the tub is out of the machine, take time to clean the area of gunk and buildup. Wear gloves while working on the machine.This clutch assembly is made of durable metals and is individually sold. It is designed for use in washing machines by LG and Kenmore.

This washer motor stator assembly is the stationary windings of the direct-drive motor. Replacing a weak or shorted stator restores smooth drum tumbling and strong, consistent spin performance so wash cycles complete properly.

• Creates the rotating magnetic field that drives the rotor and spins the inner basket
• Works with the rotor to provide torque for wash/tumble and high-speed spin
• Common symptoms: drum won't spin or tumble, stops under load, or motor hums without turning
• Burnt odor or visible heat damage on windings can indicate stator failure

• Disconnect power and turn off water; access the motor from the rear panel
• Remove the rotor center bolt and slide off the rotor; strong magnets—handle carefully
• Unbolt and remove the stator; transfer/reconnect the motor position (Hall) sensor and harness if present
• Tighten fasteners evenly; verify drum rotates freely by hand before restoring power

The Motor Rotor Assembly is an OEM part for LG washing machines. This component is crucial for the washer's motor operation, as it works in conjunction with the stator to create the electromagnetic field that drives the drum. It ensures the drum rotates effectively during the wash and spin cycles, facilitating thorough cleaning and efficient water extraction.

Over time, the motor rotor assembly can wear out or become damaged due to regular use, exposure to water, or excessive loads. Causes of a bad motor rotor assembly include bearing failure, corrosion, physical damage, or electrical issues.

Symptoms of a bad motor rotor assembly include:

• The washer not spinning or agitating
• Unusual noises such as grinding or squealing during operation
• The drum not turning or rotating inconsistently
• Error codes related to motor issues

This OEM LG part is also compatible with Sears/Kenmore.

The Motor Stator Bolt is an OEM part for LG washing machines. This bolt secures the stator to the motor, ensuring the stability and proper functioning of the washing machine's motor assembly.

Causes of a bad motor stator bolt can include wear and tear over time, improper installation, or damage from over-tightening or impact. A compromised bolt can lead to instability in the motor, potentially affecting the washer's performance.

Symptoms of a bad motor stator bolt include:

• Unusual noises during the wash cycle
• Vibrations or shaking of the washer
• The motor not functioning properly or failing to start

This OEM LG part is also compatible with Sears/Kenmore.

The Clutch Motor is an OEM part for LG washing machines. This motor engages the clutch mechanism, allowing the washer to switch between agitating and spinning cycles effectively.

Causes of a bad clutch motor can include wear and tear over time, electrical issues, or mechanical failure due to overloading or improper use.

Symptoms of a bad clutch motor include:

• The washer not agitating or spinning
• Unusual noises during the wash or spin cycles
• The drum not rotating properly
• The washer stopping mid-cycle

This OEM LG part is also compatible with Sears/Kenmore models.

Replacement nut that secures drawer and trim components on compatible LG appliances. It restores a firm, vibration-resistant fastening to help prevent loosening, rattling, or misalignment during normal use. What it does:

• Secures drawer, trim or small mounting brackets to the appliance chassis.
• Helps stop loosened fasteners that cause rattling or misaligned panels.
• Provides proper thread engagement for a stable connection.
• Matches the appliance's original fastening point when used as the listed part.

• Always disconnect power to the appliance before beginning any repair.
• Use the correct-size wrench or socket; avoid overtightening to prevent stripped threads.
• Inspect mating screw/bolt and threads for damage; replace damaged hardware as needed.

This is a small OEM washer used with the washer's internal mounting hardware to provide proper spacing and secure fasteners. It helps keep assemblies aligned and prevents hardware from loosening during operation. What it does:

• Acts as a spacer and load distributor for bolts or screws in the washer assembly
• Helps maintain proper alignment of panels or components
• Reduces wear between mating metal parts
• Can prevent fasteners from backing out due to vibration

• One washer as pictured

• Always unplug the appliance and shut off the water supply before servicing
• Access the mounting location per the service manual or parts diagram; replace only like-for-like
• Install with the correct orientation and hardware; do not overtighten fasteners
• If other fasteners or parts are corroded or worn, replace them at the same time

Kit is no longer available. Order MCJ61861201 and ACP72929002 separately.

The Coupling Washer is a genuine OEM part for LG washing machines. As a crucial component connecting the drive motor to the inner drum, the coupling washer allows for the transmission of rotational force during the spin cycle. This rotational movement generated by the drive motor is what extracts water from clothing, effectively drying clothes.

Symptoms of a bad coupling washer include:

• The washing machine fails to spin or rotates very slowly
• Vibrations and noise during spinning
• Rubber couplings tearing or shredding prematurely

Over time, the constant exposure to vibrations and forces during spin cycles can cause the rubber material of the coupling washer to deteriorate.

This OEM LG part is also compatible with Sears/Kenmore washers.

This thermistor assembly monitors water temperature inside the washer tub and relays a precise signal to the control board. Replacing a failed sensor restores accurate temperature sensing and helps prevent cycle errors and performance issues. What it does:

• Measures wash water temperature and sends the signal to the electronic control
• Enables the control to adjust cycle operation based on temperature feedback
• Common failure signs: tE/TE error codes on some models, incorrect temperatures, long cycles, or cycles that won't advance
• Intermittent faults may cause sporadic errors or inconsistent performance

• 1 thermistor assembly

• Disconnect power and shut off water before servicing
• Access location varies by model; the sensor is typically mounted in the outer tub or heater housing
• Unplug the harness, pull the old sensor straight out; seat the new sensor fully and reconnect the harness
• Route wiring away from moving parts; restore power and run a test cycle, checking for proper operation and any leaks around the sensor port

The Sensor Assembly is an OEM part for LG washing machines. This component is crucial for detecting and monitoring various conditions within the washing machine, such as water level, temperature, and load balance. It ensures the machine operates efficiently and effectively by providing accurate data to the control board.

Causes of a bad sensor assembly can include wear and tear from regular use, exposure to water and detergents, electrical malfunctions, or damage from impact. A faulty sensor assembly can lead to incorrect readings, which can affect the washing machine’s performance and lead to issues such as improper water levels or unbalanced loads.

Symptoms of a bad Sensor Assembly include:

• Incorrect water levels during cycles
• The washing machine stopping mid-cycle or not completing cycles
• Error codes related to water level or load balance
• The machine failing to start or operate correctly

This OEM LG part is also compatible with Sears/Kenmore models.
