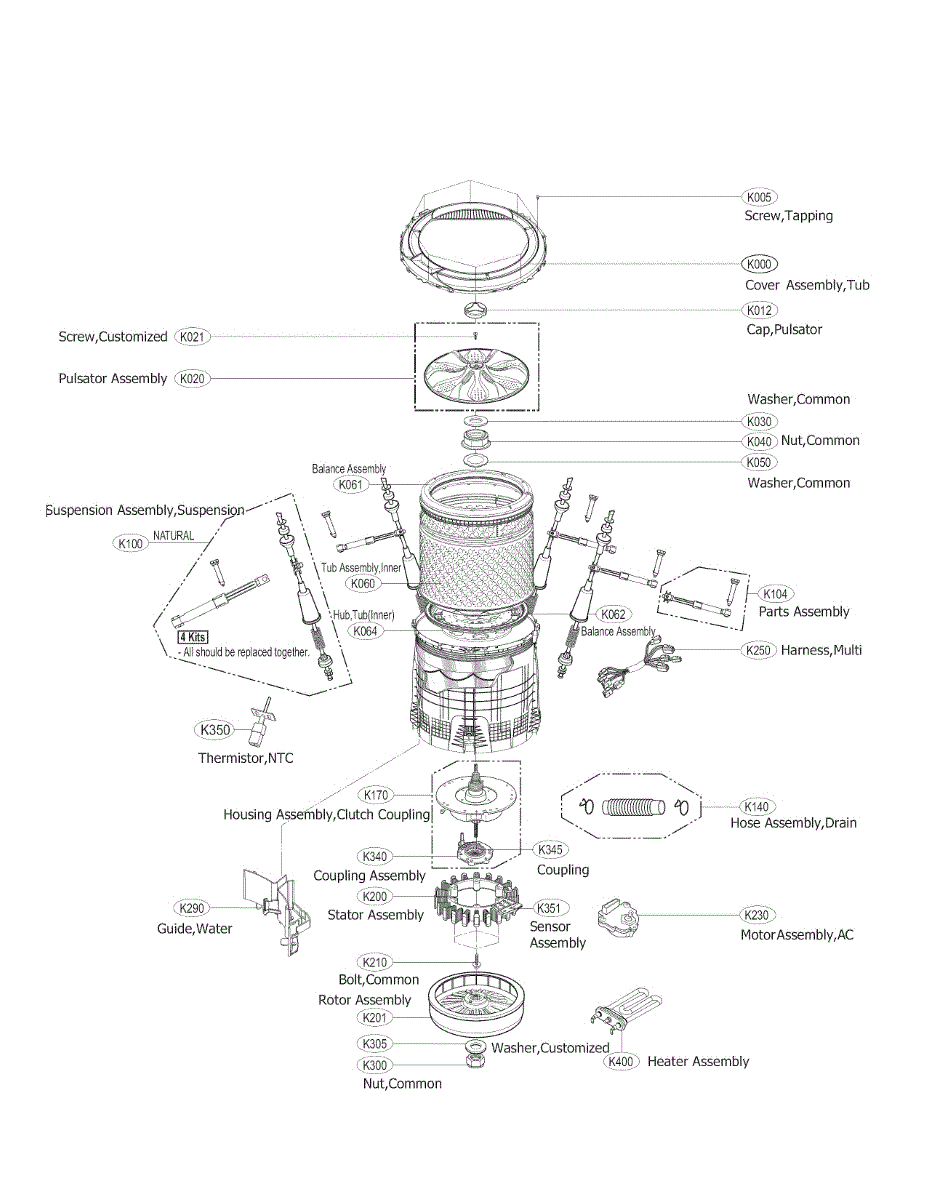

Parts for Lg WT7700HVA: Tub Assembly Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

This tapping screw fastens appliance panels and components for a secure, lasting hold. Replace stripped, rusted, or missing hardware to restore proper fit, reduce vibration and rattling, and keep brackets, covers, and trim tightly in place.

• Fastens metal or plastic panels, trim, or brackets to the appliance cabinet/frame
• Cuts its own threads in pre-drilled holes for a tight, reliable fit
• Helps maintain alignment and reduce movement that can cause noise
• Replace when the original screw is missing, stripped, corroded, or will not tighten

• Disconnect power and shut off water/gas before servicing
• Match the screw's position and length to the original hardware
• Start by hand to avoid cross-threading; tighten snugly—do not overtighten
• Reuse any washers or spacers from the original assembly if present

The Pulsator Cap is an OEM part for LG washing machines. It is designed to secure the pulsator (or agitator) in place, ensuring proper movement of the wash plate during the wash cycle. This component helps in the effective distribution of water and detergent, promoting thorough cleaning of clothes.

You should replace this pulsator cap if it becomes damaged, lost, or worn out. Causes of a bad pulsator cap can include regular wear and tear, exposure to heavy loads, or damage from improper handling. A compromised cap can lead to inefficient washing and potential damage to the pulsator.

Symptoms of a bad Pulsator Cap include:

• The pulsator becoming loose or dislodged
• Unusual noises during the wash cycle
• Clothes not being cleaned properly
• The washer experiencing imbalance issues

This OEM LG part is also compatible with Sears/Kenmore models.

This pulsator assembly is the wash plate at the bottom of a top-load washer. It creates the water and fabric movement that provides cleaning action, restoring proper agitation when the original wash plate is stripped, cracked, or comes loose.

• Rotates to circulate water and move fabrics, creating the wash action
• Mounts to the washer's drive shaft via a splined hub
• Common failure signs: no or weak agitation, clothes not moving, or a loose/wobbly wash plate
• Worn splines can cause grinding or ratcheting sounds during wash

• Disconnect power and water supply; work with the tub empty and dry
• If present, remove the center cap to access the retaining bolt; remove the bolt
• Lift off the old pulsator; clean the shaft splines and fully seat the new assembly
• Reinstall the bolt and cap, tighten securely, and run a test cycle to ensure proper wash action

The Customized Screw is an OEM part for securing the wash plate in LG washing machines. This screw maintains the wash plate's position and stability during the washer's operation. The Customized Screw ensures the wash plate performs efficiently, contributing to the effectiveness of the washing process by enabling proper agitation and circulation of clothes.

Causes of a bad Customized Screw can include wear and tear over time, especially from the constant motion and stress during the wash cycles.

Symptoms of a bad Customized Screw include:

• The wash plate becoming loose or detached
• Ineffective washing due to improper motion of the wash plate
• Unusual noises during the wash cycle indicating a loose component

This OEM LG part is also compatible with some Kenmore models.

This hardware washer sits beneath a screw or nut to spread load and help keep fasteners tight inside your appliance. Replacing a bent or missing washer restores a secure fit and can reduce vibration-related noise. What it does:

• Distributes clamping force to protect mounting surfaces
• Helps resist loosening from vibration and movement
• Restores proper alignment when a washer is damaged or missing
• Common symptoms: loose or wobbling parts, rattling noises, screws backing out

• 1 washer

• Disconnect power; if working on a washer, also turn off water supply
• Note the original hardware stack order and take photos for reference
• Place the washer between the fastener head or nut and the part being secured
• Tighten to manufacturer guidance; avoid overtightening to prevent damage

This replacement nut secures bolts or studs in your appliance. Replacing a missing or stripped nut restores a tight, reliable connection to keep brackets and assemblies stable and reduce vibration or rattling. What it does:

• Provides threaded retention for bolts/studs on panels, brackets, and assemblies
• Helps maintain alignment and stability during operation
• Typical failure signs: stripped threads, missing hardware, loose or rattling components, vibration
• Direct replacement for the original nut in the same location

• 1 nut

• Disconnect power before service; shut off the water supply
• Match thread size/pitch to the original; start threads by hand to avoid cross-threading
• Tighten with the correct tool; do not overtighten or damage mating parts
• Reinstall any washers/spacers in the original order and verify secure fit

This genuine hardware washer installs at the specific joint shown in your model's parts diagram. It spreads clamp force and keeps the connection aligned and secure to support smooth operation of the related component. What it does:

• Distributes fastener load and protects mating surfaces from damage
• Maintains proper spacing and alignment within the assembly
• Helps resist loosening from vibration over time
• Clues it may be needed or worn: loose/rattling parts, unusual vibration or noise, or visible wear at the fastener location; on some models, seepage at that joint

• 1 washer

• Disconnect power and turn off water supply before servicing
• Support the assembly, remove the fastener, and install the washer in the same orientation
• Tighten the fastener snugly without overtightening; replace any damaged bolts, nuts, or seals

This inner tub hub connects the washer's inner drum to the drive assembly, providing a secure rotational link so the drum can spin properly. Replacing a damaged hub restores drum stability and reduces noise or wobbling. What it does:

• Secures the inner tub to the drive shaft so the drum turns with the motor
• Prevents excessive movement, vibration, and scraping noises caused by a worn or broken hub
• Helps correct spin-related issues like uneven spinning or the drum not engaging
• Works with the tub assembly and other drive components to maintain proper drum alignment

• One inner tub hub

• Disconnect power and water supply, and fully drain the washer before starting
• Replacement generally requires removing the outer tub/inner tub assembly and transferring seals or gaskets as needed
• Use proper tools and follow OEM service instructions
• Inspect surrounding components (seals, bearings, suspension) and replace if worn to prevent repeat failure

This suspension assembly supports the washer tub and helps keep it centered during the spin cycle to reduce vibration and wobbling. Replacing a worn suspension restores smoother, more balanced operation. What it does:

• Cushions and stabilizes the washer tub during agitation and spin
• Absorbs shock and reduces excessive vibration and movement
• Helps prevent loud banging or rubbing as the tub spins
• Maintains proper tub alignment for consistent performance

• Disconnect power and water supply before starting any repair.
• Support the tub or cabinet while removing and installing the suspension to prevent drop or damage.
• Use basic hand tools; follow for exact procedures and torque specs.
• After installation, run a test spin with a small load to ensure proper operation.

The Tub to Pump Hose Assembly is an OEM part for LG washing machines. This hose connects the tub to the drain pump, allowing water to be efficiently drained from the washing machine during the spin and drain cycles.

Over time, the hose can become clogged, develop cracks, or experience wear due to constant water flow and agitation. Damage can also occur from accidental mishandling or impact, leading to leaks or improper drainage.

Symptoms of a bad Tub to Pump Hose Assembly include:

• Water leaking from the washing machine
• Slow or incomplete drainage
• Error codes related to drainage issues
• Excess water remaining in the tub after the cycle

This OEM LG part is also compatible with Sears/Kenmore.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Stator Assembly is an OEM part for LG washing machines. This part generates the rotating magnetic field that drives the spinning motion of the washer tub during the wash cycles.

Causes of a bad Stator Assembly can include electrical failures, bearing seizures, or physical damage from impact or foreign objects.

Symptoms of a faulty Stator Assembly include:

• Washer not spinning or agitating properly
• Loud grinding or screeching noises during operation
• Excessive vibration or shaking
• Burning smell or smoke coming from the washer

This OEM LG part is also compatible with some Kenmore models

This rotor assembly is the rotating half of the direct-drive motor in your washer. It mates with the stator to spin and agitate the basket, restoring drive when the original rotor is worn, cracked, or stripped.

• Forms the magnetic rotor of the direct-drive motor to turn the wash basket
• Transfers motor torque directly to the tub for spin and wash action
• Common symptoms: no spin or agitation, starts then stops, loud grinding/clicking, motor-related error
• Visible damage may include cracked hub, stripped splines, or loose fit on the shaft

• Disconnect power and water; wear gloves and eye protection
• Access from the rear, remove the back panel, hold the basket, then remove the center bolt and pull the rotor straight off (strong magnets)
• Align splines/keyway, seat the rotor fully, and reinstall/tighten the center bolt securely
• Inspect the stator and hall sensor for damage before reassembly and test a spin cycle

The Motor Stator Bolt is an OEM part for LG washing machines. This bolt secures the stator to the motor, ensuring the stability and proper functioning of the washing machine's motor assembly.

Causes of a bad motor stator bolt can include wear and tear over time, improper installation, or damage from over-tightening or impact. A compromised bolt can lead to instability in the motor, potentially affecting the washer's performance.

Symptoms of a bad motor stator bolt include:

• Unusual noises during the wash cycle
• Vibrations or shaking of the washer
• The motor not functioning properly or failing to start

This OEM LG part is also compatible with Sears/Kenmore.

The Clutch Motor is an OEM part for LG washing machines. This motor engages the clutch mechanism, allowing the washer to switch between agitating and spinning cycles effectively.

Causes of a bad clutch motor can include wear and tear over time, electrical issues, or mechanical failure due to overloading or improper use.

Symptoms of a bad clutch motor include:

• The washer not agitating or spinning
• Unusual noises during the wash or spin cycles
• The drum not rotating properly
• The washer stopping mid-cycle

This OEM LG part is also compatible with Sears/Kenmore models.

Replacement nut that secures drawer and trim components on compatible LG appliances. It restores a firm, vibration-resistant fastening to help prevent loosening, rattling, or misalignment during normal use. What it does:

• Secures drawer, trim or small mounting brackets to the appliance chassis.
• Helps stop loosened fasteners that cause rattling or misaligned panels.
• Provides proper thread engagement for a stable connection.
• Matches the appliance's original fastening point when used as the listed part.

• Always disconnect power to the appliance before beginning any repair.
• Use the correct-size wrench or socket; avoid overtightening to prevent stripped threads.
• Inspect mating screw/bolt and threads for damage; replace damaged hardware as needed.

This is a small OEM washer used with the washer's internal mounting hardware to provide proper spacing and secure fasteners. It helps keep assemblies aligned and prevents hardware from loosening during operation. What it does:

• Acts as a spacer and load distributor for bolts or screws in the washer assembly
• Helps maintain proper alignment of panels or components
• Reduces wear between mating metal parts
• Can prevent fasteners from backing out due to vibration

• One washer as pictured

• Always unplug the appliance and shut off the water supply before servicing
• Access the mounting location per the service manual or parts diagram; replace only like-for-like
• Install with the correct orientation and hardware; do not overtighten fasteners
• If other fasteners or parts are corroded or worn, replace them at the same time

Kit is no longer available. Order MCJ61861201 and ACP72929002 separately.

This replacement coupling connects the washer motor to the gearcase so the drum/agitator receives drive torque. It restores the drive link that lets the washer agitate and spin when functioning properly. What it does

• Transfers motor torque to the gearcase so the washer can agitate and spin
• Commonly replaced when the washer slips or fails to agitate/spin
• Can stop grinding, clunking, or intermittent drive caused by a worn or broken coupling
• Works as a direct-fit replacement when the OEM part number matches

• Disconnect power and water before servicing; follow all safety precautions
• Access typically requires removing the washer cabinet or back panel to reach the motor/gearcase area
• Inspect surrounding components (motor shaft, gearcase input, mounting hardware) and replace as needed
• Use proper tools and follow all safety precautions for step-by-step instructions

This thermistor assembly monitors water temperature inside the washer tub and relays a precise signal to the control board. Replacing a failed sensor restores accurate temperature sensing and helps prevent cycle errors and performance issues. What it does:

• Measures wash water temperature and sends the signal to the electronic control
• Enables the control to adjust cycle operation based on temperature feedback
• Common failure signs: tE/TE error codes on some models, incorrect temperatures, long cycles, or cycles that won't advance
• Intermittent faults may cause sporadic errors or inconsistent performance

• 1 thermistor assembly

• Disconnect power and shut off water before servicing
• Access location varies by model; the sensor is typically mounted in the outer tub or heater housing
• Unplug the harness, pull the old sensor straight out; seat the new sensor fully and reconnect the harness
• Route wiring away from moving parts; restore power and run a test cycle, checking for proper operation and any leaks around the sensor port

The Sensor Assembly is an OEM part for LG washing machines. This component is crucial for detecting and monitoring various conditions within the washing machine, such as water level, temperature, and load balance. It ensures the machine operates efficiently and effectively by providing accurate data to the control board.

Causes of a bad sensor assembly can include wear and tear from regular use, exposure to water and detergents, electrical malfunctions, or damage from impact. A faulty sensor assembly can lead to incorrect readings, which can affect the washing machine’s performance and lead to issues such as improper water levels or unbalanced loads.

Symptoms of a bad Sensor Assembly include:

• Incorrect water levels during cycles
• The washing machine stopping mid-cycle or not completing cycles
• Error codes related to water level or load balance
• The machine failing to start or operate correctly

This OEM LG part is also compatible with Sears/Kenmore models.
