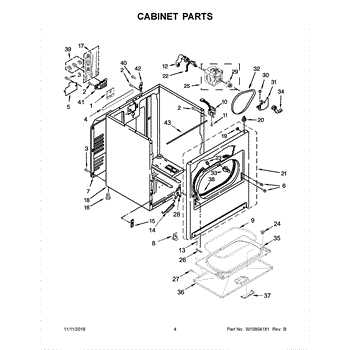

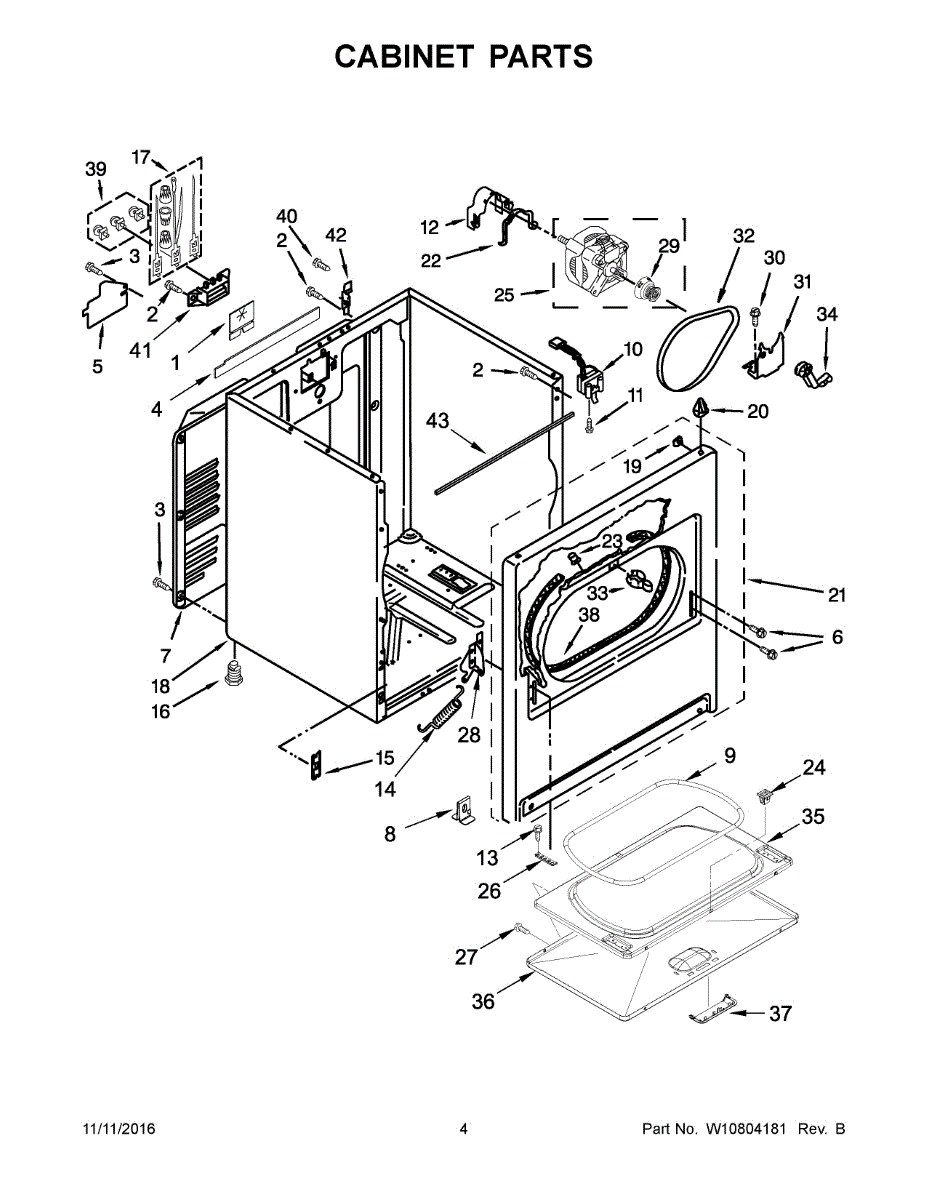

Parts for Whirlpool WED49STBW1: 03 - Cabinet Parts

Parts for Whirlpool WED49STBW1: 03 - Cabinet Parts

Location on Diagram
Part Description
Price & Availability
1
Product photo
By: Whirlpool

Replacement cushion pad for dryers. Installs between components to reduce noise and vibration. Replace if cracked, worn, or missing to restore quiet operation.

More
$14.56
Compare At:
$17.33
You Save:
$2.77

IN STOCK
Ships Today Guaranteed
Add to Cart
2
Best Seller
Product photo
4.8 (4)
By: Whirlpool

Mounts the washer top panel to the cabinet frame. Replace if screw is stripped, rusted, missing, or damaged during cabinet disassembly and repair work.

More
$7.95
Compare At:
$9.54
You Save:
$1.59

IN STOCK
Ships Today Guaranteed
Add to Cart
3
Best Seller
Product photo
5.0 (2)
By: Whirlpool

This 8-18 x 5/8-inch screw secures dryer panels, brackets, and covers. Replace missing or stripped fasteners to restore a tight fit and stability.

More
$7.95
Compare At:
$9.54
You Save:
$1.59

IN STOCK
Ships Today Guaranteed
Add to Cart
4
By: Whirlpool

Dryer door seal creates an airtight barrier to contain heat and improve efficiency. Replace if torn, cracked, or allowing air leaks. Confirm fit with your model number before ordering.

More
$11.95
Compare At:
$12.39
You Save:
$0.44

IN STOCK
Ships Today Guaranteed
Add to Cart
5
Product photo
By: Whirlpool

Protective cover that finishes and seals the designated area on your dryer. Replace if cracked, broken, or missing to restore a clean appearance.

More
$52.34
Compare At:
$62.28
You Save:
$9.94

IN STOCK
Ships Today Guaranteed
Add to Cart
6
Product photo
By: Whirlpool

Size: 10-32 x 1/2 inch.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

7
Product photo
By: Whirlpool

This rear panel is the exterior back cabinet piece that covers and protects a dryer or washer's internal components and provides mounting support for rear-mounted parts. It restores the appliance's structural back and keeps lint, moisture, and debris out. What it does:

  • Covers and protects internal components, wiring, and controls located at the appliance rear
  • Provides mounting points and alignment for rear-mounted parts and brackets
  • Helps reduce drafts, lint intrusion, and pest access through the appliance back
  • Stops rattles or vibrations caused by a damaged or loose back panel
What's included:
  • One rear panel/cabinet back
Install notes:
  • Disconnect power and water before starting; verify the appliance is fully de-energized
  • Remove the dryer/washer top and/or access screws to detach the old rear panel; retain fasteners if reusing
  • Align panel tabs and mounting holes, then secure with the correct screws; avoid over-tightening to prevent damage
  • If the panel is rusted or sharp, wear gloves and eye protection during removal and installation

More
$66.12
Compare At:
$69.31
You Save:
$3.19

IN STOCK
Ships Today Guaranteed
Add to Cart
8
By: Whirlpool

Secures panels, wiring harnesses, and hoses in your dryer. Replace this retaining clip if it's broken, missing, or no longer holding components firmly.

More
$9.95
Compare At:
$11.84
You Save:
$1.89

IN STOCK
Ships Today Guaranteed
Add to Cart
9
Best Seller
Product photo
4.6 (8)
By: Whirlpool

Seals the dryer door to prevent heat loss and maintain drying efficiency. Replace if cracked, torn, or causing uneven drying. Confirm fit with model.

More
$57.22
Compare At:
$68.09
You Save:
$10.87

IN STOCK
Ships Today Guaranteed
Add to Cart
10
Best Seller
Product photo
4.9 (1271)
By: Whirlpool

Dryer won't stop spinning when door opens or won't start at all? The door switch likely failed. DIY repair in 10-20 minutes with basic tools.

More
$26.95
Compare At:
$31.80
You Save:
$4.85

IN STOCK
Ships Today Guaranteed
Add to Cart
11
Product photo
5.0 (2)
By: Whirlpool

6-20 screw secures panels, brackets, and internal components. Replace stripped, missing, or damaged screws to restore proper fit and eliminate rattling.

More
$7.95
Compare At:
You Save:

IN STOCK
Ships Today Guaranteed
Add to Cart
12
Product photo
5.0 (4)
By: Whirlpool

Fixes excessive vibration and rattling from dryer motor movement. This clamp secures the motor to its bracket, restoring stability. DIY-friendly repair.

More
$5.95
Compare At:
$7.08
You Save:
$1.13

IN STOCK
Ships Today Guaranteed
Add to Cart
13
Best Seller
Product photo
5.0 (3)
By: Whirlpool

Screw secures appliance panels and access covers. Replace missing, stripped, or corroded screws to restore tight fit and eliminate rattles or gaps.

More
$7.95
Compare At:
$9.38
You Save:
$1.43

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
4.8 (5)
By: Whirlpool

Restores proper tension so your dryer door stays closed and operates smoothly. Replace if the door won't latch or pops open. Confirm fit by model number.

More
$27.73
Compare At:
$31.65
You Save:
$3.92

IN STOCK
Ships Today Guaranteed
Add to Cart
15
Best Seller
Product photo
4.9 (20)
By: Whirlpool

Secures the front panel to the dryer cabinet. Replace if cracked, broken, or damaged during disassembly. Installs at the panel-to-cabinet seam.

More
$15.70
Compare At:
$18.53
You Save:
$2.83

IN STOCK
Ships Today Guaranteed
Add to Cart
17
Best Seller
Product photo
5.0 (5)
By: Whirlpool

Fix a dryer that won't heat or has burning smell at the power connection. This terminal wire kit replaces burned wires and connectors. Easy DIY repair.

More
$52.31
Compare At:
$62.25
You Save:
$9.94

IN STOCK
Ships Today Guaranteed
Add to Cart
18
Product photo
By: Whirlpool

Dryer outer cabinet that houses internal components. Replace if your cabinet is rusted, dented, cracked, or damaged, compromising structural integrity.

More
$355.79
Compare At:
$406.29
You Save:
$50.50

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Best Seller
Product photo
5.0 (3)
By: Whirlpool

U-type clip nut slides onto sheet metal panels to create threaded anchor points for screws. Replace if broken, missing, or worn during repairs.

More
$11.95
Compare At:
$14.34
You Save:
$2.39

IN STOCK
Ships Today Guaranteed
Add to Cart
20
Product photo
5.0 (2)
By: Whirlpool

Fix rattling or gaps at the top of your dryer with this front top panel lock. Secures the panel to the cabinet frame for a tight, aligned fit.

More
$17.95
Compare At:
$21.54
You Save:
$3.59

IN STOCK
Ships Today Guaranteed
Add to Cart
21
Product photo
By: Whirlpool

Control panel for dryers and laundry centers. Replaces cracked, broken, or damaged panels on the front of your unit. Restores appearance and function.

More
$192.56
Compare At:
$231.07
You Save:
$38.51

IN STOCK
Ships Today Guaranteed
Add to Cart
22
Product photo
By: Whirlpool

Dishwasher leaking or rattling? This motor mount clamp secures the pump assembly to prevent movement, leaks, and vibration. Quick DIY fix.

More
$16.95
Compare At:
$20.17
You Save:
$3.22

IN STOCK
Ships Today Guaranteed
Add to Cart
23
Product photo
5.0 (2)
By: Whirlpool

Includes two bumpers and two locking clips for securing dryer panels. Replace if clips are broken or missing to prevent rattling. Confirm fit with your model.

More
$12.32
Compare At:
$14.66
You Save:
$2.34

IN STOCK
Ships Today Guaranteed
Add to Cart
24
Best Seller
Product photo
5.0 (8)
By: Whirlpool

Dryer door won't stay closed or requires tape to shut? The door catch secures your dryer door during operation. Easy 5-30 minute DIY fix with video guide.

More
$9.95
Compare At:
$11.94
You Save:
$1.99

IN STOCK
Ships Today Guaranteed
Add to Cart
26
Product photo
By: Whirlpool

Retaining clip secures panels and assemblies in dishwashers, dryers, and laundry centers. Replaces worn, broken, or missing clips to restore fit.

More
$14.56
Compare At:
$17.33
You Save:
$2.77

IN STOCK
Ships Today Guaranteed
Add to Cart
27
Product photo
By: Whirlpool

Flat head screw secures panels, brackets, or trim for a flush fit on your dishwasher. Replace worn or missing screws to prevent rattling and shifting.

More
$12.95
Compare At:
$14.57
You Save:
$1.62

IN STOCK
Ships Today Guaranteed
Add to Cart
28A
Best Seller
Product photo
4.7 (19)
By: Whirlpool

Left-hand door hinge for dryers. Replaces broken, bent, or damaged hinges that prevent the door from opening fully or aligning properly with the drum.

More
$48.95
Compare At:
$58.25
You Save:
$9.30

IN STOCK
Ships Today Guaranteed
Add to Cart
28
Best Seller
Product photo
4.9 (10)
By: Whirlpool

Secures the dryer door to the cabinet, allowing smooth opening and closing. Replace if bent, broken, or damaged from impact or wear over time.

More
$48.95
Compare At:
$58.74
You Save:
$9.79

IN STOCK
Ships Today Guaranteed
Add to Cart
29
Best Seller
Product photo
5.0 (42)
By: Whirlpool

Connects the dryer motor shaft to the drum belt. Replace if cracked, broken, or worn. Includes mounting hardware for secure motor-to-belt connection.

More
$38.95
Compare At:
$45.96
You Save:
$7.01

IN STOCK
Ships Today Guaranteed
Add to Cart
30
Product photo
By: Whirlpool

Replacement machine bolt for securing panels, brackets, and components in dishwashers, dryers, washers, and laundry centers. Restores fit if missing.

More
$20.79
Compare At:
You Save:

IN STOCK
Ships Today Guaranteed
Add to Cart
31
Product photo
By: Whirlpool

Fix excessive dryer noise or vibration with a new motor base. This support bracket secures the motor assembly for stable alignment and quiet operation.

More
$57.56
Compare At:
$69.07
You Save:
$11.51

IN STOCK
Ships Today Guaranteed
Add to Cart
32
Best Seller
Product photo
4.9 (1844)
By: Whirlpool

Get your dryer spinning smoothly again - install the Whirlpool 341241 OEM Drum Belt in minutes.

Why this belt?

  • Exact factory spec: 92 ¼-inch length × ¼-inch width, 4 ribs / 3 grooves - built to Whirlpool standards, not a generic copy.
  • Broad compatibility: Fits most Whirlpool-made dryers - Kenmore 110-series, Roper, Estate, Maytag, KitchenAid, Admiral, Crosley, Amana & more.
  • Quiet, durable rubber: Reinforced EPDM resists cracking and stretch for years of reliable tumbling.

Fixes these common dryer problems

Problem How the belt solves it
Drum won’t turn Transfers motor rotation to drum
Loud squealing / thumping Replaces stretched or frayed belt
Burning-rubber smell New belt stops slippage & heat build-up
Damp clothes / long cycles Restores correct drum speed & airflow


DIY install — about 15 minutes

  1. Unplug dryer; remove lint screen housing & front panel.
  2. Release belt tension at idler pulley; lift drum slightly to slide old belt off.
  3. Loop new belt around drum, idler pulley and motor pulley (ribbed side down).
  4. Re-assemble, run test cycle - enjoy quiet, consistent tumbling.

More
$14.64
Compare At:
$17.42
You Save:
$2.78

IN STOCK
Ships Today Guaranteed
Add to Cart
33
Best Seller
Product photo
4.9 (304)
By: Whirlpool

Dryer door won't close or stay latched? This door latch kit restores secure closure. Easy 15-minute DIY repair with common tools. Video guide included.

More
$6.95
Compare At:
$13.85
You Save:
$6.90

IN STOCK
Ships Today Guaranteed
Add to Cart
34
Best Seller
Product photo
4.9 (452)
By: Whirlpool

Idler pulley maintains belt tension in your dryer drum assembly. Replace if the wheel is cracked, bracket is broken, or pulley has worn bearings.

More
$15.65
Compare At:
$18.78
You Save:
$3.13

IN STOCK
Ships Today Guaranteed
Add to Cart
35
Product photo
By: Whirlpool

Metal rear door panel for dryer drum access. Replaces cracked, dented, or rusted panels. Mounts to back of dryer cabinet for maintenance access.

More
$118.55
Compare At:
$140.36
You Save:
$21.81

IN STOCK
Ships Today Guaranteed
Add to Cart
36
By: Whirlpool

Complete dryer door assembly that mounts to the front panel. Replace if your door is cracked, broken, damaged, or no longer seals properly to the cabinet.

More
$113.40
Compare At:
$133.81
You Save:
$20.41

IN STOCK
Ships Today Guaranteed
Add to Cart
37
Best Seller
Product photo
4.9 (205)
By: Whirlpool

Plastic door handle that snaps onto the dryer door for opening and closing access. Replace if cracked, broken, or snapped off during normal use.

More
$48.95
Compare At:
$58.25
You Save:
$9.30

IN STOCK
Ships Today Guaranteed
Add to Cart
38
Best Seller
Product photo
4.9 (44)
By: Whirlpool

Seals the gap between drum and front panel to retain heat and reduce friction. Replace if worn, torn, or causing noise. Confirm fit with your model.

More
$55.95
Compare At:
$67.14
You Save:
$11.19

IN STOCK
Ships Today Guaranteed
Add to Cart
39
Best Seller
Product photo
4.8 (5)
By: Whirlpool

Dryer won't power on or has loose power cord connection? This terminal block screw kit secures electrical connections. Easy DIY fix in 15 minutes.

More
$29.95
Compare At:
$35.64
You Save:
$5.69

IN STOCK
Ships Today Guaranteed
Add to Cart
40
Best Seller
Product photo
4.8 (6)
By: Whirlpool

Replacement screw for washers. Used to secure various components including handles, panels, and internal parts. Order if original is missing or stripped.

More
$5.95
Compare At:
$7.02
You Save:
$1.07

IN STOCK
Ships Today Guaranteed
Add to Cart
41
Best Seller
Product photo
5.0 (5)
By: Whirlpool

Dryer won't heat or stops working? A burnt or melted terminal block disrupts power flow. DIY repair in under an hour with video guidance included.

More
$18.95
Compare At:
$22.55
You Save:
$3.60

IN STOCK
Ships Today Guaranteed
Add to Cart
42
Product photo
5.0 (2)
By: Whirlpool

Supports and pivots the hinged dryer top panel for service access. Replace if cracked, broken, or causing wobble, scraping, or alignment gaps.

More
$5.95
Compare At:
$7.02
You Save:
$1.07

IN STOCK
Ships Today Guaranteed
Add to Cart
43
Product photo
By: Whirlpool

Dryer drum seal prevents heat loss and improves efficiency. Replace if you notice excessive lint, reduced drying performance, or visible wear. Confirm fit with your model number.

More
$46.95
Compare At:
$55.87
You Save:
$8.92

IN STOCK
Ships Today Guaranteed
Add to Cart
NI
Best Seller
Product photo
5.0 (48)
By: Whirlpool

Adjustable leveling foot that screws into the bottom of your dryer cabinet. Replace missing, broken, or cracked feet to stabilize and level your unit.

More
$7.95
Compare At:
$9.54
You Save:
$1.59

IN STOCK
Ships Today Guaranteed
Add to Cart
  • boxes images Over 2.1 Million Parts In Stock
  • time delivery images 2 Day Quick Delivery!
  • box-refresh images 365 Day Return Policy!
  • headphone imagesFree Tech Support!
  • google images Google Trusted Store
