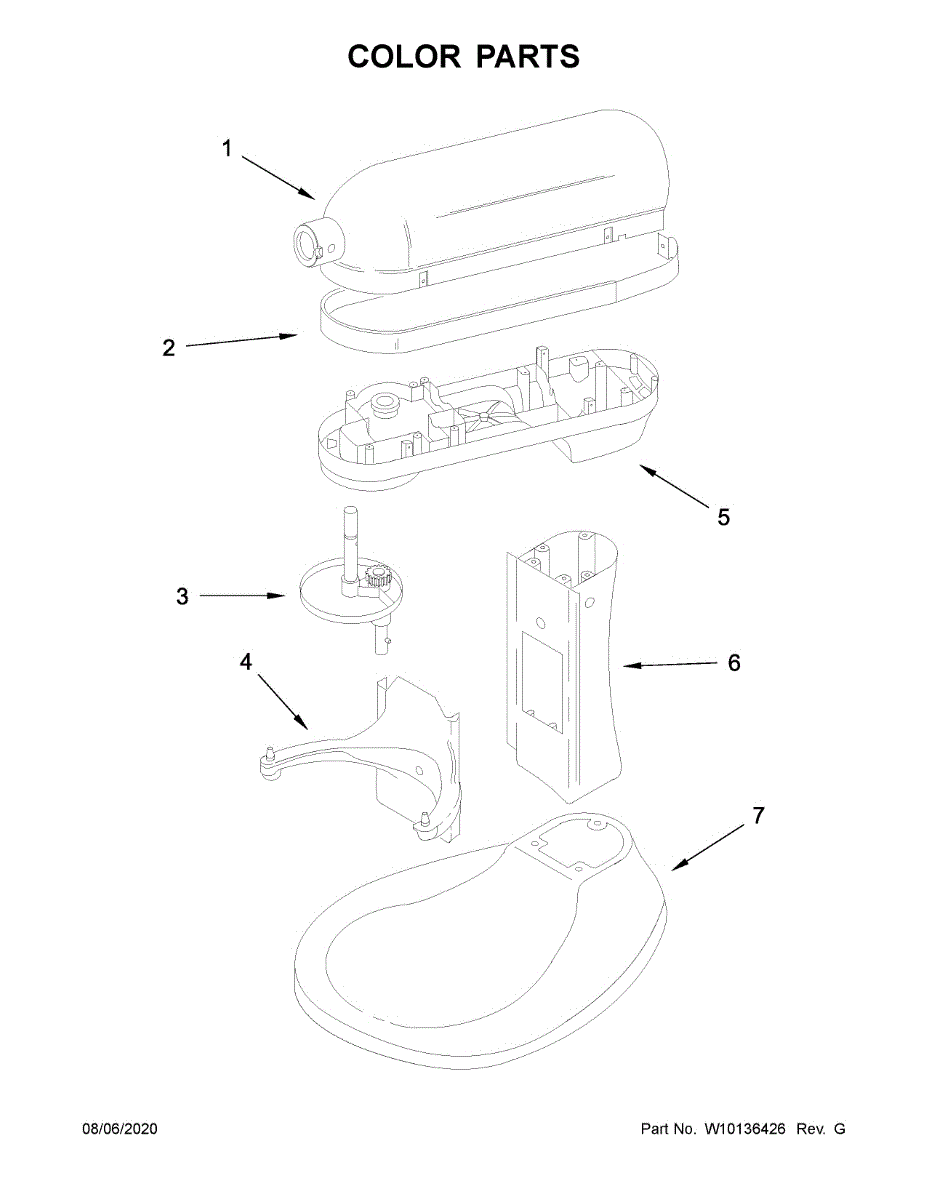

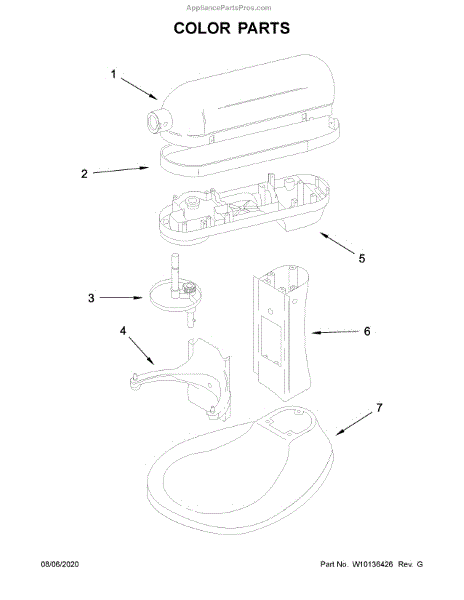

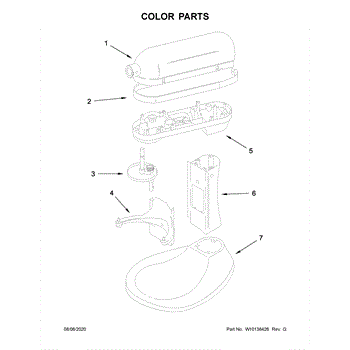

Parts for Kitchenaid KV25G0XIB5: Color Parts

This replacement housing restores the appliance's exterior support and helps protect internal components from damage while returning a finished appearance. Fits the corresponding Whirlpool assembly and replaces damaged or cracked housings. What it does:

• Provides structural support for internal components and mounting points
• Protects wiring, controls, and internal parts from dust and impact
• Restores a secure, finished exterior to eliminate gaps or loose panels
• Can stop rattling or movement caused by a cracked or broken housing

• One replacement housing

• Disconnect power (unplug or switch off breaker) before beginning work
• Remove adjacent trim or panels as needed to access mounting screws
• Handle carefully to avoid scratching the finish and watch for sharp edges
• Secure all fasteners; test appliance operation after reassembly

This porcelain enamel finish restores the factory color and smooth, glossy surface to compatible ranges and cooktops, improving appearance and protecting underlying metal from wear and staining. What it does

• Replaces worn, chipped, or faded enamel finish to make the appliance look like new
• Provides a durable, heat-resistant surface that resists stains and everyday wear
• Matches the OEM "Empire Red" color for a cohesive, factory-correct appearance
• Helps protect the underlying metal from corrosion and further cosmetic damage

• One porcelain enamel finish (Empire Red)

• Disconnect power and gas before starting any repair
• Removal of trim, screws, or panels may be required; follow the appliance's OEM service instructions
• Handle with care to avoid chipping the enamel during installation

This Onyx black finish panel restores the appliance's exterior appearance with a factory-style color-matched surface for a clean, uniform look. Ideal for replacing a worn or mismatched decorative panel. What it does:

• Provides a color-matched exterior surface to restore cosmetic appearance
• Covers scratches, chips, or discoloration on the appliance trim or door area
• Replaces a damaged or faded decorative panel without changing function
• Keeps visible surfaces consistent with the appliance's Onyx black finish

• High-level cosmetic replacement; basic hand tools may be required
• Follow OEM instructions for removal and reattachment to avoid damaging adjacent parts
• Handle with care to avoid scratching the finish during installation
• Disconnect power before servicing

This motor housing is the outer mounting and protective enclosure for the appliance motor, finished in white to match the cabinet. It provides a secure support for the motor and helps isolate noise and vibration. What it does:

• Supports and secures the motor assembly in the appliance
• Protects the motor from debris and contact with moving components
• Helps reduce motor noise and vibration through stable mounting
• Resolves symptoms like excessive vibration, rubbing noises, or misaligned motor mounting

• One motor housing (white)

• Disconnect power to the appliance before starting any repair
• Typical installation requires removing panels and either the drum or motor access components; follow OEM instructions
• Handle housing edges carefully and retain all mounting hardware for reassembly

This band trim is a cosmetic finishing piece that covers and protects the visible edge of the appliance door or cabinet for a clean, factory look. It refreshes appearance and helps keep dirt and moisture out of the seam. What it does:

• Covers and finishes the exposed edge of a door or cabinet for a uniform appearance
• Helps reduce dirt and grime buildup along the seam between panels
• Restores a worn, scratched, or missing trim to improve overall appliance appearance
• Works with existing door/cabinet mounting points to sit flush with surrounding surfaces

• Disconnect power to the appliance before starting repairs and work on a cool, dry surface
• Remove any clips or fasteners holding the old trim; save reusable hardware
• Align the new trim with the edge and press or secure into place using the original mounting points
• Replace them with OEM-specified hardware

This planetary gear assembly transfers motor torque through the gearcase to drive the appliance's rotating components, restoring proper drive function and reducing abnormal noises. It's a direct-fit replacement designed to match OEM form and fit. What it does

• Transfers motor rotation through the gear train to the driven components (basket/agitator/drum) so the appliance can spin or agitate as intended
• Replaces worn or damaged gears that can cause grinding, clunking, slipping, or loss of drive
• Restores proper gear mesh to reduce vibration and abnormal operating noise
• Helps eliminate intermittent or complete loss of rotational motion caused by stripped or broken gear teeth

• One planetary gear assembly as shown

• Disconnect power before beginning service to avoid electrical shock
• Installation requires basic hand tools and access to the gearbox/drive housing; follow the OEM service manual for disassembly/reassembly procedures
• Inspect surrounding seals, bearings and fasteners for wear and replace as needed to prevent recurring damage

This planetary gear assembly transfers motor motion to the appliance's rotating components, restoring reliable rotation and reducing abnormal noise. It's the direct replacement gear used in the appliance's drivetrain to help resume normal operation. What it does:

• Transfers motor torque to the agitator/drum or rotating hub for proper rotation
• Restores smooth, consistent movement and can stop slipping or reduced rotation
• Replaces worn or damaged gears that cause grinding, clunking, or unusual noise
• Helps prevent further wear to connected drive components when replaced promptly

• Disconnect power to the appliance before starting any repair.
• Requires partial disassembly of the washer/dryer/motor housing; refer to the service manual or diagram for access steps.
• Inspect surrounding components (seals, bearings, fasteners) for wear during replacement.

This planetary gear assembly transfers motor torque through the gearbox to drive the appliance's internal mechanism, restoring proper gear-driven motion and reducing slipping or grinding during operation. What it does:

• Re-meshes the motor output into the gearbox so driven components rotate smoothly
• Helps eliminate symptoms like noisy gearing, uneven movement, or loss of drive
• Restores proper gear engagement when worn or damaged planetary gears cause slipping
• Works as the internal gear cluster that distributes torque to downstream parts

• High-level replacement: remove power and access the gearbox or motor housing; replace the worn planetary assembly with the matching unit
• Use proper tools and follow the appliance service manual for disassembly/reassembly to avoid damaging seals or fasteners
• If gears were damaged, inspect mating gears, bearings, and shafts for wear before reassembly
• Dispose of damaged gears properly;

This planetary gear assembly transfers motor torque through the drive system to enable the washer's agitation and/or spin functions. Replacing a worn planetary restores reliable rotation and reduces noise caused by damaged gears. What it does:

• Drives the washer's agitator/drum by transferring motor power through the gear train
• Restores normal agitation and spinning when worn gears cause slipping or no movement
• Stops or reduces grinding, knocking, or unusual gear noise originating from the gearbox
• Works as the internal gearset inside the transmission/gearcase to maintain proper drivetrain operation

• Always disconnect power to the appliance before starting any repair
• Access typically requires removing the washer cabinet or transmission cover; follow OEM service instructions
• Support the drum/transmission and use appropriate tools to avoid further damage

This planetary gear assembly drives the agitator/inner transmission components in compatible top-load washers, restoring smooth rotational motion and reliable agitation for normal wash cycles. What it does:

• Transfers motor torque through the transmission to the washer agitator for proper wash action
• Helps restore smooth, even rotation and reduces slipping or erratic agitation
• Commonly replaced when you hear grinding, clunking, or when the agitator fails to rotate normally
• Works with the washer's gearcase/transmission as part of the drive train

• Replacement requires disassembly of the washer transmission/agitator; refer to your model's service manual
• Disconnect power and water, and remove the washer cabinet or transmission cover before starting
• Inspect surrounding seals and fasteners while the unit is open; replace any worn components as needed

This is the planetary assembly for select stand mixers. It's the lower drive that holds the beater shaft and transfers power from the gearcase to rotate the beater for efficient mixing.

• Transfers torque from the mixer's gear train to the beater shaft
• Supports smooth, consistent beater rotation
• Worn planetary can cause wobbling beater, grinding/rumbling noises, poor mixing, or intermittent beater motion
• Needed if the beater shaft has excessive play or the gear teeth are damaged

• Unplug mixer before servicing; remove bowl and attachment
• Head must be opened to access and remove the retaining pin/fasteners
• Support the lower assembly when separating it from the gearcase to avoid damage
• Re-grease gears if specified by the service manual and proper beater-to-bowl clearance after reassembly

This planetary gear assembly transmits motor torque through the gearbox to drive the agitator/spindle, restoring proper mechanical drive and restoring wash/spin function. It's a direct-replacement gearbox component used in drive systems. What it does

• Transfers rotational force from the motor to the transmission/agitator for normal wash and spin cycles
• Replaces worn or damaged gears that cause noisy operation, slipping, grinding or loss of drive
• Restores consistent drive engagement and reduces abnormal vibration or jerking during cycles
• Works as part of the transmission/gearbox to maintain proper washer drivetrain operation

• One planetary gear assembly

• Disconnect power and water supply before starting
• Inspect mating gears, seals and bearings for wear and replace as needed to prevent premature failure
• Use OEM fasteners and alignment procedures from the service manual for correct fit and function
• Test a complete cycle after installation to confirm normal drive operation and quiet performance

This planetary assembly restores the mixer's planetary mixing action by linking the gearcase to the beater shaft. It replaces a worn or damaged lower hub to deliver smooth, consistent attachment rotation. Finish: imperial gray.

• Drives the beater/attachment shaft with true planetary motion
• Transfers power from the internal gear train to the attachments
• Helps maintain proper alignment of the lower hub
• Resolves: beater not turning, slipping, grinding/clunking from the front, or visible wobble/damage at the planetary hub

• Disconnect power; remove bowl and attachments before service
• Protect the finish; remove the drip ring to access the retaining pin
• Drive out the planetary retaining pin, slide off the old assembly, and align/install the new one
• Seat the pin fully and verify smooth rotation before reassembly and testing

This silver Planetary assembly is the lower drive unit of a stand mixer that carries the beater shaft. Replacing a worn or loose planetary restores smooth, consistent planetary motion and reliable attachment rotation for dependable mixing performance.

• Transfers motor power to the beater and creates true planetary mixing action
• Houses the beater shaft and interfaces with the lower gear train
• Helps maintain stable beater-to-bowl alignment at the bottom of the mixer head
• Typical failure symptoms: beater not turning or stalling, grinding/clicking from the lower head, or noticeable wobble/excess play in the planetary

• Unplug the mixer and remove the bowl and beater before service
• Drive out the roll pin to remove the old planetary; transfer and reuse any model-specific hardware
• Clean and re-grease gears with food-grade mixer grease during reassembly, if needed
• Reinstall the planetary and pin; verify beater-to-bowl clearance per the owner's manual before use

The Planetary is an OEM part for Whirlpool stand mixers. This part holds the beater and ensures it rotates around the bowl to mix ingredients thoroughly. The planetary mechanism allows for consistent and even mixing by moving the beater in a planetary motion, which covers the entire bowl.

Causes of a bad planetary can include regular wear and tear, heavy use, or mechanical failure within the gears.

Symptoms of a bad planetary include:

• Beater not rotating properly
• Unusual noises during operation
• The mixer head wobbling or shaking
• Inconsistent mixing results

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Metallic Chrome

The Planetary Assembly is an OEM replacement part for Kitchenaid stand mixers. It is the central component that transmits rotational power from the motor to the mixing attachment through an intricate system of gears.

Causes of a bad planetary assembly can include worn gears that no longer mesh properly, broken or missing gear teeth from overloading, or a failed bearing.

Symptoms of a bad planetary assembly include:

• Slipping or jumping of gears during mixing
• Grinding or scraping noises
• Inability to mix thoroughly on higher speeds
• Premature failure of the motor

This OEM replacement is also compatible with Maytag, Whirlpool, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Planetary Assembly is an OEM part for Whirlpool stand mixers. This component is responsible for holding the mixer attachments and rotating them around the bowl, ensuring thorough and even mixing of ingredients.

Over time, the planetary assembly can become worn out or damaged due to frequent use, heavy mixing loads, or lack of proper maintenance. If the planetary assembly is not functioning correctly, it can result in poor mixing performance and uneven results.

Symptoms of a bad planetary assembly include:

• Unusual noises during operation
• Attachments not rotating properly or wobbling
• Inconsistent mixing or ingredients not being fully incorporated
• The mixer head not locking into place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This bowl support subassembly holds and stabilizes the appliance bowl so it stays properly seated during use, reducing wobble and preventing damage to surrounding components. What it does:

• Supports and secures the bowl assembly to maintain correct alignment and stability
• Helps prevent excessive vibration and rattling during operation
• Worn or broken support can allow the bowl to sag, tilt, or move out of position
• May cause unusual noise or poor performance when damaged

• Disconnect power and water before starting any repair
• Use basic hand tools and follow the OEM service manual for disassembly/reassembly
• Inspect nearby mounts, clips, and fasteners and replace if worn or damaged

This bowl support subassembly stabilizes and supports the appliance bowl/tub so it runs true and reduces vibration during operation. It replaces a worn or damaged support to restore proper alignment and quiet performance. What it does

• Holds the bowl/tub in the correct position to prevent wobble or uneven spinning
• Keeps the bowl/tub aligned with drive and mounting points for smooth operation
• Reduces vibration and noise caused by a failing or broken support
• Helps prevent rubbing or scraping between the bowl/tub and cabinet/internal components

• Disconnect power to the appliance before beginning any service
• Verify the part number on your existing support matches W11415365 before ordering or installing
• Basic hand tools may be required; your model's service instructions for access and removal steps

This door trim restores the appliance's exterior appearance by replacing a damaged or missing Caviar-finish trim piece. It returns a clean, finished look and helps cover fasteners and edges for a seamless door surface. What it does

• Replaces worn, scratched, or gouged trim to improve cosmetic appearance
• Covers mounting holes and seams for a finished look
• Helps maintain proper door alignment where trim interfaces with adjacent parts
• Common symptom: visible chips, scratches, or missing trim exposing fasteners

• One door trim piece in Caviar finish

• Disconnect power to the appliance before beginning service
• Use basic hand tools; remove surrounding trim or fasteners as required for access
• Handle carefully to avoid scratching the new finish during installation
• Follow model-specific instructions for correct alignment and fastening

This bowl support subassembly holds and stabilizes the wide ice bin inside the freezer, keeping the ice container aligned for smooth dispensing and storage. Replaces a cracked or sagging support to restore secure bin seating. What it does:

• Provides a stable mounting surface for the wide ice bin so it stays level and seated
• Prevents the ice bin from tipping, binding, or falling during use
• Helps reduce grinding or scraping noises caused by a loose or damaged support
• Restores proper alignment for ice dispensing and bin removal

• Disconnect power to the refrigerator before starting any repair
• Remove the ice bin and nearby shelves to access the support; retain fasteners for reuse if not replaced
• Inspect surrounding clips and mounts for damage and replace if necessary

This Empire red touch-up paint restores the original appliance finish to cover chips, scratches, and small blemishes for a clean, uniform look. Ideal for maintaining the appliance's appearance between larger repairs or panel replacements. What it does:

• Matches the Empire Red appliance color to conceal chips and surface scratches
• Prevents small bare spots from showing and improves overall cosmetic appearance
• Helps maintain consistent color on exterior panels and trim
• Useful for spot repairs after minor impacts or wear

• Clean and dry the surface thoroughly; remove grease and loose paint before applying
• Apply in thin coats, allowing recommended dry time between coats for best results
• Test on an inconspicuous area first to confirm color match
• Follow all product label warnings; use in a well-ventilated area and keep away from heat and open flame

A white replacement bowl support that centers and stabilizes the appliance bowl or glass tray to reduce wobble and noise, helping restore smooth rotation and reliable operation. What it does:

• Centers and supports the bowl or glass tray to prevent off-center rotation and rubbing.
• Keeps the tray steady to reduce vibration and noisy operation.
• Helps the tray rotate smoothly for even heating or proper function.
• Common symptoms it can address: wobbling or off-center bowl/tray, noisy rotation, scraping or unstable tray movement.

• Disconnect power to the appliance before starting any work.
• Remove the bowl or glass tray and lift out the old support; inspect the drive hub or shaft for damage.
• Align the support over the hub/shaft and press into place until fully seated; do not force broken or warped plastic.

This gearcase is the washer transmission that transfers motor torque to the agitator and basket so the washer can agitate and spin properly. Replaces a worn or damaged gearbox to restore normal wash movement. What it does:

• Transfers drive from the motor to the agitator and outer basket for agitation and spinning
• Replaces stripped or noisy gears that cause grinding, clunking or loss of agitation
• Stops slipping or intermittent agitation caused by internal gear failure
• Helps eliminate unusual vibration or rough operation linked to a failing gearbox

• Disconnect power and turn off water supply before beginning service
• Requires partial disassembly of the washer cabinet and transmission area; follow OEM instructions
• May contain lubricant—inspect seals and surrounding components for leaks while installed

This gearcase is the washer transmission that transfers the motor's power to the agitator and tub so your washer can agitate and drain properly. Replaces a worn or damaged transmission to restore normal wash motion. What it does:

• Transfers motor torque to the agitator and inner tub to produce wash and spin actions
• Houses gears and shafts that control direction and agitation patterns
• Commonly replaced when the washer won't agitate, makes grinding or rumbling noises, or the agitator spins freely
• Works with the washer's clutch and motor coupling to enable load movement

• Disconnect power and water supply before beginning any repair
• Installation requires disassembly of the washer cabinet and removal of the agitator, drive coupling, and motor
• Inspect related parts (agitator, drive coupling, seals) and replace if damaged

This lower gearcase is the replacement gearbox that transfers motor power to the appliance's drum/rotating assembly, restoring reliable drive movement and reducing grinding or slipping during operation. What it does:

• Transfers motor rotation to the appliance's drum or rotating assembly for normal operation
• Restores proper drive engagement to stop slipping or intermittent rotation
• Eliminates grinding, scraping, or unusual drive noises when worn
• Helps prevent further wear to belts and related drive components

• One lower gearcase (onyx black) as pictured

• Disconnect power before starting and follow for disassembly/reassembly
• Installation typically requires panel removal and basic hand tools; support the drum/assembly while replacing the gearcase
• Inspect and replace worn belts, idlers, or fasteners as needed to ensure long-term operation

This gearcase is the main transmission assembly that transfers motor torque to the washer's tub and agitator, restoring normal agitation and spin performance when the original gearcase fails. What it does

• Converts motor rotation into the gear reductions needed for agitation and spin cycles.
• Commonly replaced for symptoms like no agitation, slow or failed spin, grinding or clunking noises during cycles.
• Contains internal gears and bearings that can wear or break, causing irregular movement or loss of drive.
• Works with the washer's motor coupling and drive components to re-establish reliable drum motion.

• One gearcase (transmission) assembly.

• Disconnect power and water supply before beginning any repair.
• Support the washer cabinet and tub when removing the old gearcase to avoid damage or injury.
• Gearcase assemblies are heavy and contain grease—expect some lubricant exposure; clean hands and work surfaces after installation.
• Use model-specific service manual or exploded parts diagram for proper alignment and reassembly; replacement may require transfer of seals or mounting hardware.

This lower gearcase housing encloses and supports the planetary and lower gear train in a stand mixer. Replacing a damaged housing restores alignment and helps contain lubrication for quieter, consistent mixing performance.

• Houses the lower gear train and planetary shaft to maintain alignment
• Provides a sealed cavity to help retain grease around gears
• Replaces cracked, stripped, or warped housings that cause wobble or noise
• Helpful when you see grease seepage or cosmetic damage to the lower case

• Unplug the mixer and remove bowl and attachments before service
• Open the motor head and remove the planetary/gear stack as required
• Transfer components to the new housing; renew food-grade mixer grease if servicing gears
• Reassemble and verify beater-to-bowl clearance and smooth operation

This replacement column restores proper support and alignment for the appliance cabinet or trim assembly, helping panels and doors sit correctly and preventing gaps or sagging that affect appearance and operation. What it does:

• Provides structural support for the cabinet/trim assembly and helps maintain alignment
• Keeps adjacent panels and doors properly positioned to prevent rubbing or gaps
• Replaces damaged, bent, or cracked columns that cause cosmetic or fit issues
• Helps restore factory fit and finish after collision or wear

• One replacement column

• Disconnect power and/or gas (if applicable) and remove any obstructing trim before starting
• Use proper fasteners and follow OEM alignment points; part may require removal of surrounding panels
• Handle carefully to avoid scratching finished surfaces; test fit before final fastening

This bowl and foot assembly replaces a cracked or worn support bowl used to stabilize and support the appliance's internal component, restoring proper alignment and quiet operation. Durable molded construction suits direct-replacement needs. What it does:

• Supports and centers internal components to maintain smooth rotation and balance
• Replaces damaged, cracked, or warped bowl/foot that can cause rattling or uneven operation
• Restores correct spacing to prevent contact between moving parts and the cabinet
• Matches factory fit and finish for a secure, stable installation

• Disconnect power before beginning any repair to avoid electrical hazard
• Handle with care to avoid cracking the plastic; use gentle force when seating into place
• Basic hand tools may be needed to access the mounting area; model-specific diagram for access
