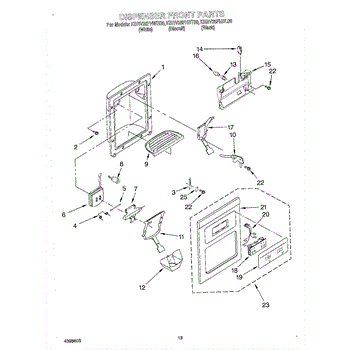

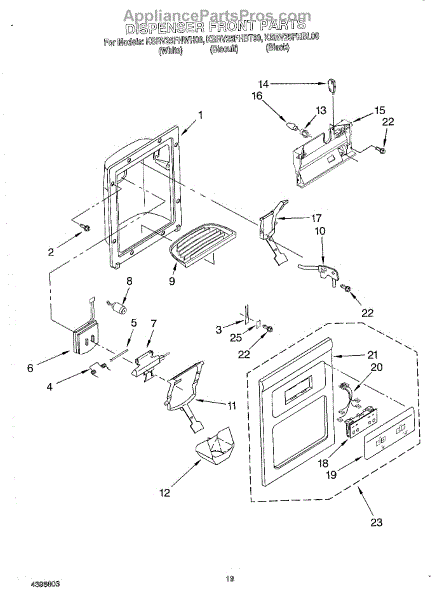

Parts for Kitchenaid KSRV25FHWH00: 08 - Dispenser Front Parts

The Whirlpool EveryDrop Refrigerator Water Filter 5 is an OEM replacement filter for Whirlpool refrigerators. This filter is used in Whirlpool bottom freezer and side-by-side refrigerators which accept Filter 5.

• Single Port Filter
• Simple turn installation requires no special tools
• For best performance, replace every six months
• Micron Rating: 0.5
• Filter Media: Coconut Carbon Block
• Flow Rate: 0.5 GPM
• Capacity: 300 gallons
• Temp Range: 33 - 100 °F
• Pressure Range: 30 - 120 psi
• Approximate dimensions: 2.30 x 3.00 x 11.60 Inches
• Meets NSF Standard: 42
• Approved for WQA Gold Seal
• Reduces 16 contaminants, including lead, mercury, asbestos, etc

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

The Dispenser Lever Retainer is an OEM part for Whirlpool refrigerators. It secures the dispenser lever, which allows for the proper dispensing of water or ice when activated.

Causes of a bad dispenser lever retainer can include physical damage from repeated use, breakage due to accidental impact, or general wear and tear over time.

Symptoms of a bad dispenser lever retainer include:

• The dispenser lever feeling loose or wobbly
• Difficulty in dispensing water or ice
• The lever not returning to its original position after use
• Unusual noises when using the dispenser

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

For the complete ice door kit order W10823377.

The Dispenser Door Pin Kit is an OEM part for Whirlpool refrigerators. This kit includes the pins that secure the dispenser door, allowing it to open and close smoothly when dispensing ice or water.

Causes of a bad dispenser door pin kit can include normal wear and tear, breakage from frequent use, or damage due to mishandling.

Symptoms of a bad dispenser door pin kit include:

• The dispenser door not opening or closing properly
• Leaks or drips from the dispenser area
• Loose or misaligned dispenser door
• Difficulty in dispensing ice or water

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Dispenser Chute Door is an OEM part for Whirlpool refrigerators. This component is located in the ice dispenser mechanism on the freezer door and is responsible for opening and closing the ice chute. The chute door helps to dispense ice properly and prevents warm air from entering the freezer compartment, which can lead to frost buildup and inefficient cooling.

Symptoms of a failing Ice Dispenser Chute Door include:

• Ice not dispensing properly or getting stuck in the chute
• Frost or ice buildup around the ice dispenser area
•  Warm air entering the freezer, causing temperature fluctuations
• The dispenser door not opening or closing correctly, leading to gaps

Causes of a bad ice dispenser chute door can include wear and tear from regular use, damage from ice jams or blockages, and degradation of the door’s sealing mechanism over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

Note: This part longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door and the mounting tabs are broken, you can use the broken tab ice door kit 8201756.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

Includes door, support, spring and mechanism delay. No longer uses the ribbon heater due to the improved foam design. If your refrigerator uses this ice door kit and the mounting tabs are broken you can use the broken tab ice door kit 8201756.

Color: black. It measures about 9 inches wide by 4-1/2 inches deep.

The Dispenser Water Tube Kit is an OEM part for Whirlpool refrigerators, designed to replace or repair the water line that connects to the refrigerator's water dispenser.

Causes of these symptoms can vary from normal wear and tear, mineral buildup from hard water leading to blockages or damage, or accidental damage during cleaning or moving of the refrigerator.

Symptoms of needing the Dispenser Water Tube Kit include:

• Leakage or dripping from the water dispenser area
• A decrease in water flow or no water flow to the dispenser or ice maker
• Noticeable damage or kinks in the existing water tube that restrict water flow

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Ice Dispenser Lever is an OEM component specifically designed for Whirlpool side-by-side refrigerators with built-in ice dispensers. Located inside the ice and water compartment, the lever is responsible for releasing cubed or crushed ice when engaged.

Symptoms of a bad ice dispenser lever include:

• Failure to dispense ice when the lever is lifted
• Loose, wobbly, or uneven movement of the lever
• Ice dispenser mechanism not triggering properly

Causes of a bad lever can be worn gears or connector linkages inside the ice dispensing mechanism from repeated use over time.

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, and select Kenmore fridge models.

The Ice Dispenser Guide is an OEM replacement part for Whirlpool brand refrigerators. These brands also include Maytag, KitchenAid, Norge, Roper, Estate, and Kenmore models. It directs ice from the ice bucket to the dispenser chute. It helps to prevent jams by guiding the ice through the dispenser system smoothly and evenly.

You should replace the ice dispenser guide if you notice any signs of wear or damage, such as cracks or warping. A damaged dispenser guide can cause ice jams or blockages. This can prevent ice from dispensing properly or create excessive noise or vibration during the dispensing process.

Get yours today and restore proper ice dispensing function and prevent future issues with the ice dispenser system.

This light socket is the replacement lamp holder for a range/oven interior light assembly, restoring a secure connection for the oven light bulb so you can see cooking status and check food without opening the door. What it does:

• Holds and connects the oven/cooktop interior light bulb to the appliance wiring
• Restores power to a bulb that's not lighting due to a failed socket
• Prevents loose or intermittent lamp connections that cause flickering
• Replaces sockets that appear burned, cracked, or corroded

• Disconnect power at the breaker or unplug the appliance before starting
• Handle the bulb and socket carefully; wear gloves to protect the bulb and yourself
• Inspect wiring and connectors for damage; replace damaged wiring or connectors as needed

The Micro Switch is an OEM part for Whirlpool refrigerators that is responsible for controlling the ice and water dispenser. The switch operates by responding to mechanical actions, like the pressing of the dispenser paddle or button to open or close to allow water and ice to be dispensed.

Symptoms of a bad Micro Switch include:

• The ice or water dispenser not functioning
• Intermittent operation of the dispenser
• Stuck dispenser preventing ice or water from stopping

Causes of a bad Micro Switch can include physical damage from heavy use, wear and tear over time, or electrical issues such as short circuits that impair the switch's function.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Control Bracket is an OEM part for Whirlpool refrigerators. It serves as a foundational component within the refrigerator's control panel, securing and supporting various controls and electrical components.

Causes of a bad Control Bracket can include physical damage from impact or excessive force, corrosion due to moisture or chemical exposure, and general wear and tear over time. A compromised control bracket can lead to misalignment of control components, difficulty in setting controls, or even failure of the refrigerator to respond to control inputs properly.

Symptoms of a bad Control Bracket include:

• Loose or unresponsive controls
• Difficulty adjusting refrigerator settings
• Visible damage or warping of the bracket
• The refrigerator not maintaining set temperatures correctly

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Dryer Light Bulb is an OEM part for Whirlpool dryers. This bulb is specifically designed to provide illumination inside the dryer drum, allowing for better visibility when loading and unloading laundry. It ensures a well-lit drying environment.

Causes of a bad dryer light bulb can include normal wear and tear, electrical issues, or accidental breakage.

Symptoms of a bad dryer light bulb may include:

• The bulb not turning on when the dryer door is open.
• Dim or flickering light inside the dryer drum.
• A burnt-out or broken bulb.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: White

Color: White

This 6-position switch assembly replaces a worn or damaged selector switch to restore reliable electrical switching for the appliance control. It helps recover proper cycle selection and responsive control inputs for normal operation. What it does:

• Routes power between control circuits so selected cycles and settings engage correctly.
• Restores reliable selector/position switching when the control won't change settings.
• Common symptom when failing: appliance is unresponsive to cycle changes, selections don't register, or operation is intermittent.
• Matches the OEM switch function used in the control/timer area of compatible units.

• Disconnect power to the appliance before beginning any service to avoid shock hazard.
• Remove required panels or the control console to access the switch; keep track of screw locations and wire connections.
• Photograph or label wiring before disconnecting to ensure correct reassembly.

This is a replacement wire harness that restores electrical connections between components so your appliance powers and controls operate correctly. It provides the factory-style wiring needed for reliable signal and power routing. What it does

• Carries power and control signals between major components so circuits can operate as intended
• Commonly used when damaged, melted, cut, or corroded wires cause intermittent operation or loss of function
• Can resolve symptoms such as components not receiving power, control buttons or lights not responding, or erratic behavior due to open/shorted wiring
• Matches OEM routing and connector ends to maintain original fit and connections

• One complete wire harness assembly as shown

• Disconnect all power (unplug or shut off breaker) before starting any repair
• Note wire routing and connector locations or take photos before removal to ensure correct reassembly
• Inspect connectors and mounting clips; replace any broken retainers to prevent chafing or strain

This replacement screw secures appliance panels and internal components. Installing a correct OEM fastener restores a tight fit, reduces rattles and vibration, and helps keep assemblies aligned so your machine operates smoothly.

• Fastens brackets, panels, ducts, or housings to the cabinet or frame
• Replaces missing, stripped, or corroded hardware
• Helps stop rattles, vibration, and loose or misaligned parts
• Maintains proper alignment for reliable operation

• Disconnect power; shut off gas and water before servicing
• Match this screw to the original location and hardware type used on your model
• Start threads by hand to avoid cross-threading; use the correct driver
• Snug only—do not overtighten, especially into plastic or thin sheet metal

The Dispenser Arm Strain Relief is an OEM replacement part for Whirlpool side-by-side refrigerators. It connects the water and ice dispenser arm to the fridge cabinet, absorbing tension during use.

Causes of a bad strain relief involve wear and flexing fatigue of the plastic over extensive dispensing cycles. Exposure to moisture or liquid damage inside the fridge liner may prematurely degrade connecting parts as well.

Symptoms of a bad strain relief include:

• Cracks, splits, or tears in the relieving plastic material
• Dispenser arm separation from the cabinet opening
• Missing pieces that compromised structural integrity
• Difficulty accessing or using the refrigerator's water/ice functions

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore side-by-side refrigerator models.

The Broken Tab Ice Door Kit is an OEM part for Whirlpool refrigerators. This kit includes all the necessary components to repair or replace the ice door chute, which is responsible for dispensing ice from the ice maker to the ice bucket or directly to the user. The ice door chute must seal properly to prevent warm air from entering the freezer compartment, which can lead to frost and ice buildup.

Symptoms of a failing or broken ice door chute include:

• Ice accumulating around the ice dispenser chute
• Frost buildup in the freezer compartment
• Warm air leaking into the freezer, causing temperature fluctuations
• The ice door not closing properly or becoming stuck
• Unusual noises from the ice dispenser area

Causes of a broken ice door chute can include regular wear and tear, physical damage from mishandling or excessive force, or deterioration of the sealing components over time.

This OEM part is also compatible with some models from Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore.

This kit is used if the ice door mounting tabs are broken off of the dispenser wall. If your model number uses this ice door WP2180353 or this ice door kit W10823377 this kit can be used.
