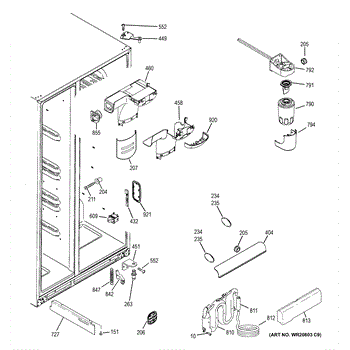

Parts for Ge PZS22MSKBHSS: Fresh Food Section Parts

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


Size: 10-32 GXTT FLP.595 S

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This shelf support is the small rear rail clip that secures a refrigerator shelf or drawer rail in place. A worn or broken support can let the shelf tilt or drop, making storage unstable.

• Holds the rear of the shelf or rail securely to the cabinet wall
• Helps correct issues like a sagging, tilting, or loose shelf
• Replaces cracked, missing, or deformed supports causing poor fit
• Restores proper alignment so bins and shelves slide/seat correctly

• Unplug refrigerator before service
• Remove the shelf/bin to access the support
• Depress locking tabs and slide the old support out; snap the new one into the cabinet slot
• Ensure it's fully seated before reinstalling the shelf

Front mounting grommet.

This replacement screw secures refrigerator panels, brackets, and trim to help keep components aligned and quiet. It matches the specified #8-18 thread and 1-1/2 inch length used at designated mounting points.

• Fastens panels, brackets, covers, and hardware as designed by the manufacturer
• Restores a missing or damaged fastener to keep parts secure and aligned
• Correct #8-18 tapping thread and 1-1/2 in. length for specified locations

• Unplug the refrigerator or disconnect power before servicing
• Wear cut-resistant gloves to protect from sharp edges
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse any model-specific washers or clips originally installed on your unit

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This air diverter is a duct component that directs and balances airflow inside the refrigerator. Replacing a cracked or missing diverter helps restore proper cooling performance and reduce frost or condensation around air passages.

• Guides cold air from the evaporator through the intended duct path
• Helps maintain even temperatures between compartments
• Improves airflow seal and direction to reduce warm-air bypass
• Common symptoms: uneven cooling, weak airflow, frost/condensation near ducts, or visible damage to the diverter

• Disconnect power before servicing
• Remove shelves/drawers and the interior panel to access the diverter per your model's service information
• Note orientation and transfer any reusable screws/clips
• Do not overtighten fasteners into plastic; confirm unobstructed airflow before restoring power

LED light board assembly that provides interior illumination for compatible refrigerators. Replaces a failed or dim LED module to restore even lighting so you can see contents clearly and access food safely. What it does:

• Replaces the refrigerator's interior LED light board to restore proper illumination.
• Fixes common lighting symptoms such as no light, dim lights, flickering, or partial outages.
• Provides a direct replacement that mounts in the existing light housing and connects to the factory wiring harness.

• Disconnect power (unplug or shut off breaker) before starting work to avoid electric shock.
• Remove interior shelves or light cover as needed; handle the board by its edges and avoid touching LED surfaces.
• Verify connector orientation and seat wiring harness fully; secure board to the housing with original fasteners.

The Top Hinge & Pin Assembly is an OEM part for GE refrigerators. It helps maintain the alignment of the door and ensures a tight seal, keeping the cold air inside and the warm air out.

A bad top hinge and pin assembly can be caused by wear and tear over time, excessive weight or force applied to the door, or damage due to accidental impact or mishandling.

Symptoms of a bad top hinge and pin assembly include:

• Difficulty in opening or closing the refrigerator door.
• Uneven alignment or gaps between the door and the refrigerator body.
• Squeaking or creaking sounds when opening or closing the door.
• The door not staying closed.

Replace your worn-out or damaged top hinge and pin assembly with this OEM part and restore the smooth operation of your refrigerator door.

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


This bottom door hinge supports the refrigerator door and serves as the pivot point for smooth opening and closing. Replacing a worn hinge restores proper alignment and sealing to help prevent door sagging and cooling loss. What it does:

• Supports the door's weight at the lower corner and maintains alignment
• Provides the pivot for opening/closing and reduces friction at the door base
• Wear can cause door sagging, rubbing/binding, or the door not closing fully
• Misalignment may lead to poor gasket contact, warm spots, or condensation/frost near the door

• 1 bottom door hinge

• Disconnect power and, if applicable, shut off water before starting
• Remove items from the door and have a helper support it during removal
• Remove the upper hinge to lift the door off the lower hinge; retain any shims/spacers
• Swap the hinge, transfer shims as found, align the door, tighten fasteners, and verify the gasket seals all around

This air inlet cover assembly fits over the duct where cold air enters the fresh food compartment. It shields the opening and guides airflow to help maintain even cooling and reduce cold blasts directly in front of the vent. What it does:

• Covers and protects the air inlet opening between the freezer and fresh food sections
• Helps direct and diffuse cold air entering the refrigerator compartment
• Supports consistent temperatures by promoting proper airflow
• Replace if the cover is cracked, warped, missing, or won't stay secured—issues that can lead to uneven cooling or items freezing near the vent

• One air inlet cover assembly

• Disconnect power to the refrigerator before servicing
• Remove shelves/drawers as needed to access the vent on the fresh food back wall
• Remove mounting screws or release tabs to take off the old cover; transfer any reusable insulation or clips from the original if present
• Seat and secure the new cover; ensure the damper area is unobstructed before restoring power

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

The Light Switch is an OEM part for GE refrigerators. It controls the refrigerator's interior light, turning it on when the door is opened and off when the door is closed. This ensures energy efficiency and convenience, illuminating the refrigerator's interior for easy visibility while searching for items.

Causes of a bad light switch include mechanical wear from constant use, damage from an impact, or electrical issues.

Symptoms of a bad Light Switch include:

• The interior light does not turn on when the refrigerator door is opened
• The light stays on when the door is closed, potentially leading to overheating or melted plastic components in the light housing area
• Intermittent functioning of the light, indicating a loose or damaged switch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The water filter is an OEM part for GE refrigerators. This filter removes or reduces various contaminants.

Features and Benefits:

• Easy DIY replacement, typically mounted inside the refrigerator at the back of the compartment.
• Removes or reduces various contaminants in your water and ice, including lead, cysts, asbestos, atrazine, , taste and odor, chlorine, sediment, turbidity, and more
• NSF/ANSI 42 and 53 standards
• 6 Month lifespan filter
• Carbon Block media
• Micron rating: 0.5-1 micron (Class I)

When to replace your filter:

• Bad taste or odor in water and ice
• Cloudy or discolored ice
• Reduced water flow or pressure
• Refrigerator replace filter indicator light is on

Note: If replacing the Culligan metal canister design filter for the first time, a special adapter, part number AP2615702 is needed, which is not included with this part. The compatible bypass cap is part number AP6891551.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.


The Drive Cup is an OEM part for GE refrigerators, designed for the ice dispensing system. This part acts as a housing that holds the MWF water filter. The manifold ensures that water flowing into the refrigerator passes through the filter, removing contaminants and impurities to provide clean, fresh-tasting water and ice.

Symptoms of a failing drive cup include:

• Ice not dispensing properly or at all
• Unusual noises coming from the ice maker during operation
• Ice getting jammed in the dispenser mechanism

Causes of drive cup failure often include mechanical wear from regular use, cracking due to stress or impact, or deformation caused by freezing temperatures which can impair its fit and function.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Water Tank Assembly is an OEM part for GE refrigerators, designed to store and chill water before it's dispensed through the refrigerator's water dispenser. This integral component ensures that you have immediate access to cold, fresh water without the need to open the refrigerator, helping to conserve energy and maintain the internal temperature.

Over time, the water tank assembly can experience issues such as leaks, cracks, or the buildup of contaminants, all of which can affect the quality and taste of your water.

Symptoms of a bad Water Tank Assembly include:

• Leaks or puddling water beneath the refrigerator
• A noticeable drop in water flow from the dispenser
• Unpleasant taste or odor in the dispensed water
• Visible cracks or damage to the tank or its connections

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This foam insulation tube slips over refrigerator tubing to help reduce condensation and protect lines from moisture and minor abrasion. It's a simple replacement that restores padding and prevents dripping in affected areas. What it does:

• Insulates exposed tubing to reduce surface condensation and water buildup
• Cushions lines to help prevent chafing and minor damage
• Helps maintain a dry cabinet area by limiting drips from sweating lines
• Useful when original insulation is torn, compressed, or missing

• Disconnect power to the appliance before servicing; follow all safety guidelines
• Slide the foam sleeve over the tubing; trim to fit with a sharp blade if necessary
• Replace any damaged or brittle tubing discovered during install
• Do not use if foam is melted, charred, or contaminated

The Water Tank Plastic Tube is an OEM part for GE refrigerators. It functions as a conduit, transporting water from the water tank to the dispenser and ice maker, ensuring a steady flow of water for these features.

You should replace this plastic tube if it becomes damaged or worn out. Causes of a bad water tank plastic tube can include wear and tear over time, blockages from mineral deposits, or physical damage from mishandling or kinks.

Symptoms of a bad water tank plastic tube include:

• Leaks or drips from the tube
• Reduced or no water flow to the dispenser or ice maker
• Visible cracks or damage to the tube
• Air bubbles in the water line

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This foam insulation wraps the refrigerator's water reservoir to reduce sweating and help prevent freezing, keeping dispenser flow consistent and the fresh food compartment dry. Replace if the original insulation is torn, crushed, or missing. What it does:

• Insulates the water reservoir to help maintain a stable temperature
• Helps prevent the reservoir from freezing, which can slow or stop dispenser flow
• Reduces condensation that can drip or puddle inside the refrigerator
• Restores proper cushioning and protection around the tank

• 1 foam insulation piece for the water tank

• Unplug the refrigerator and shut off the water supply before servicing
• Remove shelves/drawers to access the water reservoir area
• Carefully remove the old insulation; avoid stressing or puncturing the reservoir and tubing
• Fit the new foam snugly around the tank, reassemble, restore power/water, and check for leaks and dispenser flow

The Fresh Food Lever Assembly is an OEM part for GE refrigerators. It plays a crucial role in the operation of the refrigerator, enabling the smooth adjustment of settings within the fresh food compartment. This lever assembly is responsible for the user's ability to fine-tune the temperature and humidity levels, ensuring that the food stored inside remains fresh and well-preserved. For the same part in white, purchase WR11X10007.

Over time, the lever assembly may become worn or damaged due to regular use, accidental impacts, or environmental factors such as extreme temperatures or humidity.

Symptoms of a bad Fresh Food Lever Assembly include:

• Difficulty in adjusting the temperature or humidity settings.
• The lever becoming loose or unresponsive.
• Inconsistent temperature control within the fresh food compartment.
• Increased energy consumption as the refrigerator works harder to maintain settings.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This molded duct assembly directs cold air from the freezer compartment into the fresh-food section to help maintain proper airflow and temperature balance. It replaces a damaged or cracked transition duct to restore directed air circulation. What it does:

• Channels freezer-cooled air into the refrigerator compartment for even cooling distribution
• Helps reduce warm spots in the fresh-food area when functioning correctly
• Can prevent excessive frost or ice buildup caused by misdirected airflow
• Supports proper operation of the freezer-to-fridge venting system

• Disconnect power to the appliance before service to avoid electrical shock
• Remove shelves, drawers, and access panels as needed to reach the duct
• Handle the duct carefully to avoid cracking plastic tabs; use appropriate fasteners when reinstalling

This LED light cover protects and diffuses the refrigerator's interior LED lighting, improving light distribution while shielding the lamp from spills and impact. It restores a finished appearance and prevents direct glare from exposed LEDs. What it does:

• Diffuses and softens interior LED light for even illumination.
• Protects the LED module from splashes, dust, and accidental contact.
• Helps prevent direct glare from exposed bulbs for clearer visibility.
• Replaces cracked, yellowed, or missing covers that affect light quality.

• One LED light cover.

• Disconnect power to the appliance before removing or installing parts to avoid shock.
• Typically snaps into place or secures with a small screw; handle gently to avoid cracking.
• Inspect mounting tabs and nearby lamp housing for damage; replace any broken hardware before reinstalling.
• Use gloves or a clean cloth to avoid fingerprints or scratches on the diffuser.
