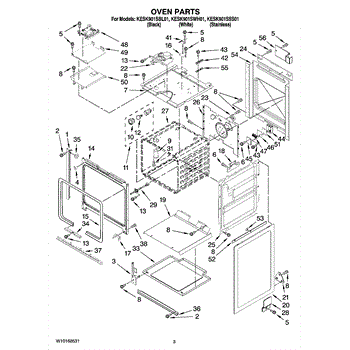

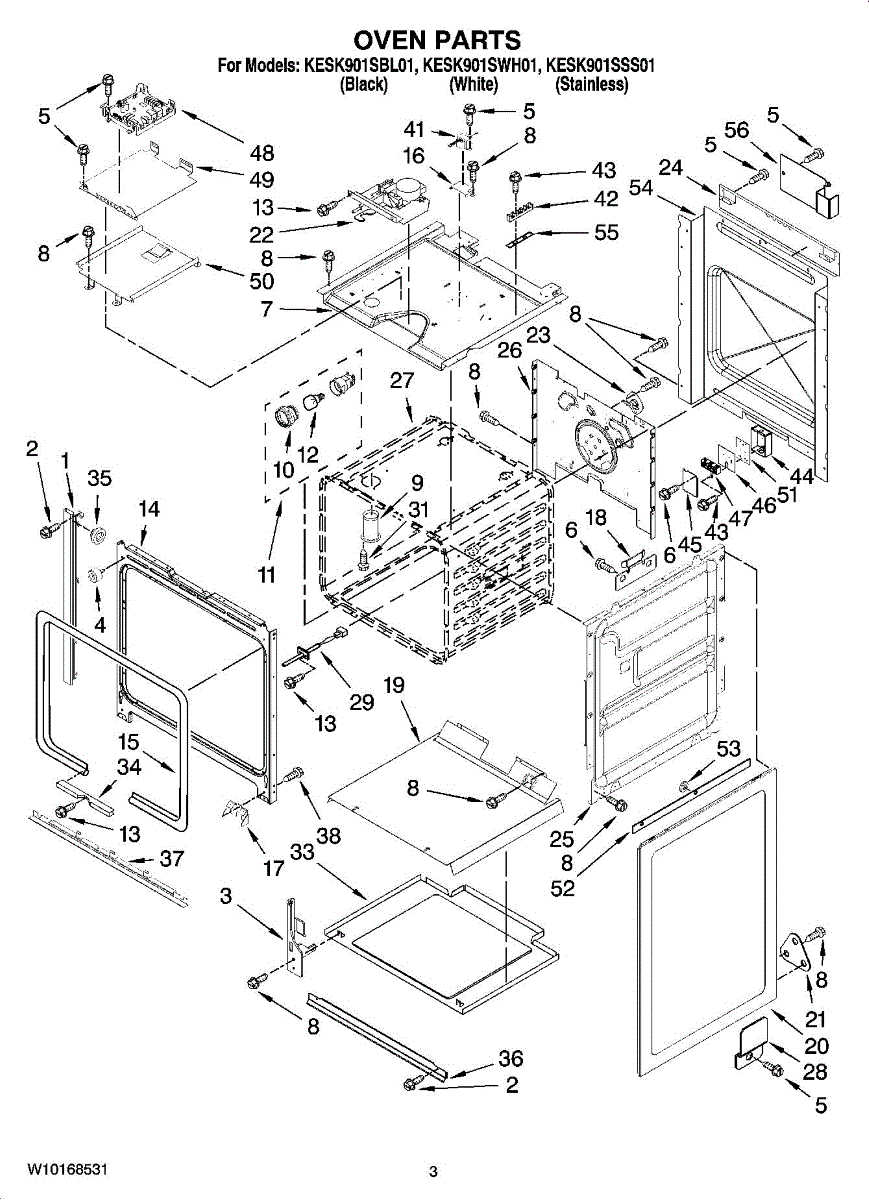

Parts for Kitchenaid KESK901SWH01: 02 - Oven Parts

Mounting screw for securing trim, hinges, drawer guides, and interior components. Replace if missing, stripped, or broken during repair or maintenance.

Left side hinge receiver bracket for wall oven doors. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked or deformed.

Door hinge receiver for wall ovens. Mounts inside the oven frame to hold the door hinge in place. Replace if cracked, deformed, or causing door alignment issues.

Small cushioning bumper that installs on range doors or panels. Replaces worn, cracked, or missing bumpers to reduce noise and ensure quiet closing.

Secures cooktop panels, burner components, and trim pieces. Replace missing, stripped, or damaged screws to eliminate rattles and keep parts aligned.

Secures panels, handles, and components on your range. Replace this screw if it's stripped, missing, or damaged during door or handle repairs.

Replacement mounting screw for securing panels, brackets, covers, and trim pieces in appliances. Restores fit when hardware is missing, stripped, or lost.

Vent tube for wall ovens and ranges. Directs hot air from the oven cavity through the exhaust opening. Replace if cracked, damaged, or missing.

Replace your oven light assembly to restore interior illumination for checking cooking progress. Includes bulb and housing. Verify fit by model number.

Replace your burned-out oven light bulb to restore interior visibility while cooking. This 15-watt bulb fits most ovens. Confirm fit with your model.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

This front frame fin replaces a damaged or worn front frame piece to help keep the dryer drum/tub aligned and reduce rubbing or airflow leaks. It restores the front assembly fit for reliable operation. What it does:

• Supports the front edge of the tub/drum and helps maintain proper drum alignment
• Helps seal and guide airflow at the dryer front to promote efficient air movement
• Reduces rubbing, scraping, or vibration caused by a cracked or warped front frame area
• Resolves symptoms like unusual noise, clothes catching, or uneven drum rotation when damaged

• Disconnect power (and gas if applicable) before starting any repair
• Replacement typically requires removing the dryer front panel or bulkhead; follow your model's service instructions
• Keep all fasteners and seals in place and reassemble securely before testing

Seals your oven door to prevent heat loss and maintain cooking temperatures. Replace if worn, cracked, or heat escapes. Confirm fit with your model.

Mounting bracket that secures the bottom trim vent on your wall oven. Replace if the bracket is bent, broken, or missing to properly secure trim pieces.

Color: White.

Color: Black.

If your oven door won't lock, stays locked after self-clean, or shows door lock errors, this door lock motor and switch assembly often solves the issue.

Oven won't heat after self-cleaning? This thermal fuse cuts power when overheating occurs. Common DIY repair takes under 10 minutes with basic tools.

Right and left hand side.

Oven won't heat properly or overheats? A faulty temperature sensor may be the cause. Simple 15-minute DIY repair with basic tools and our video guide.

Replacement mounting screw for securing range panels, brackets, and internal components. Replace missing, stripped, or rusted screws to restore fit.

Secures the oven door gasket for a tight seal, preventing heat loss. Replace if gasket is loose or heat escapes. Confirm fit with your model number.

Replace a cracked or missing side rail grommet on your oven rack. This small plastic grommet fits into the rack rail to provide smooth gliding and support.

Missing or damaged ground screw can prevent proper electrical bonding. This 8-32 thread screw restores chassis grounding during installation or service.

Fix an oven that won't turn on or has a dead control panel. This control transformer steps down line voltage to power the controls and displays.

If your range has a strong burning smell or won't power on, the terminal block may be heat-damaged. This insulated connector restores safe power flow.

Replacement screw for securing range components like panels, brackets, and burners. Needed when original screws are stripped, missing, or damaged.

Terminal box housing cover for ovens and ranges. Protects electrical connections behind the unit. Replace if cracked, broken, or missing to restore appearance.

Sound dampening insulation for ovens and ranges. Replaces worn, damaged, or missing insulation that reduces noise during operation. Installs inside cabinet.

Range won't turn on or keeps tripping breaker? Melted or burnt terminal block disrupts power flow. DIY-friendly repair, typically 5-15 minutes to replace.

This replacement part is an electronic control panel. This electronic control board displays certain settings to the user during use and allows them to alter the controls as needed and according to their preferences. A new electronic control board might be needed if the connection has become worn down between the panel and the machine. If the display is no longer showing information about the settings during use, it might be best to replace the part. If the current control assembly is no longer responsive, it should be replaced as soon as possible.This is a genuine OEM replacement part made by Whirlpool and sold individually.
