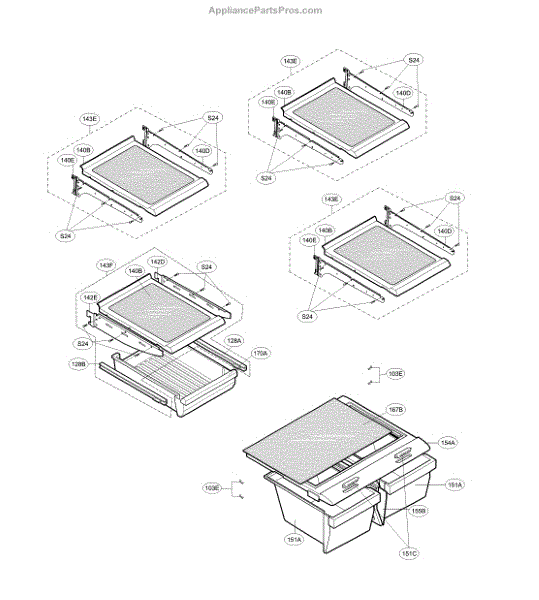

Parts for Lg LDC22720SW/03: Refrigerator Parts

This customized screw secures specific appliance components to maintain proper fit and prevent parts from loosening during normal use. Use it when replacing a missing or damaged fastener to restore secure assembly and reduce vibration. What it does:

• Fastens panels, brackets, or components to the appliance frame
• Keeps parts aligned to prevent rattling or movement during operation
• Replaces stripped, missing, or damaged screws that cause loose assemblies
• Helps maintain electrical and mechanical connections by holding parts in place

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid overtightening which can strip threads or crack plastic
• Keep removed hardware organized for reassembly; replace any additional damaged fasteners

The Screw is an OEM part for LG refrigerators. This part secures the shelf brackets within the refrigerator compartment.

Causes of a bad Screw can range from physical damage or impact to general wear and tear over time.

Symptoms of a faulty Screw  include:

• Shelves feeling loose or unstable
• Shelves sagging or not sitting level
• Shelves falling out or collapsing when loaded with items

This OEM LG part is also compatible with some Kenmore models.

This replacement screw secures appliance components in their proper position. Replacing a missing or damaged fastener restores a snug fit, reduces rattling or vibration, and helps keep assemblies aligned for reliable operation.

• Secures panels, brackets, and internal components as specified by your model's parts diagram
• Replaces stripped, rusted, or missing hardware
• Helps address symptoms like rattling/vibration noise, loose panels/trim, or minor misalignment
• Maintains a stable, safe assembly during normal use

• Disconnect power; turn off water and gas supplies if applicable
• Match screw to its original location; do not mix different lengths or types
• Start threads by hand to avoid cross-threading; tighten snugly—do not overtighten
• Follow your model's service/parts diagram for correct placement

This replacement screw secures specified panels or components inside your appliance. Refreshing worn or missing hardware helps restore a tight fit, reduce rattling, and keep assemblies properly aligned for reliable performance.

• Provides secure fastening for brackets, panels, or internal assemblies
• Replaces stripped, rusted, or lost hardware
• Helps reduce vibration and rattling noises
• Symptoms include loose panels, shifting components, or a screw that won't tighten

• Disconnect power and allow any hot surfaces to cool before servicing
• Wear cut-resistant gloves and eye protection
• Match length and thread to the original; replace like-for-like
• Start threads by hand to avoid cross-threading; do not overtighten

This is a genuine replacement screw used to secure appliance panels and components. It restores proper fastening so panels and assemblies stay aligned and operate safely. What it does:

• Fastens panels, brackets, and small assemblies to maintain structural integrity
• Replaces missing or stripped screws that cause rattling or loose parts
• Helps stop vibration-related noise when used in its original mounting locations
• Matches the OEM fit to ensure proper alignment and clearance

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or component damage
• Disconnect power to the appliance before working on electrical components
• Replace all matching fasteners for even fit

This slide rail mounts inside the refrigerator and guides a storage drawer so it opens and closes smoothly. Replacing a worn or broken rail restores proper drawer alignment and easy access to stored items. What it does:

• Supports the drawer and provides a smooth glide path along the cabinet wall
• Maintains alignment to keep the drawer level and on track
• Replaces cracked, warped, or worn rails that cause rough, uneven movement
• Common symptoms: drawer binds or sticks, tilts or sags, falls off track, or shows visible rail damage

• 1 slide rail

• Disconnect power to the refrigerator before servicing interior components
• Remove the drawer and any shelf/glass cover to access the rail
• Save and reuse existing mounting screws and any end caps/brackets; match the rail's orientation to the original if your model uses left/right rails
• Align the new rail with factory mounting points, tighten screws, and test for smooth operation

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This small fastener washer restores proper spacing and support under a screw or nut in your appliance. It helps distribute clamping force, protect mounting surfaces, and keep brackets and panels secure during normal operation and vibration. What it does:

• Distributes load under a screw or nut to prevent damage to the mounting surface
• Helps maintain correct spacing and alignment of the attached components
• Aids in keeping fasteners secure under vibration when assembled correctly
• Common symptoms: missing or damaged washer, loose/rattling parts, fastener won't tighten flush

• One washer

• Disconnect power and shut off water supply before servicing
• Note the original hardware order and orientation; replace any deformed or corroded pieces
• Install the washer flat against the mating surface under the fastener head or nut
• Tighten fasteners securely; do not overtighten to avoid stripping threads or deforming parts

This duct assembly routes dryer airflow through the appliance's venting system to help remove hot, moist air during cycles. It restores proper airflow routing so the dryer can vent efficiently and dry loads more reliably. What it does:

• Channels exhaust air from the blower to the external vent or internal ductwork
• Helps prevent moisture buildup and reduces drying times when functioning correctly
• Can reduce hot spots and minimize lint accumulation in the cabinet area
• May eliminate abnormal airflow noises caused by damaged or disconnected ducting

• One duct assembly

• Disconnect power (and gas if applicable) before servicing to avoid shock or fire hazard
• Inspect surrounding seals, clamps and mounting points; replace any damaged hardware for a secure fit
• Use basic hand tools; avoid sharp bends or kinks in the duct to maintain airflow

This holder rail secures and supports internal components in select LG appliances, restoring proper alignment and reducing movement or vibration. Replace a cracked, broken or worn rail to help stop rattling and improper component fit. What it does:

• Provides a stable mounting/support surface for internal parts that rely on the rail for alignment.
• Prevents shifting or vibration that can cause noise, wear, or misalignment.
• Install a new rail if the original is cracked, broken, warped or missing.
• Helps restore correct component positioning for reliable operation.

• Disconnect power and unplug the appliance before beginning any repair.
• Basic hand tools may be required; refer to the exploded parts list for disassembly steps.
• Inspect surrounding mounting points and fasteners; replace any damaged clips or screws.

This rail guide assembly supports and steers a refrigerator drawer along its track. Replacing a worn or broken guide restores smooth sliding and proper alignment, helping prevent binding and damage to bins and rails.

• Guides the drawer as it opens and closes for smooth movement
• Helps keep the drawer level and properly aligned on the track
• Restores easy operation when the rail is cracked, worn, or deformed
• Typical symptoms: drawer hard to slide, tilts or drops, scraping/grinding noises, visible damage to the rail

• Disconnect power and empty the affected drawer before servicing
• Remove the drawer/bin and any screws or locking tabs securing the old guide
• Transfer any reusable clips or end caps from the old guide to the new assembly if present
• Reinstall, ensure proper engagement on the track, and test for smooth operation

This rail guide assembly supports and guides a refrigerator drawer so it slides smoothly and stays aligned. Replace a cracked or worn rail to restore easy opening/closing and keep the drawer from jumping off its track.

• Provides the sliding track and side support for one refrigerator drawer/pan
• Restores smooth movement and proper alignment of the drawer
• Can help resolve sticking, binding, tilting, or the drawer popping off the track
• Often needed when the rail is cracked, stop tab breaks, or wear causes rough travel

• Disconnect power and empty the affected drawer before service
• Remove the drawer (and any shelf above) for clear access; note the original side/orientation
• Release locking tabs or remove mounting screws to swap the rail; secure the new assembly in the same positions
• Reinstall the drawer and test for smooth travel before reloading

This is the ice bucket that stores ice dispensed by your refrigerator's ice maker. A cracked, warped, or stuck bin can jam the auger or spill ice, leading to poor dispensing and messy freezers.

• Holds and dispenses harvested ice from the ice maker to the door chute or bin access
• Common failure signs: cracked bucket, ice not dispensing, auger not turning, ice clumping or spilling
• Restores smooth ice dispensing and proper storage in the freezer
• Built to fit the original mounting and drive interface for an easy swap

• Unplug the refrigerator and wear cut-resistant gloves
• Remove the old bin carefully; thaw any ice buildup before transferring
• Inspect the auger drive coupling for wear before installing the new bucket
• Seat the bucket fully so the drive engages; test dispense with a small amount of ice

This replacement shelf assembly restores a flat, secure storage surface in the fresh food compartment. It replaces a damaged or missing shelf so items stay organized and supported, seating into the factory rails for a stable, level fit. What it does:

• Provides a level platform for food storage in the refrigerator section
• Fits and locks into the shelf rails/brackets for proper support
• Replaces cracked, broken, sagging, or loose shelves
• Restores lost capacity when a shelf is missing or unsafe to use

• 1 refrigerator shelf assembly

• Unplug the refrigerator and clear items from the shelf area
• Carefully slide the old shelf out of the side rails; retain any hardware reused by your model
• Position the new shelf in the rails; insert the rear edge first, then lower the front until fully seated
• Handle carefully and confirm the shelf sits flat and secure before loading items

A replacement glass refrigerator shelf that provides a sturdy, easy-to-clean surface for storing food and containers. Restores lost storage space and helps keep items organized and visible. What it does:

• Supports food, containers and small appliances inside the refrigerator
• Creates a flat, stable storage surface for better organization
• Helps contain spills on a single surface for easier cleanup
• Restores damaged, cracked or missing shelving to regain full shelving capacity

• One glass shelf

• Handle glass carefully and wear cut-resistant gloves to prevent injury
• Remove food and other items from adjacent shelves before installing
• Slide into existing shelf tracks or clips until fully seated; do not force
• If shelf hardware is damaged or missing, replace mounting clips or supports before use

This shelf net is a mesh-style refrigerator shelf designed to support and contain food items while allowing airflow. It replaces torn, stretched, or missing nets to restore storage organization and help prevent items from shifting. What it does:

• Provides a flexible, ventilated surface for storing packaged foods, produce, or deli items
• Helps keep small or irregularly shaped items from falling through larger shelves
• Restores proper storage function when original netting is damaged, loose, or missing
• Compatible with designated shelf frames and snaps into place where equipped

• Unplug the appliance or turn off power to the unit before servicing for safety.
• Empty and remove food items from the affected shelf area before installation.
• Install by aligning the net with the shelf frame and securing per the owner's manual; do not force or modify parts.
• If installation requires removal of shelves or trim, keep fasteners and small parts organized and follow manufacturer instructions.

This replacement shelf assembly restores a flat, secure storage surface in the fresh food compartment. It replaces a damaged or missing shelf so items stay organized and supported, seating into the factory rails for a stable, level fit. What it does:

• Provides a level platform for food storage in the refrigerator section
• Fits and locks into the shelf rails/brackets for proper support
• Replaces cracked, broken, sagging, or loose shelves
• Restores lost capacity when a shelf is missing or unsafe to use

• 1 refrigerator shelf assembly

• Unplug the refrigerator and clear items from the shelf area
• Carefully slide the old shelf out of the side rails; retain any hardware reused by your model
• Position the new shelf in the rails; insert the rear edge first, then lower the front until fully seated
• Handle carefully and confirm the shelf sits flat and secure before loading items

The Shelf Assembly is an OEM part for LG refrigerators. This assembly provides a sturdy and stable surface for storing food items within the refrigerator. It is designed to fit securely into the designated slots, ensuring efficient use of space and easy access to stored goods.

Over time, shelf assemblies can become worn out or damaged due to regular use, overloading, or accidental impact. Common causes of a bad shelf assembly include cracking or breaking from heavy items, warping from temperature changes, or detachment from the support brackets.

Symptoms of a bad shelf assembly include:

• Cracks or breaks in the shelf
• The shelf not fitting securely or falling out of place
• Difficulty in sliding or adjusting the shelf
• Reduced storage efficiency due to instability

This OEM LG part is also compatible with Sears/Kenmore.

The Guide Assembly Rail is an OEM part for LG refrigerators. This assembly provides structural support and guidance for the refrigerator drawers, allowing them to slide in and out smoothly. It measures approximately 15 1/2 by 3 inches,.

Causes of a bad guide assembly rail can include wear and tear from regular use, damage from overloading the drawers, or physical impact. A compromised guide assembly rail can lead to difficulty in moving the drawers, affecting the usability of the refrigerator.

Symptoms of a bad guide assembly rail include:

• Drawers not sliding smoothly or getting stuck
• Drawers not aligning properly with the rail
• Unusual noises when opening or closing the drawers
• Visible damage or wear on the rail

This OEM LG part is also compatible with Sears/Kenmore models.

The Right Side Drawer Rail Guide is an OEM part for LG refrigerators. This component is designed to support and guide the movement of the refrigerator's drawers, allowing them to slide in and out smoothly. It is mounted on the right side of the drawer compartment and helps ensure the proper alignment and stability of the drawer.

Symptoms of a failing Right Side Drawer Rail Guide include:

• The drawer not sliding smoothly or getting stuck
• The drawer tilting or sagging on one side
• Unusual noises such as grinding or scraping when moving the drawer
• Visible damage, cracks, or wear on the rail guide

Causes of a bad drawer rail guide can include regular wear and tear from frequent use, physical damage from heavy or improperly loaded drawers, and deterioration over time due to temperature changes within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This replacement shutter knob snaps onto the refrigerator's vent lever and gives you fingertip control of the air shutter. Restores smooth, accurate vent adjustment so you can fine-tune airflow to the intended compartment.

• Attaches to the shutter/vent lever on a drawer or shelf cover
• Provides manual open/close control of the air passage
• May help fix: broken or missing knob, slider won't engage, vent stuck in one position, hard to adjust temperature in that compartment
• Durable OEM design for a precise, secure fit

• Unplug the refrigerator before servicing
• Remove the drawer or cover if needed for access to the vent lever
• Pull the damaged knob straight off; align the new knob with the keyed lever and press to seat
• Cycle the slider to confirm the shutter opens and closes smoothly before reassembling

This vegetable tray assembly provides the removable tray used in the refrigerator crisper area to support and separate produce. It restores a stable, easy-to-clean surface so drawers slide and store fruits and vegetables properly. What it does:

• Replaces a cracked, warped or missing crisper tray that supports produce in the refrigerator
• Restores a flat surface so fruits and vegetables sit securely and drawers close properly
• Helps maintain proper airflow and containment in the crisper area for typical produce storage
• Visible damage or a tray that no longer seats can cause items to fall or interfere with drawer operation

• Remove all food and the crisper drawer before installing; work on a clear, protected surface
• Align tray with the existing tracks or guides and slide into place until it seats
• Handle carefully to avoid chips or cracks if the tray is glass or brittle plastic
• Unplug the appliance or disconnect power first and follow all safety precautions

The Crisper Cover is an OEM part for LG refrigerators. This cover fits over the crisper drawers, providing a flat surface for additional storage and helping to maintain optimal humidity levels for the fruits and vegetables stored in the drawers below. The cover measures approximately 29 x 19 inches.

Causes of a bad crisper cover can include cracks or breakage from heavy items being placed on top of it, general wear and tear from frequent use, or damage due to impacts during cleaning or handling.

Symptoms of a bad crisper cover include:

• Cracks or visible damage
• Difficulty in fitting or aligning with the crisper drawers
• Reduced ability to maintain appropriate humidity levels in the crisper drawers

This OEM LG part is also compatible with Sears/Kenmore.

The LG light lens is an OEM replacement part responsible for protecting and diffusing the light emitted by the refrigerator's interior light bulb. The light lens cover helps create a well-lit interior environment, allowing users to see and access their stored food items clearly. It measures about 15 inches wide by 6 inches deep.

Over time, the light lens can become discolored, cracked, or damaged due to regular use and exposure to temperature changes. Causes of a bad light lens include wear and tear, impact from food items, or damage during cleaning.

Symptoms of a bad light lens include:

• Cracks or breaks in the lens
• Discoloration or clouding that reduces light clarity
• The lens not staying securely in place

This LG part can also be used on Kenmore/Sears appliances.

Color: clear. Measures about 28 inches wide by 14 inches deep.

The meat tray assembly is the shallow deli drawer inside your refrigerator. Replace it to restore clean, organized storage and smooth sliding when the original bin is cracked, broken, warped, or missing.

• Provides a dedicated compartment for deli meats and cheeses beneath a refrigerator shelf
• Slides on shelf rails for easy access and organization
• Common failure symptoms: cracked or broken bin, damaged tabs, drawer won't slide or stay on tracks, or missing drawer
• Restores proper fit so shelves and doors operate without interference

• Unplug the refrigerator and remove items from the affected shelf area
• Pull the old deli drawer straight out; lift to clear the rails and remove
• Align the new tray with both tracks and slide it fully in until seated
• Do not force or overload; inspect shelf rails/supports for damage before reuse

The Door Gasket is an OEM part for LG refrigerators. This gasket seals the refrigerator door, ensuring a tight closure to maintain the internal temperature and prevent cold air from escaping. By creating an airtight seal, the door gasket helps keep food fresh and reduces energy consumption.

You should replace the door gasket if it becomes worn or damaged. Causes of a bad door gasket can include wear and tear over time, damage from repeated opening and closing of the door, or warping due to temperature fluctuations.

Symptoms of a bad door gasket include:

• Warm spots inside the refrigerator
• Excessive condensation or frost buildup
• The refrigerator door not closing properly
• Increased energy bills

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Set Screw is an OEM part for LG refrigerators. This small but crucial component is used to secure various parts of the refrigerator, ensuring stability and proper alignment of the internal components. This set screw is sold individually.

Causes of a bad set screw can include stripping due to over-tightening, corrosion from moisture exposure, or wear and tear over time. A loose or missing set screw can lead to instability and misalignment of the refrigerator parts, potentially causing operational issues.

Symptoms of a bad refrigerator set screw include:

• Loose or wobbly internal components
• Doors not closing properly or misaligned
• Unusual noises from inside the refrigerator
• Parts becoming detached or misaligned

This OEM LG part is also compatible with Sears/Kenmore models.

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This door gasket assembly seals the perimeter of the refrigerator door to keep cold air in and moisture out. Replacing a worn gasket restores a tight seal, helps maintain proper temperatures, and reduces frost and condensation.

• Creates an airtight seal between the door and cabinet to prevent warm air infiltration
• Helps stabilize internal temperature and humidity for consistent cooling
• Reduces frost or condensation around the door opening
• Replace if the gasket is torn, warped, cracked, hardened, or not sealing; symptoms may include moisture, frost at the liner, or warmer-than-normal temps

• Disconnect power to the refrigerator before servicing
• Remove the old gasket from the door channel; some models require loosening retainer screws—do not overtighten on reassembly
• Warm the new gasket (soak in warm water or use a hair dryer on low) to relax folds before installation
• Seat corners first, press the gasket fully into the channel, then check for a continuous seal and adjust with gentle heat as needed

This door basket replaces a cracked or worn refrigerator door shelf to restore secure storage for bottles and small items. Durable molded plastic keeps contents organized and prevents spills on the door. What it does:

• Provides a stable shelf on the refrigerator door for bottles, condiments and small containers
• Replaces broken, cracked or loose door bins that allow items to fall or shift
• Restores proper alignment so the door closes without obstruction
• Matches OEM fit and mounting locations for a direct replacement

• Remove all food and items from the door before starting
• Lift out the old basket and snap the new basket into the same door track; no cutting or modification required
• Inspect door seals and surrounding trim during installation; handle edges carefully to avoid injury

The Door Basket Assembly is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing you to organize items such as beverages, condiments, and other small items for easy access. This basket is designed to fit securely on the door, making efficient use of available space.

Over time, the door basket assembly can become damaged due to heavy use, overloading, or accidental impacts. When the basket is compromised, it may not hold items securely or fit properly on the door.

Symptoms of a bad door basket assembly include:

• Cracks or breaks in the plastic
• The basket not staying securely in place
• Items falling out of the basket
• Difficulty in inserting or removing the basket

This OEM LG part is also compatible with Sears/Kenmore.

This snap-in hole plug button covers unused panel openings to restore a finished look and help keep out dust and moisture. A simple cosmetic trim piece that snaps into place and blends with the control panel. What it does:

• Covers exposed holes in control panels and consoles to improve appearance
• Helps block dust, lint and small debris from entering appliance openings
• Prevents accidental contact with internal components through unused holes
• Useful when replacing damaged buttons or finishing a repair

• One snap-in hole plug button

• Disconnect power to the appliance before working on the control panel
• Press the plug into the hole until it snaps flush; use a flat tool gently if needed
• Inspect fit and panel edge for damage; replace if cracked or loose to ensure a secure fit
• If panel removal is required, follow manufacturer instructions to avoid breaking clips

RAIL,SLIDE-LEFT

RAIL,SLIDE-RIGHT

This replacement door shelf bar secures items on a refrigerator door shelf, restoring proper storage and helping keep bottles and containers from sliding or falling when the door is opened. A simple, direct fix for broken or missing shelf retainers. What it does

• Holds door-bin items in place so bottles, jars and containers stay secure during normal use
• Replaces cracked, warped or missing shelf retainer bars that allow items to tip or fall
• Helps restore proper shelf function and usable door storage
• Designed to match the OEM fit and mounting points for a direct replacement

• Remove contents from the door shelf before replacing the bar
• Install by aligning with the shelf slots or mounting tabs and snapping or sliding into place per the original orientation
• Use gentle pressure to avoid damaging surrounding bins or trim; do not force metal parts
• Refer to your refrigerator's owner's manual for model-specific instructions and safety guidance

This connector secures and transmits motion between the drawer drive and the sliding assembly, restoring smooth drawer movement and alignment. It's a direct-fit replacement that helps fix sticking, slipping, or non-moving drawers. What it does:

• Couples the drawer drive mechanism to the sliding gear, allowing the drawer to open and close reliably
• Replaces worn or broken connector teeth or mounts that cause skipping or jammed operation
• Helps correct uneven or noisy drawer movement caused by damaged linkage
• Restores proper engagement so the drawer responds to normal open/close controls

• One connector as shown

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Inspect surrounding gears, tracks, and mounting points; replace any damaged parts for best results
• Basic hand tools are typically required; handle plastic gears carefully to avoid further damage

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

The Compressor Overload Protector is an OEM part for LG refrigerators. This critical component safeguards the compressor, which is the heart of the refrigeration system, from potential damage caused by excessive current draw or overheating.

Symptoms of a faulty compressor overload protector:

• Refrigerator not cooling properly or not running at all
• Compressor failing to start or repeatedly cycling on and off
• Buzzing or humming noises from the compressor area

Causes of a bad compressor overload protector can include electrical surges, wiring issues, or simply wear and tear over an extended period.

This OEM LG part is also compatible with Sears/Kenmore refrigerator models.

This PTC cover protects the refrigerator's PTC/compressor start device from dirt, moisture and accidental contact, helping the start device operate reliably. It's a simple replacement that restores the protective enclosure for the start assembly. What it does:

• Shields the PTC/compressor start relay and wiring from debris and moisture that can cause malfunctions
• Helps prevent accidental shorting or contact with terminals during operation or service
• Can resolve symptoms where the start device is exposed or the compressor area shows visible wear or damage
• Maintains correct positioning and protection of the start components for consistent compressor starting

• One PTC cover (protective enclosure) as shown

• Disconnect power to the appliance before starting any repair
• Replace only when the start device or cover is exposed and you can access compressor/start assembly safely
• Avoid bending or stressing terminals and wiring when removing or installing the cover

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This motor bracket is the OEM-style mounting bracket that secures the appliance motor to the cabinet, keeping the motor aligned and reducing vibration for reliable operation. It helps restore proper motor support and stable running. What it does:

• Provides a secure mounting point to hold the motor in correct position
• Maintains motor alignment to prevent belt slip and uneven wear
• Reduces vibration and noise caused by a loose or damaged motor mount
• Can resolve symptoms such as unusual motor noise, excessive vibration, or motor movement during operation

• Disconnect power (and gas if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance service manual for access steps
• Inspect surrounding components (mounting fasteners, motor and belts) and replace any damaged parts

This fan assembly circulates air through the appliance so coils and internal components operate at the proper temperature. Replacing a failed or noisy fan can restore airflow and help prevent performance issues caused by weak circulation.

• Moves air across coils and components to support designed cooling/dehumidifying performance
• Helps maintain steady airflow to reduce overheating or icing conditions
• A failing fan can cause little to no airflow even when the unit is running
• Common symptoms: fan not spinning, intermittent operation, loud rattling/grinding, vibration, or thermal shutdown

• Disconnect power before servicing to avoid electrical shock or injury
• Access the fan area per your unit's service information; remove panels/shrouds as needed
• Note wire connections and mounting order; transfer any brackets, grommets, or hardware from the old assembly
• After installation, ensure the fan spins freely and clears all shrouds, then test operation before reassembly

The Fan Assembly is an OEM part for LG refrigerators. It is responsible for circulating air within the refrigerator and freezer compartments, ensuring consistent cooling and optimal temperature distribution. The fan assembly helps maintain the freshness of your food by evenly distributing cold air.

Common causes of a bad fan assembly include electrical issues, worn-out bearings, or obstructions that prevent the fan from spinning properly.

Symptoms of a bad fan assembly include:

• Unusual noises coming from the refrigerator
• Inconsistent temperatures within the fridge or freezer
• Frost buildup in the freezer
• Refrigerator running continuously or not cooling effectively

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Sensor Assembly is an OEM part for LG refrigerators. It plays a critical role in the defrost system by monitoring the temperature of the evaporator coil to ensure that it remains at the optimal temperature to prevent frost buildup. The sensor sends signals to the control board, triggering the defrost cycle when necessary.

Over time, the defrost sensor assembly can fail due to wear and tear, electrical issues, or exposure to moisture and temperature fluctuations. When the defrost sensor malfunctions, it can cause improper defrost cycles, leading to excessive frost buildup, reduced cooling efficiency, or the refrigerator not defrosting at all.

Symptoms of a bad defrost sensor assembly include:

• Excessive frost buildup on the evaporator coils
• Refrigerator or freezer not maintaining the correct temperature
• Increased energy consumption
• Refrigerator not defrosting properly

This OEM LG part is also compatible with Sears/Kenmore.

This DC fan motor drives the refrigerator's fan to circulate air across the coils and through the cabinet. Replacing a weak or failed motor restores proper airflow for consistent temperatures and reliable cooling performance.

• Spins the fan blade to move air through the cabinet and across heat-exchange coils
• Helps maintain even, stable temperatures throughout the appliance
• Typical failure symptoms: fan not running or intermittent, unusual humming/squealing/rattling near the fan area, poor cooling or temperature fluctuations
• Can reduce hot spots by restoring proper air circulation

• Disconnect power before servicing; use cut-resistant gloves
• Access the motor behind the rear cover or interior panel (location varies by model)
• Note connector orientation; disconnect harness, mount the new motor, and securely route wiring
• Ensure the blade spins freely with no obstructions; restore power and verify fan operation

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

This reflector lamp is the interior light housing that helps direct and diffuse the refrigerator/freezer bulb for brighter, more usable interior illumination. Replaces a cracked, discolored, or missing reflector to restore even light inside the compartment. What it does:

• Reflects and directs the interior lamp's light to improve visibility inside the compartment
• Covers and protects the light bulb and lamp socket from splashes and debris
• Helps reduce hot spots and uneven lighting caused by a damaged reflector
• Common symptom: interior light is dim, uneven, flickering, or reflector is cracked/discolored

• One reflector lamp housing

• Disconnect power to the appliance before starting any repair
• Typically secures with a few screws or snap tabs; use appropriate screwdriver and keep fasteners
• Handle carefully to avoid cracking the plastic; check the bulb and socket when replacing the reflector
• Test the light after reassembly and restore power only when the housing is properly installed

The Capacitor is an OEM replacement part for  LG refrigerators. It is an electronic component located next to the refrigerator compressor that stores electric charge between cycles of the power supply circuit. The capacitor plays an important role in providing stable starting power to the compressor motor.

Causes of a bad capacitor next to the compressor can include heat distress over thousands of start/stop cycles of the refrigerator.

Symptoms of a bad capacitor include:

• The compressor makes loud buzzing or grinding noises during the operation
• The compressor fails to start or cycles on and off frequently
• Temperature fluctuations inside the refrigerator
• Error codes related to compressor issues

This genuine LG replacement is compatible also with Kenmore Elite model refrigerators

This replacement lamp socket holds and powers the appliance light bulb, restoring clear, reliable illumination when the light is switched on. Replace a heat-damaged, cracked, or loose socket to stop flickering or a light that won't come on.

• Holds the bulb securely and supplies electrical power
• Restores consistent interior lighting for visibility
• Replaces sockets with heat damage, cracks, or worn contacts
• Symptoms: light stays off with a good bulb, flickers intermittently, or the bulb feels loose

• Disconnect power before servicing and allow the area to cool
• Remove the lens/cover and bulb; release the socket (tabs or screws) to remove
• Transfer wires one at a time to the new socket; ensure tight, correct connections
• Use only the bulb type and wattage specified for your model; test before reassembly

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This sheathed defrost heater mounts at the evaporator and melts frost during the automatic defrost cycle to restore airflow and stable temperatures. Replacing a failed heater helps prevent ice-clogged coils, warm spots, and noisy fan interference.

• Melts frost from the evaporator coil during the defrost cycle to maintain proper airflow
• Symptoms of failure: persistent ice on the back panel, weak cooling, or the evaporator fan striking ice
• A failed heater can cause long run times and temperature swings
• Replace if the element tests open/short or shows visible damage

• Disconnect power before service; allow components to warm to reduce risk of cracking brittle plastics
• Remove shelves and the evaporator cover; carefully defrost ice—do not chip or pry against the fins
• Transfer original clips/insulators if present; route wires as original and make firm electrical connections
• After reassembly, ensure the drain area is clear and the fan spins freely

This DC motor powers the appliance's cooling fan to move air across coils and through compartments. Replacing a weak or failed motor restores proper airflow for steadier temperatures and quieter, more efficient operation. What it does:

• Drives the fan that circulates air through the evaporator or across the condenser
• Helps maintain even cooling and prevent temperature swings
• Replaces a motor that won't start, runs intermittently, or makes grinding/squealing noises
• Can help address poor cooling, warm spots, or frost/ice buildup from lack of airflow

• 1 DC motor

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan area per service information (rear interior panel or machine compartment)
• Transfer the fan blade and any grommets/brackets/screws from the original motor if needed
• Seat the motor securely, route wires clear of the blade, and verify the fan spins freely before reassembly

This decorative control panel covers and protects the appliance's user controls while giving the console a finished appearance. It restores the look and button access so you can see and press the controls normally. What it does:

• Replaces a cracked, faded, or damaged decorative panel that surrounds the control buttons
• Restores proper button labeling and tactile surface for reliable user input
• Helps protect the underlying control board and switch assembly from spills and wear
• Reduces light bleed or obscured buttons from cosmetic damage

• Disconnect power before beginning any repair to avoid shock or damage
• Removal typically requires opening the console and removing fasteners; keep track of screws and clips
• Handle edges and buttons gently to avoid scratching or bending the panel
• Inspect connectors and underlying components while installing; do not force the panel into place

This outer housing cover protects internal components and gives the appliance a finished appearance. It replaces a cracked, damaged, or missing panel to restore protection and reduce rattling. What it does

• Shields motors, controls, and wiring from dust and debris
• Prevents foreign objects from contacting internal parts
• Reduces vibration noise caused by loose or broken panels
• Restores the appliance's exterior fit and finish

• One outer housing cover

• Disconnect power to the appliance before starting any work
• Remove any trim, screws, or clips holding the old cover in place; keep fasteners for reassembly
• Handle the cover carefully to avoid scratching the finish or damaging mounting tabs
• Replace any broken clips or fasteners before finishing installation

The Case Assembly is an OEM part for LG side-by-side refrigerators housing electronic display modules. This assembly securely mounts LCD panels governing temperature readings and interface menus.

Causes of a bad case assembly can include moisture ingress degrading connections, stress fractures from repeated door openings, or impact damage compromising protective seals over time.

Symptoms of a bad case assembly include:

• Dimming or blank display lacking visibility
• Unresponsive touch controls with miscalibrated inputs
• Insecure mounting losing calibration on door
• Openings allowing corrosive vapors to damage electronics

Replace yours today with this genuine OEM LG assembly to safeguard refrigerator displays and customizable settings. Snap-fit clips produce a robust, water-tight seal around precision components. This replacement part is compatible with Kenmore, Samsung, and GE side-by-side models featuring similar interactive panels. Reliable mounting maximizes product life.

This display case is the molded housing for the refrigerator's control panel. It supports and aligns the user interface components and trim, restoring a secure, finished fit when the original case is cracked, broken, or out of shape.

• Positions and supports the display/selector board and buttons in the panel opening
• Provides mounting points for panel trim and fasteners
• Helps shield internal components from dust and incidental moisture
• Common signs it's needed: cracked or broken plastic, missing tabs, loose or misaligned control panel

• Unplug the refrigerator before servicing
• Remove the panel/trim per your model's procedure; note screw and clip locations
• Carefully handle the user interface board and wiring; avoid static discharge and pinched harnesses
• Transfer any brackets or clips from the old case to the new one, then reassemble and test

This refrigerator ice maker assembly automatically fills, freezes, and harvests ice cubes into the bin. Replacing a failed ice maker restores steady ice production and proper shutoff when the bin is full.

• Automates the ice-making cycle: fills the mold, freezes water, and ejects cubes into the bin
• Monitors bin level and stops production when full
• Helps address symptoms such as no ice production, not cycling/harvesting, or cubes not ejecting
• Can also help with intermittent or inconsistent ice output

• Unplug the refrigerator and shut off the water supply before servicing
• Remove the ice bin, unfasten mounting screws, and disconnect the wire harness
• Transfer existing brackets or covers if required; reconnect harness and secure the assembly
• Align the fill tube with the icemaker inlet; restore power/water and allow up to 24 hours for normal ice production

The Inlet Water Valve Assembly is an OEM part for LG refrigerators, designed to manage the flow of water into the refrigerator's ice maker and water dispenser. This part ensures that your refrigerator provides clean, fresh water and ice on demand by controlling the water pressure and flow through the system. The valve assembly is key to maintaining the refrigerator's functionality and the freshness of the water and ice it dispenses.

Causes of a bad Valve Assembly, Water can include mineral build-up from hard water, which can block the valve and prevent it from opening or closing properly.

Symptoms of a bad Valve Assembly include:

• No water dispensed
• Leaking water from the refrigerator
• Ice maker not producing ice
• Strange noises coming from the refrigerator when the dispenser is used

This OEM LG part is also compatible with some Kenmore models.

A compressible foam gasket that restores a tight seal between panels to help prevent air or water leaks, reduce vibration and noise, and improve overall sealing performance. Replaces worn or damaged foam seals to help appliances operate as intended. What it does:

• Forms a compressible seal to block air and moisture from leaking between mating surfaces.
• Helps reduce vibration, rattles and panel movement by cushioning contact points.
• Limits condensation and localized frost or moisture buildup caused by gaps in seals.
• Common signs you may need this part: visible gaps or torn foam, unusual noise from panels, or moisture where parts meet.

• Disconnect power (and water, if applicable) before beginning service.
• Remove trim or panels carefully to access the old gasket; keep hardware for reuse.
• Clean and dry mating surfaces before fitting the new gasket; press evenly into place for a continuous seal.

The Water Inlet Valve is an OEM part for LG refrigerators. It regulates the flow of water to the ice maker and water dispenser, ensuring they receive the correct amount of water needed for ice production and dispensing. This valve is critical for maintaining the efficiency and functionality of your refrigerator’s water systems.

Causes of a bad water inlet valve can include mineral buildup from hard water, electrical malfunctions, or general wear and tear over time. A faulty valve can disrupt water flow, leading to issues with both the ice maker and water dispenser.

Symptoms of a bad water inlet valve include:

• No water dispensing
•  No ice production
• Slow or irregular water flow
• Water leaks around the valve area

This OEM LG part is also compatible with Sears/Kenmore models.

The Inlet Water Valve Assembly is an OEM part for LG refrigerators, designed to manage the flow of water into the refrigerator's ice maker and water dispenser. This part ensures that your refrigerator provides clean, fresh water and ice on demand by controlling the water pressure and flow through the system. The valve assembly is key to maintaining the refrigerator's functionality and the freshness of the water and ice it dispenses.

Causes of a bad Valve Assembly, Water can include mineral build-up from hard water, which can block the valve and prevent it from opening or closing properly.

Symptoms of a bad Valve Assembly include:

• No water dispensed
• Leaking water from the refrigerator
• Ice maker not producing ice
• Strange noises coming from the refrigerator when the dispenser is used

This OEM LG part is also compatible with some Kenmore models.

This cover cap is a small plastic trim piece that protects exposed fasteners and improves the appliance's appearance. It snaps into place to hide mounting posts and help prevent snags or debris buildup. What it does:

• Covers and protects exposed screws, posts, or fasteners for a finished look
• Prevents lint, dust, and debris from collecting around the mounting point
• Reduces the chance of fabric snags or contact with sharp edges
• Restores worn or missing trim for improved cosmetics

• Disconnect power to the appliance before starting any service that exposes electrical components
• Usually installs by snapping over the post or press-fitting into the trim opening — no special tools required
• If needed, remove adjacent trim pieces to gain access, then reinstall trim in reverse order
• Inspect surrounding mounting hardware for damage and replace if necessary

This holder is a small mounting bracket that secures a mating component in place inside the appliance. Replacing a cracked or missing holder restores a firm, rattle-free fit and proper alignment.

• Provides a stable mount for the designated part
• Prevents shifting and vibration that can cause noise or premature wear
• Common signs of failure: broken tabs, stress cracks, or the attached part sagging or falling out
• When damaged, the connected component may be loose, noisy, or misaligned

• Disconnect power; if working near water tubing, also shut off the water supply
• Note the original orientation and mounting points; take a photo before removal
• Reuse existing fasteners and avoid overtightening to prevent cracking the plastic
• Ensure the attached component is secure and clears any moving parts before restoring power

The Freezer Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature within the freezer compartment, sending readings to the refrigerator’s control board to maintain optimal temperature levels. It plays a crucial role in ensuring that the freezer operates efficiently and keeps food items properly frozen.

Over time, the temperature sensor can fail due to regular wear and tear, electrical issues, or exposure to extreme temperatures. A faulty sensor can lead to inaccurate temperature readings, affecting the freezer's performance.

Symptoms of a bad freezer temperature sensor include:

• Inconsistent freezer temperatures
• The freezer running continuously or not running at all
• Frost buildup in the freezer compartment
• The control board displaying error codes related to temperature

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
