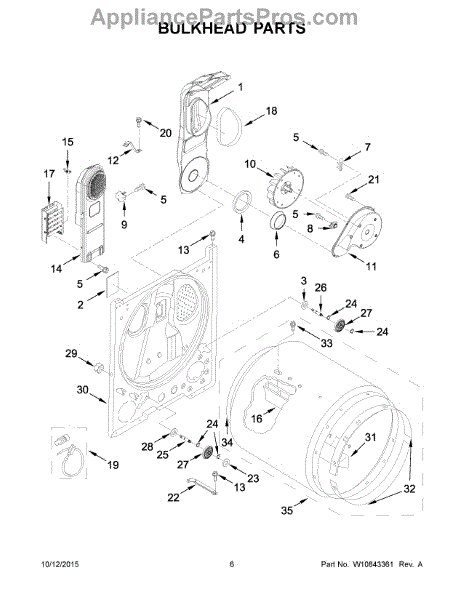

Parts for Whirlpool WED4815EW1: 04 - Bulkhead Parts

The PAD is an OEM part crafted specifically for Whirlpool dryers. This pad plays a crucial role in the dryer's operation by providing support and cushioning for the dryer drum. Its precise design and compatibility ensure proper fitting and reduce noise during the drying cycles, contributing to smoother operation.

A worn-out or damaged dryer pad can lead to disruptions in the dryer's performance. Causes of a faulty pad might include wear over time, physical damage, or exposure to high heat, resulting in increased noise or imbalance during operation.

Symptoms of a bad PAD may include:

• Unusual or increased noise during dryer operation
• Visible signs of wear or deterioration on the pad
• Drum imbalance or wobbling during use

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Seal is an OEM part for Whirlpool dryers. This specific seal is designed to fit around the blower housing, ensuring a tight seal that prevents air leaks within the dryer. The blower housing is a critical component of the dryer's air circulation system, which moves air through the drum to dry clothes efficiently.

Causes of damage to the Seal can include wear and tear from regular use, excessive heat degrading the material over time, or improper maintenance practices that can cause physical damage to the seal.

Symptoms of a bad Seal include:

• Longer drying times than usual
• Excessive heat buildup in the dryer
• Unusual noises from the dryer, such as rattling or buzzing

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Stop dryer downtime in its tracks — install the Whirlpool WP3392519 OEM Thermal Fuse in minutes.

OEM Quality Fast 1–2 Day Shipping* Free Tech Help

Why choose this fuse?

• Guaranteed OEM: built by Whirlpool to Whirlpool specs — no risky aftermarket clones.
• Broad compatibility: works with Whirlpool, Kenmore, Maytag, KitchenAid, Roper & more.
• Quick delivery: over 94 % of APP orders arrive in 2 days or less.

Fixes these common dryer problems

4-step DIY installation (≈10 min)

1. Unplug dryer and remove rear panel.
2. Locate thermal fuse on blower housing.
3. Transfer wires; secure new fuse with ¼-inch nut-driver.
4. Clean the vent & lint path before testing to prevent repeat failure.

*Video tutorial below.

Ready to get heat back?
Click Add to Cart now & enjoy industry-leading 1–2 day delivery on

This Dryer Cycling Thermostat is an OEM replacement part for Whirlpool dryers. It monitors internal temperatures and cycles power to the heating element accordingly. The thermostat ensures the drying air reaches and maintains the optimal heat level selected for fast, effective drying results.

Symptoms of a bad cycling thermostat include:

• The dryer not heating or heating inconsistently
• Frequent trips of the circuit breaker
• Slower than normal drying times
• Burned clothes due to overheating

Causes of failure may be related to normal wear over time, dust buildup affecting sensor readings, or incorrect thermostat calibration.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This dryer thermal cut-off kit is an authentic OEM replacement part for Whirlpool and Kenmore dryers. It is designed to prevent the dryer from overheating.

This Kit Includes:

• High Limit Thermostat (250°F Limit)
• A Cut Off Fuse (309°F Limit)
• Female Spade Terminals
• Jumper Wires

Over time, these components can fail due to electrical issues, lint buildup blocking the exhaust vent, or normal wear and tear. A malfunctioning thermal cut-off kit can result in overheating, which can pose a safety hazard and affect the dryer’s performance.

Symptoms of a bad Thermal Cut-Off Kit include:

• Dryer not heating
• Dryer overheating
• Dryer shutting off mid-cycle
• No response when attempting to start the dryer

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Blower Wheel is an OEM part for Whirlpool dryers. This component is crucial for the proper circulation of hot air within the dryer drum, ensuring efficient drying of clothes by directing airflow through the drum and out the exhaust.

Common causes of a bad blower wheel include accumulated lint and debris obstructing the wheel, physical damage from foreign objects, or general wear from prolonged use. A faulty blower wheel can significantly reduce drying efficiency and may cause the dryer to overheat.

Symptoms of a bad blower wheel include:

• Longer drying times for clothes
• Unusual noises during the drying cycle
• Overheating of the dryer
• Poor airflow from the dryer vent

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Specs: 10-16 x 1/2 inch.

The Heater Box is an OEM part for Whirlpool dryers. It houses the heating element that generates the hot air required to dry clothes efficiently. The heater box ensures optimal heat distribution within the dryer, contributing to uniform and effective drying cycles.

Causes of a bad Heater Box include overheating, which can warp or damage the box, restrictions in airflow causing inefficient heating, and physical damage that can compromise the box's integrity.

Symptoms of a bad Heater Box include:

• Clothes taking longer than usual to dry
• The dryer operating at higher temperatures than normal
• Unusual noises during operation, indicating potential airflow or mechanical issues
• The outside of the dryer becoming unusually hot during cycles

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hi-Limit Thermostat is an OEM part for Whirlpool dryers. It functions as a critical safety device that monitors and controls the temperature within the dryer, preventing it from overheating. When the dryer reaches a temperature that is too high, this thermostat will cut off the power to the heating element to mitigate the risk of fire.

Symptoms of a bad Hi-Limit Thermostat include:

• Dryer not heating adequately or at all
• Clothes taking longer than usual to dry
• The dryer repeatedly shutting off during a cycle
• Excessive heat emitted from the dryer even on lower settings

Causes of a bad Hi-Limit Thermostat can include a malfunction due to electrical issues, lint buildup causing restricted airflow and increased temperature, or failure of other components like the cycling thermostat that can cause the dryer to overheat.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Dryer Drum Baffle is an OEM replacement part designed for Whirlpool dryers. The baffle, located inside the drum, helps lift and tumble clothes during the drying cycle, ensuring even and efficient drying. It agitates the clothing, allowing air to circulate freely and preventing tangling.

Note: This is the tall baffle.

Over time, the drum baffle can become loose or damaged due to frequent use and contact with clothing or objects left in pockets. Physical wear or repeated impacts might cause it to crack, detach, or warp, reducing its ability to tumble clothes properly.

Symptoms of a faulty Drum Baffle include:

• Clothes not drying evenly or efficiently
• Unusual noises coming from the drum, such as rattling or banging
• Loose or detached baffle within the drum

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Restore full heat and end long dry cycles - install the Whirlpool OEM Dryer Heating Element.

Why this heating element?

• Factory-spec 5400 W / 240 V heating element with nickel-chromium coil - built by Whirlpool to Whirlpool OEM standards.
• Broad compatibility: fits Whirlpool, Kenmore 110-series, Roper, Estate, Amana, Maytag & more 27-inch dryers.
• Built to last: high-temp terminals & mica insulation resist fatigue and hotspots.

Fixes these common dryer problems

DIY install — about 20 minutes

1. Unplug dryer and remove back panel to access heater housing.
2. Disconnect wires; remove housing screws and slide assembly out.
3. Swap old element for new, re-use hi-limit thermostat if still good.
4. Re-assemble, run test cycle - enjoy fast, even drying.

The Lint Screen Housing Foam Seal is an OEM part for Whirlpool dryers. This seal is placed around the lint screen housing to prevent air leaks and ensure that the dryer operates efficiently by directing airflow properly through the lint screen. By maintaining a tight seal, this foam helps to optimize the dryer’s performance, reduce drying times, and prevent lint from escaping into the internal parts of the dryer, which can lead to potential maintenance issues and decreased efficiency.

Symptoms of a failing lint screen housing foam seal include:

• Increased lint buildup inside the dryer beyond the lint screen
• Longer drying times due to inefficient air circulation
• Excessive heat and humidity within the dryer

Causes of foam seal deterioration typically involve normal wear and tear, exposure to high heat which can degrade the material, or improper maintenance that can tear or dislodge the foam.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Heating Element Connecting Wire is an OEM part for Whirlpool dryers, designed to provide a secure electrical connection to the dryer's heating element. This critical component ensures that the heating element receives the power it needs to generate heat for drying clothes.

Causes of a bad heating element connecting wire can include overheating, physical damage, or wear and tear over time. These issues can lead to a loss of connectivity, resulting in the heating element failing to heat up.

Symptoms of a bad Heating Element Connecting Wire include:

• The dryer not heating up despite having power
• Intermittent heating, suggesting a loose or faulty connection
• Unusual smells or signs of burning, indicating overheating or damage to the wire

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Push Clip is an OEM replacement part for Whirlpool dryers. Situated internally near the rear cylinder wall, it firmly secures the drum support roller assembly.

Causes of failure relate to fatigue from years of absorbing drum impacts and associated mechanical stresses. Corrosion penetration if moisture enters the clip mounting area increases operational resistance over time as well.

Symptoms consist of:

• Uneven drying and weakened tumbling action inside the cylinder
• Vibration or noise emerging from the rear roller area
• Premature wear signals stemming from dislocated roller assembly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Drum Support Wheel Retainer is an OEM part for Whirlpool dryers. This part secures the drum support wheels in place, ensuring that the dryer drum rotates smoothly and quietly during operation. The retainer is designed to fit precisely, preventing the support wheels from loosening or wobbling, which can lead to inefficient drying and increased wear on other components.

Over time, retainers can wear out or become damaged, potentially leading to a loose drum support wheel. This can cause the dryer to operate noisily, vibrate excessively, or even damage the drum itself if not addressed promptly.

Symptoms of a bad Drum Support Wheel Retainer include:

• Unusual noises, such as squeaking or thumping, coming from the dryer
• Excessive vibration during operation
• The dryer drum may feel unstable or wobble when turned by hand

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drum Support Roller Shaft - Left is an OEM part for Whirlpool dryers. It is specifically designed to support the drum roller, ensuring smooth rotation of the dryer drum during operation. This shaft is essential for maintaining the drum's alignment and stability, allowing for effective and efficient drying of clothes.

Causes of a bad drum support roller shaft can include wear and tear from regular use, accumulation of lint and debris, or damage from overloading the dryer. These factors can lead to the shaft becoming worn out or bent, impairing the dryer’s performance.

Symptoms of a bad drum support roller shaft include:

• Squeaking or grinding noises during the drying cycle
• The dryer drum not rotating smoothly or being off-balance
• Increased drying times or incomplete drying of clothes

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drum Support Roller Shaft - Right is an OEM part for Whirlpool dryers. This shaft provides support for the drum roller, allowing the dryer drum to rotate smoothly and efficiently during drying cycles.

You should replace the drum support roller shaft if it becomes worn, bent, or damaged. Causes of a bad drum support roller shaft can include regular wear and tear, overloading the dryer, or exposure to high temperatures, which can affect its structural integrity.

Symptoms of a bad drum support roller shaft include:

• Unusual noises such as squeaking or grinding during operation
• The dryer drum not rotating smoothly or becoming stuck
• Excessive vibration or wobbling of the dryer drum
• Visible wear or damage on the roller shaft

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

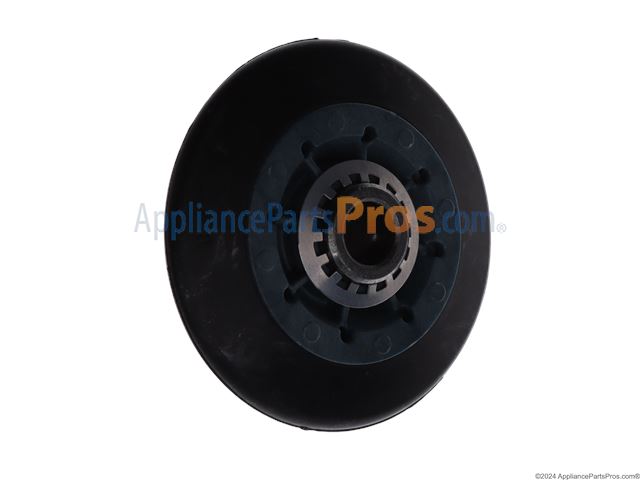

The Drum Support Roller is an OEM replacement part for Whirlpool dryers. It plays a crucial role in supporting and facilitating the smooth rotation of the dryer drum during the drying cycle.

Symptoms of needing to replace the drum support roller include:

• Excessive noise or grinding sounds coming from the dryer drum
• Difficulty in rotating the drum or drum not turning at all
• Visible signs of wear, cracking, or damage on the existing roller(s)
• Increased vibrations or shaking during the drying cycle

Causes of a faulty drum support roller can include normal wear and tear over time, exposure to excessive heat or lint buildup, or physical damage due to impact or overloading.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore dryer models.

The Bulkhead is an OEM component for Whirlpool dryers. As a structural panel, it secures the rear of the appliance while enabling airflow behind sliding doors.

Formed from durable composite, the lightweight bulkhead installs easily into precise slotted tracks inside the chassis. This allows full retraction during maintenance without removing additional panels.

Causes of a faulty bulkhead can include cracked welds or screws stripping their anchors from extreme force vibration over many years of use.

Causes of a bad bulkhead can include:

• Noisy rattling and resonance as the dryer operates
• Restricted door movement from misalignment
• Inability to fully access internal components
• Excessive ducting leaks from gasket compression failure

Replace yours with this genuine Whirlpool bulkhead to restore smooth, tight operation. Compatible with Kenmore, Maytag, and KitchenAid dryers.

Short baffle

The Bearing Ring for Front Support is an OEM part for Whirlpool dryers. It provides support and stability to the dryer's front drum. The bearing ring helps to reduce friction and ensure smooth rotation of the drum during the drying cycle. It helps to maintain proper alignment and balance, preventing excessive noise and vibration during operation.

A bad bearing ring can occur due to wear and tear over time, high usage, or damage from foreign objects getting caught in the drum. If the bearing ring becomes worn, cracked, or damaged, it can lead to loud squeaking or grinding noises coming from the dryer.

Symptoms of a bad bearing ring for front support include:

• Loud squeaking or grinding noises during operation.
• Excessive vibration or shaking of the dryer.
• Difficulty in rotating the drum manually.
• Visible damage or wear on the bearing ring.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear panel onto the cabinet frame, ensuring a sturdy connection between housing components.  Proper installation is critical for the washer's structural integrity.

Causes of a bad screw include corrosion from repeated water exposure or stresses from years of use. Loosening can occur from vibrations weakening the threads over time.

Symptoms of a bad screw include:

• Rear panel detaching from frame opening gaps
• Increased noise and vibrations from a compromised seal
• Stress on other connections from improper mounting points
• Potential leak paths from openings near hoses or tub areas

This OEM Whirlpool replacement screw helps maintain a tight panel closure. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Felt Drum Seal is an OEM part for Whirlpool dryers. This part creates a tight seal along the edge of the dryer drum, preventing hot air from escaping and ensuring efficient operation. The felt seal helps to minimize noise and vibration during the drying cycle by cushioning the space between the drum and the dryer body.

Over time, the felt drum seal can wear out, become compacted, or tear, leading to potential issues such as increased drying times, higher energy consumption, and excess noise.

Symptoms of a bad Felt Drum Seal include:

• Clothes taking longer to dry
• Unusual noises or increased vibration during operation
• A visible gap between the drum and the dryer body
• Excessive lint buildup inside the dryer beyond the lint trap

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
